400 series Vario 400 series downdraft ventilation Stainless steel Width 4 5/16"" (11 cm)
- Power levels depend on the remote fan unit, see table on pages 180-181.
- Manual opening of the ventilation element.
- Closing element made of stainless steel, dishwasher-safe.
- Metal grease filter, dishwasher-safe.
- No connecting piece included.
- Sound level min. 56 dB / max. 68 dB normal mode.
- For each VL one remote fan unit is recommended.
- Maximum cooktop width between two VL: 60 cm.
- Appliance can be snapped into the worktop from above. Additional fixing by clamps accessible from bottom up, clamping range 30-50 mm.
- If installing with the appliance cover VA 440 or filler strip VA 450 take into account the additional space required for the depth.
- If combining several appliances with at least one appliance cover, the filler strip VA 450 is required to compensate for the depth of the appliance without the appliance cover.
- If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.

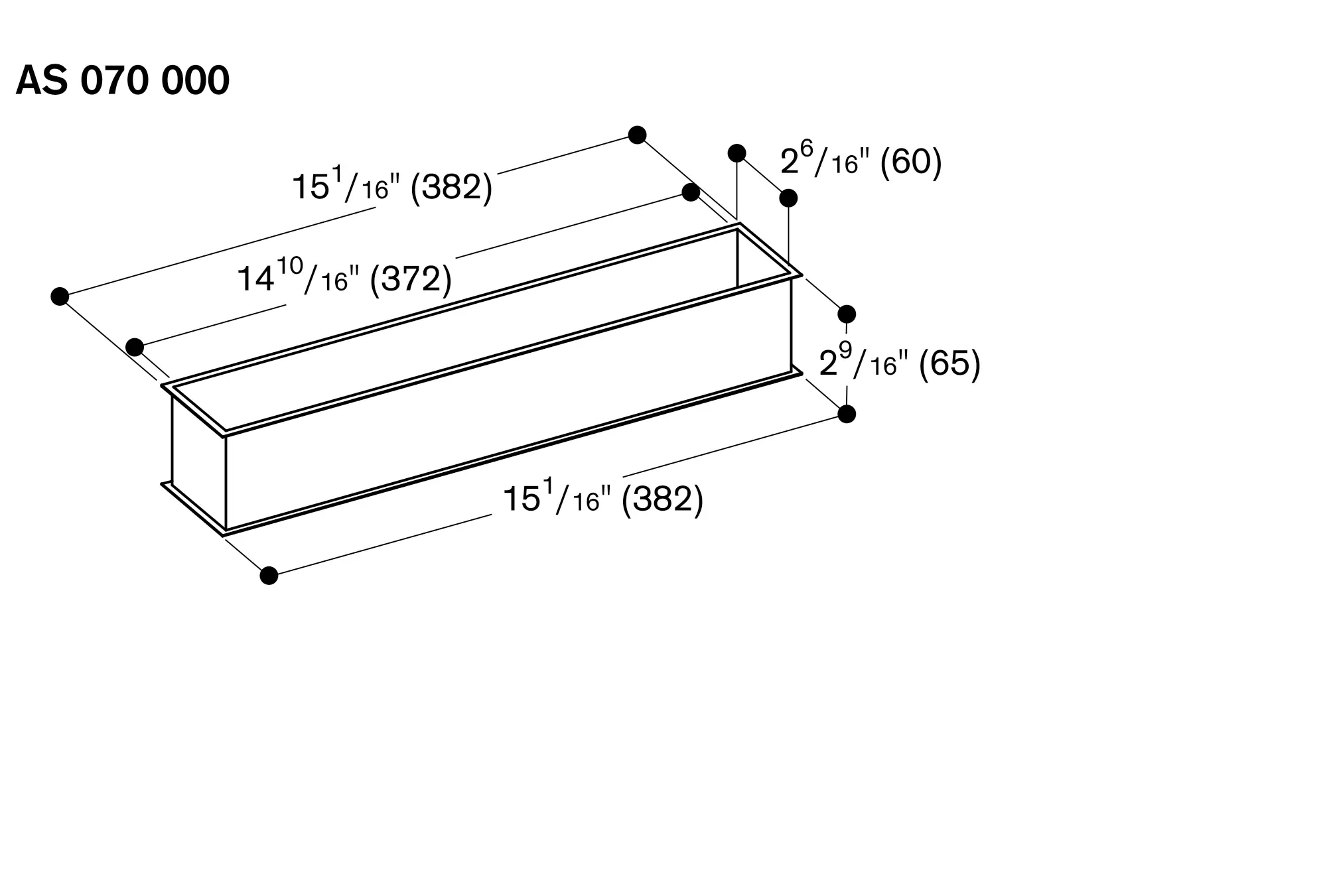

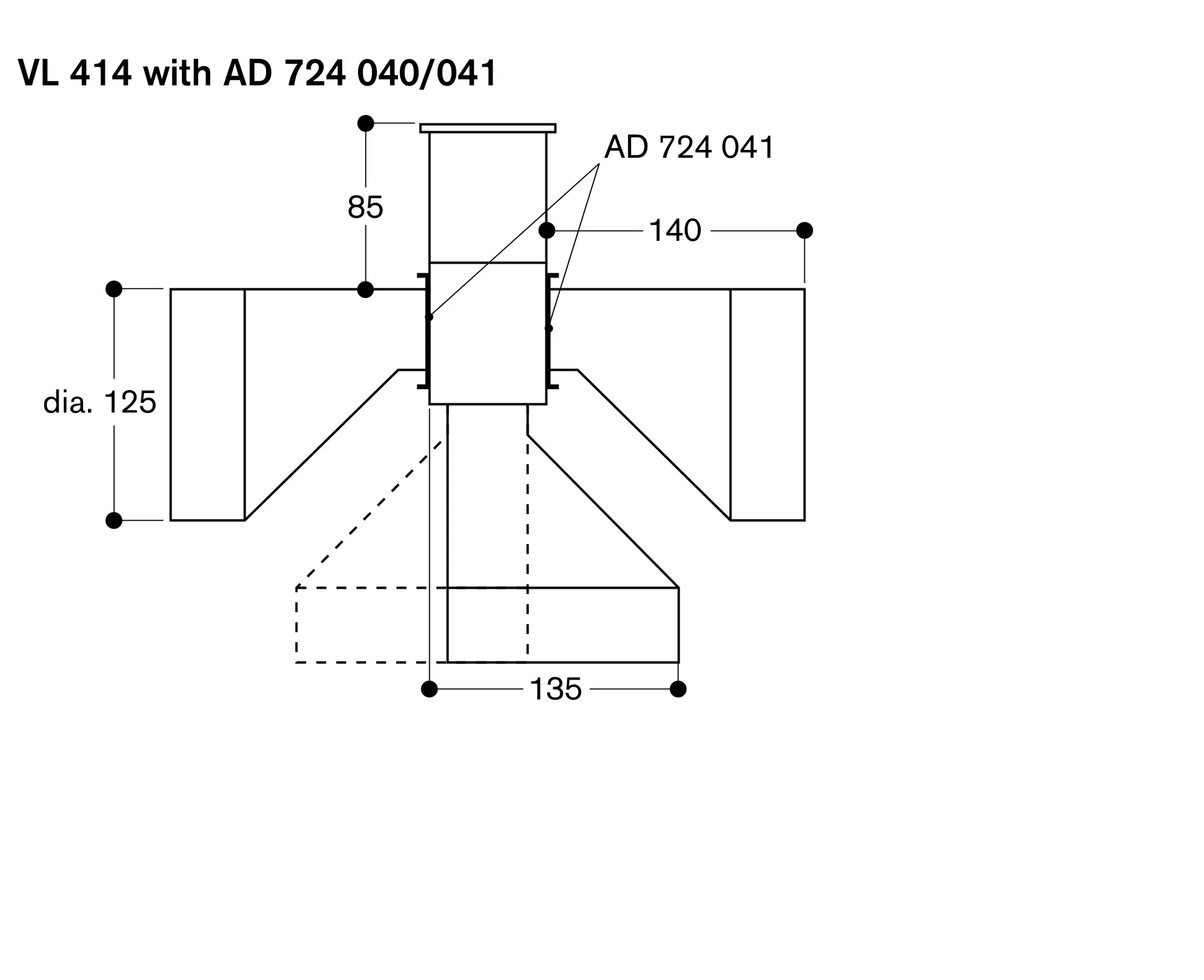

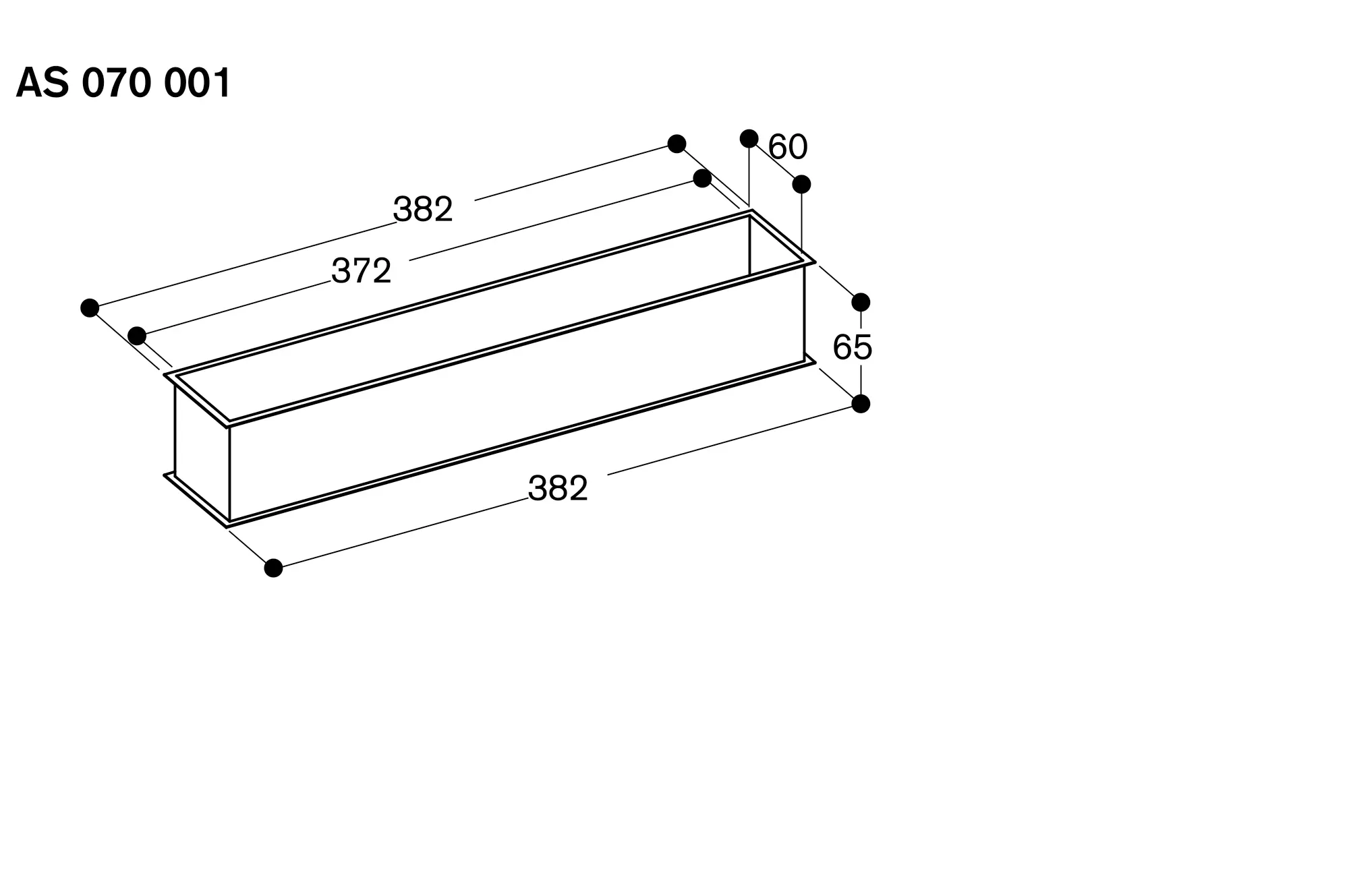

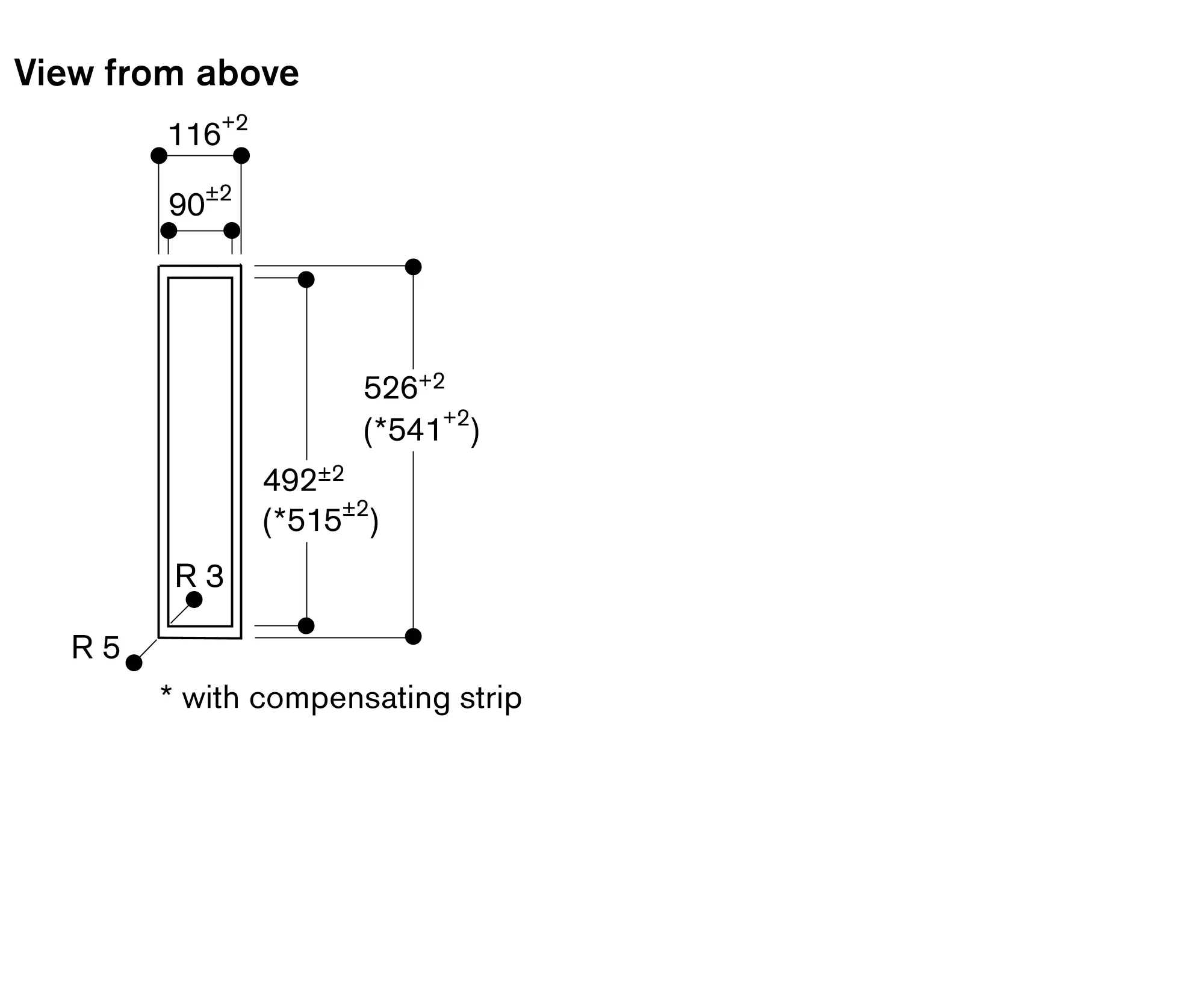

- In the cut-out, the installation system requires the side edge to be at least 1/2" for surface mounting and at least 3/8" mm for flush mounting. Ensure a continuous cut surface of 90°.
- The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
- Additional instructions for flush mounting:

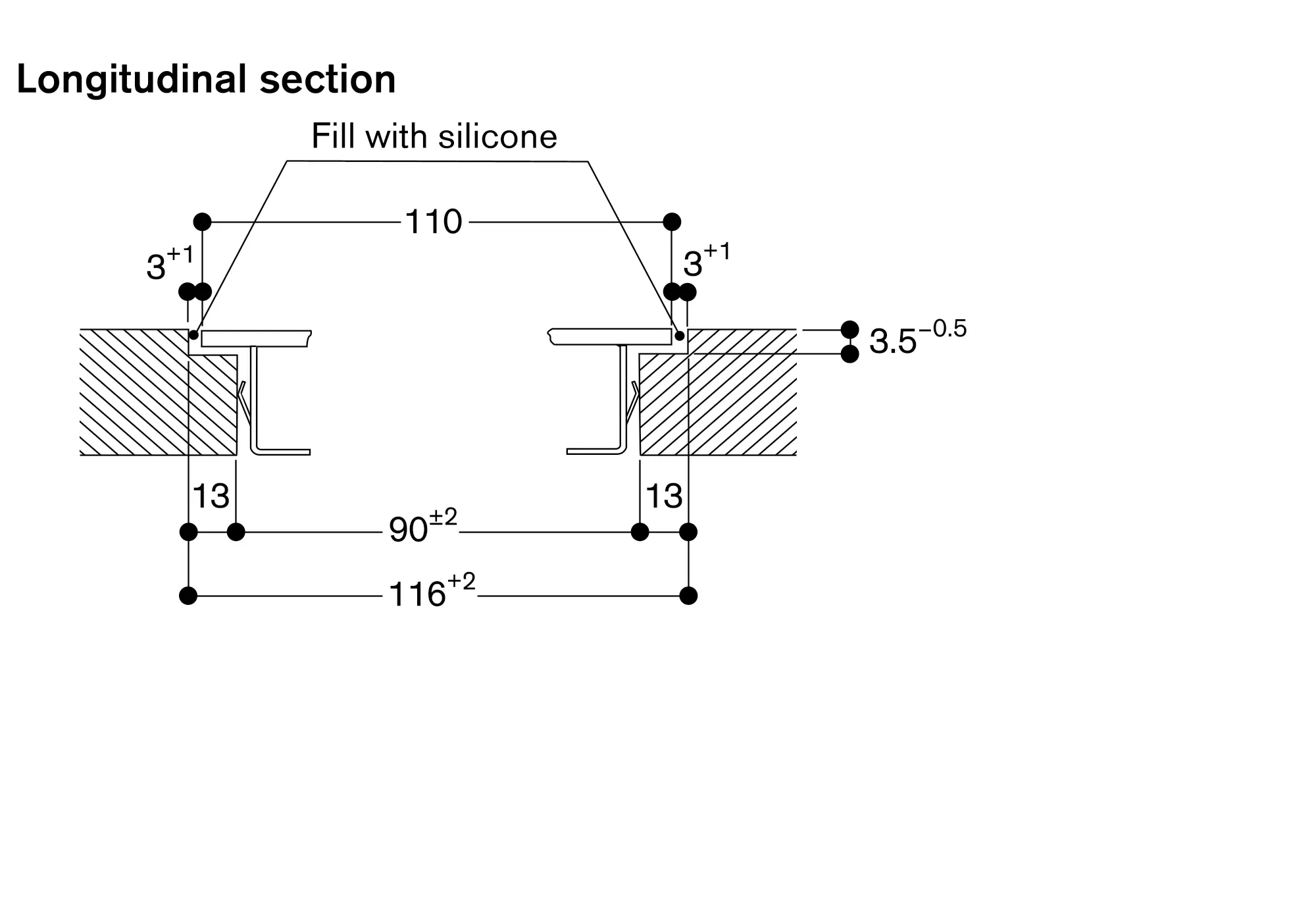

- Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.
- The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
- The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
- If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.
- If operated next to gas appliances, the ventilation moulding AA 414 010 is recommended to ensure maximum performance of the cooktop.
- If installed next to VP 414, the flat duct must not be positioned underneath the VP 414.
- 60 Hz. Plan for a 6.6' connection cable between VL414 downdraft and AA 490 control knob.
- 2 accessories found for Vario 400 series downdraft ventilation
