Highly efficient ventilation system at the cooktop

Flexible power distribution, precise extraction of cooking vapours only at the open ventilation elements

Can be perfectly combined with other Vario 400 series appliances

Precision crafted 3mm stainless steel frame

For surface-mount installation with a visible edge or for flush installation

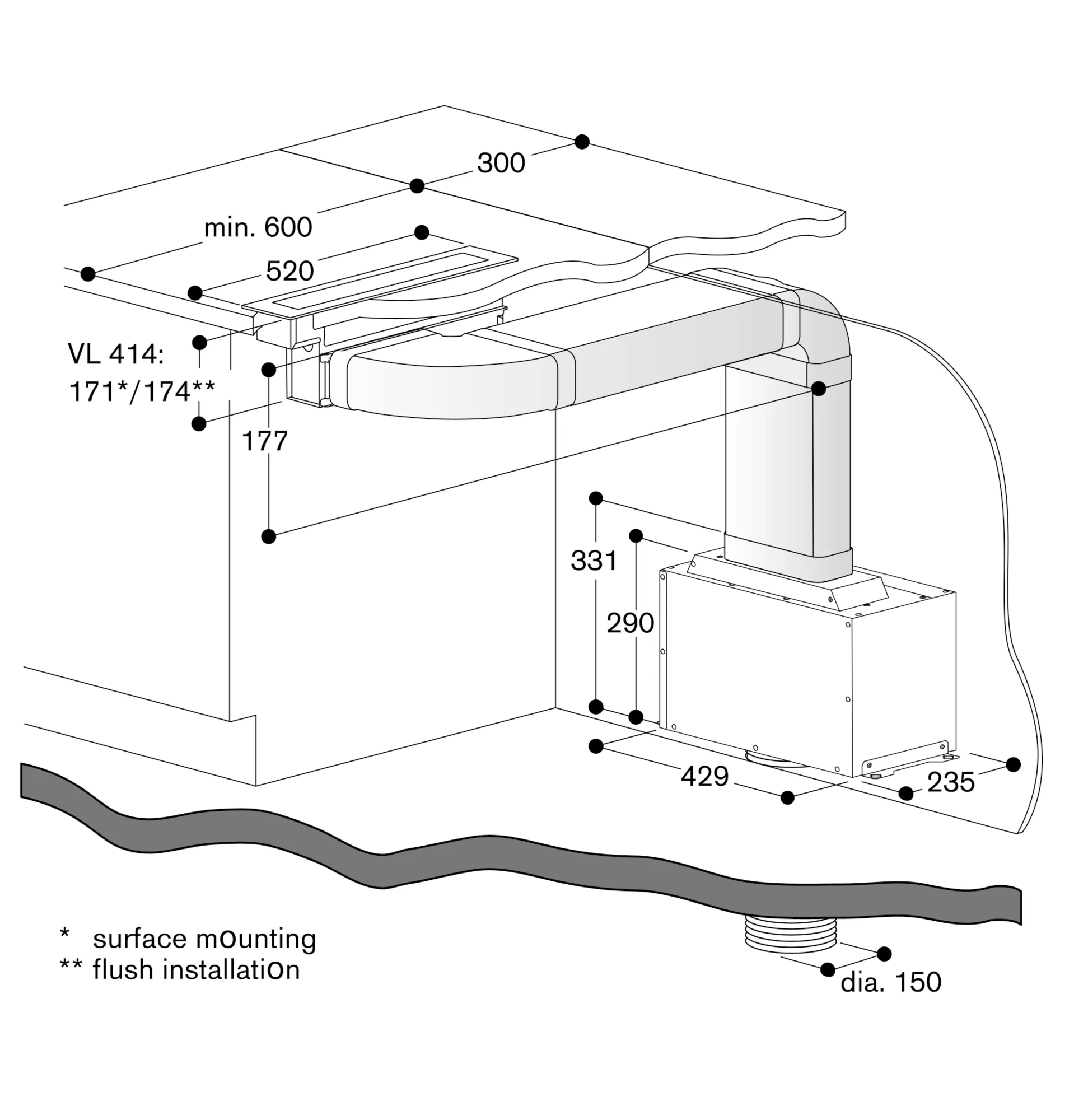

For operation with 400 series AR400742 inline, AR401742 remote or AR413722 and AR410710 recirculation blowers.

Noise level depends on the built-in situation.

Manual opening of the ventilation element.

Closing element made of stainless steel, dishwasher-safe.

Metal grease filter, dishwasher-safe.

Sensor-controlled operation of the AR blower.

For each VL one blower is recommended.

Maximum cooktop width between two VL: 24" (60 cm).

Appliance can be snapped into the worktop from above. Additional fixing by clamps accessible from bottom up, clamping range 30-50 mm.

If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.

The bearing capacity and stability,

in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.

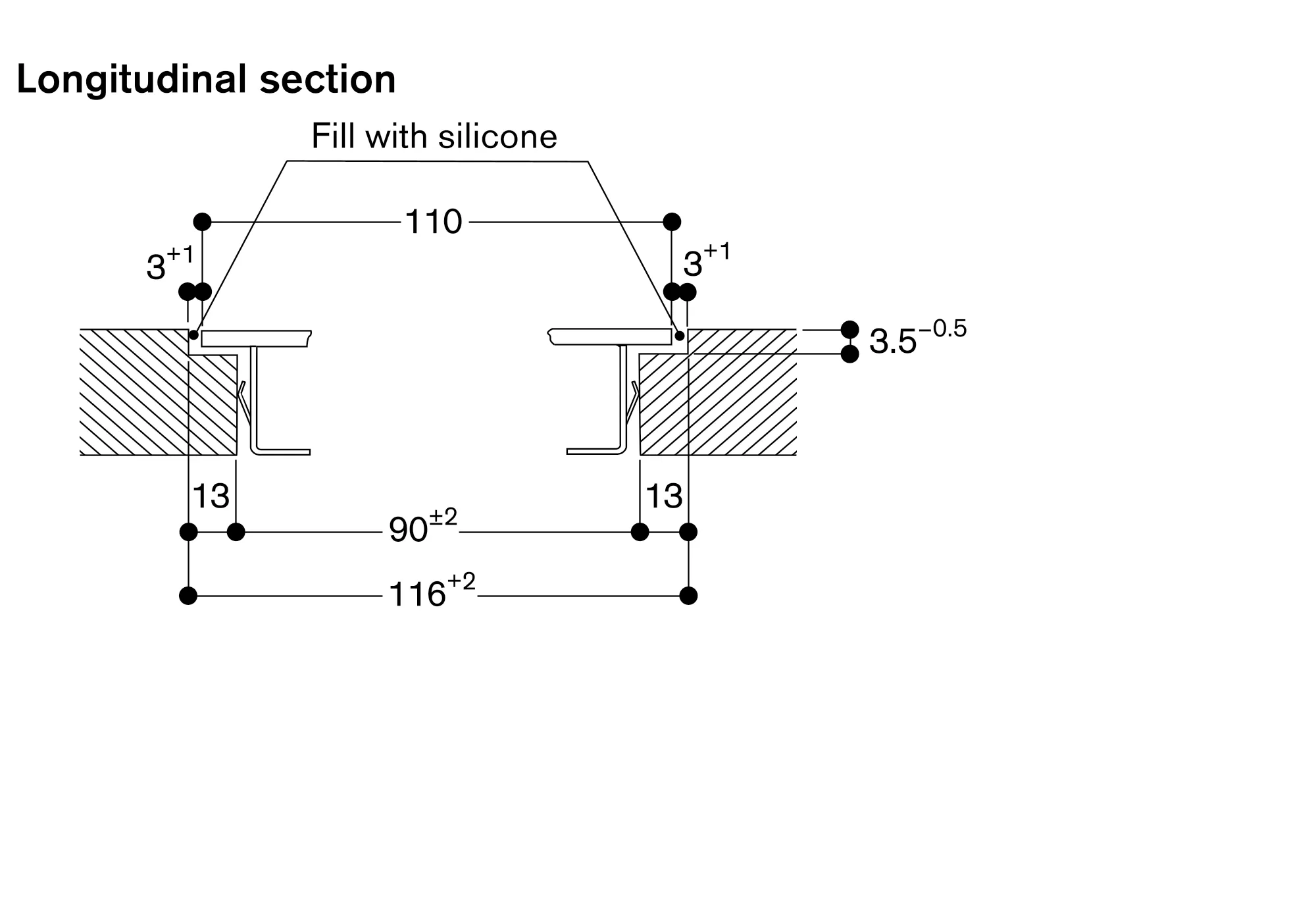

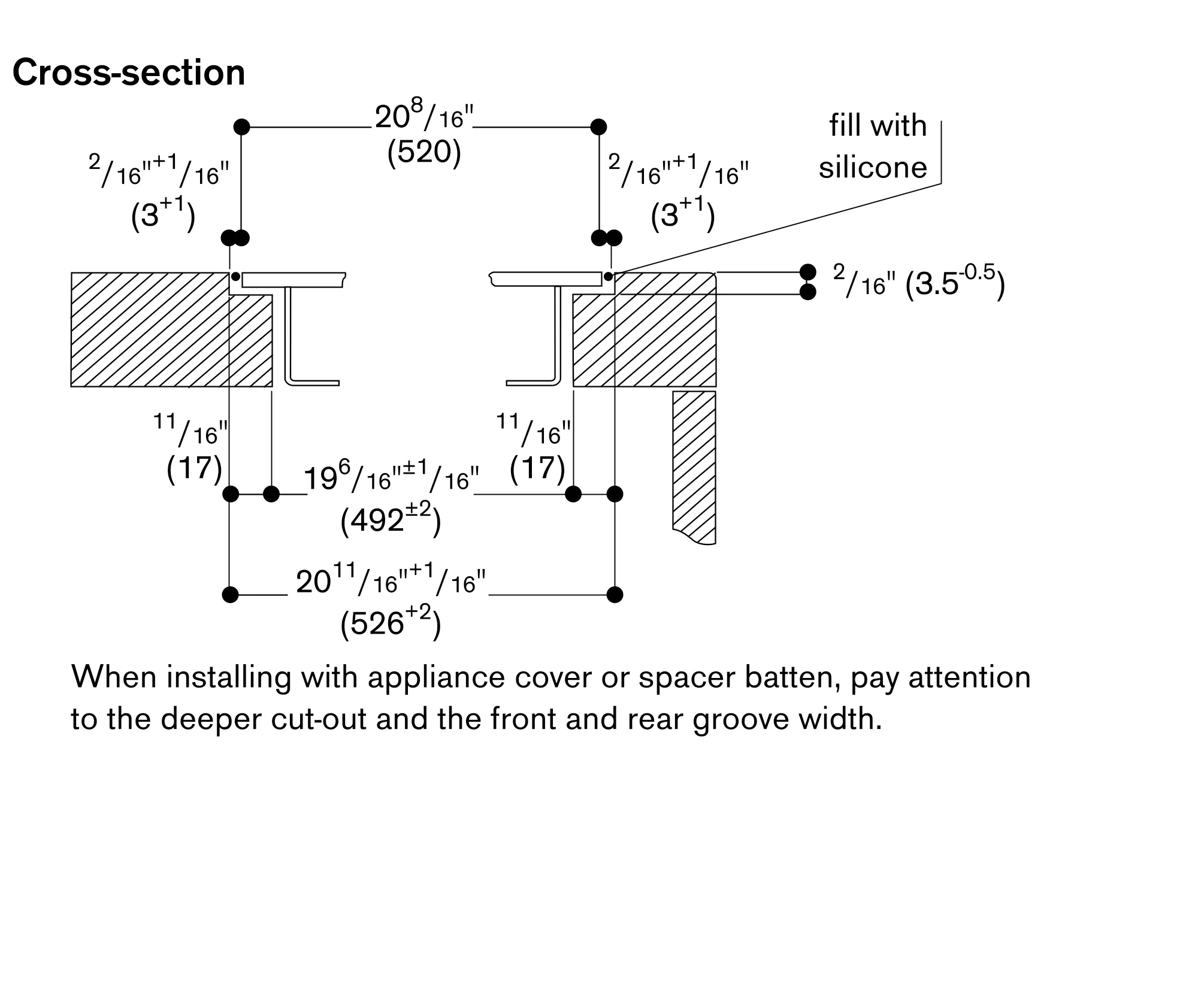

Additional instructions for flush mounting:

Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.

The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.

The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.

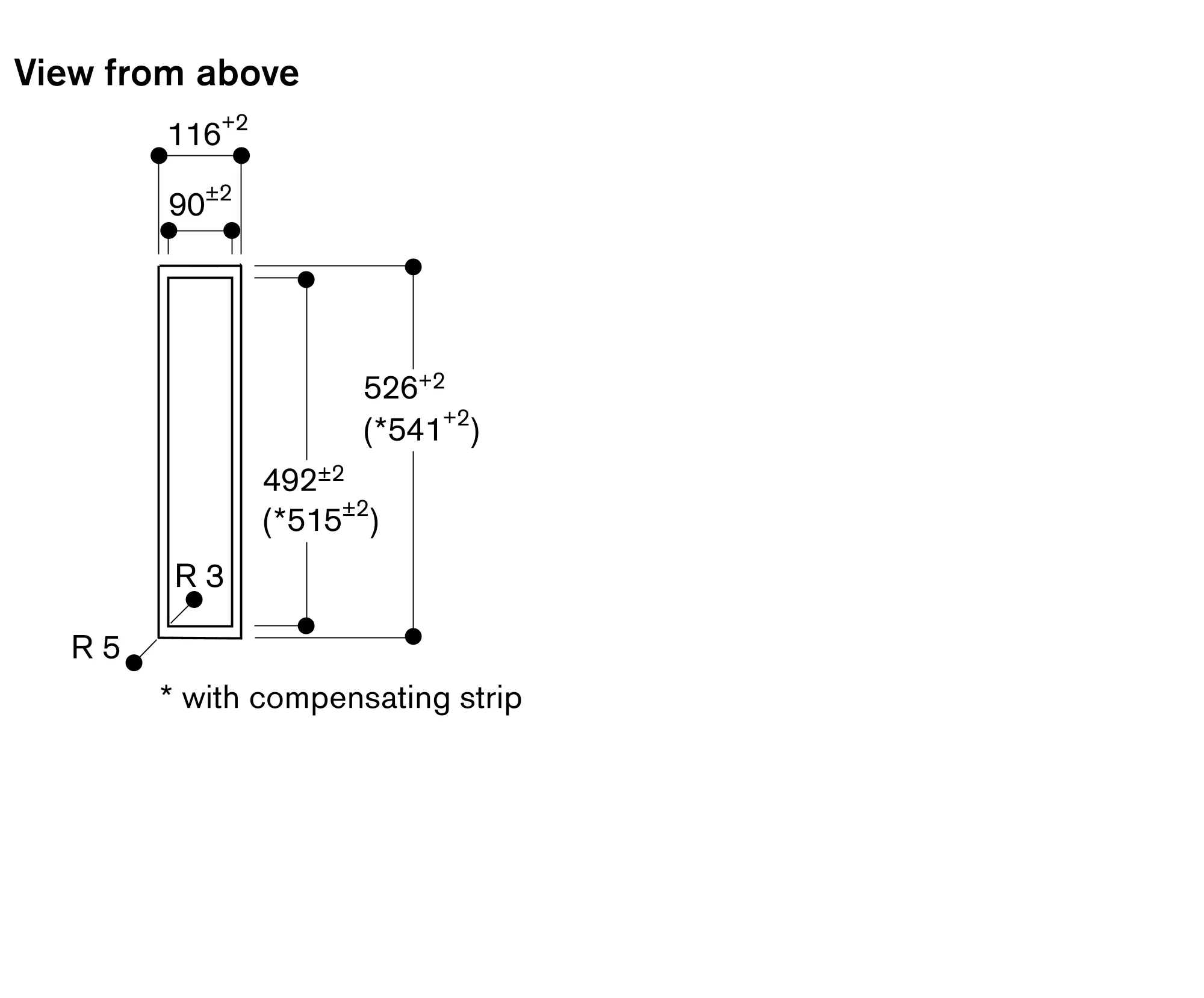

If installing several appliances in individual cut-outs allow for a division bar of inimum 1 ³¹⁄₃₂" (50 mm) between the individual cut-outs.

If operated next to gas appliances, the air deflector AA 414 010 is recommended to ensure maximum performance of the cooktop.

If installed next to VP 414, the flat duct must not be positioned underneath the VP 414.
