200 SeriesGasCG280212CA
Gas

200 series Gas cooktop 30" Natural gas 15 mbar
CG280212CA

1 / 4

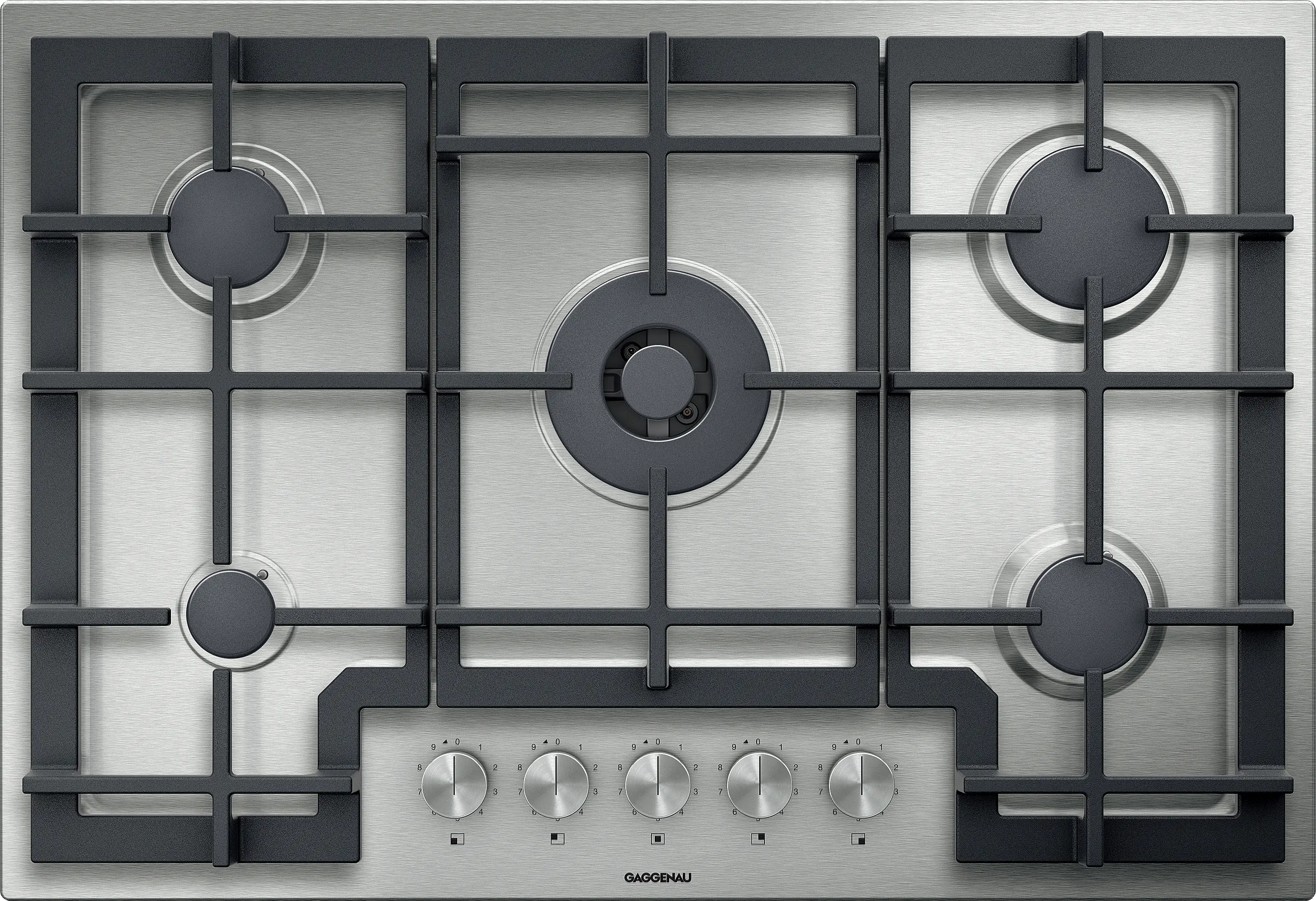

Photo Nr. 1 of the product CG280212CA
Photo Nr. 2 of the product CG280212CA
Photo Nr. 3 of the product CG280212CA
Photo Nr. 4 of the product CG280212CA
Photo thumb Nr. 1 of the product CG280212CA
Photo thumb Nr. 2 of the product CG280212CA
Photo thumb Nr. 3 of the product CG280212CA
Photo thumb Nr. 4 of the product CG280212CA
Photo thumb Nr. 1 of the product CG280212CA
Photo thumb Nr. 2 of the product CG280212CA
Photo thumb Nr. 3 of the product CG280212CA
Photo thumb Nr. 4 of the product CG280212CA

200 series Gas cooktop 30" Natural gas 15 mbar
CG280212CA

Find a showroom or a local dealer

Technical Overview

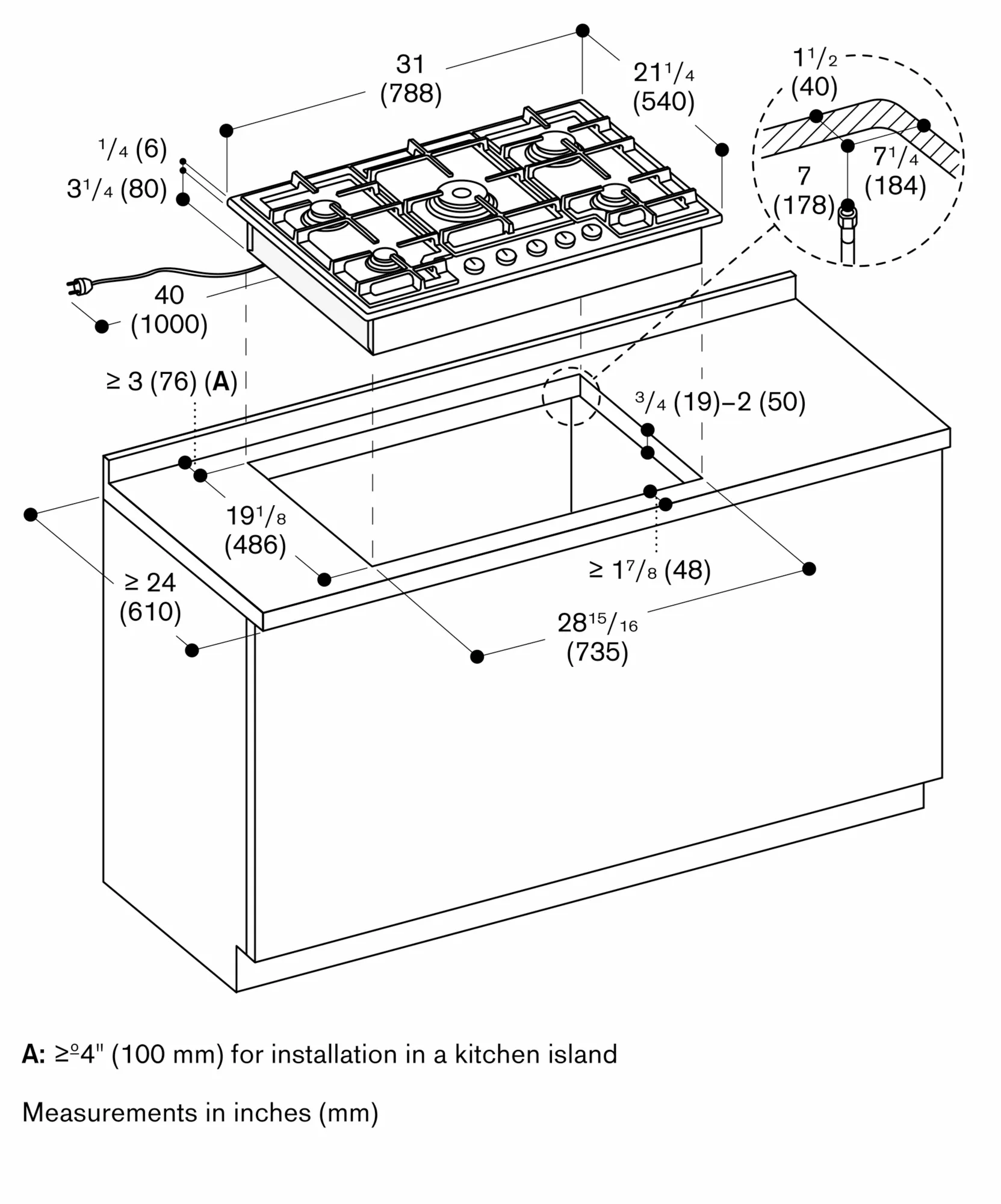

Overall Appliance Dimensions (HxWxD) (in)
3 3/4" x 31" x 21 1/4"
Required Cutout Size (HxWxD) (in)
3 3/4" x 28 15/16" x 19 1/8"

Highlights

Special Features

Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Control panel for comfortable and secure operation
Precise and reproducible flame size

Additional information

Control panel for comfortable and secure operation
Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Solid smooth-surface cast-iron pan support
Up to 42700 BTU (12.5 kW) on 5 burners
1 multi-ring wok burner (17000 BTU).
1 high output burner (10300 BTU).
2 standard burners (6000 BTU).
1 economy burner (3400 BTU).
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
Three-part cast iron pan support with flat, continuous pot surface.
Thermoelectric safety pilot.
Residual heat indicator.
Operation indicator.
The cooktop can be surface-mounted.
Appliance can be snapped into the countertop from above.
The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.
Above countertop minimum clearance of at least 13" from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.
Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm).
Appliance weight: approx. 18 kg.
Total rating: 42700 BTU (12.5 KW).
Total rating 360 W.
120 V / 60 Hz.
Connecting cable 40" (1.0 m) with plug.
