Half size cast-iron griddle included for simultaneous searign and grilling on two seperate surfaces

Open cast-iron grill, lava stones

Solid stainless steel control knobs

Precision crafted 1/8-inch stainless steel frame

For surface-mount installation with a visible edge or for flush installation

Can be perfectly combined with other Vario 400 series appliances

Control knobs with illuminated ring, cooking zone and output level markings.

Electronic control in 12 output levels.

Cooktop, lava stone trough and grease collecting insert from stainless steel.

2 independently controlled grilling elements (1500 W).

Two-part cast grill.

Safety shut-off.

Depending on the type of installation — surface-/ or flush-mounted, with or without cover — the specific location of the control knob positions may vary.

When using the appliance cover VA 440 or adjustment strip VA 450 additional space for cut-out depth needs to be considered.

If combining several appliances with at least one cover, the filler strip VA 450 is required to compensate for the depth of the appliances without the appliance cover.

If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.

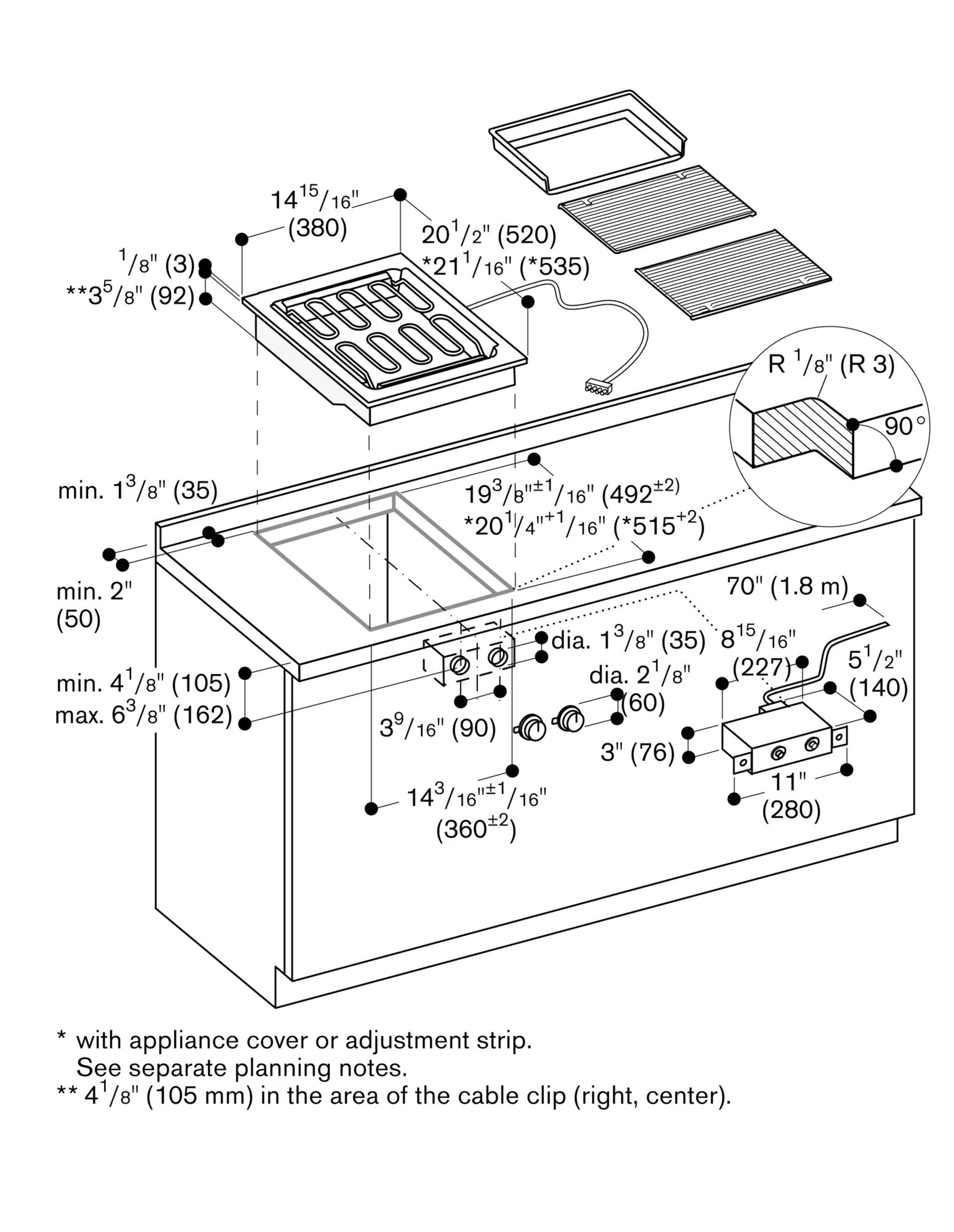

In the cut-out, the installation system requires the side edge to be at least ⅜" (10mm) for surface mounting and at least ½" (13 mm) for flush mounting. Ensure a continuous cut surface of 90°.

The bearing capacity and stability, in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.

Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.

The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.

The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.

If installing several appliances in individual cut-outs allow for a division bar of inimum 1 ³¹⁄₃₂" (50 mm) between the individual cut-outs.

Built-in control panel to be integrated in the bottom cabinet at drawer level.

Front panel thickness 5/8 " - 1 ".

The adjacent drawing "Installation of the control knob" must be observed if the panel is more than 1 " thick (there must be a recess at the rear for proper control module installation).

Above the countertop minimum clearance of 21" from adjacent heat-sensitive cabinets or contact 1" surfaces must be observed or thermal insulation must be installed.

Appliance can be snapped into the worktop from above.

Total rating: 208/220 - 240 V : 10.8 kW. 60 Hz
