Technical Overview

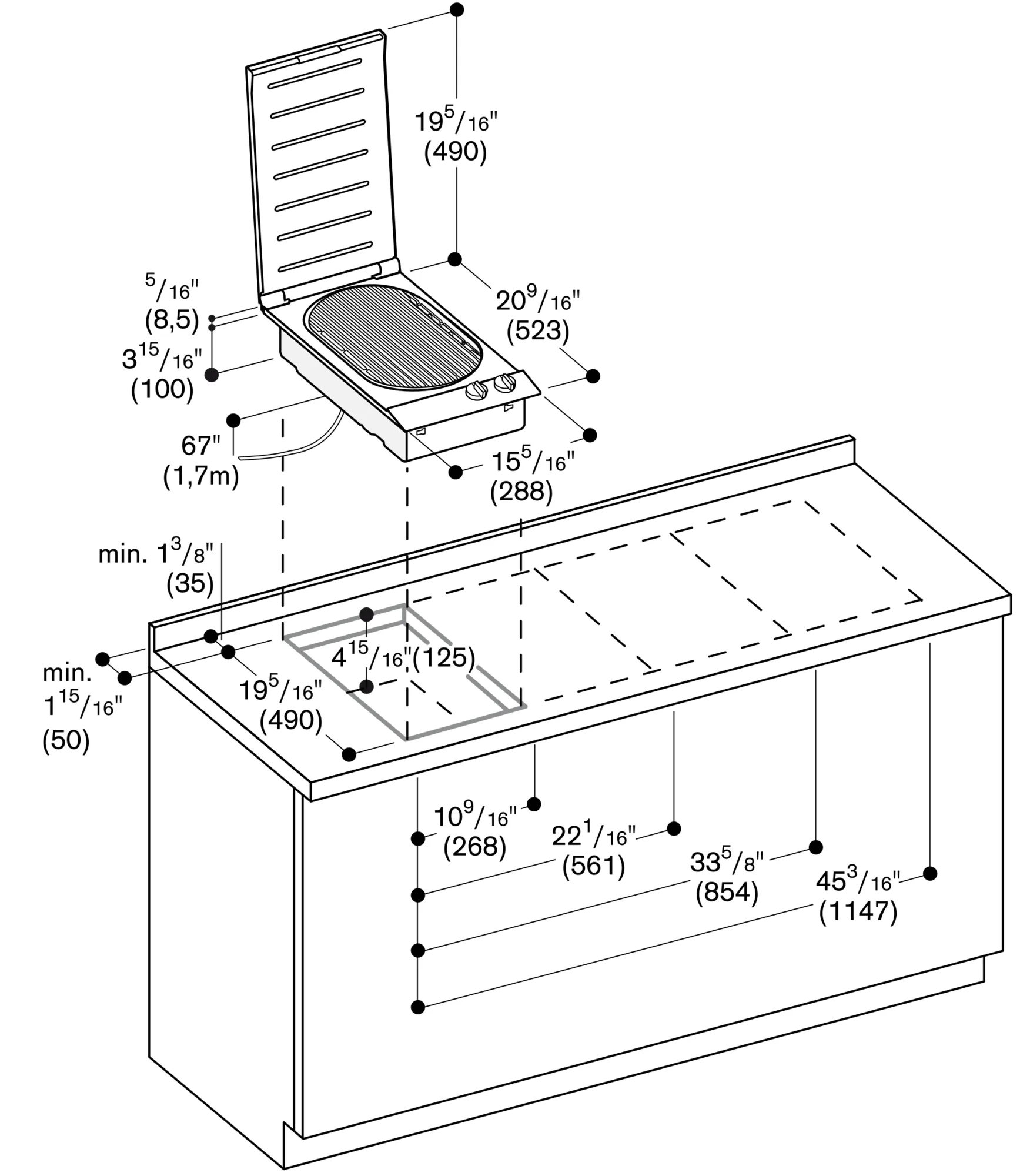

Overall Appliance Dimensions (HxWxD) (in)
5/16 '' + 3 15/16 '' x 11 5/16 '' x 20 1/16 ''
Color
Stainless Steel
Additional information
Can be combined with cooktops of the Vario 200 series to a harmonic unity
Integrated control panel for comfortable and secure operation
2 zones, independently controlled
Open cast-iron grill, lava stones
9 switching levels.
2 separately controllable swing-out grilling elements (1500 W).
Cast grill.
Stainless steel lavastone container and grease collecting insert, dishwasher-safe.
Appliance can be snapped into the countertop from above.
A minimum clearance of at least 200 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
Total rating: 208/220 - 240 V : 10.8 kW. 60 Hz
Plan for a 37" connecting cable without plug (hardwire required).
Appliance weight: approx. 33 lbs (18).
