VP230614

Product is no longer available

More information and services related to this product

1 / 5
Photo Nr. 1 of the product VP230614
Photo Nr. 2 of the product VP230614
Photo Nr. 3 of the product VP230614
Photo Nr. 4 of the product VP230614
Photo Nr. 5 of the product VP230614
Photo thumb Nr. 1 of the product VP230614
Photo thumb Nr. 2 of the product VP230614
Photo thumb Nr. 3 of the product VP230614
Photo thumb Nr. 4 of the product VP230614
Photo thumb Nr. 5 of the product VP230614
Photo thumb Nr. 1 of the product VP230614
Photo thumb Nr. 2 of the product VP230614
Photo thumb Nr. 3 of the product VP230614
Photo thumb Nr. 4 of the product VP230614
Photo thumb Nr. 5 of the product VP230614

Technical Overview

Overall Appliance Dimensions (HxWxD) (in)
5/16 '' + 5 1/2 '' x 11 5/16 '' x 20 1/16 ''
Color
Stainless Steel

Additional information

Can be combined with cooktops of the Vario 200 series to a harmonic unity
Integrated control panel for comfortable and secure operation
Japanese traditional cooking, directly on the stainless steel surface
Exact temperature control up to 480 °F, with warming and cleaning settings
Keeping warm setting
Useable area: W 8 7/8" x D 15 9/16".
Keeping warm setting.
Electronic temperature control from 120 °C to 240 °C.
Cleaning setting.
Heating element with 1800 W.
Stainless steel frame seamlessly welded with the stainless steel surface.
Pre-heat and residual heat indicator.
Operation indicator.

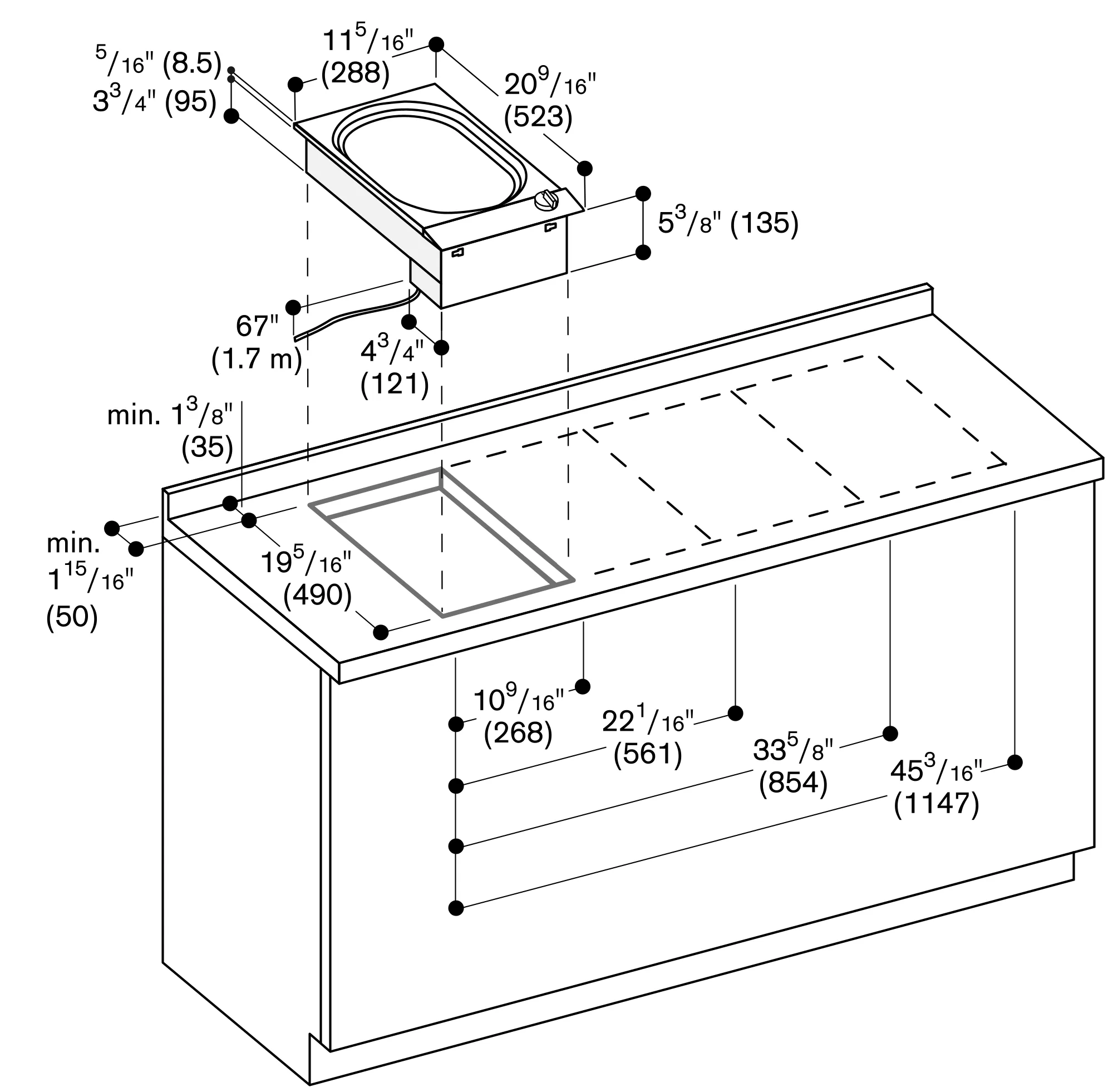

The distance from the upper edge of the work surface to the upper edge of the intermediate shelf must be at least 6" (150 mm).
Appliance can be snapped into the countertop from above.
A minimum lateral clearance of at least 30 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
Intermediate shelf required; after installation, this shelf must only be removed using tools to guarantee the touch protection from below.
Total rating: 208/220 - 240 V : 10.8 kW. 60 Hz
Plan for a 37" connecting cable without plug (hardwire required).
Appliance weight: approx. 33 lbs (10).
