Ventilation unit integrated in the countertop

Highly efficient ventilation system at the cooktop

Minimal planning and easy installation for air recirculation

Output control, knob operation.

4 output levels.

Ventilation grill can be remove.

No duct connecting piece included.

No additional switch necessary.

Please refer to page xxx for recommended configurations of downdraft ventilations and remote fan units and the needed ducting elements.

Maximum cooktop width between 2 VL: 60 cm (exception: VI/VE 270).

If installed next to gas appliances, the ventilation moulding LS 041 001 is recommended to ensure maximum performance of the cooktop. If installed next to gas appliances, flat ducts must not be used for the piping up to the fan unit.

When having installed the ventilation deflector LS 041 001 the wok pan WP 400 001 can not be used.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs a suitable safety switch.

Do not fit in drawer area.

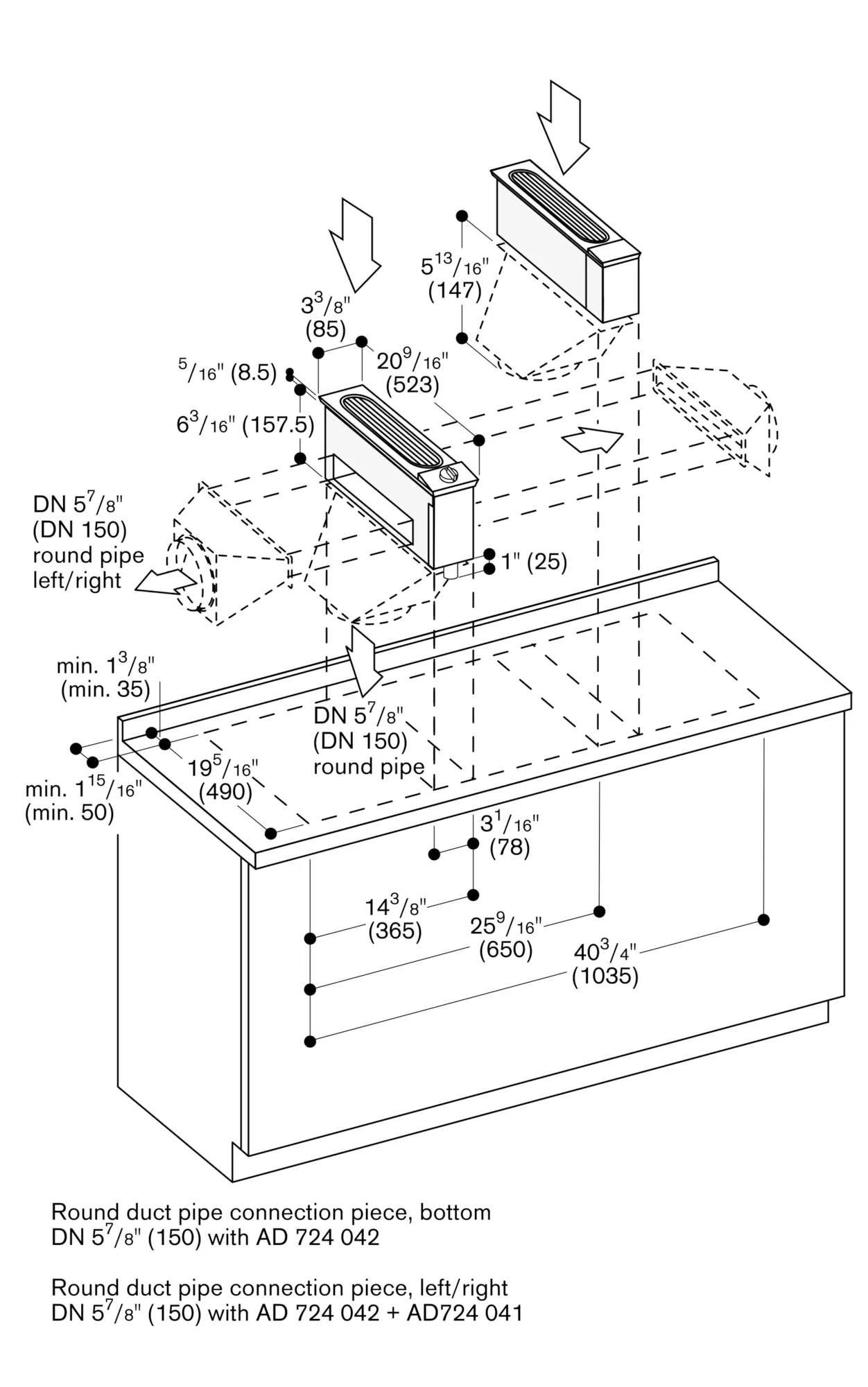

Please ensure when installing the exhaust air ducting that no sharp bends are caused and that the cross-section of the ducting is not constricted in any way.

For downdraft configurations with maximum lengths of exhaust air ducts go to Rodun at www.gaggenau.com.

Appliance weight: approx. 33 lbs (2).

Please read additional planning notes on page 104.
