Can be combined with cooktops of the Vario 200 series to a harmonic unity

Integrated control panel for comfortable and secure operation

Steaming in cooktop size

Pressureless cooking. Cooked food is easily accessible and does not fall apart

Cooking on two levels, without flavour transfer

Water capacity 1 to 6.4 quarts (1-6 liters).

Function display.

Electronic water temperature control from 45 °C to 95 °C, in 5 °C steps.

Steam cooking level with electronic steam control for pressureless cooking.

Automatic boiling point detection.

Motor-driven water drain valve 1/2".

Electronic short-term timer up to 90 min.

Special heating system.

Remaining time display.

Child lock.

Operation indicator.

Automatic shut off.

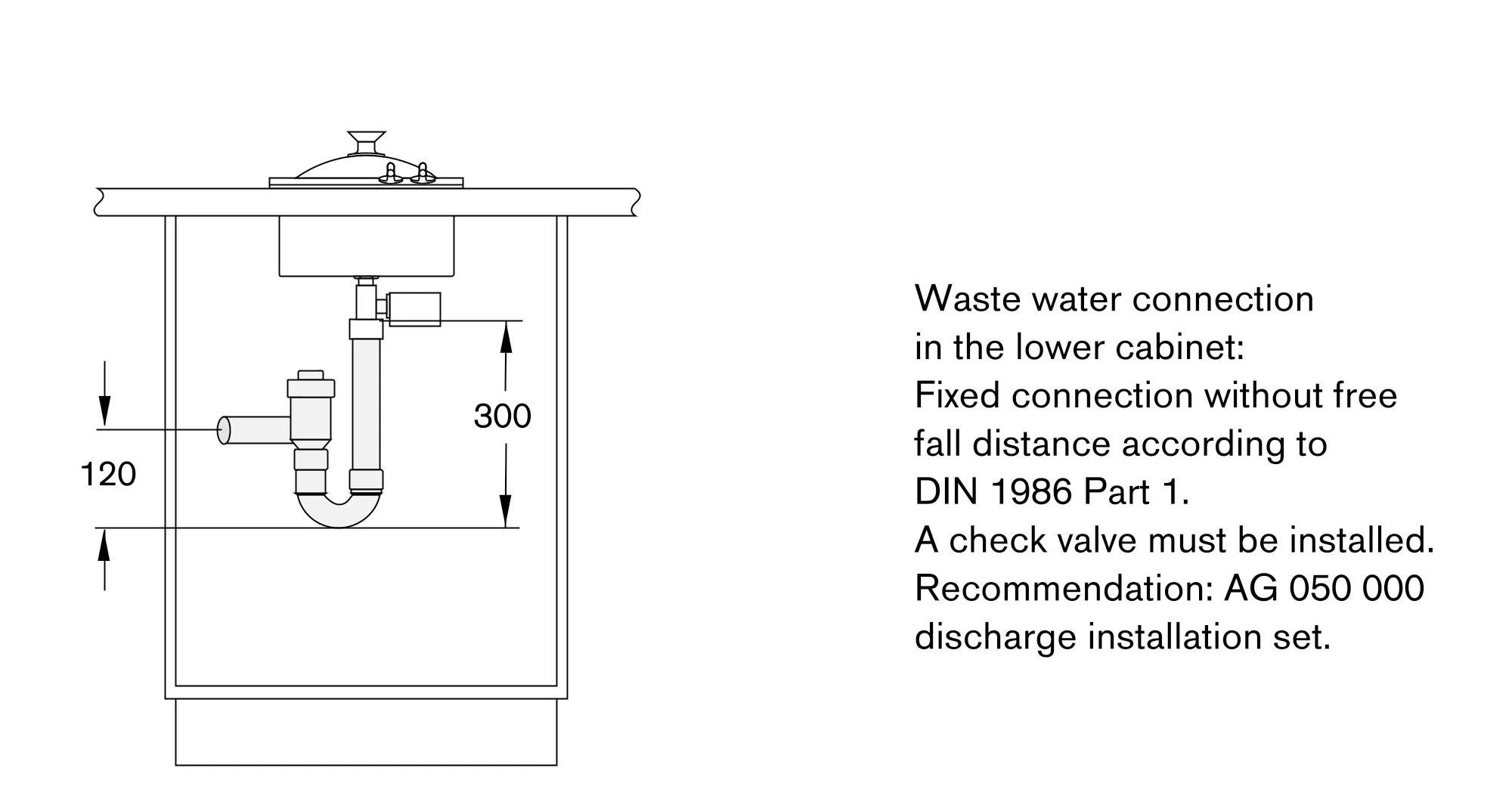

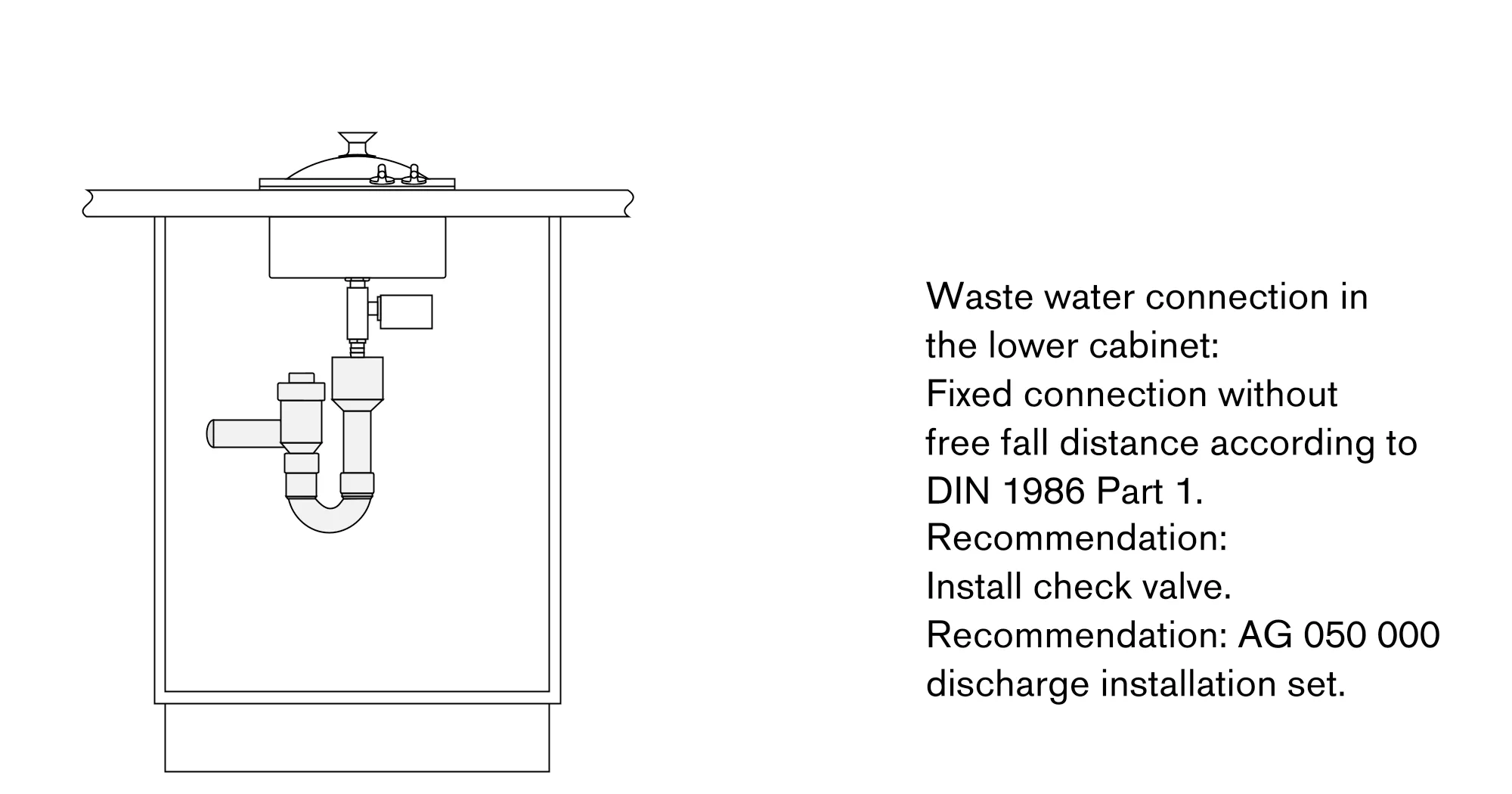

Access to drain in bottom cabinet is required.

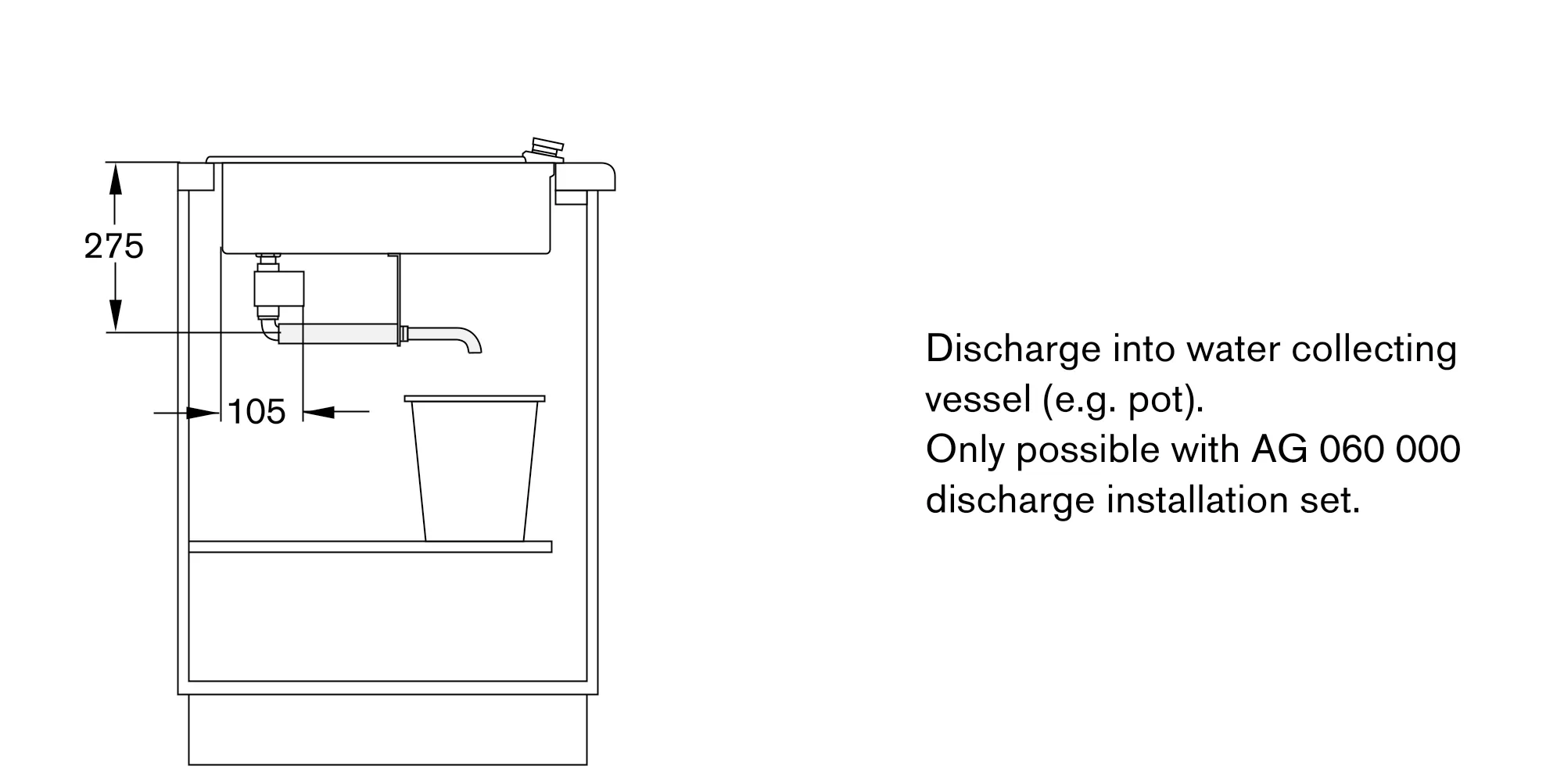

Appliance is intended for fixed water outlet connection, but can be fitted without fixed connection by using the special accessory AG 060.

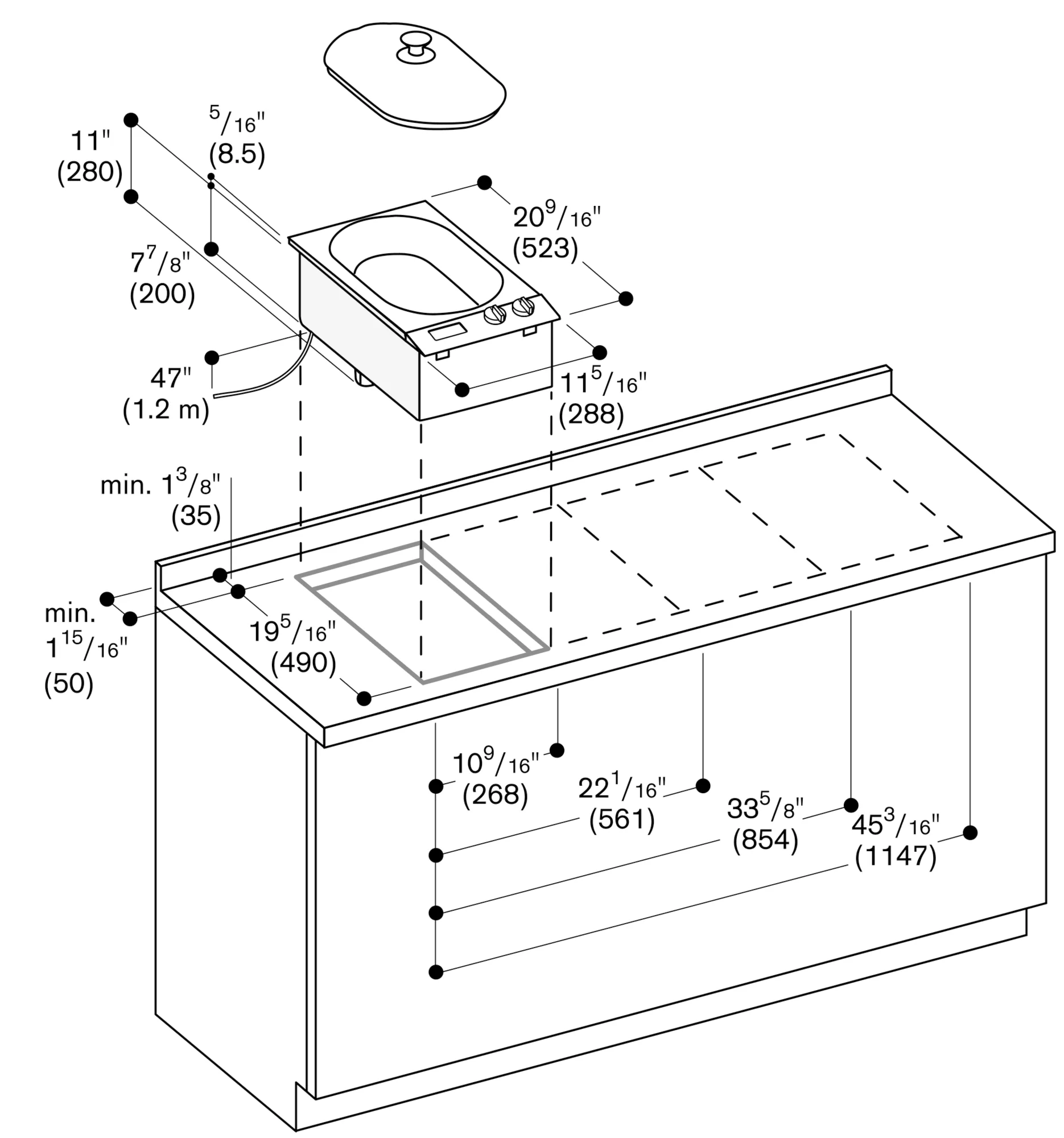

Seal the worktop cutout.

Appliance can be snapped into the countertop from above.

A minimum clearance of at least 200 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.

A ventilation hood must be installed when an upper cabinet is installed above the electric in-counter steamer.

If a cover is used, the glass lid must be removed when closing it.

VK 230 and VF 230 must not be installed directly next to each other.

In combination with the downdraft ventilation VL 040/041, this must be planned on the right of VK.

Total rating: 208/220 - 240 V : 10.8 kW. 60 Hz

Plan for a 37" connecting cable without plug (hardwire required).
