Five multi-ring burners, up to 17.5 kW

59, 700 BTU on five burners including wok burner

Solid smooth-surface cast-iron pan support

Precision crafted 1/8-inch stainless steel frame

For surface-mount installation with a visible edge or for flush installation

Can be perfectly combined with other Vario 400 series appliances

1 three-ring wok burner (300 W – 5500 W), suitable for pots up to max. ø 32 cm.

2 two-ring high output burners 600 - 13,600 BTU (160 W – 4000 W), suitable for pots up to max. ø 11".

2 two-ring standard burners 600 - 6,800 BTU (160 W – 2000 W), suitable for pots up to max. ø 9 1/2".

Control knobs with cooking zone and output level markings.

One-handed operation.

Gas valve with fine control.

Three-part cast iron pan support with flat, continuous pot surface.

Brass burner rings.

Electronic flame monitoring with automatic re-ignition.

Automatic quick ignition.

Safety shut-off.

Depending on the type of installation — surface-/ or flush-mounted, with or without cover — the specific location of the control knob positions may vary.

When using the appliance cover VA 440 or adjustment strip VA 450 additional space for cut-out depth needs to be considered.

If combining several appliances with at least one cover, the filler strip VA 450 is required to compensate for the depth of the appliances without the appliance cover.

If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.

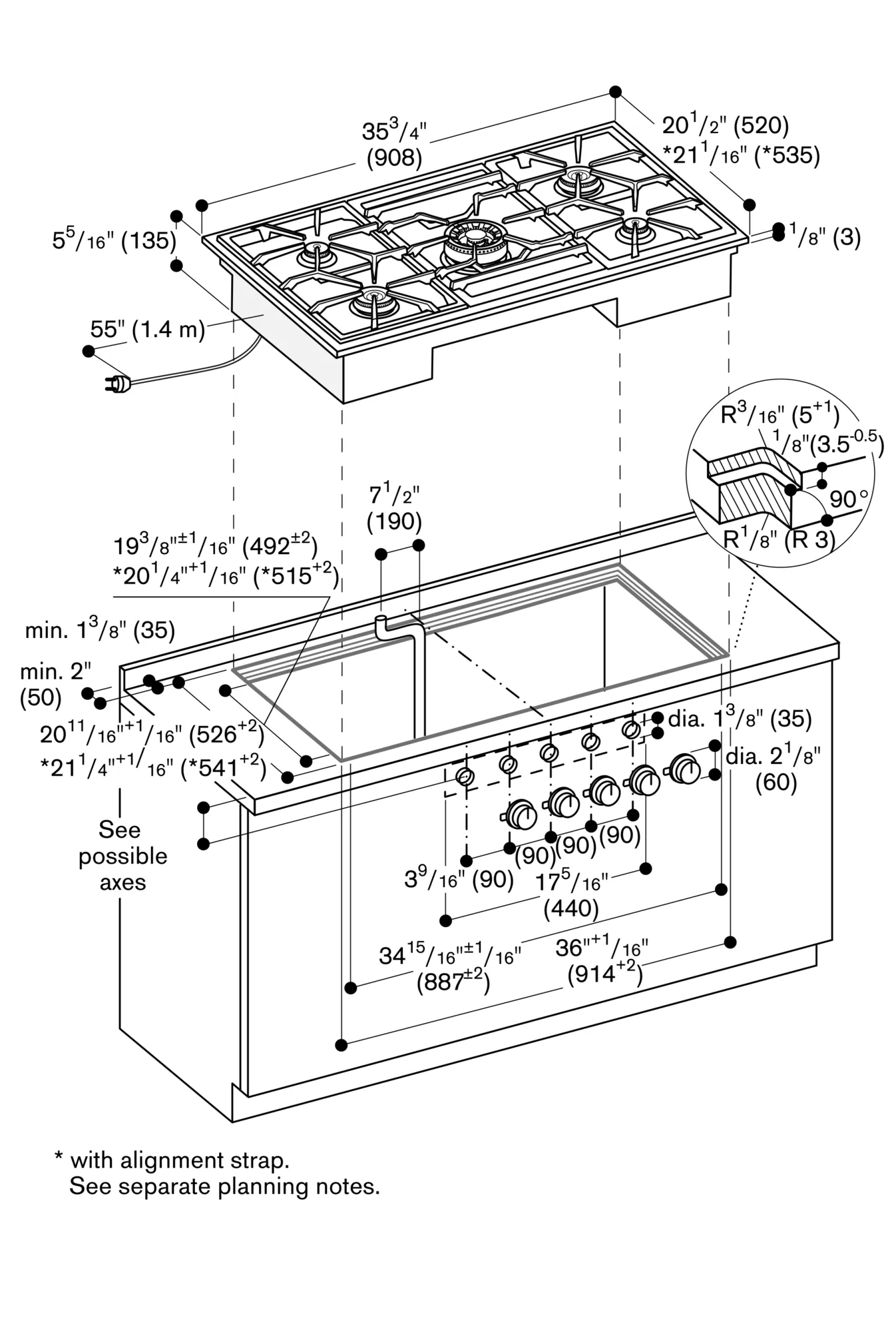

In the cut-out, the installation system requires the side edge to be at least ⅜" (10mm) for surface mounting and at least ½" (13 mm) for flush mounting. Ensure a continuous cut surface of 90°.

The bearing capacity and stability, in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.

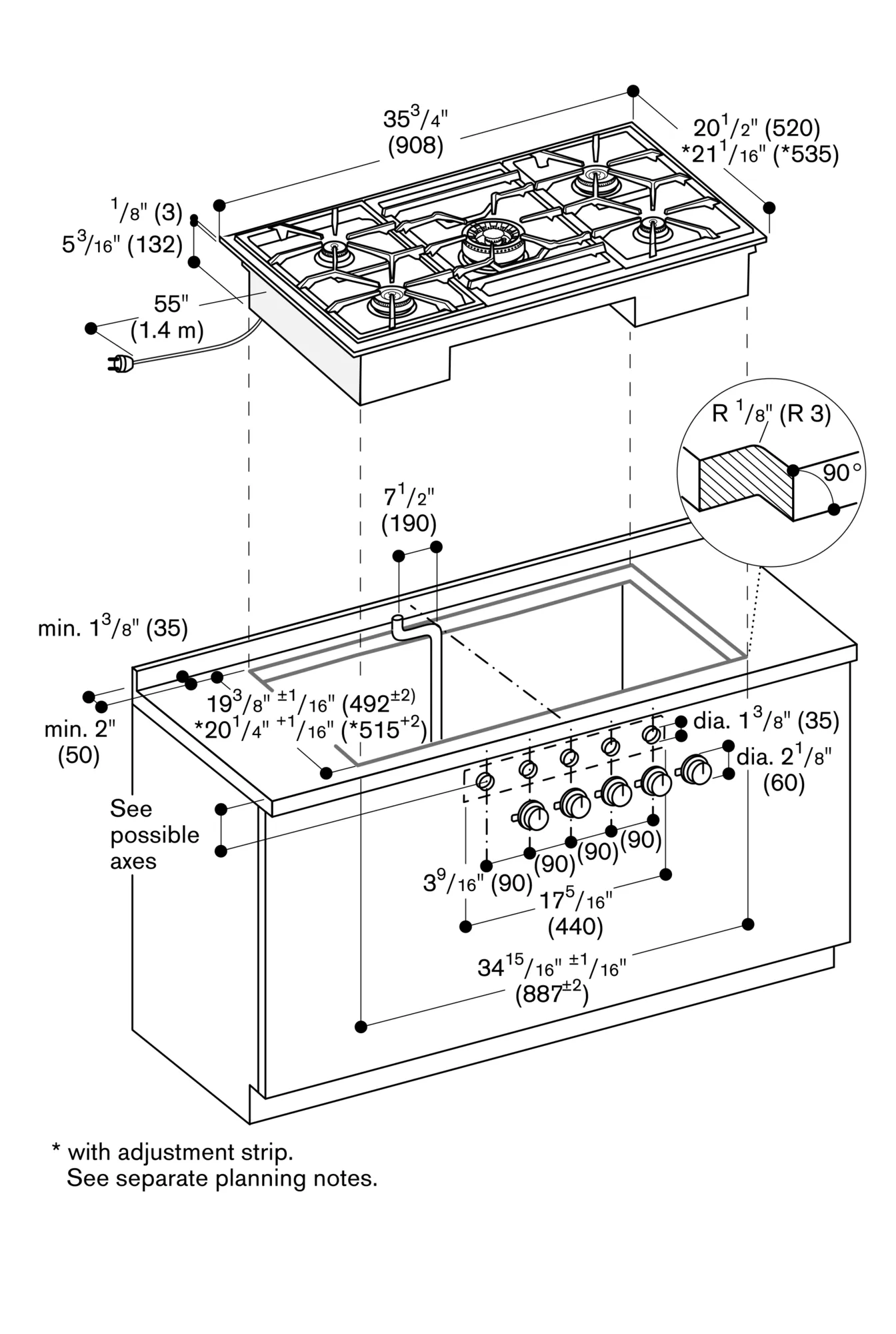

Additional instructions for flush mounting:

Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.

The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.

The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.

If installing several appliances in individual cut-outs allow for a division bar of inimum 1 ³¹⁄₃₂" (50 mm) between the individual cut-outs.

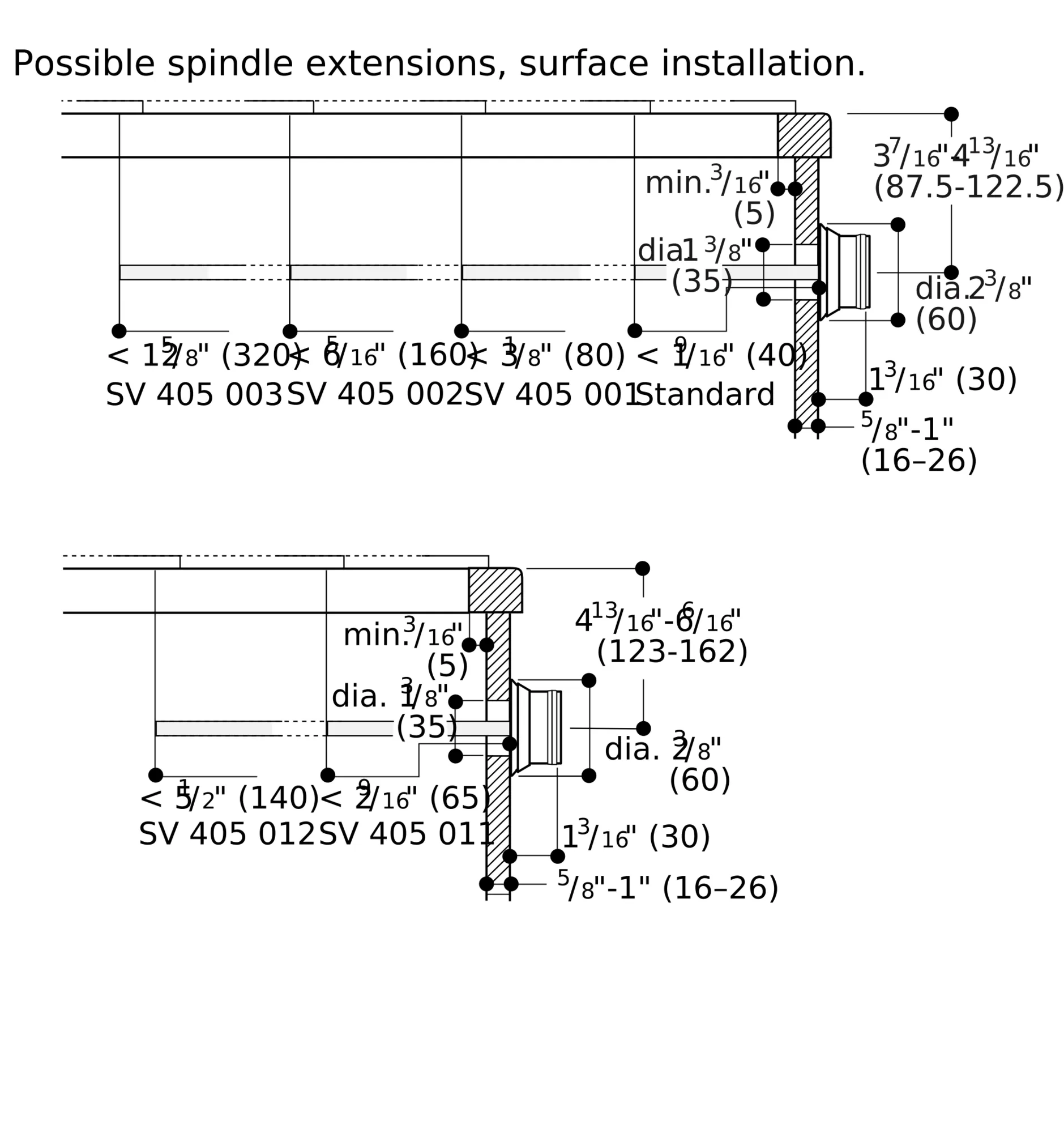

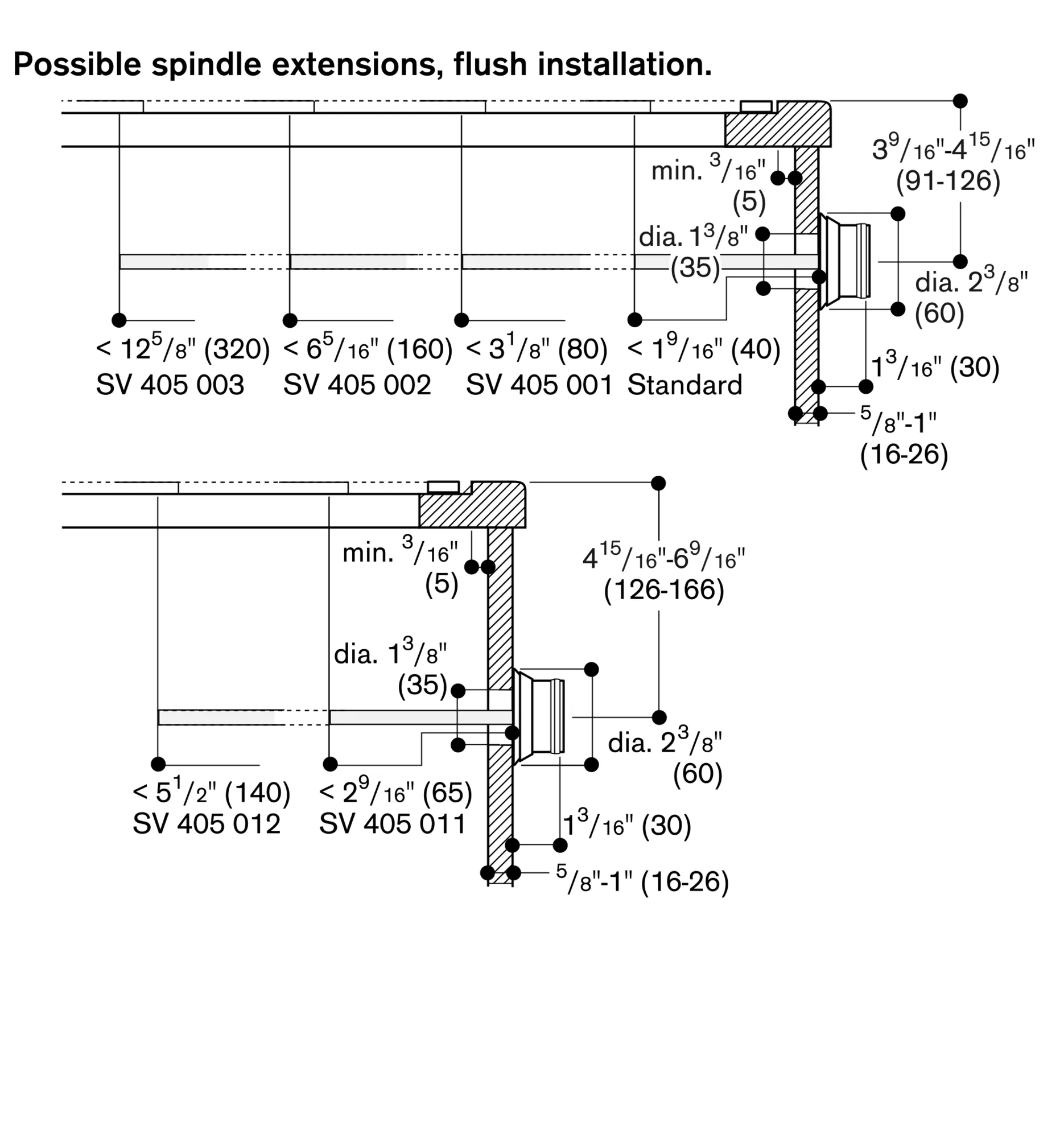

Control knobs to be integrated in the base cabinet at drawer level.

Panel thickness 16 - 26 mm.

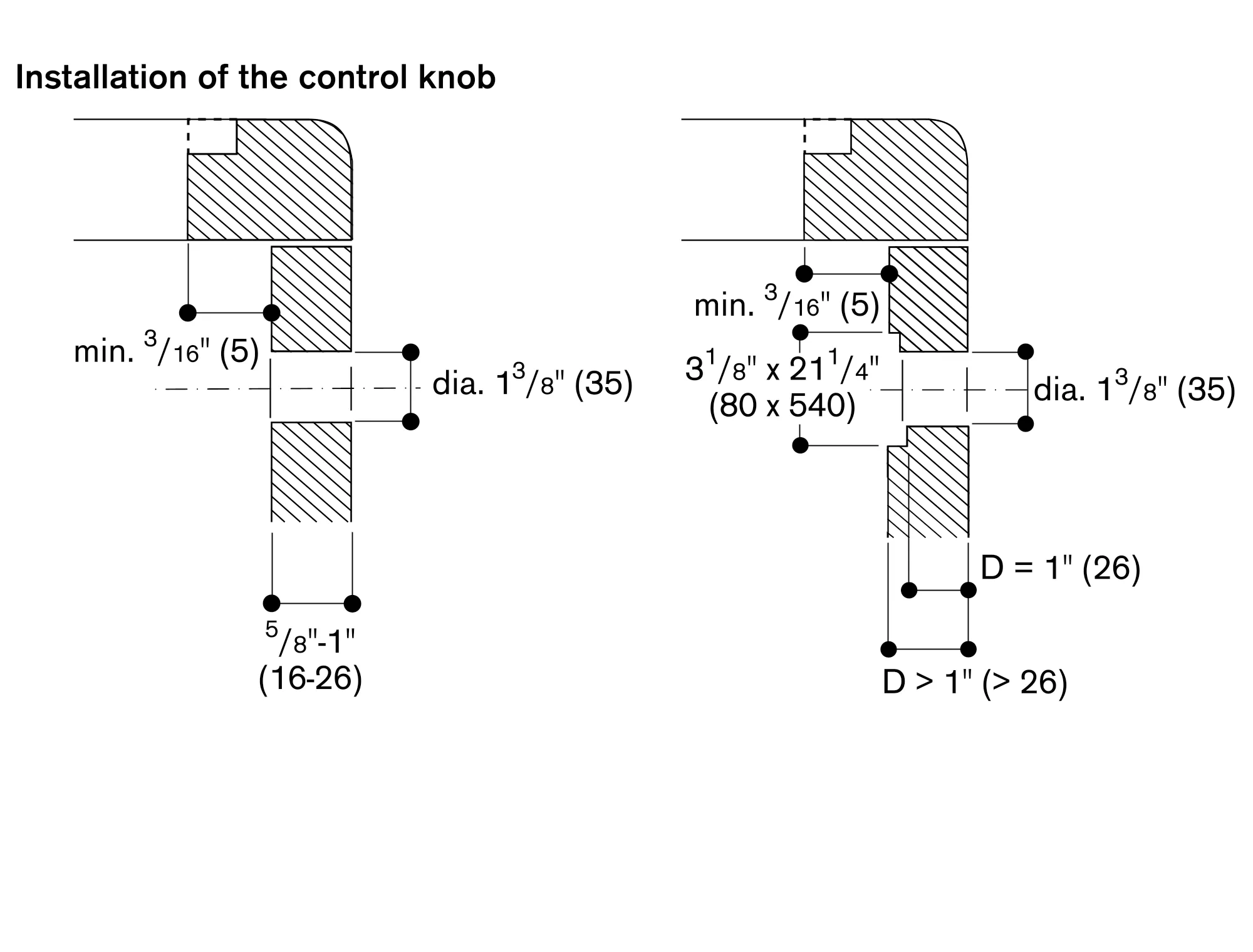

The drawing "Installation of the control knob" must be observed if the panel is more than 26 mm thick (there must be a recess at the rear).

Special nozzles can be ordered as spare parts.

Plan for an electrical connection (the appliance is not operable without power supply).

Air intake from above.

No intermediate shelf required.

The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.

A minimum lateral clearance of at least 12" from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.

Installation in a 36" wide lower cabinet is required.

The combination with VL 414 is not recommended, since the air extraction from the centre burner cannot be guaranteed due to the distance.

Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm).

Appliance can be snapped into the worktop from above.

Total rating: 58,000 BTU (17.5 KW).

Total Amps: 2 A.

120 V / 60 Hz.
