1 / 4
Technical Overview

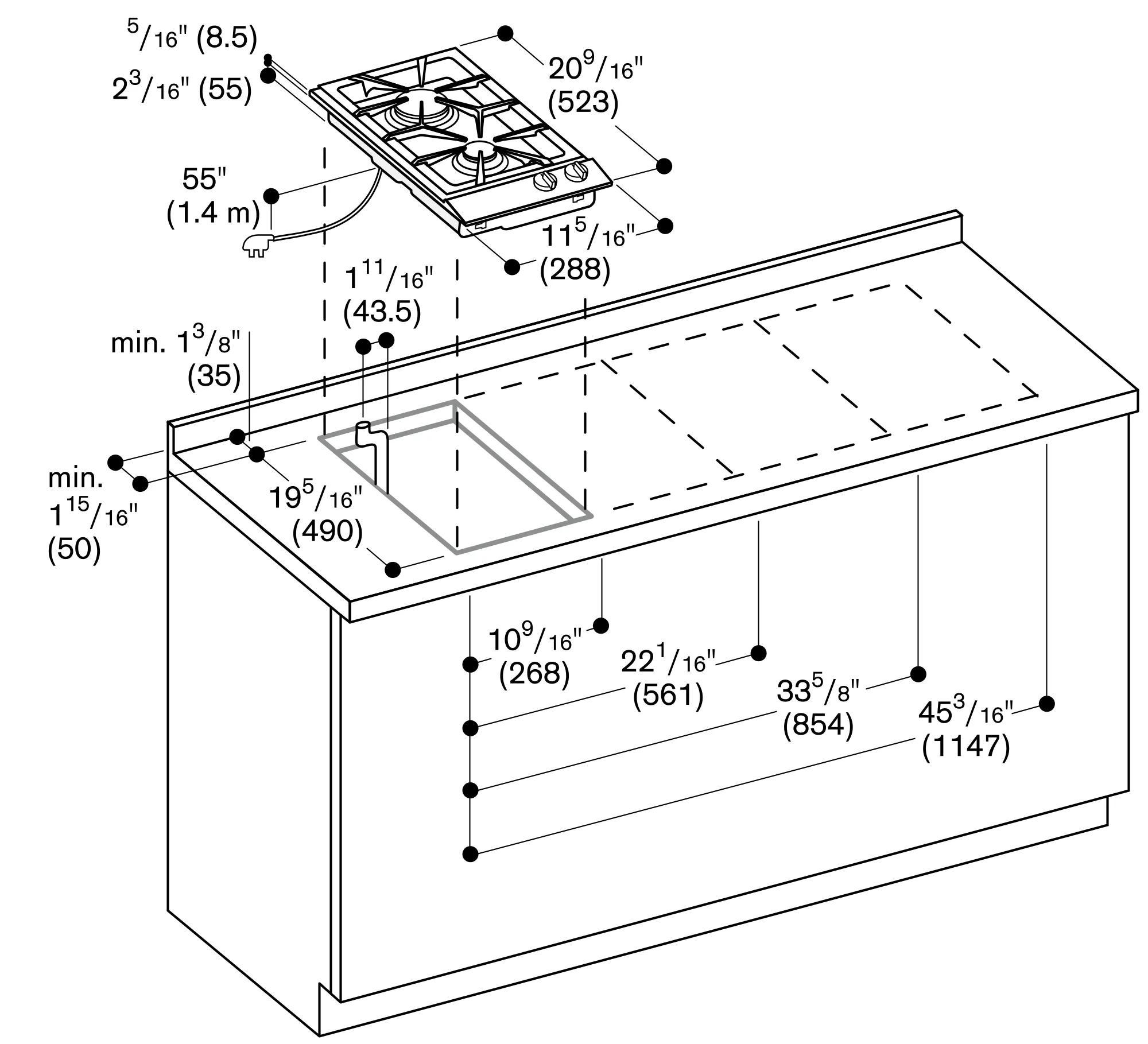

Overall Appliance Dimensions (HxWxD) (in)
2 3/16 '' x 11 5/16 '' x 20 1/16 ''
Required Cutout Size (HxWxD) (in)
2 3/16 '' x 10 9/16 '' x 19 5/16 ''
Additional information
Can be combined with cooktops of the Vario 200 series to a harmonic unity
Integrated control panel for comfortable and secure operation
Electric ignition of all burners. Simply press the knob, turn it and hold it there until a stable flame burns
1 high output burner (560 – 2800 W), suitable for pots up to max. ø 22 cm.
1 standard output burner (380 – 1900 W), suitable for pots up to max. ø 22 cm.
One-handed operation.
Cast iron pan support with flat, continuous pot surface.
Enamelled burner cover.
Thermoelectric safety pilot.
Maximum drawer depth 42 cm.
Appliance can be snapped into the countertop from above.
The minimum distance from the side of appliance edge to the wall or furnishing components must be at least 6".
Special nozzles (order 1 of each): Part No. 433603 Natural gas 20 mbar Part No. 419831 Bottled gas 28-37 mbar Part No. 419830 Bottled gas 50 mbar
Total Amps: 1 A. 120 V / 60 Hz
Connecting cable 59" with ground plug.
Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm).
