Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
3 7/16 " x 11 5/16 " x 20 9/16 "

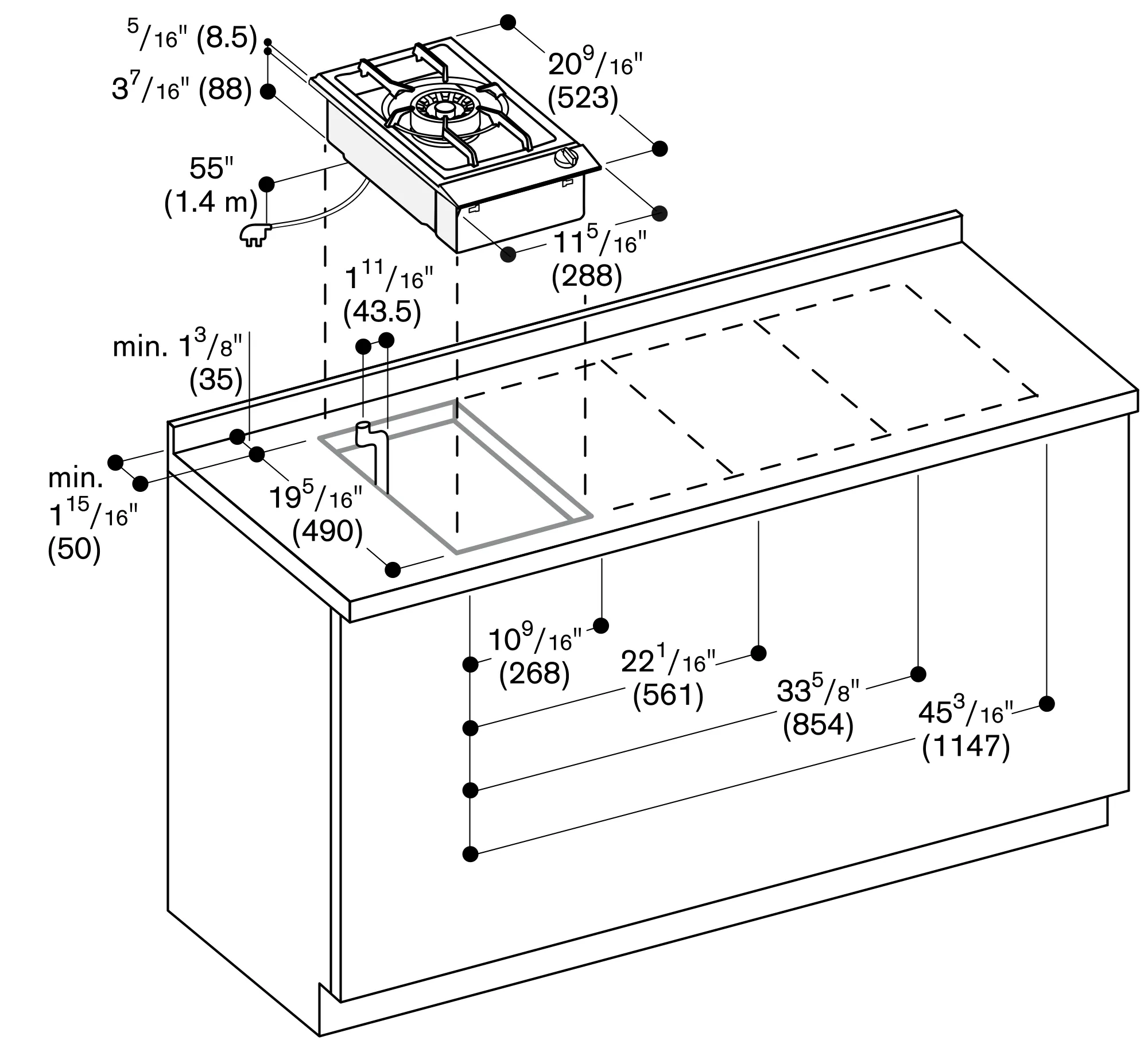

Required Cutout Size (HxWxD) (in)
3 7/16 " x 10 9/16 " x 19 5/16 "
Additional information
Can be combined with cooktops of the Vario 200 series to a harmonic unity
Integrated control panel for comfortable and secure operation
Wok burner with 17,00 BTU output. For the typical Asian quick braising and for large pots and pans
1 three-ring wok burner (250 W – 5500 W), suitable for pots up to max. ø 32 cm.
One-handed operation.
To close the cover, the cast iron pan support can be easily reversed.
Cast iron pan support.
Brass burner rings.
Thermoelectric safety pilot.
Maximum drawer depth 42 cm.
Appliance can be snapped into the countertop from above.
The minimum distance from the side of appliance edge to the wall or furnishing components must be at least 6".
Total Amps: 1 A. 120 V / 60 Hz
Connecting cable 59" with ground plug.
Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm).
