Technical Overview

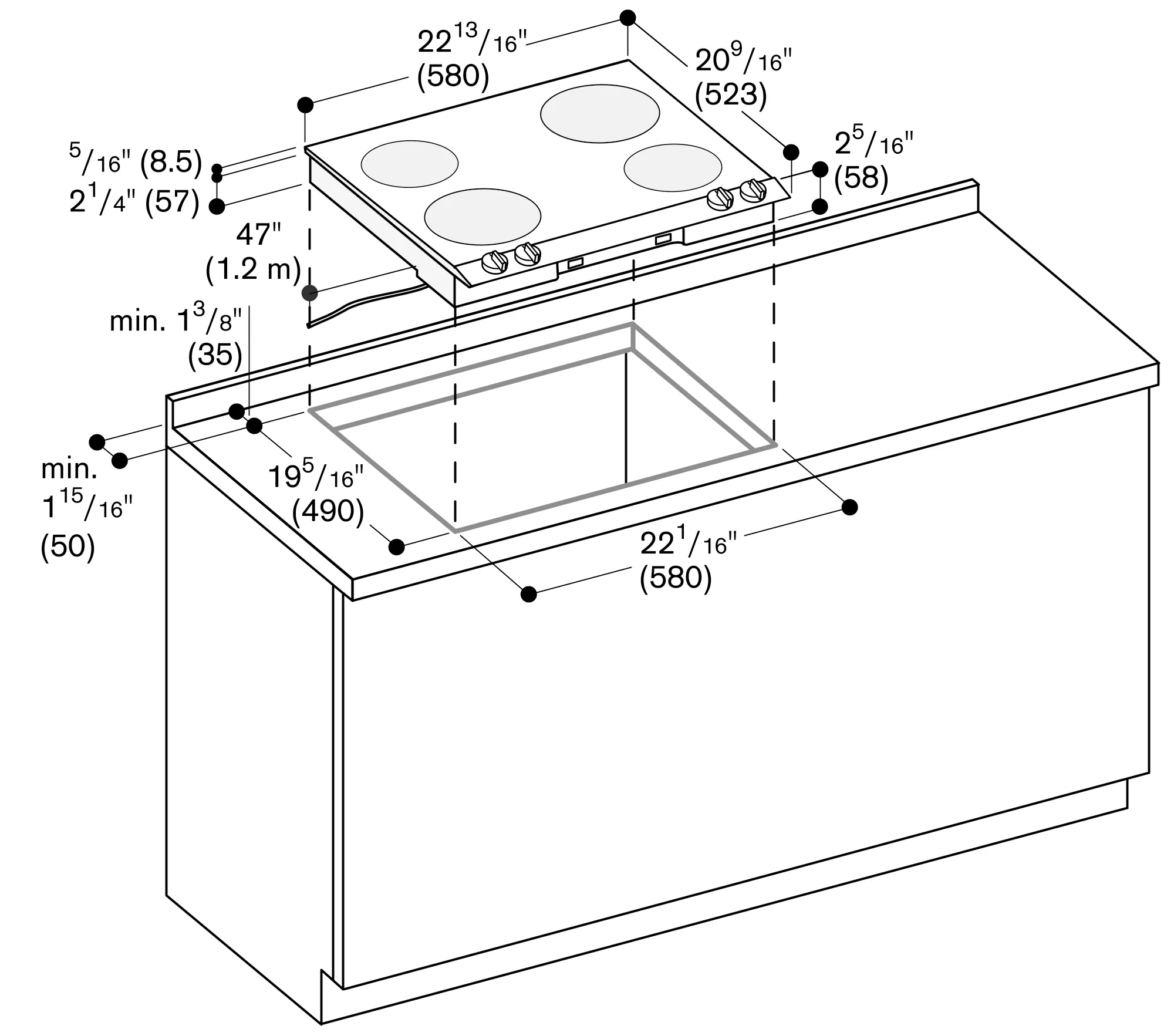

Overall Appliance Dimensions (HxWxD) (in)
5/16 '' + 2 5/16 '' x 22 13/16 '' x 20 9/16 ''
Required Cutout Size (HxWxD) (in)
2 5/16 '' x 22 1/16 '' x 19 5/16 ''
Additional information
Can be combined with cooktops of the Vario 200 series to a harmonic unity
Integrated control panel for comfortable and secure operation
2 Super-Quick cooking zones ø 7 1/16" (1800 W).
2 Super-Quick cooking zones ø 5 1/16" (1200 W).
Continuously variable energy controls.
Cooking zone marking.
Individual residual heat indication.
Operation indicator.
Immersion depth 58 mm.
Under the appliance, a 60 mm clearance must be observed from side panels or intermediate shelf must be planned.
Installation in a 24" (60 cm) wide bottom cabinet is possible.
Appliance can be snapped into the countertop from above.
Securing rail on the rear and the front.
Total rating: Connected load: 6000 W
Total Amps: 24/28 A.
208 / 220 - 240 V / 60 Hz.
Plan for 56" connecting cable without plug (hardwire required)
