Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
5/16 '' + 2 3/16 '' x 11 5/16 '' x 20 9/16 ''

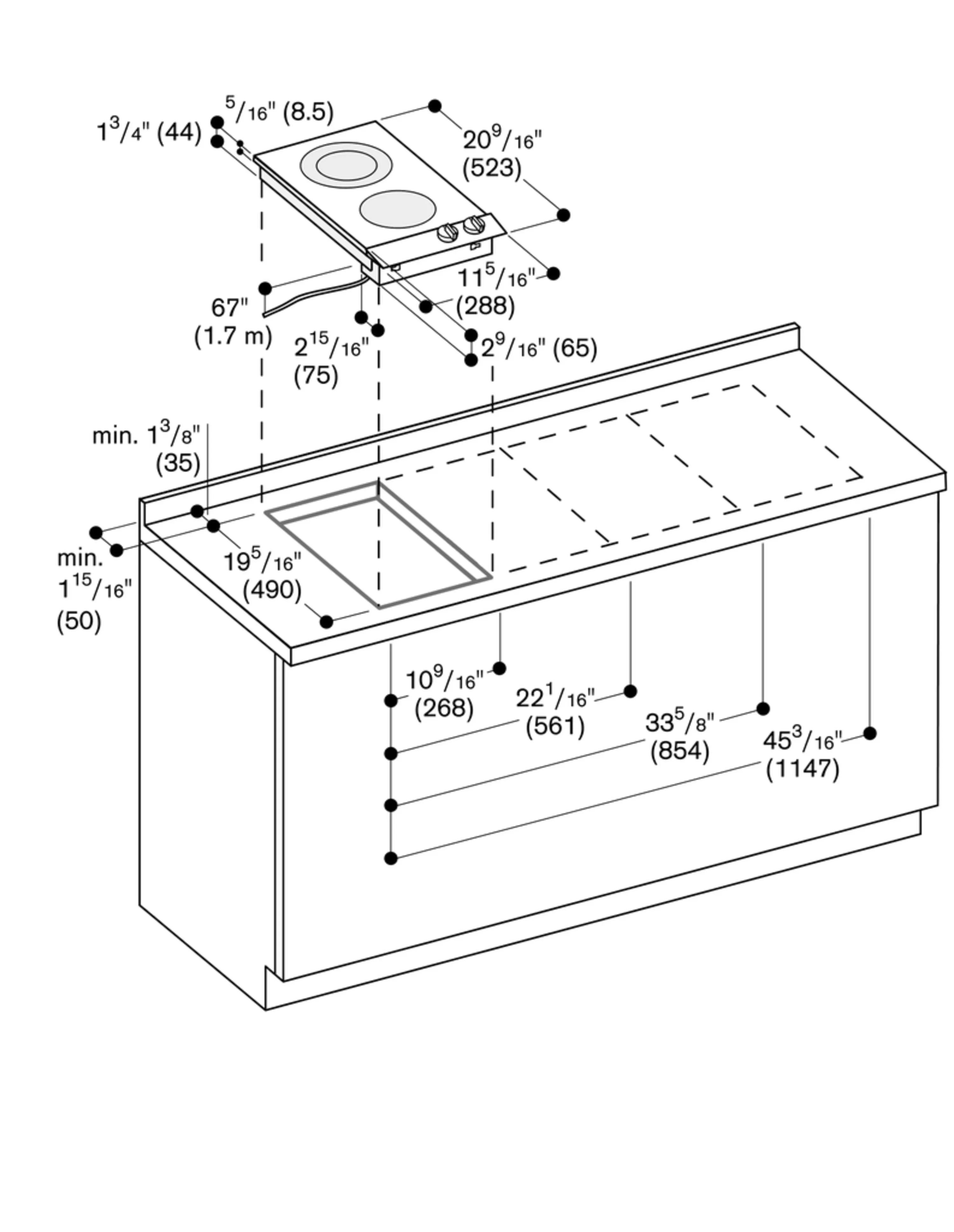

Required Cutout Size (HxWxD) (in)
2 3/16 '' x 10 9/16 '' x 19 5/16 ''
Additional information
Can be combined with cooktops of the Vario 200 series to a harmonic unity
Integrated control panel for comfortable and secure operation
1 Super-Quick cooking zone ø 14.5 cm (1200 W).
1 Super-Quick cooking zone ø 12 cm (700 W), converts to ø 18 cm (1800 W) cooking zone.
Continuously variable energy controls.
Cooking zone marking.
Individual residual heat indication.
Operation indicator.
Immersion depth 44 mm, depth at plug socket 65 mm.
Appliance can be snapped into the countertop from above.
Total rating: 208/220 - 240 V : 10.8 kW. 60 Hz
Plan for a 37" connecting cable without plug (hardwire required).
Appliance weight: approx. 33 lbs (8).
