Technical Overview

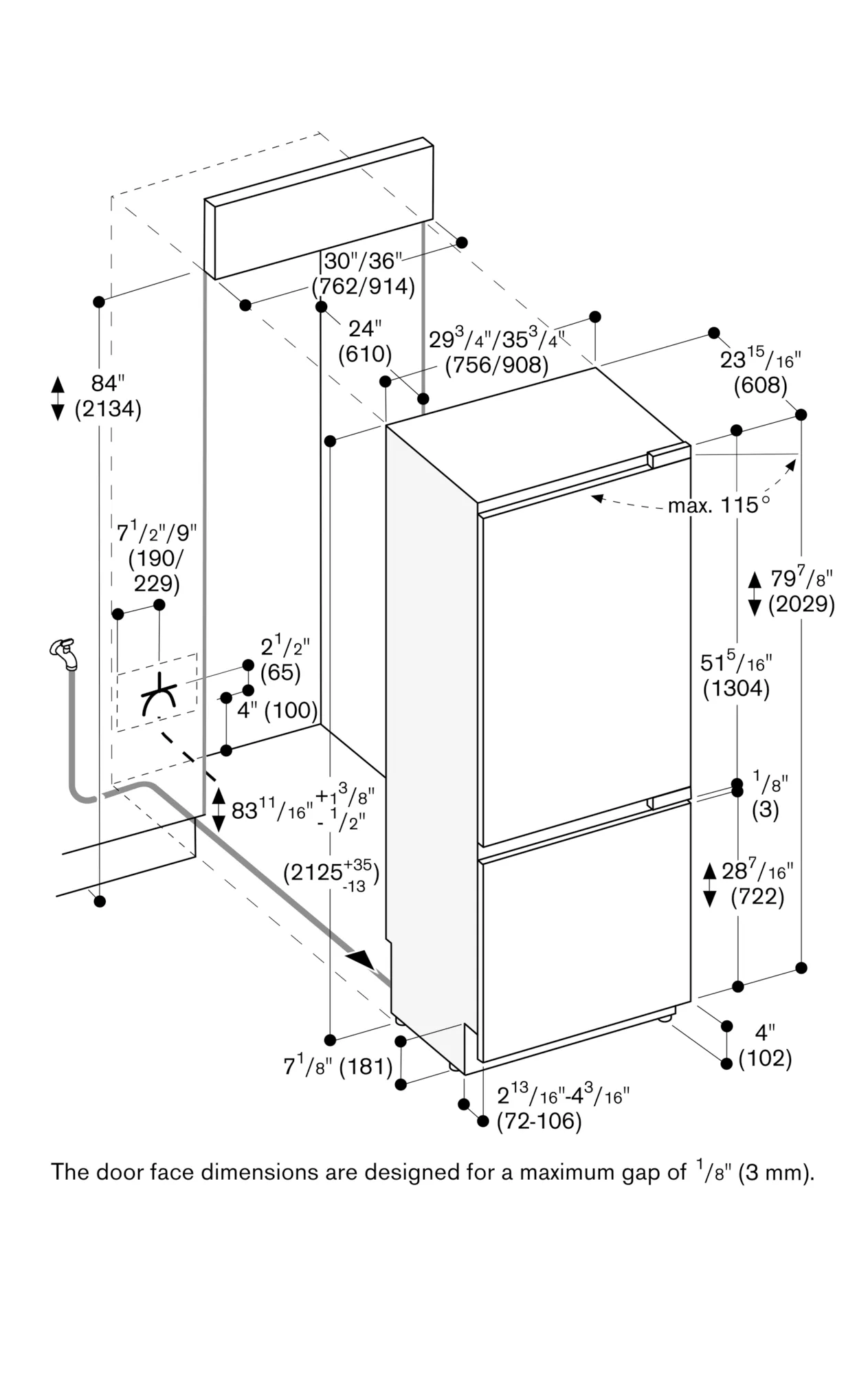

Overall Appliance Dimensions (HxWxD) (in)
83 3/4 " x 35 3/4'' x 24"
Required Cutout Size (HxWxD) (in)
84" x 36" x 24 3/4"
Additional information
Stainless steel interior
Generous LED lighting concept
Solid aluminium door bins
Net volume 19.8 cu. ft. (562 liters)
Integrated automatic ice maker with fixed water connection
One motorized glass shelf, height adjustable when fully loaded
One asymmetricly split glass shelf
Fully extendable freezer drawer with practical divider
Energy Star certified
Electronic precision temperature control with digital temperature display.
Dynamic cold air distribution with Multi-Flow Air System.
Automatic defrosting with defrost water evaporation.
Activated charcoal air filter.
Open-door and malfunction warning system.
Net volume 368 litres.
No-Frost technology with fast cooling.
Temperature adjustable from +35 °F to +46 °F (+2 °C to +8 °C).
2 safety glass shelves, 1 of which is motorised.
1 asymmetrically split safety glass shelf, with manual adjustment.
2 fully extendable drawers with transparent front.
Bright interior lighting with LED sidewall pillars.
2 height-adjustable door bins, one large gallon door bin.
1 door bin with transparent front flap.
No-frost technology.
1 continuous, fully extendable temperature controlled drawer close to 32°F with transparent front, manually controllable.
Net volume 5.8 cu. ft. (166 liters).
No-frost technology with fast freezing.
Temperature adjustable from +7 °F to -9 °F (-14 °C to -25 °C).
2 fully extendable drawers.
Interior lighting with two spot lights.
Integrated automatic ice maker in the freezer compartment, with fixed water connection.
Ice maker can be switched off independently.
Ice cube production approx. 3.1 lb (1.4 kg)/24 h.
Removable ice storage bin with approx. 6.6 lb (3 kg) capacity.
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight: Door 56 Ibs. Drawer 22 Ibs.
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set.
Cold water connection required. Electrical location 6" above ground in lower left corner of unit.
Water pressure 29 to 116 psi.
Energy consumption 1.619 kWh/24 h.
Noise level 41 dB (re 1 pW).
Total rating 1.079 kWh/24 h.
Total Amps: 10 A.
120 V / 60 Hz.
Connecting cable 90" with plug.
Supply hose 118" with 3/4" connection.
