Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
32 1/16'' x 17 5/8'' x 21 5/8''
Silence Level
44 dB(A) re 1pW
Additional information
6 programs with aqua sensor and 4 cycle options
Flexible rack system including cutlery drawer for optimal loading
Quiet: 44 dB
Aqua stop
Energy Star certified
Display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Sanitized indicator in the control panel.
Time delay up to 24 hours.
Visual and acoustic end of program indicator.
Info-Light.
Glass protection.
Aqua sensor.
Load sensor.
Automatic detergent function.
Yes
Flow-Through Water Heater™
Triple filter system.
Soft lock.
Aqua stop.
6 programs: Intensive 151 °F - 160 °F. Auto 127 °F - 151 °F. Eco 113 °F - 122 °F. Regular 122 °F - 131 °F. Quick Wash 126 °F (30 min.). Pre-rinse.
4 cycle options: Half Load. Delicate. Sanitize. Extra Shine.
Flexible rack system.
3rd rack for cutlery.
Upper rack Rackmatic with 3 levels, adjustable in height up to 2". 3 folding tines. 1 folding rack.
Lower rack: 4 folding tines. 1 folding rack. Glass support.
Cutlery basket.
Maximum dish sizes (upper/lower rack 7"/10", 6.5"/11", 5.5"/12" respectively.
10 place setting capacity.
Total annual energy consumption 259 kWh.
From 2.9 gallons water.
Noise level 44 dB (re 1 pW).
Height-adjustable feet.

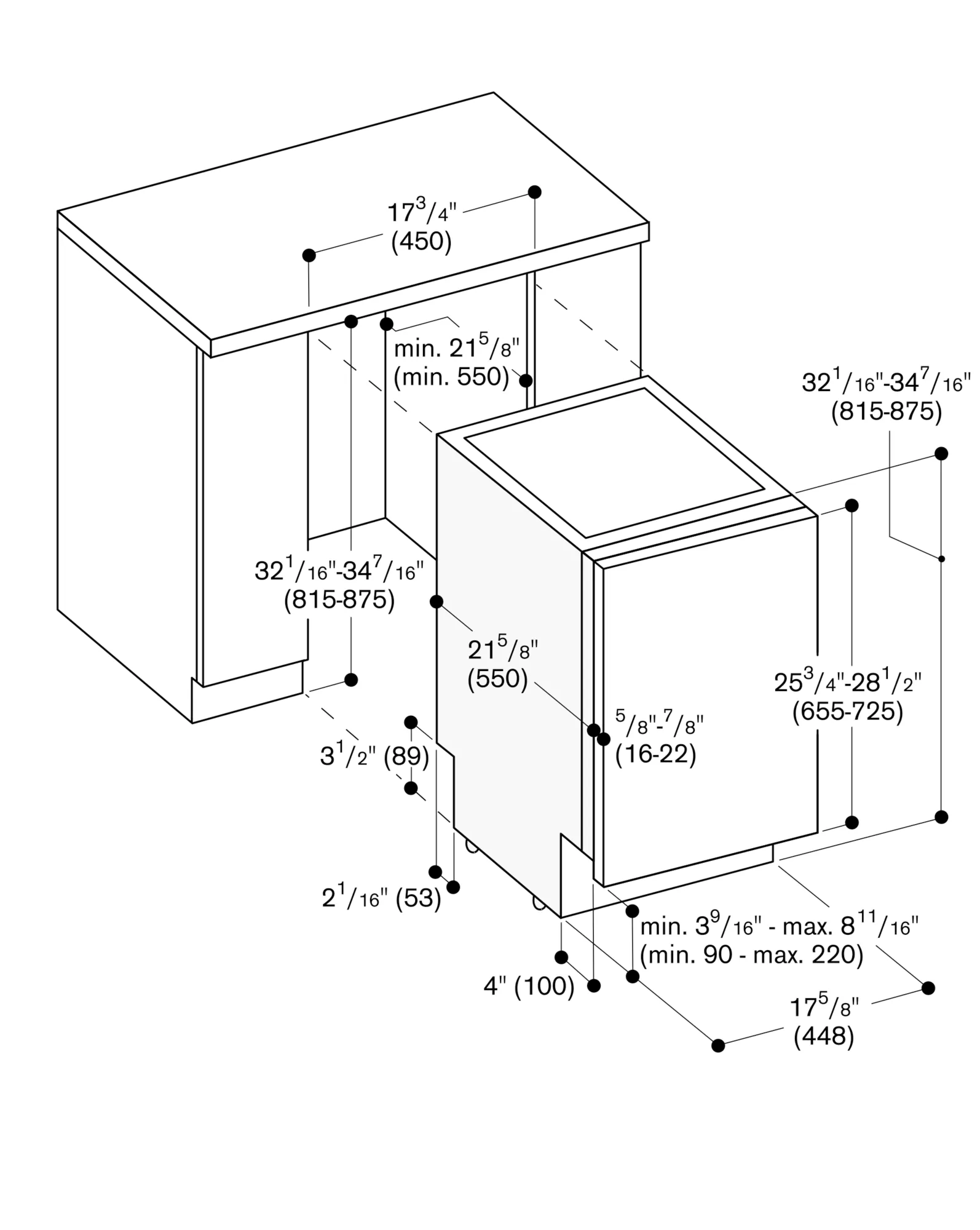

Rear toe kick protrusion 3 15/16" (see drawing).
Rear feet adjustable at front.
Door weight up to 16.5 lbs.
Door panel dimension dependent on plinth height of kitchen furniture.
Total rating: <201300convert(kW)>.
Total Amps: 12 A.
120 V / 60 Hz.

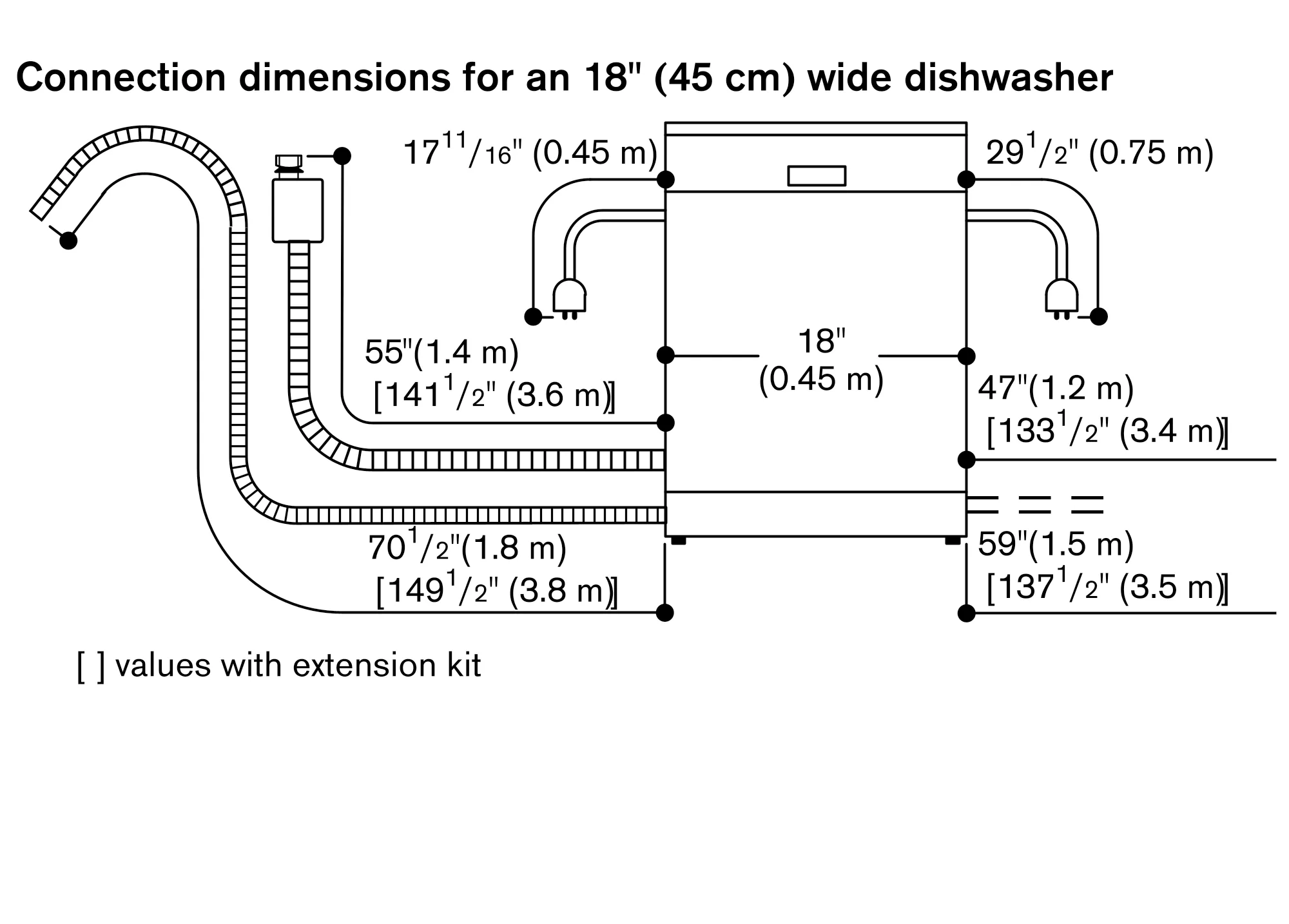

Connecting cable 47 1/4" with plug.
Water connection with 3/4" screw joint.
Connection to hot or cold water possible.
