Unobtrusive visor hood design thanks to integrated glass panel in the steam screen

Especially quiet operation thanks to integrated sound insulation

A special mechanism extends the steam screen automatically

Especially high air output

Dimmable, neutral white LED light for ideal illumination of the whole cooktop

The patented lowering frame allows the visor hood to disappear completely into the upper cabinet

Air extraction or air recirculation system

Air recirculation module with activated charcoal filter: quiet and highly efficient air recirculation solution with odor reduction as in air extraction mode and long replacement intervals

Performance and noise level, output level 3/Intensive: Air output according to EN 61591. Sound power level according to EN 60704-3. Sound pressure level according to EN 60704-2-13. Odour reduction for air recirculation in accordance with EN 61591.

Air extraction: 630 / 850 m³/h. 65 / 72 dB (A) re 1 pW. 51 / 58 dB (A) re 20 μPa.

Performance and noise level, output level 3/Intensive: 500 CFM

Odor reduction recirculation: 95%.

Controls at front.

3 electronically controlled power levels and 1 intensive mode.

Grease filter saturation indicator.

Stainless steel grease filter, dishwasher-safe.

Neutral white LED light (3600 K), continuously dimmable.

Illuminance 683 lx.

Light can be switched on separately.

Integrated sound insulation for quiet operation.

The fan is activated when the steam screen is extended.

Patented technology for extension of the steam screen.

Extendable steam screen up to 7 13/16.

Airflow-optimised interior for efficient air circulation and ease of cleaning.

Patented easy mounting system for simple installation.

The package includes an one-way flap.

Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet. The activated carbon filter can be changed from the front by simply pulling out the filter drawer.

The door of the upper cabinet must be fully open in order to change the activated charcoal filter.

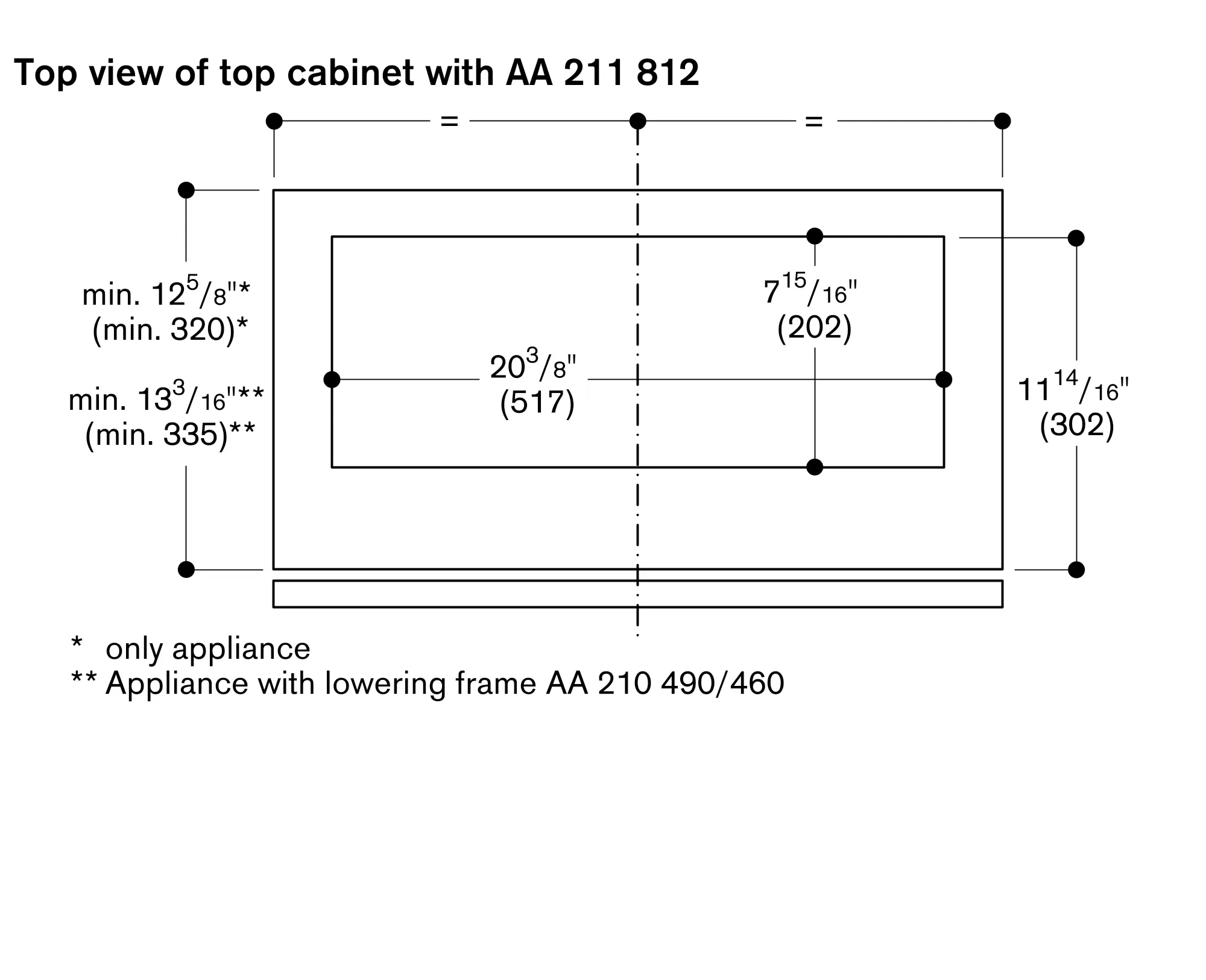

To be installed in an upper cabinet without base.

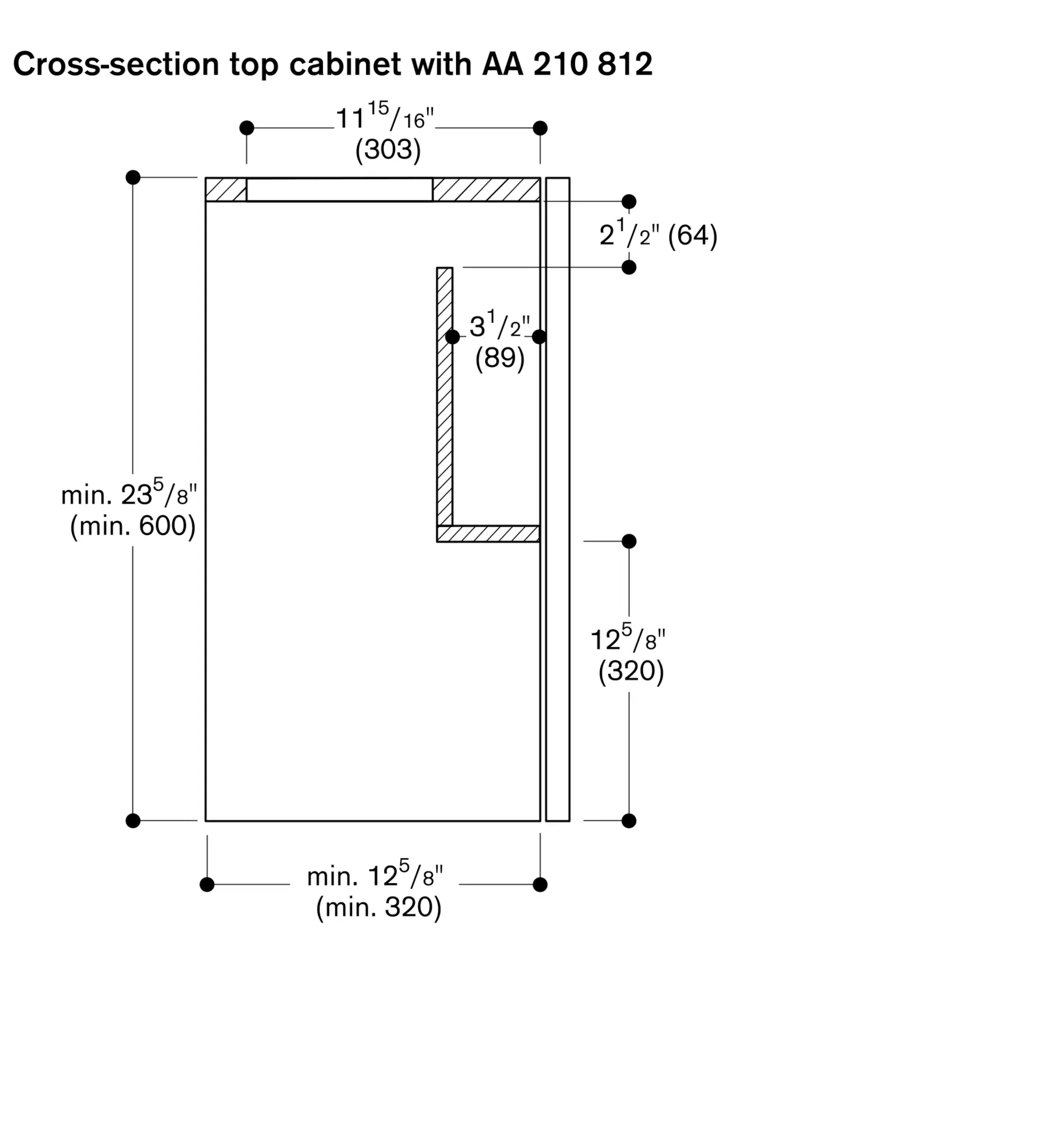

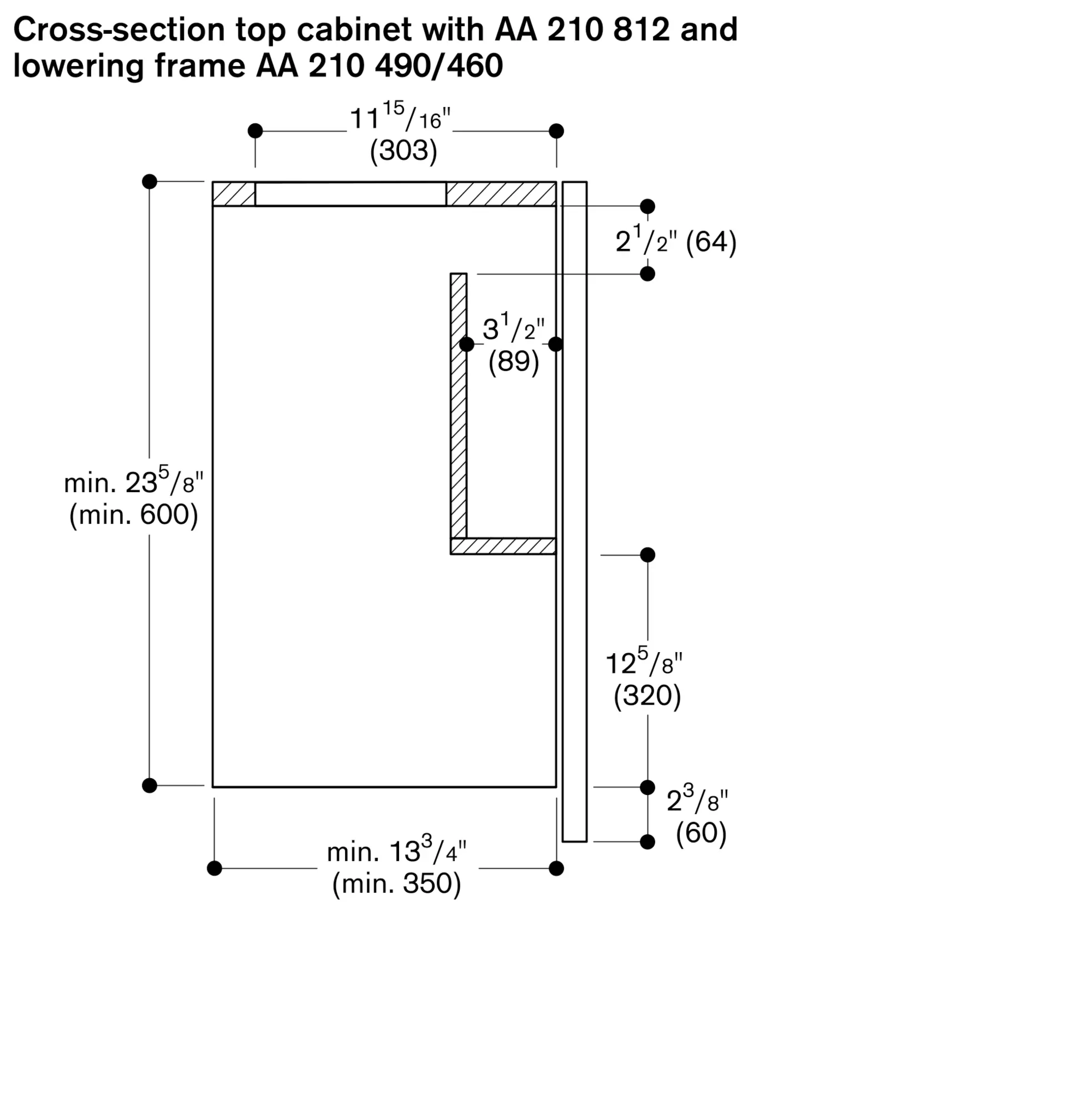

The required cavity height of the upper cabinet together with the lowering frame measures 23 5/8.

Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 28".

Total Amps: 10 A.

Total amps: 10 A.

120 V / 60 Hz.

Connecting cable 35.4" with plug.
