Control panel for comfortable and secure operation

Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size

Multi-ring burner of solid, heat-resistant brass as used in professional kitchen

Solid smooth-surface cast-iron pan support

Up to 58000 BTU (17 kW) on 5 burners

1 multi-ring wok burner 1,000 - 18,800 BTU (300 W – 5000 W), suitable for pots up to max. ø 12 5/8".

2 two-ring high output burners 600 - 13,600 BTU (170 W – 4000 W), suitable for pots up to max. ø 11".

2 two-ring standard burners 600 - 6,800 BTU (170 W – 2000 W), suitable for pots up to max. ø 9 1/2".

Control knobs with illuminated ring.

Integrated control panel.

One-handed operation.

Electric ignition.

Three-part cast iron pan support with flat, continuous pot surface.

Brass burner rings.

Thermoelectric safety pilot.

Residual heat indicator.

Operation indicator.

No intermediate shelf required.

Appliance can be snapped into the countertop from above.

The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.

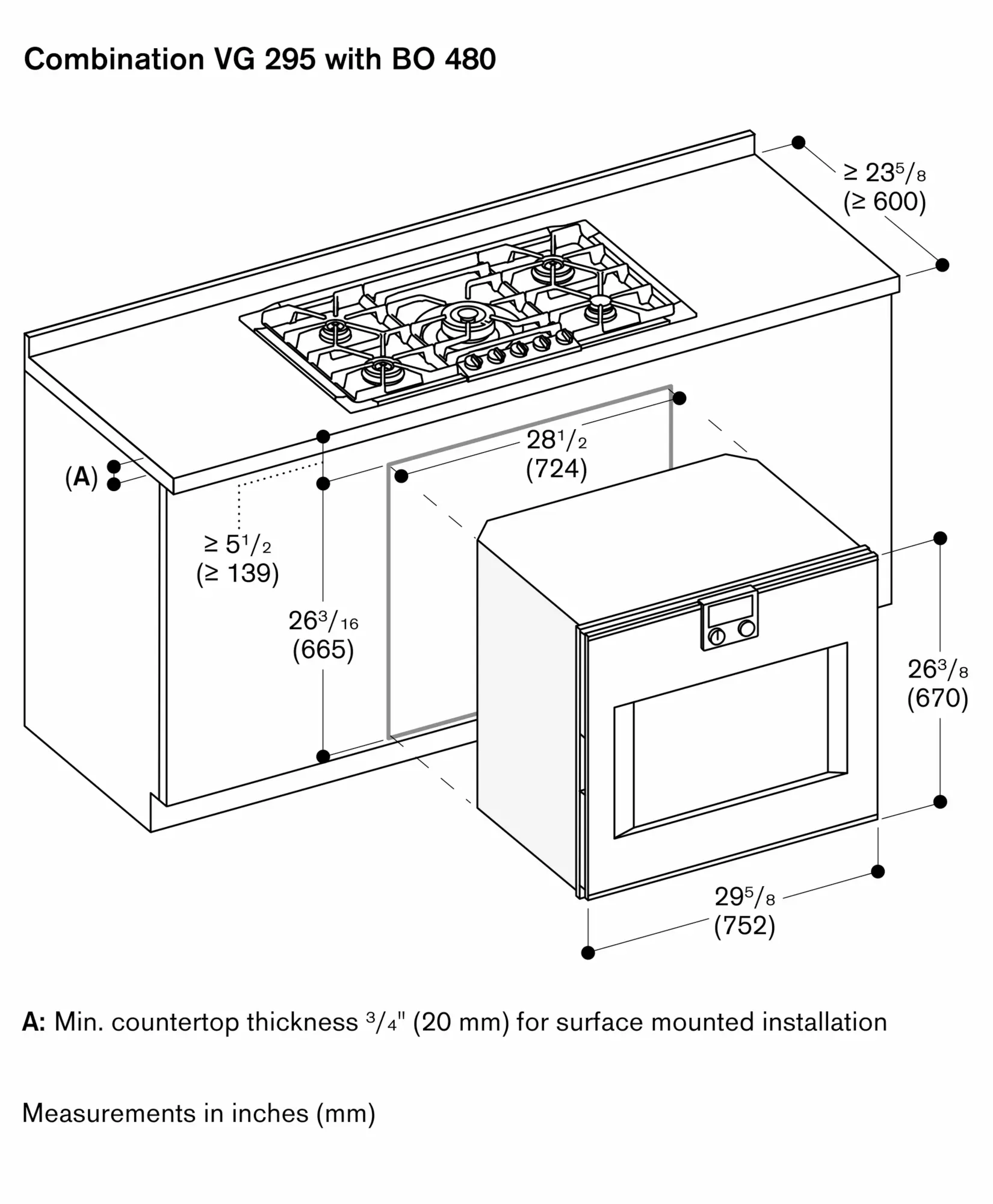

Installation in a 36" (90 cm) wide base cabinet is required.

Above countertop minimum clearance of at least 11 13/16" from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.

Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm).

Appliance weight: approx. 29 kg.

Total rating: 58000 BTU (17.0 KW).

Total rating 10 W.
