Flush installation

Pyrolytic self-cleaning system

Universal heating system with 13 heating modes, with meat probe and baking stone operation

TFT touch display

Electronic temperature control from 85°F - 550°F

Net volume (76 litres)

Convection. Economy convection. Top + bottom heat. Top heat. Bottom heat. Convection + bottom heat. Convection broiling. Broiling. Economy broiling. Baking stone operation. Roaster operation. Dough proofing. Defrosting.

Rotary knob and TFT touch display operation.

Clear text display in 44 languages.

Option to save 50 individual recipes (incl. core temperature probe)

Information key with use indicators.

Side-opening door opens up to 110° angle.

Meat probe with automatic shut-off function.

Baking stone outlet.

Actual temperature display.

Fast heating setting.

Timer functions: cooking time, switch-off time, short-term timer, stopwatch.

60 W halogen light on the top.

Enameled side rack supports with 4 rack levels, pyrolytic-safe.

Thermally insulated door with quintuple glazing.

Child lock.

Safety shut-off.

Cooled housing with temperature protection.

Pyrolytic self-cleaning.

Gaggenau Clean-Enamel.

Heated air cleaning catalyst.

Door hinge not reversible.

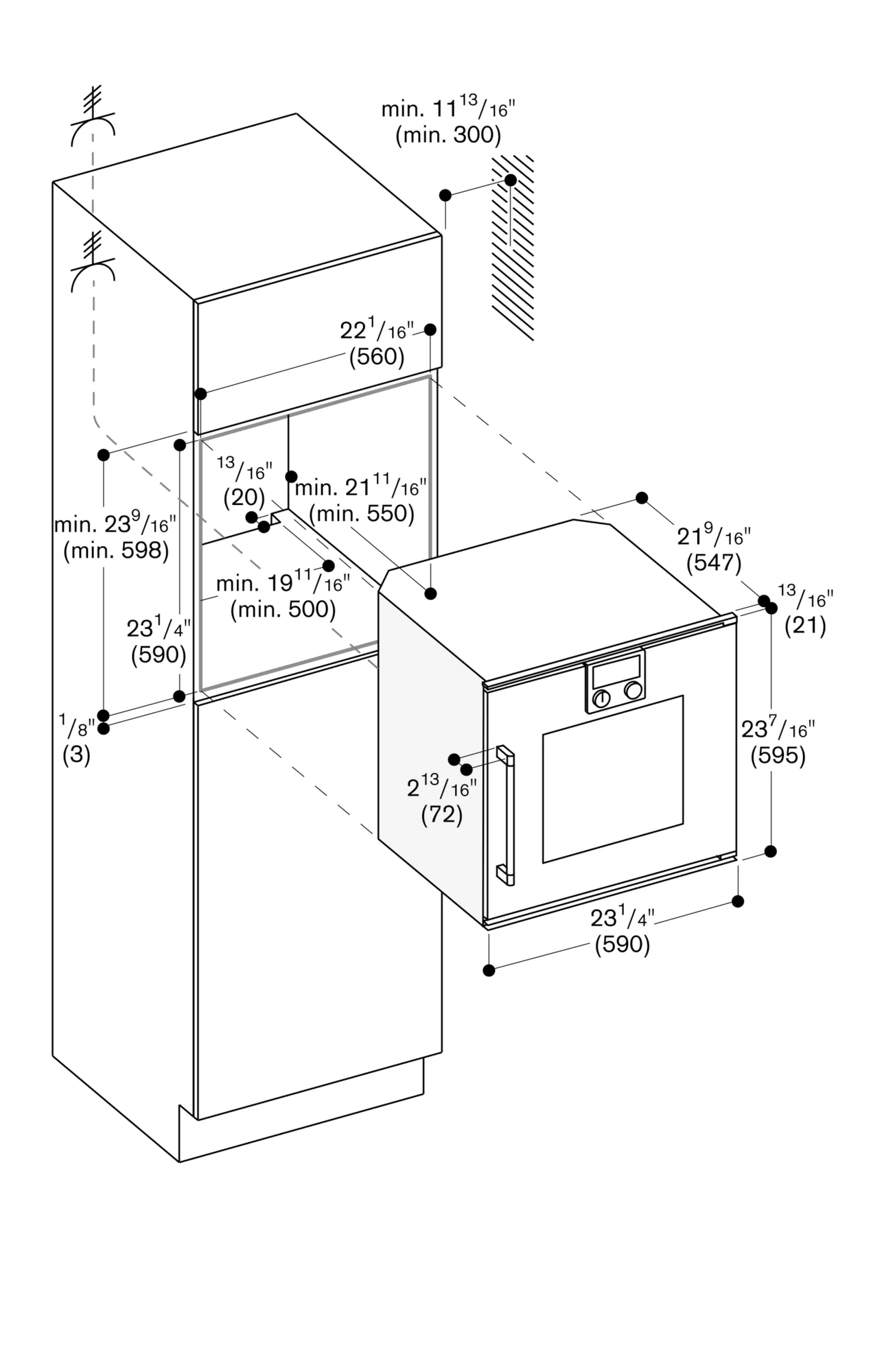

The door panel front of the appliance extends 13/16" from the cabinet front.

The outer edge of the door handle extends 2 13/16" from the cabinet front.

Necessary lateral gap between appliance door and cabinet front of min. 3/16".

Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance.

When planning a corner solution, pay attention to the 110° door opening angle.

For installation underneath cooktops: Distance between the underside of the cooktop and the top edge of the oven cavity: min. 9/16". The planning notes for the cooktops (particularly regarding ventilation, gas/ electric connection) must be taken into account.

To achieve the 21 ⅝" (550 mm) installation depth, the connection cable needs to follow the slanted edge on the corner of the housing.

Plan a power outlet outside of the cut-out niche.

Energy efficiency class A.

Total rating 4.0 KW.

Total Amps: 17 A.
