Gaggenau Expressive series warming drawer 30''
GW483720

Find a showroom or a local dealer

Technical Overview

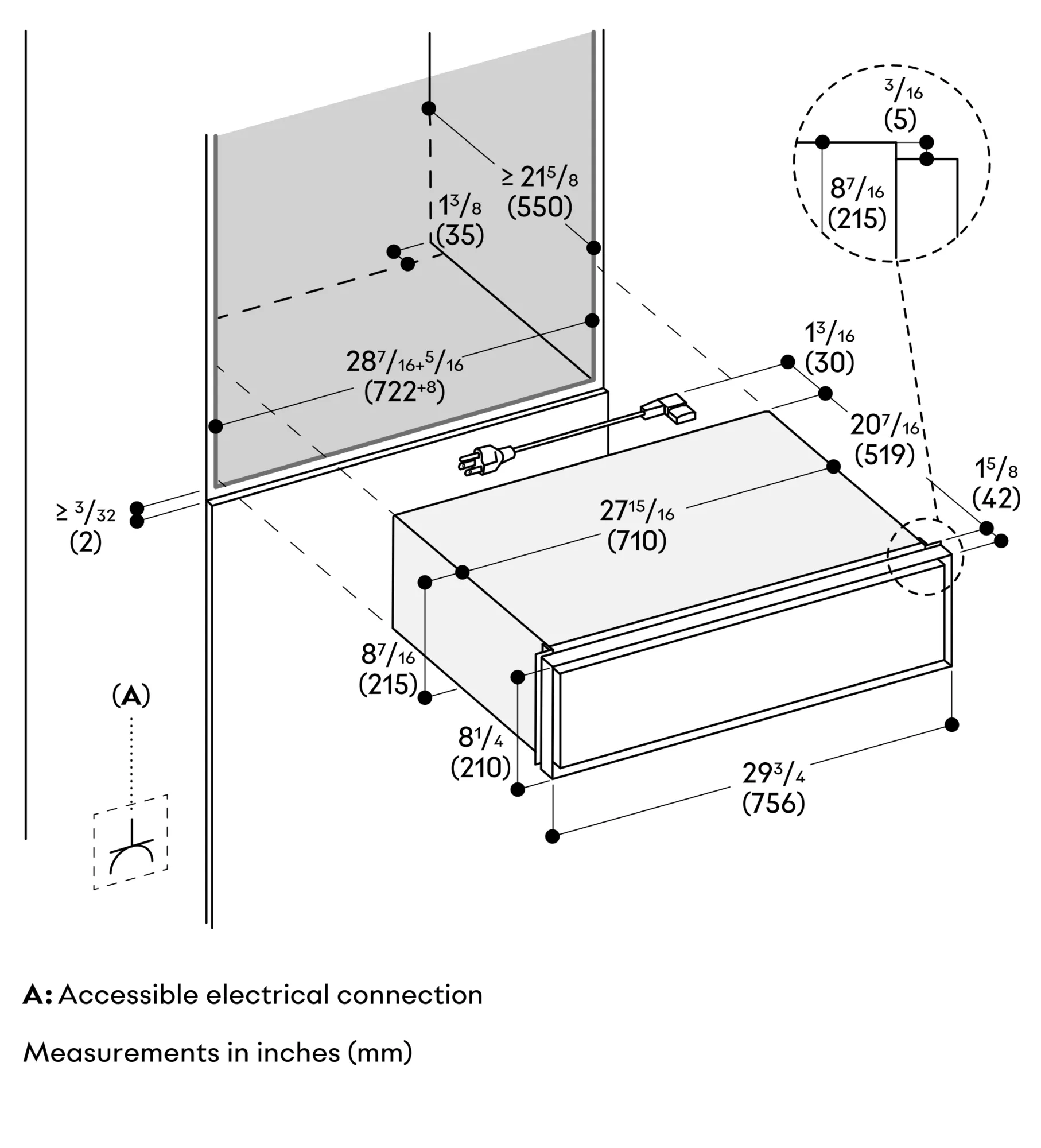

Overall Appliance Dimensions (HxWxD) (in)
8 7/16'' x 29 3/4'' x 20 7/16''
Required Cutout Size (HxWxD) (in)
8 9/16'' x 28 7/16'' x 21 5/8''

Additional information

Handleless drawer.
Bright interior lighting
Push-to-open function.
Hygienic stainless steel interior with glass bottom
Direct temperature selection in the range 80 °F to 180 °F.
Also for low-temperature cooking, dough proofing, herbs and fruits drying, chocolate melting and defrosting.
Preheating of small beverages.
Warming of dishes.
Keeping meals warm.
Low-temperature cooking.
Direct temperature control.
Personalization function via Home Connect.
16 additional programs via Home Connect.
Touch key operation.
Cavity capacity 1.67 cu.ft. (47 liters).
Volume capacity: Dinner service for 10 people including ø 10 5/8" plates and soup bowls, additional bowls and a serving dish depending on size.
Capacity load max. 55 lbs.
Usable interior dimensions
W27 5/8'' x H 6 1/2'' x D 16''.
Heating system for even heat distribution and stable cavity temperature.
Status indicator, visible on the frame.
Glass bottom made of safety glass.
Additional programs and recipes.
Remote control and monitoring.
Timing function.
Plan the niche without back wall.
Protrusion from appliance front to furniture cabinet 1 5/8" (42 mm).
Consider the overhang when planning to open drawers next to the appliance.
Installation of GO/GS/GM/GC directly above the drawer without intermediate shelf.
Installation directly above a dishwasher is not allowed.
The electrical connection must be accessible and located outside the oven cutout.
The electric outlet can be planned behind the appliance.
Total rating 0.82 KW.
Electrical connection cable 68 7/8" (1.75 m), hardwire required.
