Technical Overview

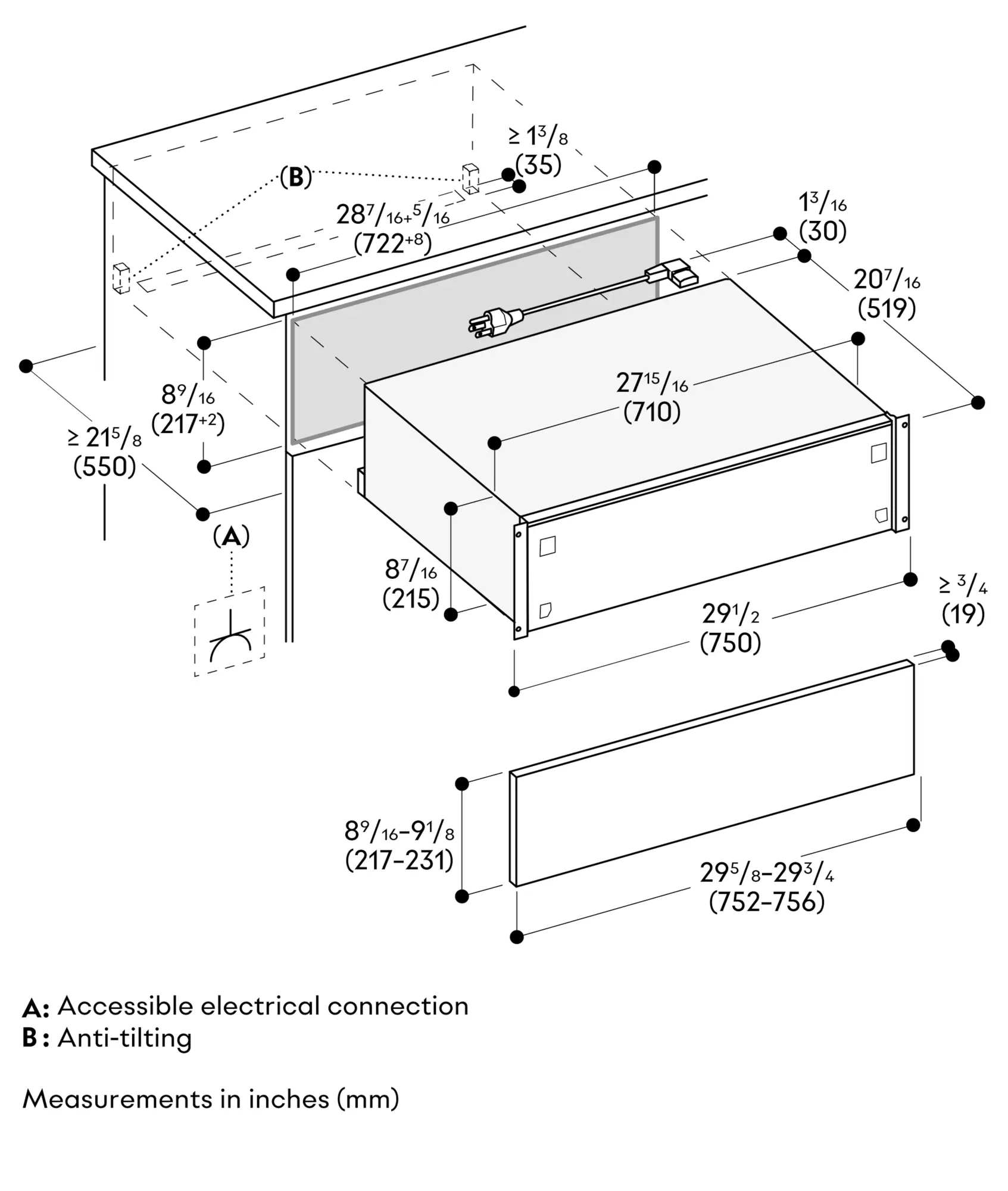

Overall Appliance Dimensions (HxWxD) (in)
8 7/16" x 29 1/2" x 20 7/16"
Required Cutout Size (HxWxD) (in)
8 9/16'' x 28 7/16" x 21 5/8"
Additional information
Able to be integrated into a 8 9/16" (21.7 cm) high niche.
Bright interior lighting
Soft closing system
Hygienic stainless steel interior with glass bottom
Direct temperature selection in the range 80 °F to 180 °F.
Also for low-temperature cooking, dough proofing, herbs and fruits drying, chocolate melting and defrosting.
Preheating of small beverages.
Warming of dishes.
Keeping meals warm.
Low-temperature cooking.
Direct temperature control.
Personalization function via Home Connect.
16 additional programs via Home Connect.
Touch key operation.
Cavity capacity 1.67 cu.ft. (47 liters).
Volume capacity: Dinner service for 10 people including ø 10 5/8" plates and soup bowls, additional bowls and a serving dish depending on size.
Capacity load max. 55 lbs.
Usable interior dimensions
W 27 5/8" x H 6 1/2" x D 16".
Heating system for even heat distribution and stable cavity temperature.
Glass bottom made of safety glass.
Additional programs and recipes.
Remote control and monitoring.
Timing function.
Plan the niche without back wall.
Installation of GO/GS/GM/GC directly above the drawer without intermediate shelf.
Attention: To open the fully integrated variant, a handle or a recessed grip is necessary.
Custom panel weight up to 6.6 lbs.
Necessary lateral gap between appliance front and furniture panel of min. 3/16".
The electric outlet can be planned behind the appliance.
Total rating 0.82 KW.
Electrical connection cable 68 7/8" (1.75 m), hardwire required.
