Expressive seriesVacuuming drawerGV451720
Vacuuming drawer

Gaggenau Expressive series vacuum-sealing drawer
GV451720

New
1 / 2
Photo Nr. 1 of the product GV451720
Photo Nr. 2 of the product GV451720
Photo thumb Nr. 1 of the product GV451720
Photo thumb Nr. 2 of the product GV451720

Gaggenau Expressive series vacuum-sealing drawer
GV451720

Find a showroom or a local dealer

Technical Overview

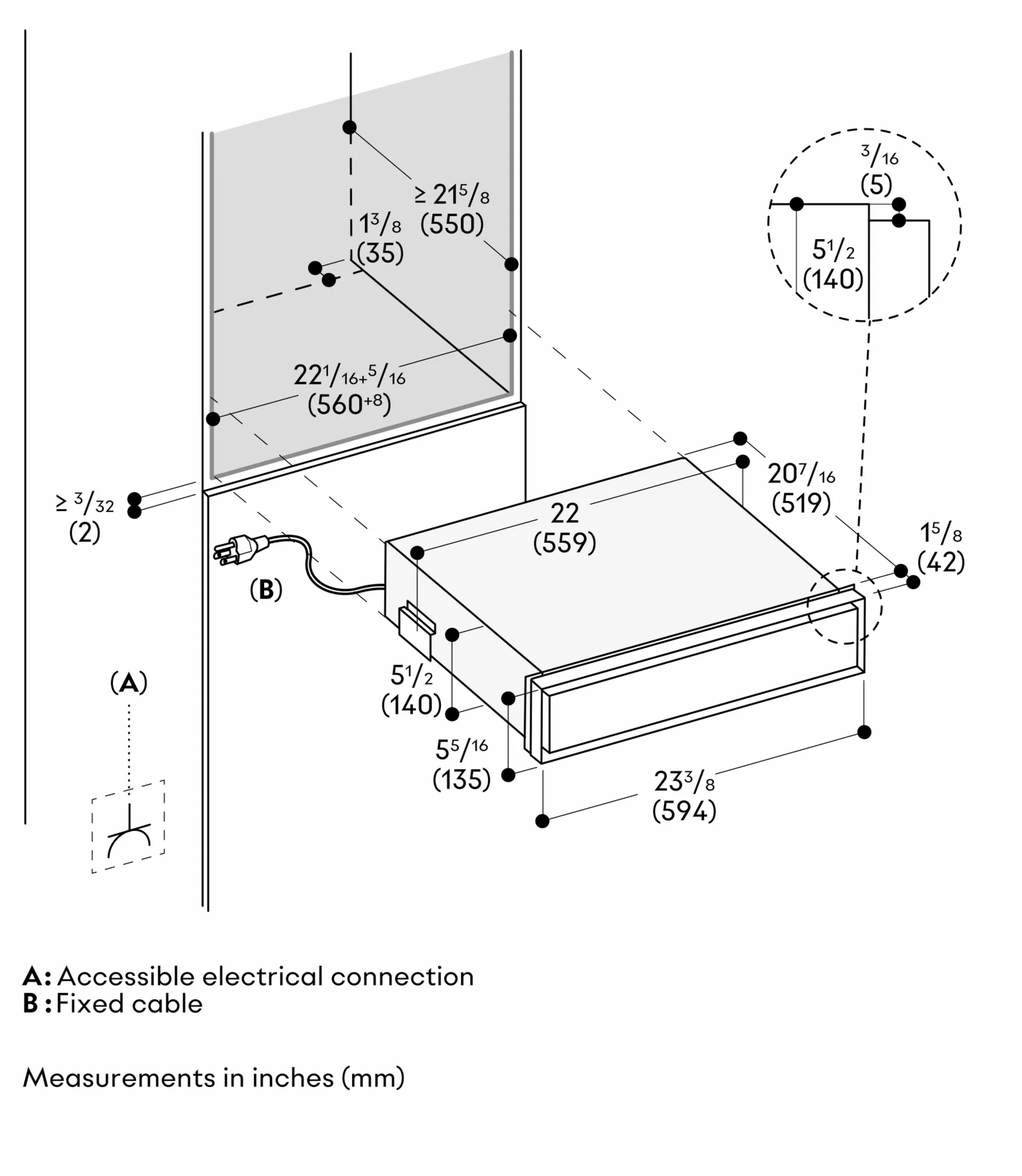

Overall Appliance Dimensions (HxWxD) (in)
5 1/2'' x 23 3/8'' x 20 7/16''
Required Cutout Size (HxWxD) (in)
5 1/2" x 22 1/16'' x 21 5/8''

Additional information

Integrable in 5 1/2" (14 cm) high niche.
Hygienic stainless steel vacuuming chamber, applicable height up to 3" (80 mm).
3 vacuuming levels for vacuuming in the chamber, max. 99%.
3 vacuuming levels for vacuuming outside the chamber, max. 90%.
Automatic connection recognition for vacuuming outside the chamber.
Handleless drawer.
Push-to-open function.
Vacuuming for sous-vide cooking.
Vacuuming for fast marinating and flavouring.
Vacuuming for extended storage.
Vacuuming of vacuuming containers outside the chamber.
Resealing bottle outside the chamber.
Touch key operation.
Cavity capacity 0.25 cu.ft. (7 liters).
Capacity load max. 22 lbs.
Maximum size of vacuuming bags W 9 1/2" x L 13 3/4".
3 heat-sealing levels for different strengths of bag material.
Sealing bar, non-stick coating, removable.
Safety glass cover, opens automatically after vacuuming.
Raised vacuuming platform, 1 3/4" (44 mm), deployable.
Utility space in vacuuming chamber, 8 1/4" x L 11".
Membrane for avoiding reflow of liquids during vacuuming outside the chamber.
Drying programme for vacuuming pump.
Plan the niche without back wall.
Protrusion from appliance front to furniture cabinet 1 5/8" (42 mm).
Installation of GO/GS/GM/GC directly above the drawer without intermediate shelf.
Installation directly above a dishwasher is not allowed.
The electric outlet can be planned behind the appliance.
Special accessories (order as spare parts):
Part No. 00578813 vacuuming bags, small Part No. 00578814 vacuuming bags, big.
Total rating 0.52 KW.
Electrical connection cable 71" (1.80 m), hardwire required.
