Gaggenau Expressive series combi-microwave oven 76 x 45 cm door hinge: rightGM480720
GM480720
New
1 / 2Gaggenau Expressive series combi-microwave oven 76 x 45 cm door hinge: rightGM480720
GM480720
Find a showroom or a local dealer
Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
17 15/16 x 29 3/4 x 21
Required Cutout Size (HxWxD) (in)
17 3/4 x 28 7/16 x 21 5/8
Additional information
Handleless full glass door with electronic door opening.
Full touch display with stainless steel control ring.
Light and display response upon user approach.
Single operation and combination of microwave and oven.
Automatic programs and setting recommendations.
Cavity capacity 1.62 cu.ft. (46 liters).
Microwave operation with 6 output levels: max. 1000, 600, 450, 360, 180, 90 W.
Oven operation with 9 heating methods:
Convection from 85 °F to 450 °F (30 °C to 230 °C), Broil + circulated air from 85°F to 450 °F (30 °C to 230 °C), Warming up beverages, max. microwave level, Warming up meals, 360 W to 600 W, Dehydrating from 85 °F to 175 °F (30 °C to 80 °C), Low temperature cooking from 85 °F to 195 °F (30 °C to 90 °C ) + microwave, Dough proofing from 85 °F to 122 °F (30 °C to 50 °C), Keeping warm, special microwave level, Defrosting, 90 W to 360 W.
Convection and broil + circulated air freely combinable with microwave output levels 450, 360, 180 and 90 W.
70 programs (automatic programs and setting recommendations).
Option to save up to 30 favorites.
Cushioned side-opening door with 110 ° opening angle.
Electronic door opening.
Full touch display with control ring.
42 display languages available.
User detection, adjustable distance.
Info texts for additional information.
Animated quick guides to assist appliance operation.
Innowave (inverter technology) for uniform microwave output.
Precise temperature control with display of the current temperature.
Broil can be added briefly in convection mode for additional browning.
Connection for core temperature probe (oven temperature probe usable).
Programable automatic door opening at cooking time end to avoid overcooking.
Timer functions: cooking time, cooking time end, count-up timer.
Sabbath mode with pre-programmable heating cycles.
Convection fan rotates in both directions for ideal heat distribution
Optimum visibility of the food thanks to side lighting.
2 shelf levels and option of placing the food in suitable accessories directly on the cooking compartment floor.
Remote control and monitoring.
Cooking time estimation when using the core temperature probe.
Door opening via voice assistant.
Child lock to prevent accidental switch on or operation of the appliance.
Electronic door lock to prevent unintentional opening of the appliance door.
Safety shut-off.
Thermally insulated door with triple glazing.
Cooled housing with temperature protection.
Hygienic stainless steel interior with heat resistant glass base.
Cleaning aid program.

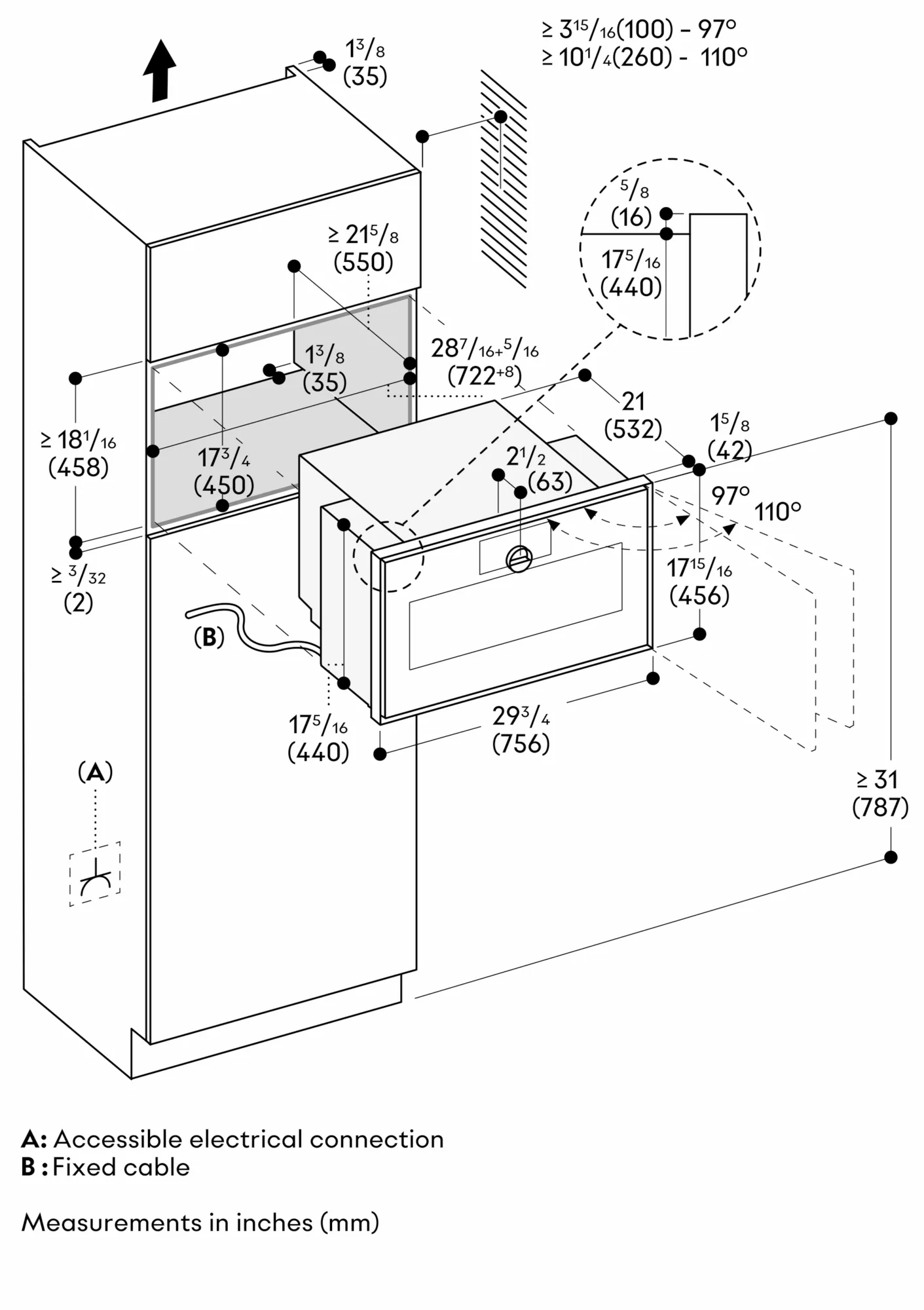

Plan the niche without back wall.
Door hinge not reversible.
Protrusion from appliance front to furniture cabinet 1 5/8" (42 mm).
This appliance is designed for ergonomic installation at a user-friendly height. If the appliance is to be installed underneath a countertop, it is essential to ensure proper ventilation is provided behind the appliance.
Consider the overhang when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the side-opening door and the minimum required distance to the wall.
Door opening angle appr. 110° (delivery status) can be reduced to appr. 97° if required.
For installation underneath cooktops: distance between the underside of the cooktop and the top edge of the oven housing: min. 9/16" (15 mm). The planning notes for the cooktops (particularly regarding ventilation, gas/electric connection) must be taken into
account.
To comply with UL/CSA norm the upper edge of the appliance front must be at a minimum height of ≥ 31" (787mm).
The electrical connection must be accessible and located outside the oven cutout.
Total rating 2.90 KW.
Total Amps: 20 A.
120/208-240 V / 60 Hz.
Electrical cable 59 1/16'' without plug (hardwire required).
