Expressive seriesCombi-microwave ovensBM270100

Built-in compact oven with microwave function 60 x 45 cm door hinge: right, Gaggenau Anthracite
BM270100

1 / 3

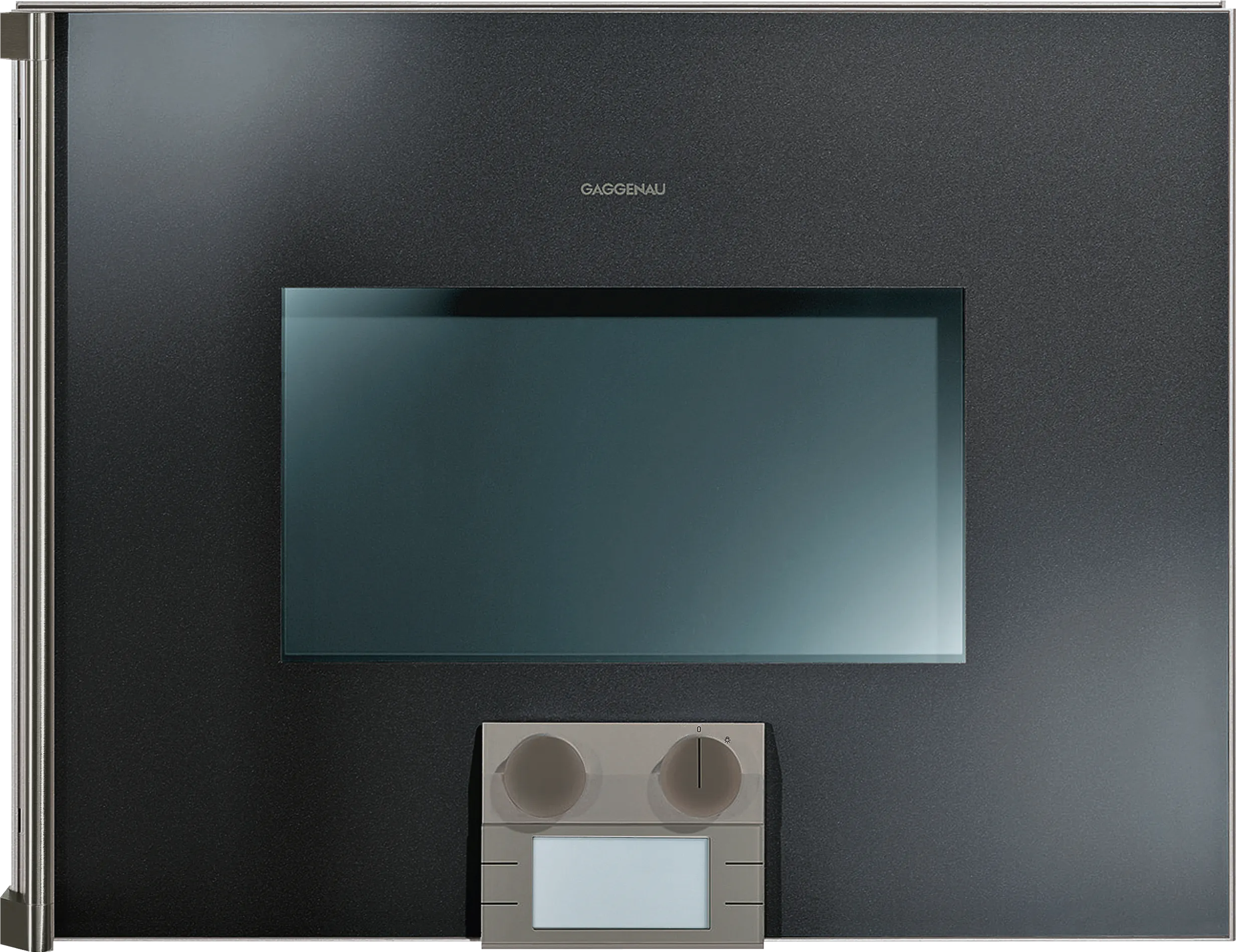

Photo Nr. 1 of the product BM270100
Photo Nr. 2 of the product BM270100
Photo Nr. 3 of the product BM270100
Photo thumb Nr. 1 of the product BM270100
Photo thumb Nr. 2 of the product BM270100
Photo thumb Nr. 3 of the product BM270100

Built-in compact oven with microwave function 60 x 45 cm door hinge: right, Gaggenau Anthracite
BM270100

Color:

Gaggenau Anthracite

Gaggenau Anthracitestainless steelSilver

Variant:

Find a local Dealer

Technical Overview

Type of installation
Built-in
Dimensions (HxWxD)
455x590x580 mm
Colour of appliance
Gaggenau Anthracite
Cavity capacity
36 l
Integrated Cleaning system
Catalytic partial
Number of automatic programmes
15
Gaggenau Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No

Additional information

Combinability with other appliances of the oven 200 series in the 45 cm high niche
Single operation and combination of microwave, grill and oven
Sequential operation of up to 3 modes
Interior volume 36 litres
15 automatic programmes
LCD function display with digital clock.
Clear text display in 16 languages.
Timer functions: cooking time, switch off time, short-term timer, stop watch, long-term timer.
Actual temperature display.
Electronic temperature control.
Rotary knob and touch key operation.
Information key with use indicators.
Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W.
Full surface grill with 3 levels of intensity, maximum output 2000 W.
Oven operation with 3 heating methods: Hot air 40 °C and from 100 °C to 250 °C, grilling with hot air from 100 °C to 250 °C, grilling with circulated air from 100 °C to 250 °C.
Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable.
15 automatic programmes with weight indication, customisable: 4 defrosting programmes 5 cooking programmes 6 combination programmes
Innowave.
Rapid heating.
4 rack levels.
60 W halogen light on the side.
Side-opening door opens up to 180° angle.
Triple door lock.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Stainless steel interior with ceramic base.
Interior back wall with catalytic special enamelling.
Plan the niche without back wall.
Door hinge not reversible.
The façade of the appliance extends 47 mm from the furniture cavity.
The outer edge of the door handle extends 94 mm from the furniture cavity.
Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 90° door opening angle.
The main socket needs to be planned outside of the niche.
Total connected load 3.1 KW.
Connecting cable 1.5 m without plug.
