Technical Overview
Dimensions (HxWxD)
842x598x613 mm
selfCleaning Condenser
Yes
autoDry
Yes
super40
Yes
Gaggenau Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Water drainset accessory
Yes
Additional information
Heat pump technology
Self-cleaning condenser for automatic fluff removal
Very silent drying with only 62 db
Steam Refresh: refreshes and removes creases from dry laundry
Smart Dry automatically selects the right dryer program based on the last washing program
Illuminated rotary knob with integrated On-Off switch.
Touch key operation.
TFT display with clear text and symbols.
Programme sequence and remaining time display.
Time delay up to 24 h hours.
Multiple signal tones.
Moisture and time controlled programmes.
Heat pump technology.
Self-cleaning heat exchanger.
Refresh function without previous washing cycle.
Anti-crease cycle at programme end.
Top-up function.
Child lock.
Smart Energy Management.
Smart Dry (Washing machine automatically selects correct dryer program).
Remote control and monitoring.
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com
Cottons.
Easy care.
Mix.
Timed program warm.
Wool in Basket.
Business Refresh.
5 Shirts/Blouses Refresh.
1 Shirt/Blouse Refresh.
Shirts.
Towels.
Super 40.
Hygiene.
Additional Programmes: Smart Dry, Blankets, Delicates (Lingerie), Synthetics, Down, Wool Finish.
Options: Remote Start, Anti Crease, Easy Iron, Drying Target, Drying Target Adjustment, Spin Speed, Gentle Dry, Memory Function.
varioSoft drum system.
Dry wool without shrinking or matting thanks to the included basket for woollens.
Volume capacity from 1 to 9 kg.
Drum interior lighting.
Energy efficiency class A+++ at a range of energy efficiency classes from A+++ to D.
Combines perfectly with washing machine WM 260 164.
Right-hinged, reversible.
Large porthole with 165 ° opening angle.
Height-adjustable feet.
Height for slide-under installation: 84.2 cm.

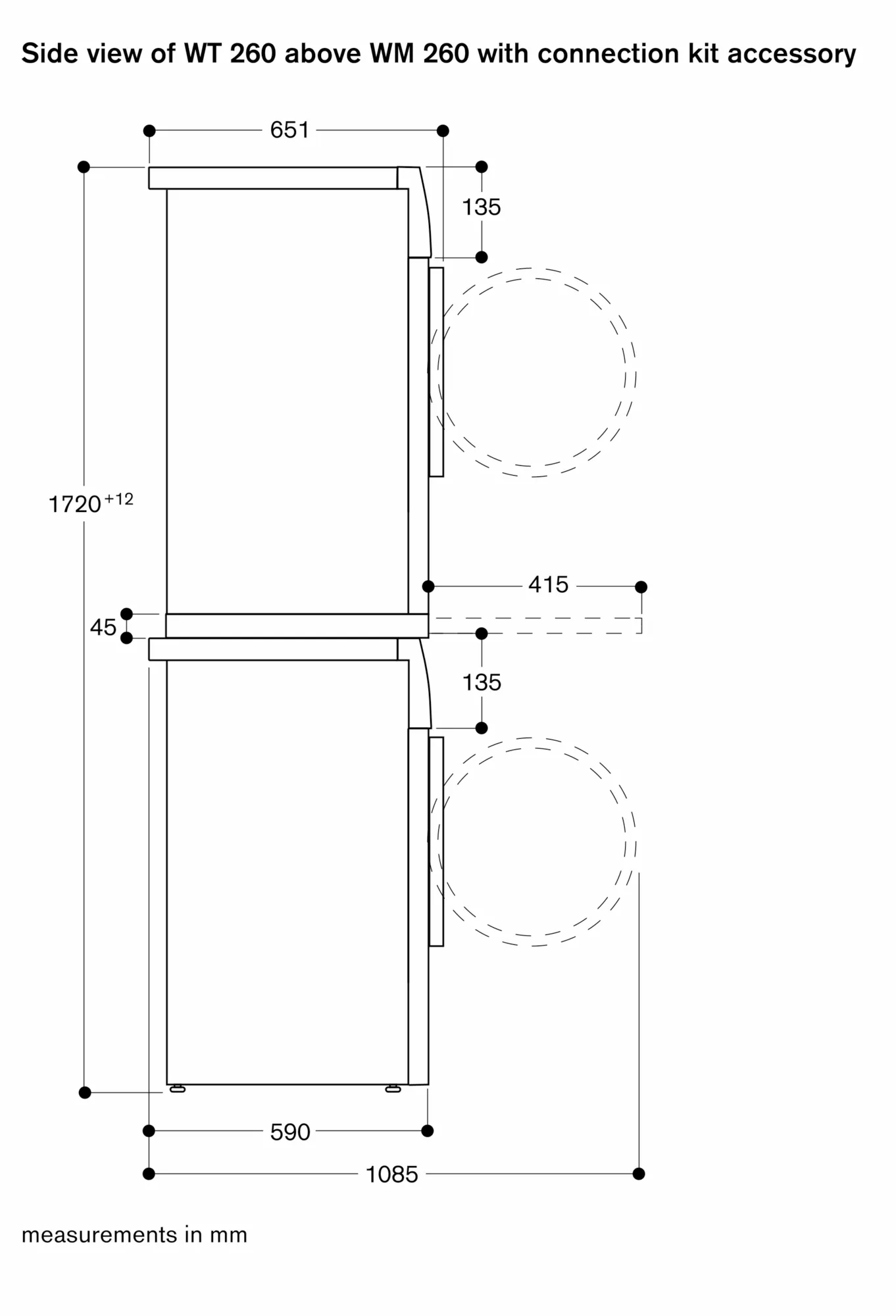

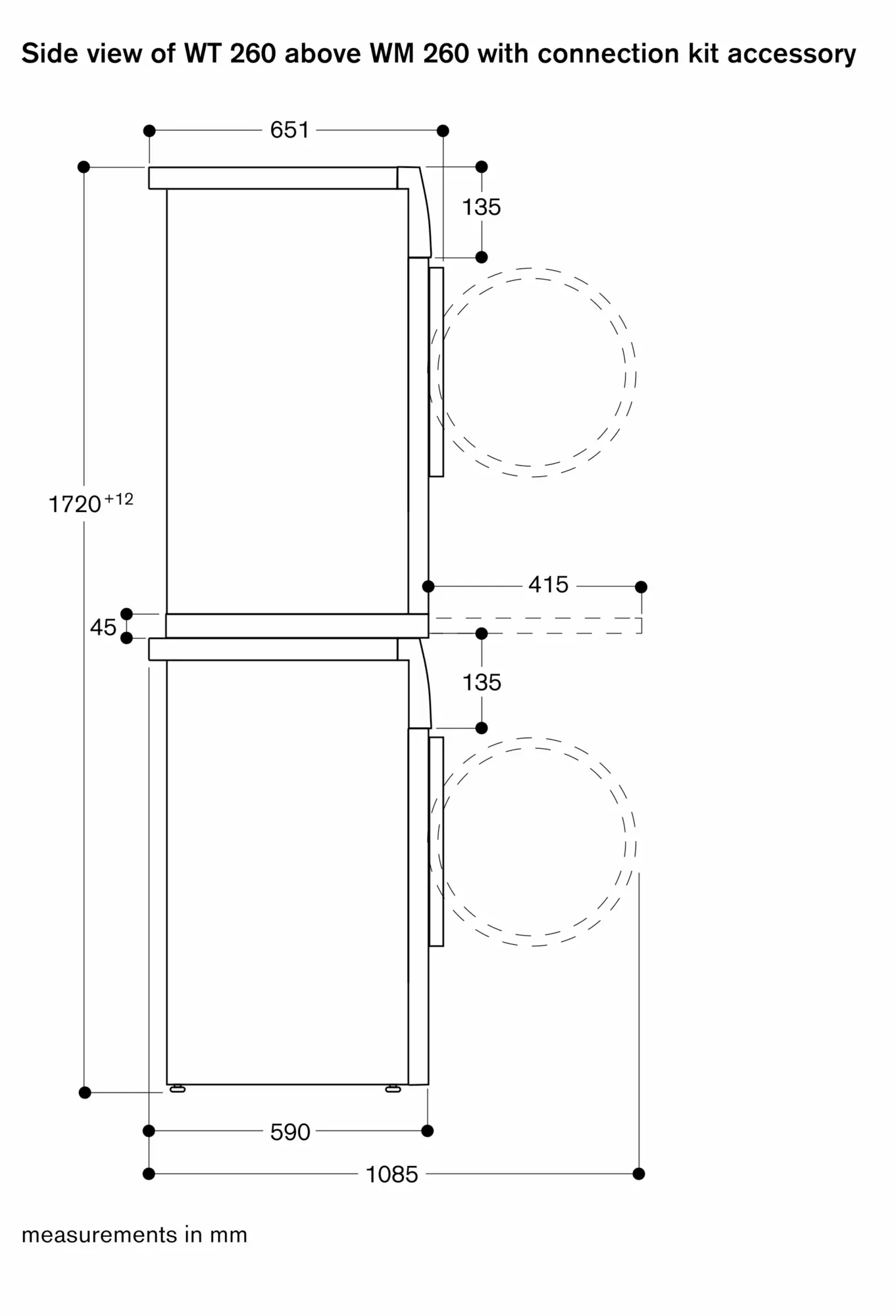

Stackable above washing machine WM 260 164 in combination with special accessory. With pull-out shelf 17001528, without pull-out shelf 17001527.
Total connected load 0.6 KW.
Connection cable 1.45 m with plug.
