Technical Overview
Installation typology
Built-in
Width of appliance
10 cm
Control your hood with your Home Connect hob
No
PerfectAir
No
Type of extraction
air extraction / air recirculation
Air output extraction (max)
440 m³/h
Additional information
Ventilation element integrated in the worktop
Highly efficient ventilation system close to the cooktop
Minimal planning and easy installation for air recirculation
Maximum air output in combination with remote fan units s. table remote fan units on page xxx.
Output control, knob operation.
4 output levels.
Ventilation grille can be washed.
Metal grease filter with grease collecting insert.
No duct connection piece included.
Consumption data is referred to a configuration with the remote fan unit AR 403 121.
Energy consumption 70 kWh/year.
Ventilation efficiency class B.
Grease filter efficiency class D.
Sound level min. 52 dB / max. 67 dB normal mode.
No additional switch necessary.
Air extraction in combination with remote fan unit AR 403 121 or air recirculation mode with AR 413 121.

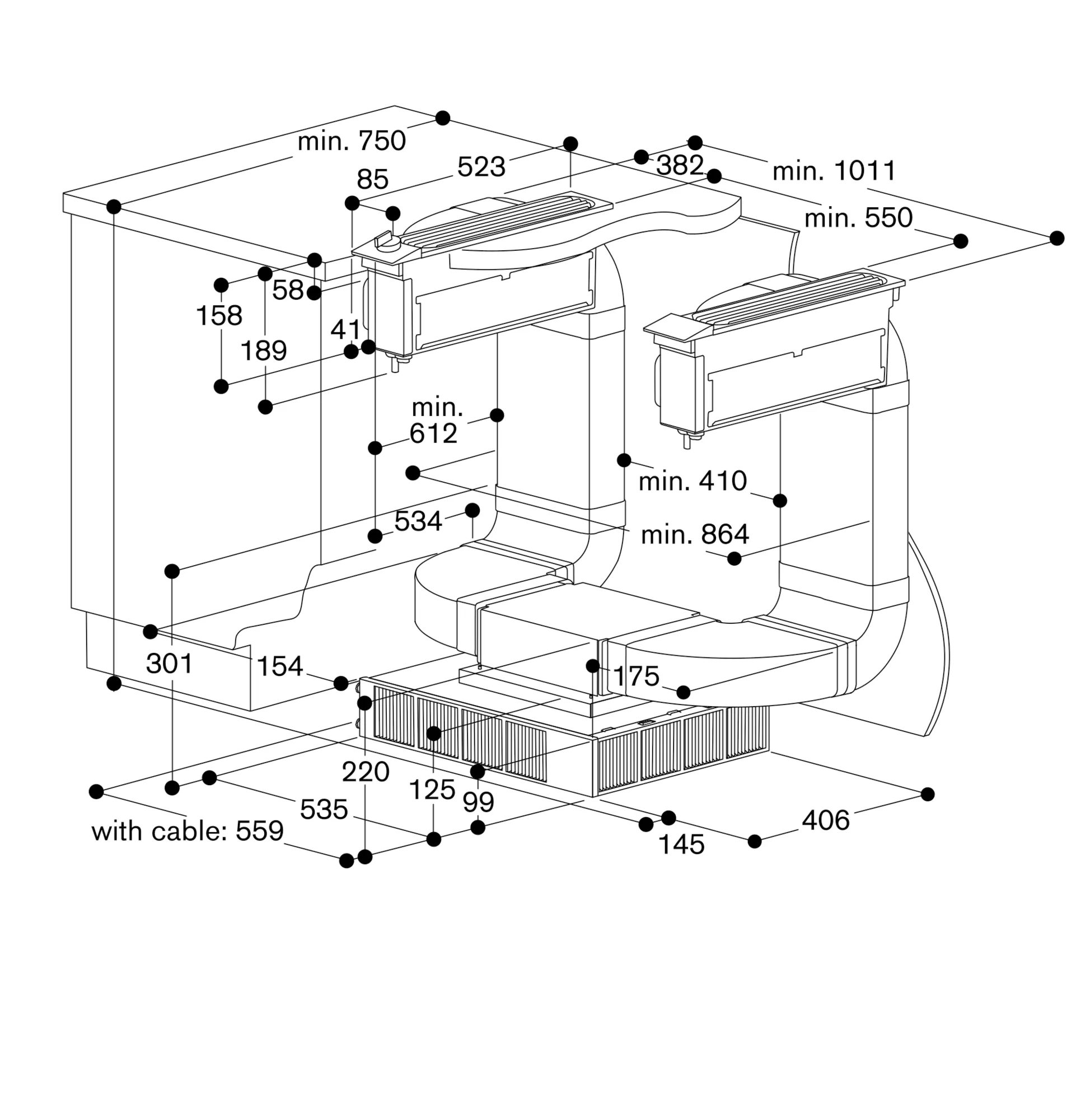

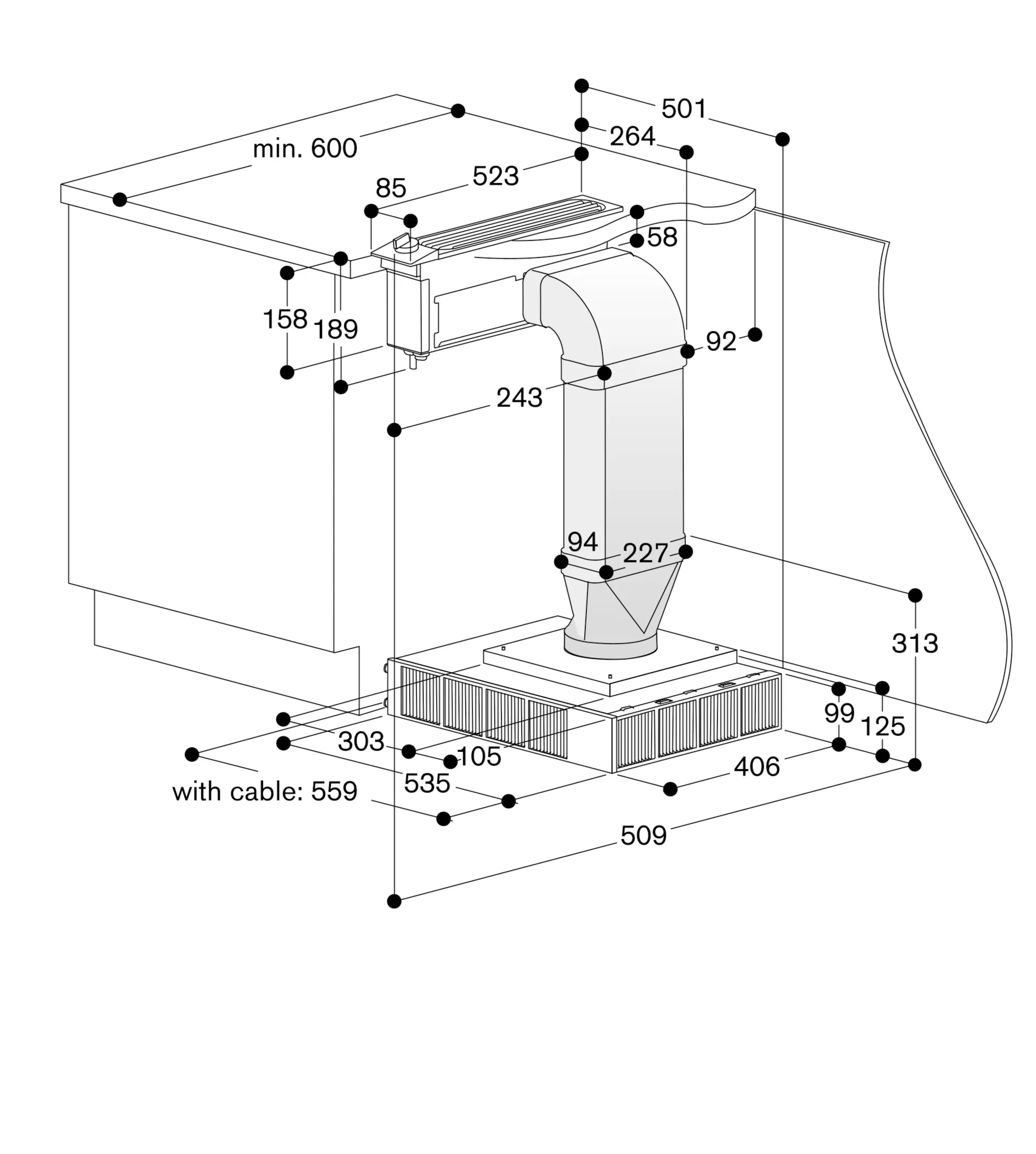

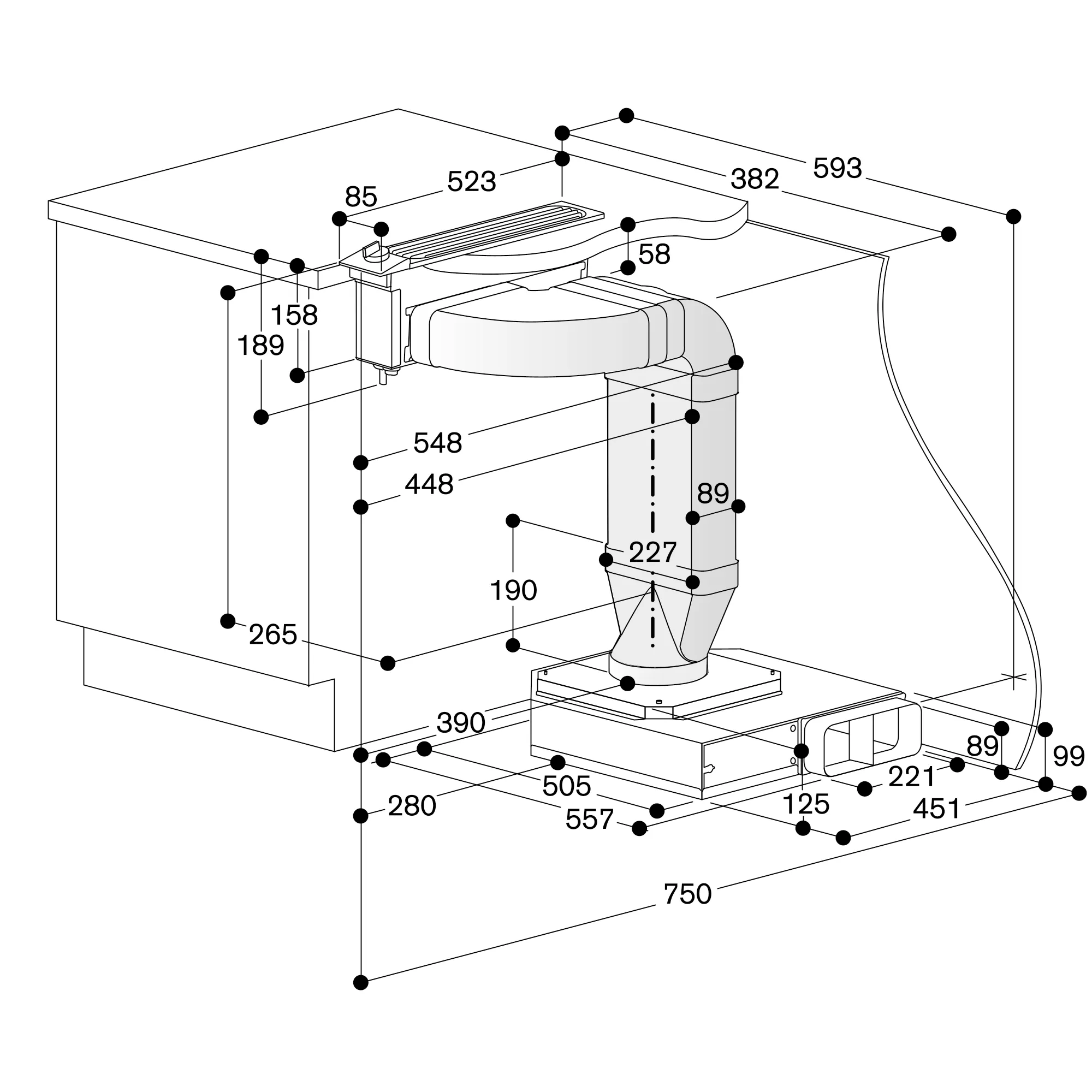

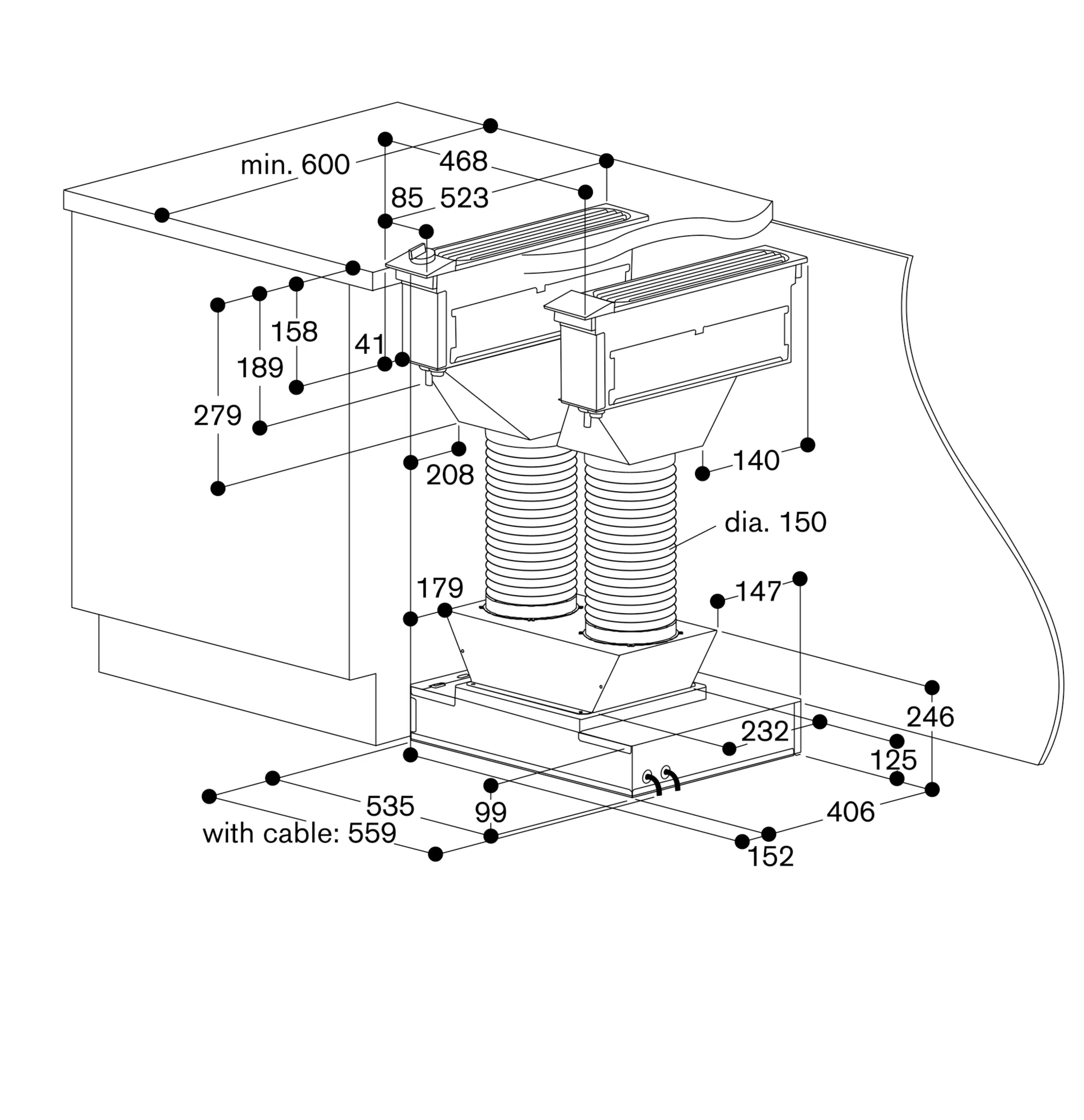

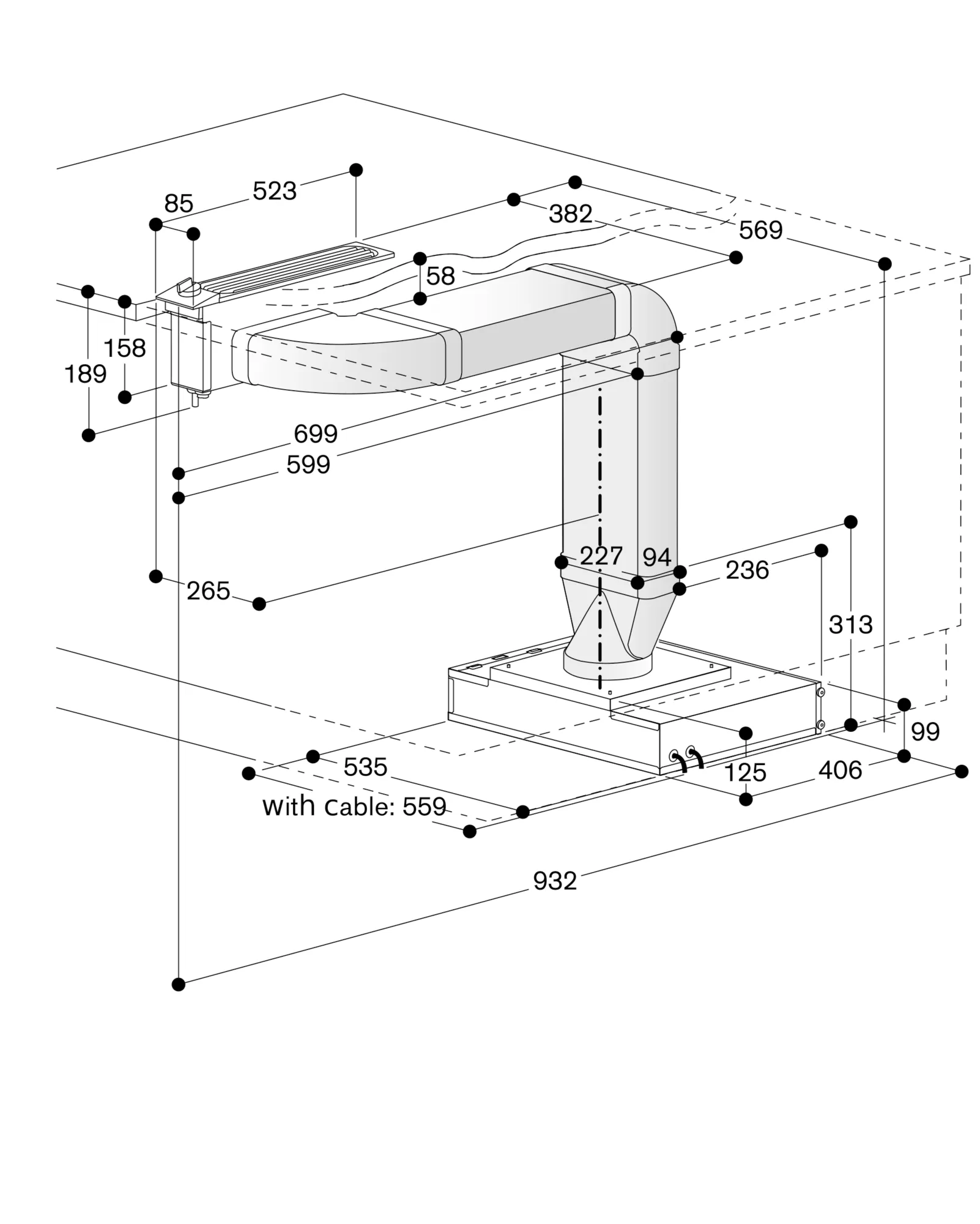

Please refer to page xxx for recommended configurations of downdraft ventilations and remote fan units and the needed ducting elements.
Maximum cooktop width between two VL: 60 cm (exception: VI/VE 270).
If installed next to gas appliances, the ventilation moulding LS 041 001 is recommended to ensure maximum performance of the cooktop. If installed next to gas appliances, flat ducts must not be used for the piping up to the fan unit.
When having installed the ventilation moulding LS 041 001 the wok pan WP 400 001 can not be used.
When installing a ventilation hood with air extraction mode or recirculation outlet in another area of room air (e.g. cellar) and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.
Connecting cable 1.5 m with plug.
