Four cooking zones with booster for cookware with a diameter of 15 to 28 cm

Solid stainless steel control knob

Precision crafting of 3 mm stainless steel

For surface installation with a visible edge or for flush installation

Can be combined perfectly with other Vario appliances of the 400 series

1 induction cooking zone ø 28 cm (2400 W, with booster 3600 W).

1 induction cooking zone ø 21 cm (2200 W, with booster 3300 W).

2 induction cooking zones ø 15 cm (1400 W, with booster 1800 W).

Control knobs with illuminated ring, cooking zone and output level markings.

Electronic control in 12 output levels.

Cooking zone marking.

Booster function for each cooking zone.

Pot detection.

Timer.

Individual residual heat indicators.

Safety shut-off.

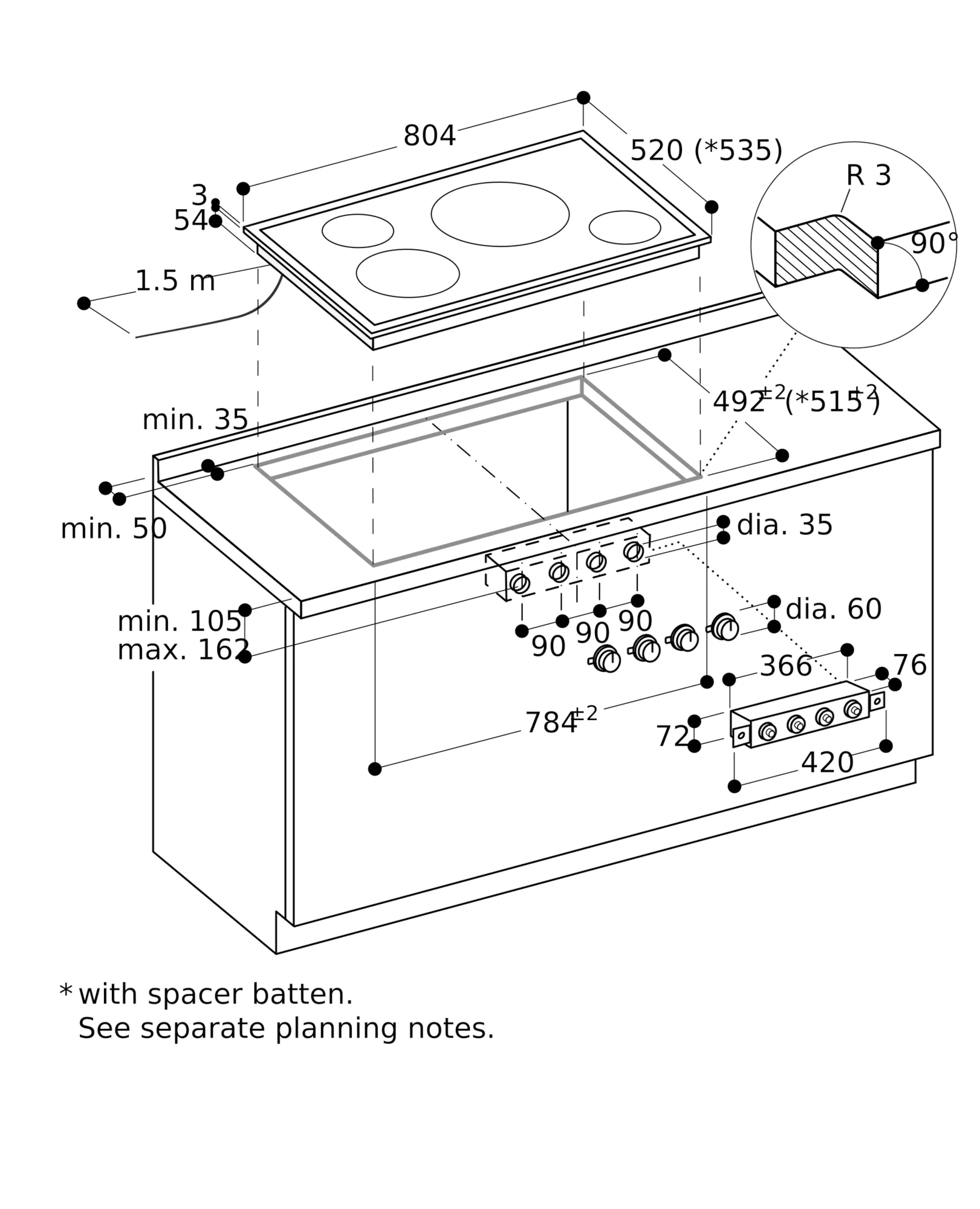

Depending on the type of installation (surface-mounted or flush-mounted, with or without an appliance cover), the specific location of the cut-out and the knob positions may vary.

If installing with the appliance cover VA 440 or adjustement strip VA 450 take into account the additional space required for the depth.

If combining several appliances with at least one appliance cover, the adjustment strip VA 450 is required to compensate for the depth of the appliance without the appliance cover.

If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.

In the cut-out, the installation system requires the side edge to be at least 10 mm for surface installation and at least 13 mm for flush installation. Ensure a continuous cut surface of 90°.

The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.

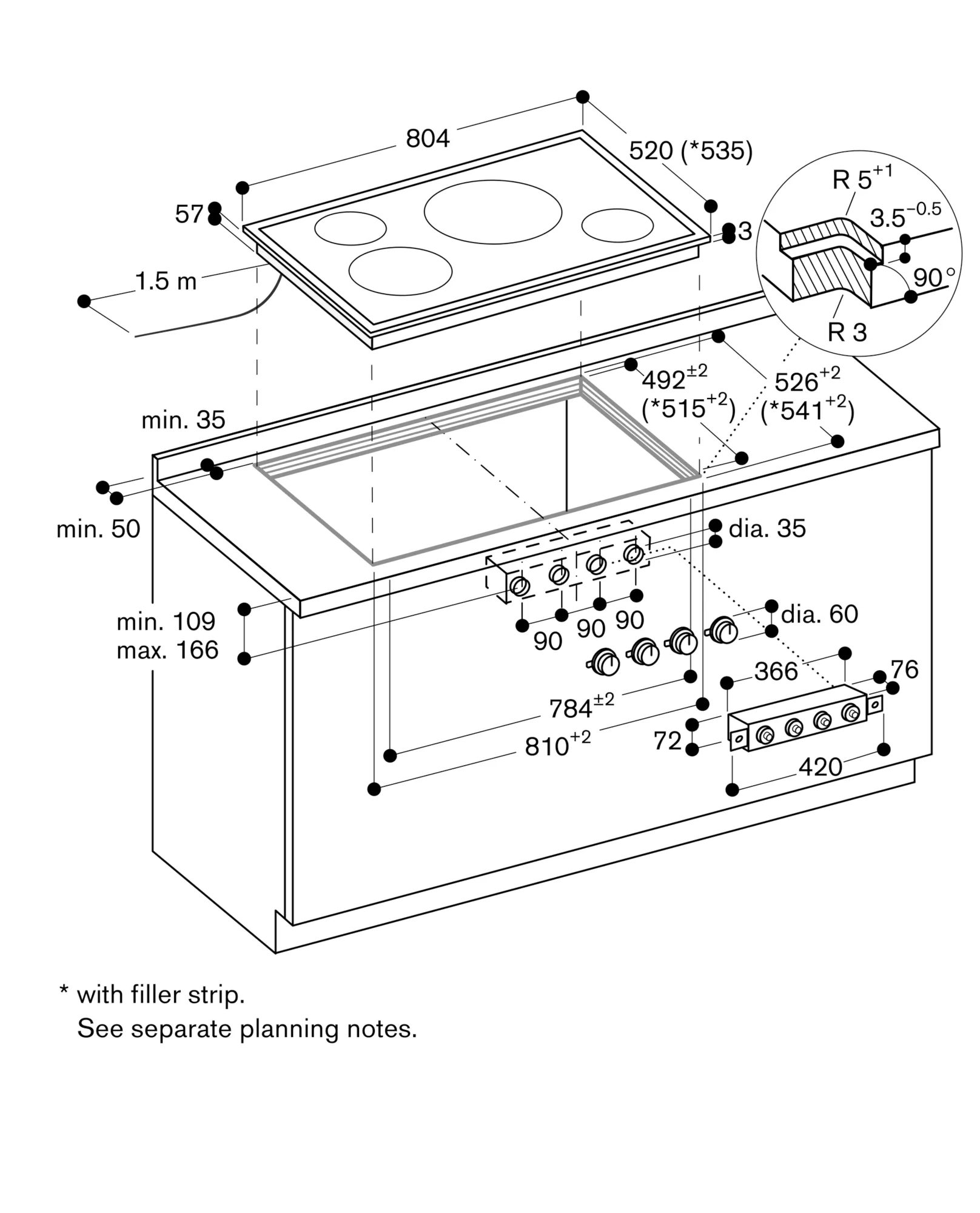

Additional instructions for flush installation:

Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.

The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.

The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.

If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.

Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.

The wok pan WP 400 001 cannot be used with this appliance.

Immersion depth 54 mm.

Built-in control panel to be integrated in the bottom cabinet at drawer level.

Panel thickness 16 – 26 mm.

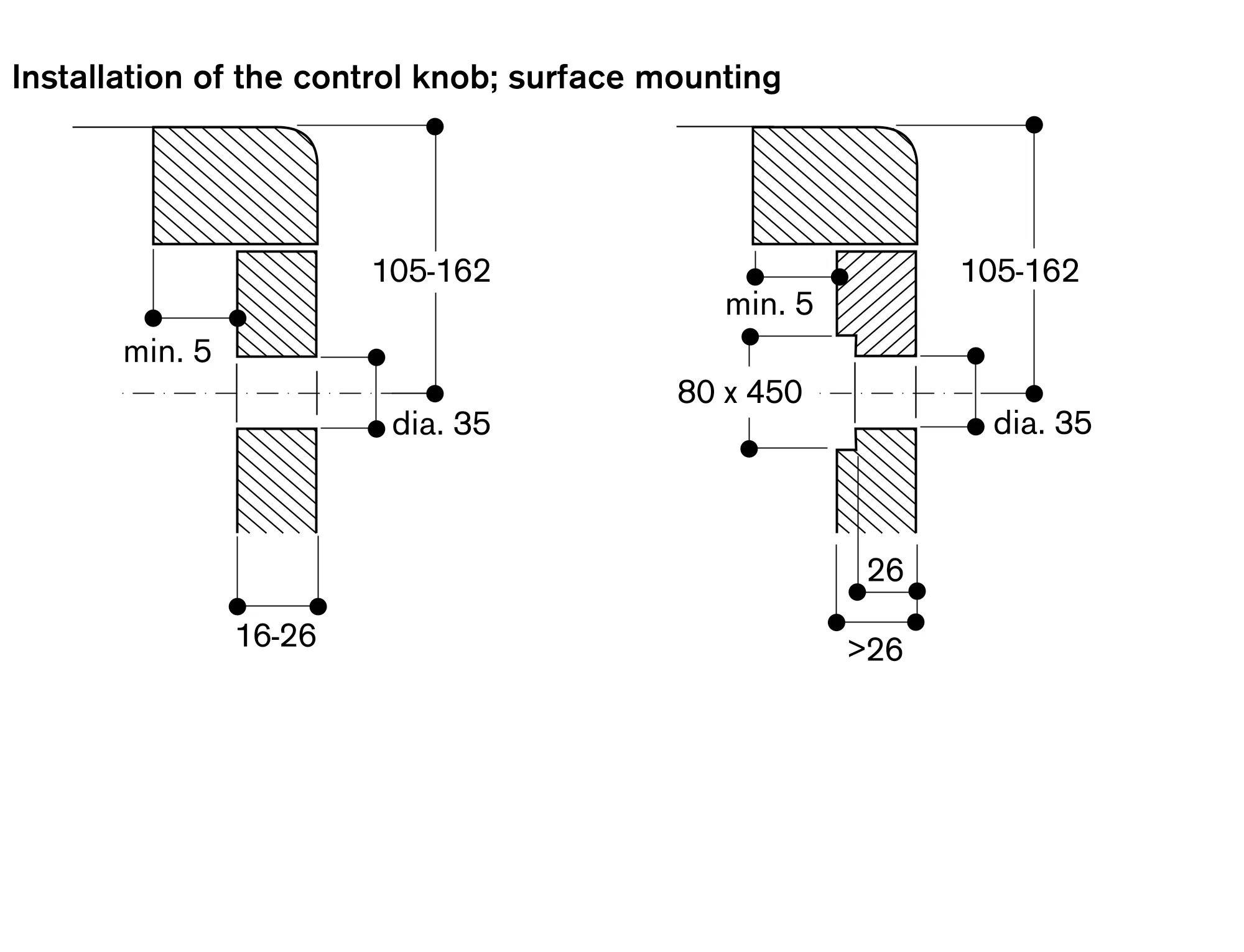

The drawing "Installation of the control knob" must be observed if the panel is more than 26 mm thick (there must be a recess at the rear).

The combination with VL 414 is not recommended, since the air extraction from the centre zone cannot be guaranteed due to the distance.

Appliance can be snapped into the worktop from above.

Appliance weight: approx. 17.
