RW414361

Product is no longer available

More information and services related to this product

1 / 10
Photo Nr. 1 of the product RW414361
Photo Nr. 2 of the product RW414361
Photo Nr. 3 of the product RW414361
Photo Nr. 4 of the product RW414361
Photo Nr. 5 of the product RW414361
Photo Nr. 6 of the product RW414361
Photo Nr. 7 of the product RW414361
Photo Nr. 8 of the product RW414361
Photo Nr. 9 of the product RW414361
Photo Nr. 10 of the product RW414361
Photo thumb Nr. 1 of the product RW414361
Photo thumb Nr. 2 of the product RW414361
Photo thumb Nr. 3 of the product RW414361
Photo thumb Nr. 4 of the product RW414361
Photo thumb Nr. 5 of the product RW414361
Photo thumb Nr. 6 of the product RW414361
Photo thumb Nr. 7 of the product RW414361
Photo thumb Nr. 8 of the product RW414361
Photo thumb Nr. 9 of the product RW414361
Photo thumb Nr. 10 of the product RW414361
Photo thumb Nr. 1 of the product RW414361
Photo thumb Nr. 2 of the product RW414361
Photo thumb Nr. 3 of the product RW414361
Photo thumb Nr. 4 of the product RW414361
Photo thumb Nr. 5 of the product RW414361
Photo thumb Nr. 6 of the product RW414361
Photo thumb Nr. 7 of the product RW414361
Photo thumb Nr. 8 of the product RW414361
Photo thumb Nr. 9 of the product RW414361
Photo thumb Nr. 10 of the product RW414361

Technical Overview

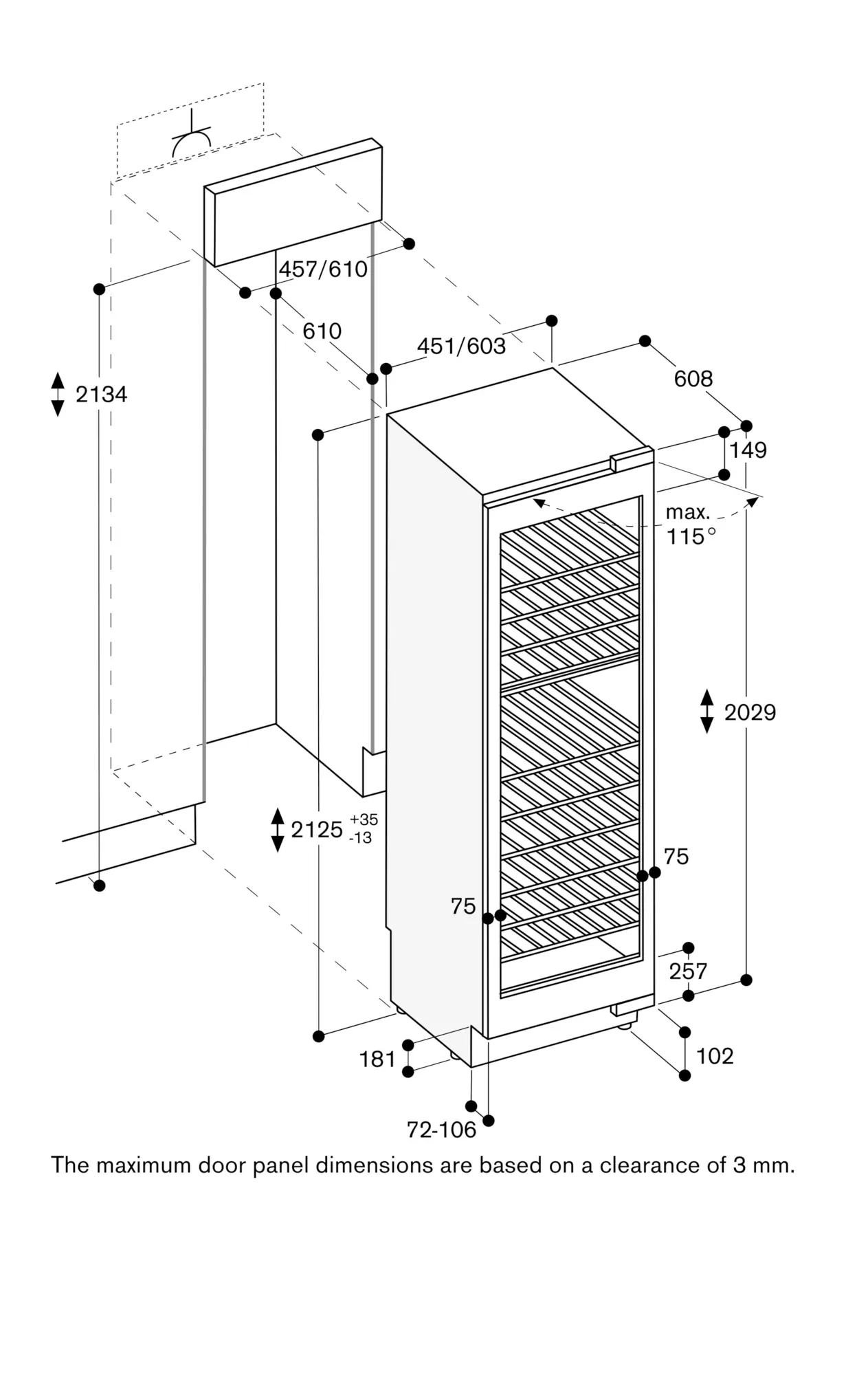

Dimensions (HxWxD)
2125x451x608 mm
Capacity in bottles (0.75l)
70
Range of temperature
5-20 °C
LED light with presentation mode
Yes
Type of Glass Door
2 glass panels

Additional information

Two independantly controllable climate zones
Consistant temperatures with exact control from +5 °C to +20 °C
Humidity control
Stainless steel interior
Fully extendable bottle trays in beech and aluminium
Presentation light option
Low-vibration operation
Capacity 70 bottles
Electronic temperature control with digital display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
UV-protection.
Open-door and malfunction alarm.
Net volume 271 litres.
Capacity 70 bottles (based on 0.75/l standard bottles).

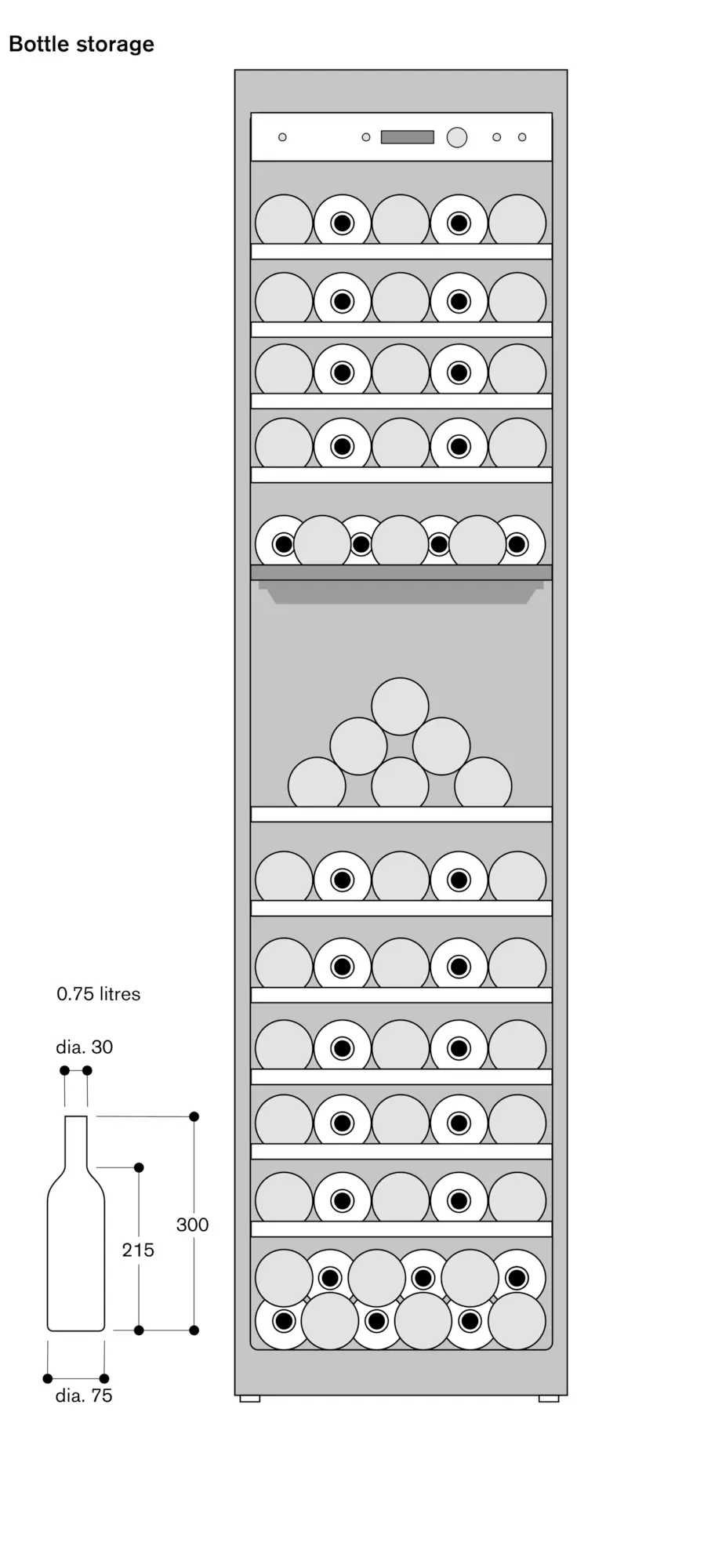

10 fully extendable bottle trays, up to 4 of which for storage of magnum bottles.
Space for max. 14 bottle trays or shelves in aluminium.
Interior lighting with 2 ceiling spots in the upper and 1 ceiling spot in the lower climate zone, can be used as presentation light.
Energy consumption 228 kWh/year.
Noise level 42 dB (re 1 pW).
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 72 kg.
The main socket needs to be planned outside of the niche.
No transport/operation above 1.500 m sea level.
Total connected load 0.121 KW.
Connecting cable 3.0 m, pluggable.
