RF463300

Product is no longer available

More information and services related to this product

1 / 8
Photo Nr. 1 of the product RF463300
Photo Nr. 2 of the product RF463300
Photo Nr. 3 of the product RF463300
Photo Nr. 4 of the product RF463300
Photo Nr. 5 of the product RF463300
Photo Nr. 6 of the product RF463300
Photo Nr. 7 of the product RF463300
Photo Nr. 8 of the product RF463300
Photo thumb Nr. 1 of the product RF463300
Photo thumb Nr. 2 of the product RF463300
Photo thumb Nr. 3 of the product RF463300
Photo thumb Nr. 4 of the product RF463300
Photo thumb Nr. 5 of the product RF463300
Photo thumb Nr. 6 of the product RF463300
Photo thumb Nr. 7 of the product RF463300
Photo thumb Nr. 8 of the product RF463300
Photo thumb Nr. 1 of the product RF463300
Photo thumb Nr. 2 of the product RF463300
Photo thumb Nr. 3 of the product RF463300
Photo thumb Nr. 4 of the product RF463300
Photo thumb Nr. 5 of the product RF463300
Photo thumb Nr. 6 of the product RF463300
Photo thumb Nr. 7 of the product RF463300
Photo thumb Nr. 8 of the product RF463300

Technical Overview

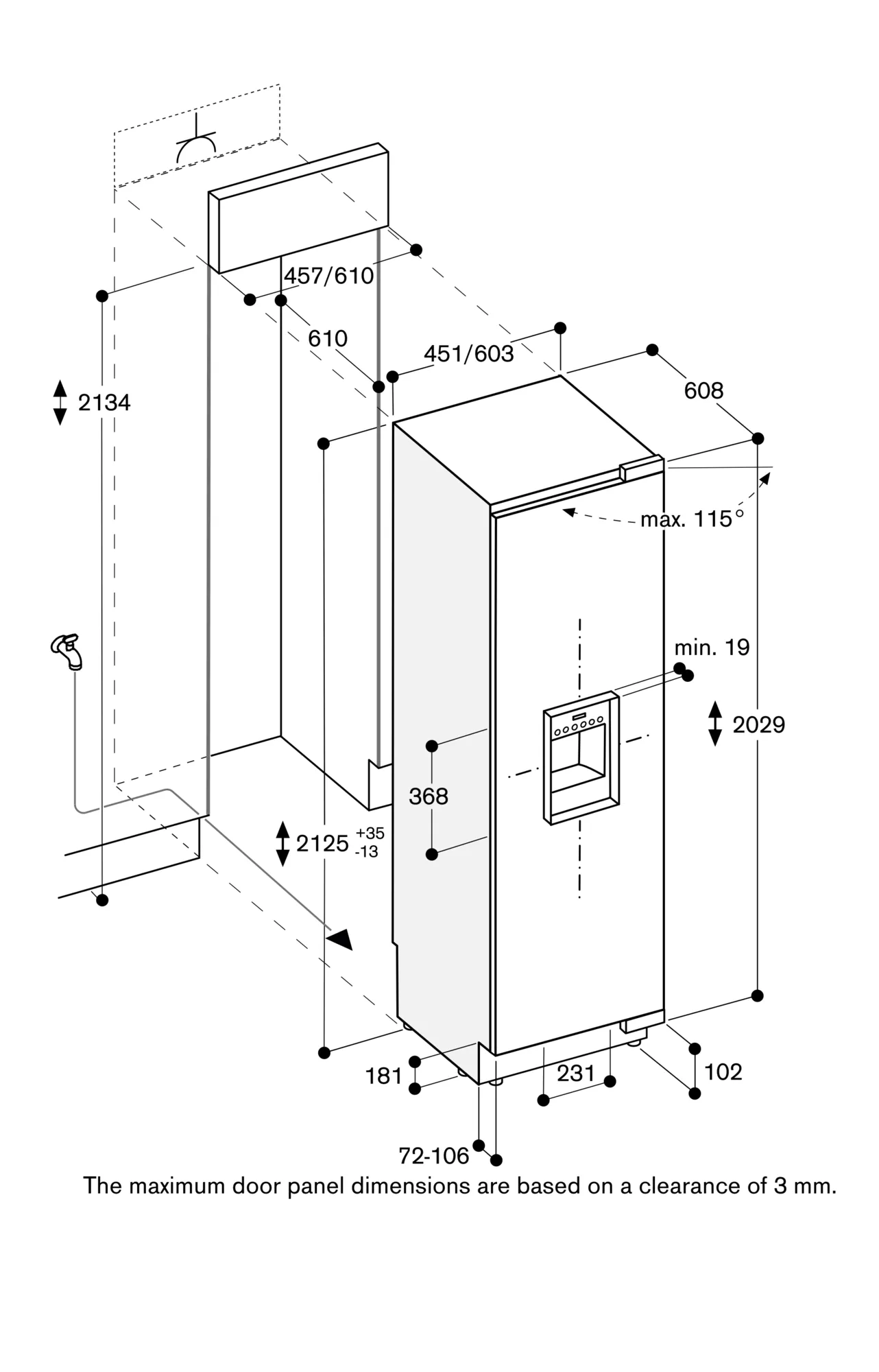

Dimensions (HxWxD)
2125x603x608 mm
Never defrost again with full Nofrost
Yes
Storage Period in Event of Power Failure (h)
12 h
Freezer Net capacity - NEW (2010/30/EC)
299 l
Door opened indicator freezer
No

Additional information

Stainless steel interior
Generous lighting concept
Integrated ice maker with fixed inlet water connection
Illuminated dispenser for ice cubes, crushed ice and chilled water
Solid aluminium door racks
Net volume 299 litres
Energy efficiency class A+
Electronic temperature control with digital display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Open-door and malfunction alarm.
No-frost technology with fast freezing.
4-star freezer compartment.
Freezing capacity 14 kg/24 h.
Storage time after a malfunction 12 h.
4 solid metal shelves, 2 of which are manually adjustable.
2 fully extendable drawers with transparent front, 1 of which large, 1 regular.
Bright interior lighting with light pillars.
1 extra deep door rack.
1 door rack with transparent front flap.
Illuminated.
Integrated, with fixed inlet water connection.
Can be switched off.
Ice cube production approx. 1.9 kg/24 h.
Ice cubes and crushed ice.
Removable ice storage container with approx. 3 kg capacity.
Ice water supply approx. 1.5 litres.
Energy consumption 342 kWh/year.
Noise level 41 dB (re 1 pW).
Flat hinge.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 57 kg.
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total connected load 0.592 KW.
Connecting cable 3.0 m, pluggable.
Water inlet.
Supply hose 3.0 m with 3/4 " connection.
Water pressure 2.4 to 8.3 bar.

Manual and Documents

Technical Overview
Additional information
Manual and Documents

Vario built-in freezer 212.5 x 60.3 cm flat hinge
