Technical Overview

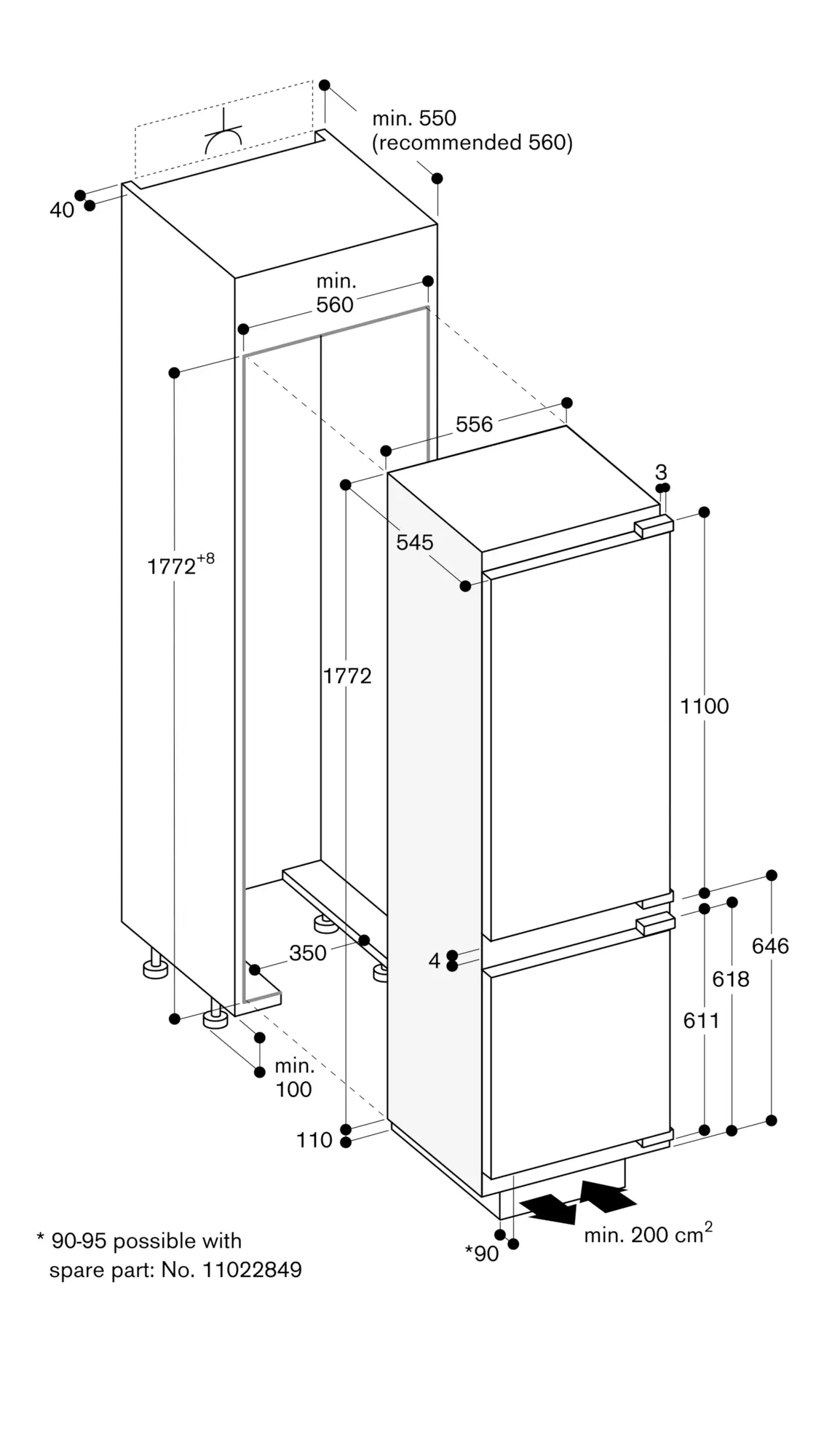

Dimensions (HxWxD)
1772x556x545 mm
Energy Efficiency Class Footnote 1: Scale of Energy Efficiency Classes from A to G
E
Automatic defrosting
no
Airborne acoustical noise emissions
41 dB(A) re 1pW
Freshness system
Hyper fresh premium
Door opened indicator fridge
Yes
Additional information
Unique usage concept: - Maximum usage of interior: stepped shelf, full depth shelves as well as integrated fixtures for various containers - Easy access: fully extendable shelves and drawers - Optimal overview: intelligent lighting concept, use of glass and transparent materials - Efficient preparation, cooking and storage with Gaggenau appliances: integration of Gastronorm inserts
Enlarged interior with 245 litre net volume through compressor relocation
Cushioned door closing system allowing a soft and controlled door closure
Smooth running fully extendable telescopic pull out racks and a cushioned closing system allow a soft and controlled closure of the drawers
Electronic temperature control with temperature display.
Touch keys.
Cushioned door closing system from 20° door opening angle, integrated in door hinge.
Open-door and malfunction alarm.
Net volume 128 litres.
Fast cooling.
Automatic defrosting with defrost water evaporation.
Temperature adjustable from +2 °C to +8 °C.
3 safety glass shelves, 2 of which are fully extendable and 1 height adjustable.
Wine and champagne rack for 4 bottles, can be completely folded away.
Fixture for storing glass tray.
1 large door rack with aluminium profile for bottles with flexible bottle holder.
1 door rack with aluminium profile.
Bright interior lighting with integrated glare-free side light elements.
Stepped shelf in aluminium for optimum use of interior and for storing GN inserts. Possible combinations: 1 x 1/3 GN 2 x 1/3 GN 3 x 1/3 GN 1 x 2/3 GN 1 x 2/3 GN und 1 x 1/3 GN
Net volume 56 litres.
Net volume 61 litres.
No-frost technology with fast freezing.
Temperature adjustable from -14 °C to -24 °C.
4-star freezer compartment.
Freezing capacity 12 kg/24 h.
Storage time after a malfunction 16 h.
2 freezer drawers, 1 of which extra large.
Energy consumption 236 kWh/year.
Noise level 41 dB (re 1 pW).
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.
Appliance plinth recess 90 mm.
Max. door panel weight: Upper door 22 kg. Lower door 22 kg.
Necessary gap between furniture door panels 4 mm.
Total connected load 0.12 KW.
Connecting cable 2.3 m with plug.
Activated charcoal air filter.
Energy efficiency class A++ at a range of energy efficiency classes from A+++ to D.

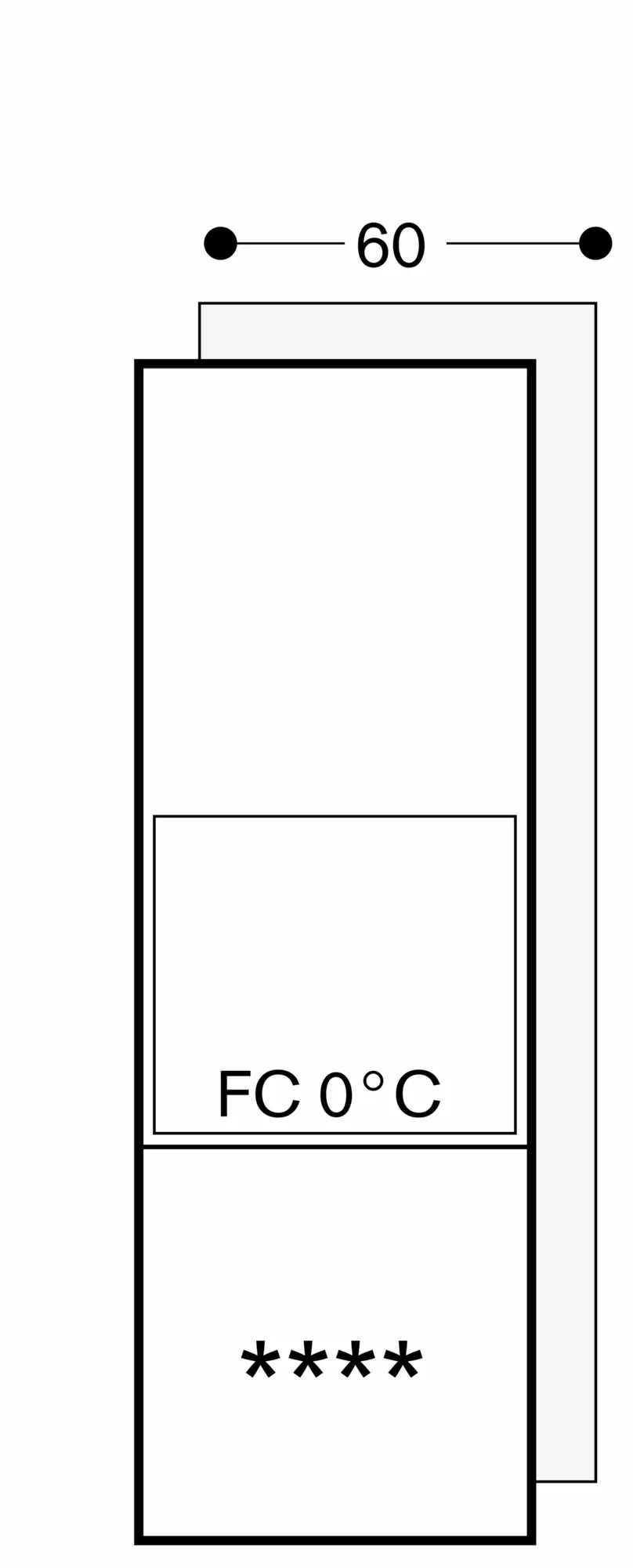

Four climate zones incl. two fresh cooling drawers close to 0 °C
1 fully extendable fresh cooling drawer close to 0 °C.
Ideal for meat, fish and poultry.
1 fully extendable fresh cooling drawer close to 0 °C, optimized humidity.
Ideal for fruit and vegetables.
