Additional information

One single big cooking surface
Free positioning of cookware
All sizes and formats of cookware can be used
TFT touch display for an intuitive control of all functions
Max. power output for big cookware of up to 4.4 kW
Frameless for flush installation
One unique cooking surface of 2800 cm².
Up to 4 items of cookware can be placed simultaneously on the cooktop.
Easy to use colour graphic TFT touch display with use indications.
Electronic power control in 17 output levels.
Booster function.
Information key with use indications.
Power management.
Main switch.
Individual pot detection.
Residual heat indicator.
Child lock.
Display cleaning protection.
Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.
The wok pan WP 400 001 cannot be used with this appliance.

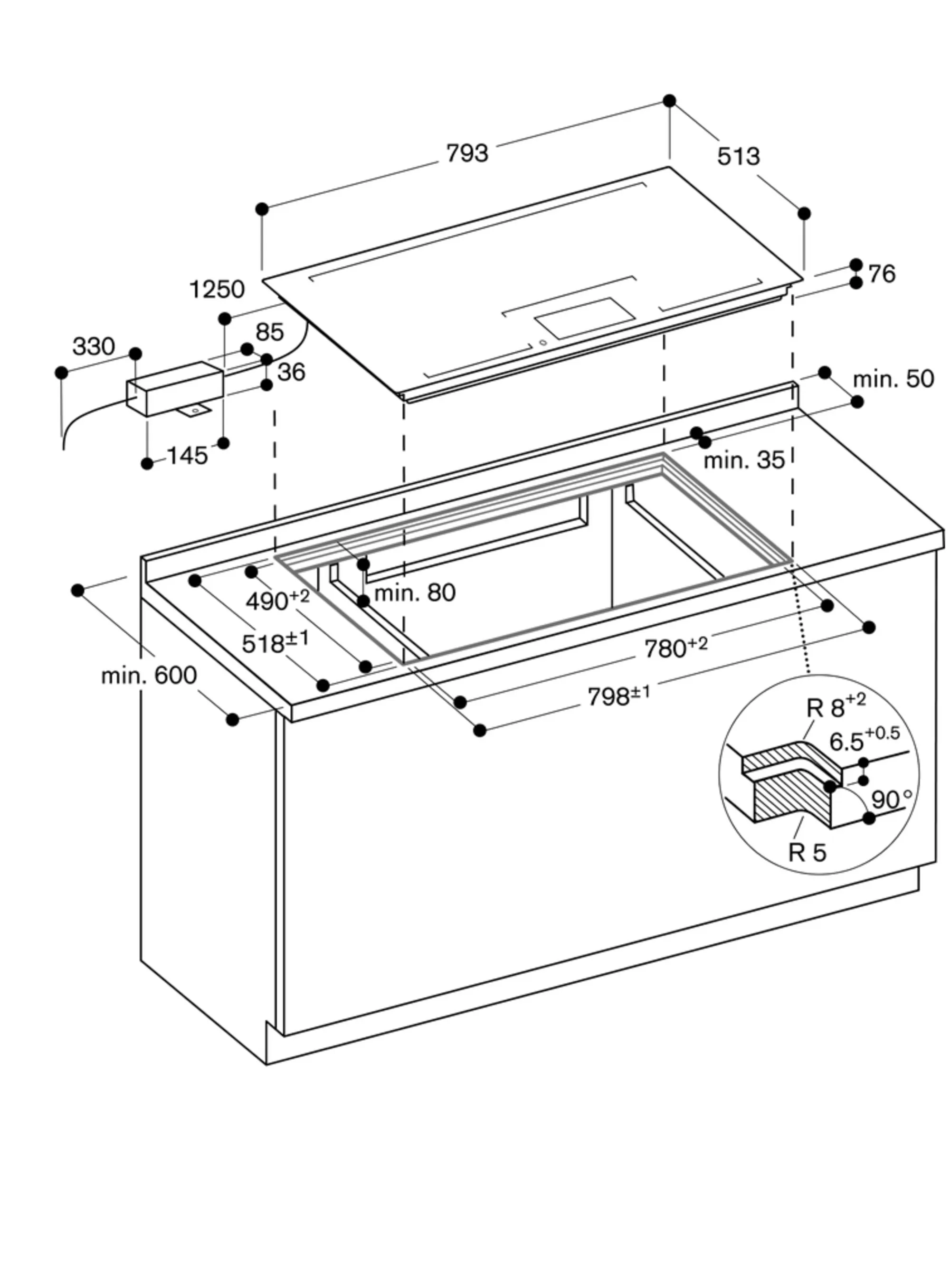

Appliance must be fixed from underneath.

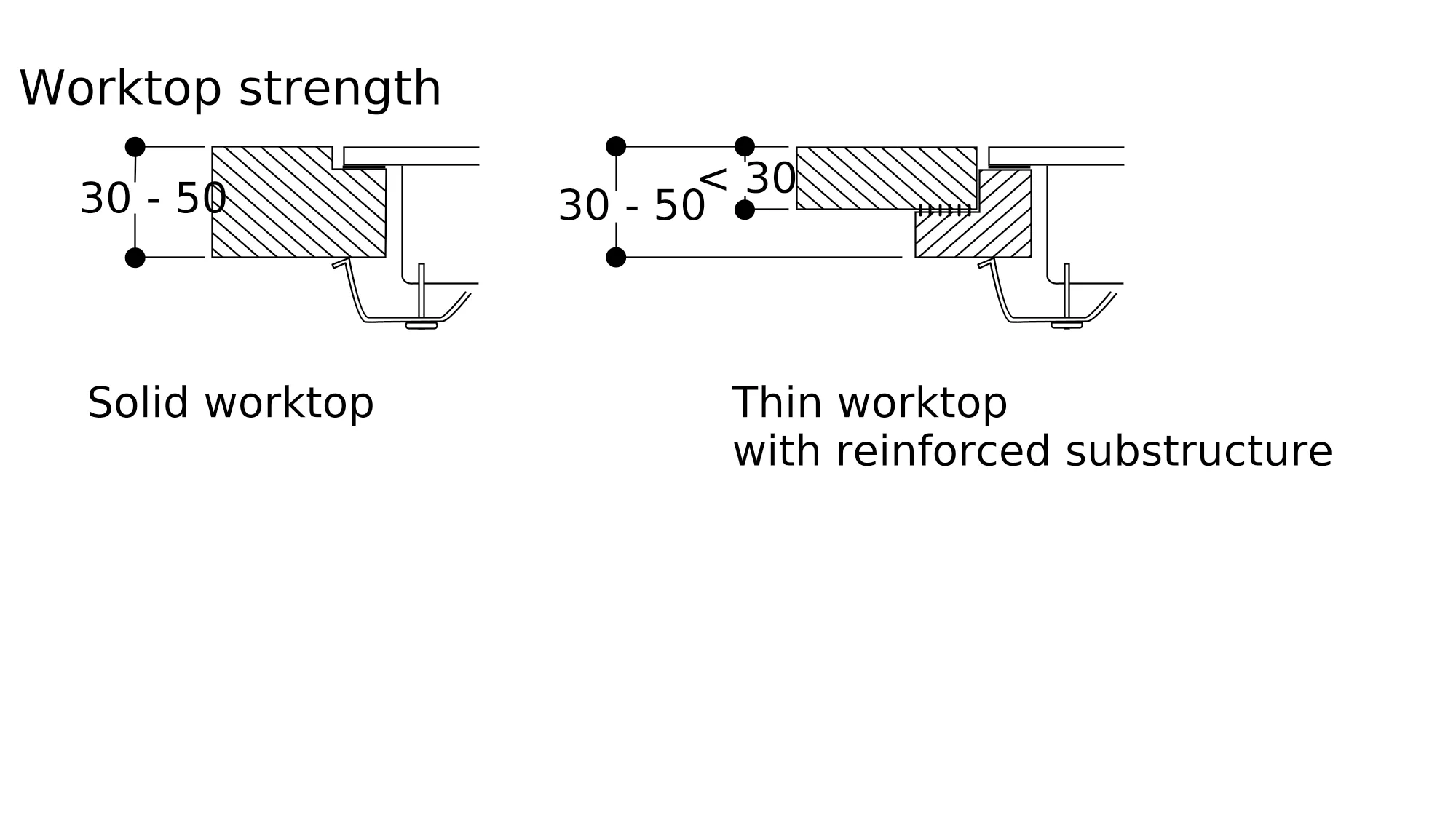

Cooktop clamping range: 30 - 50 mm.

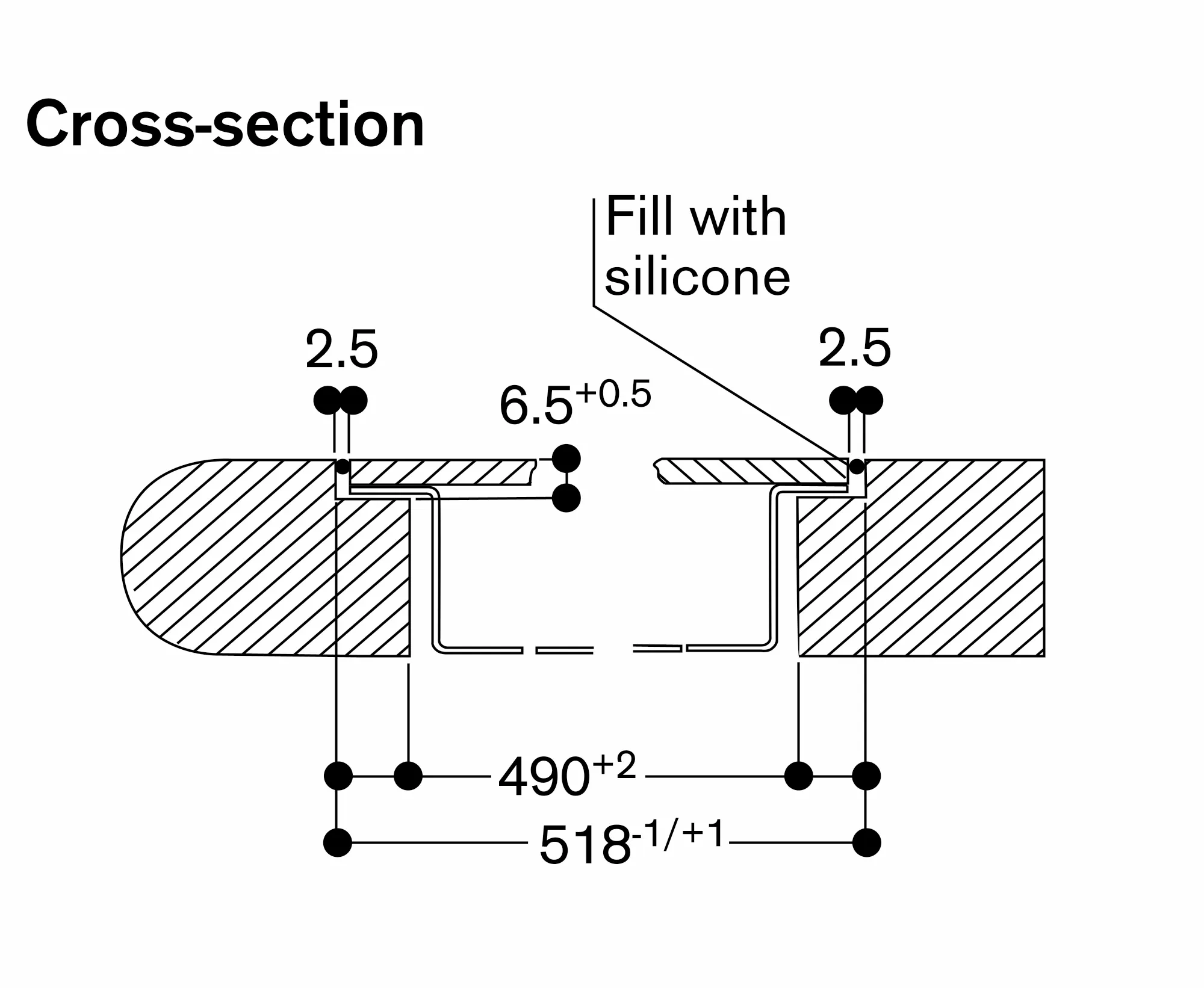

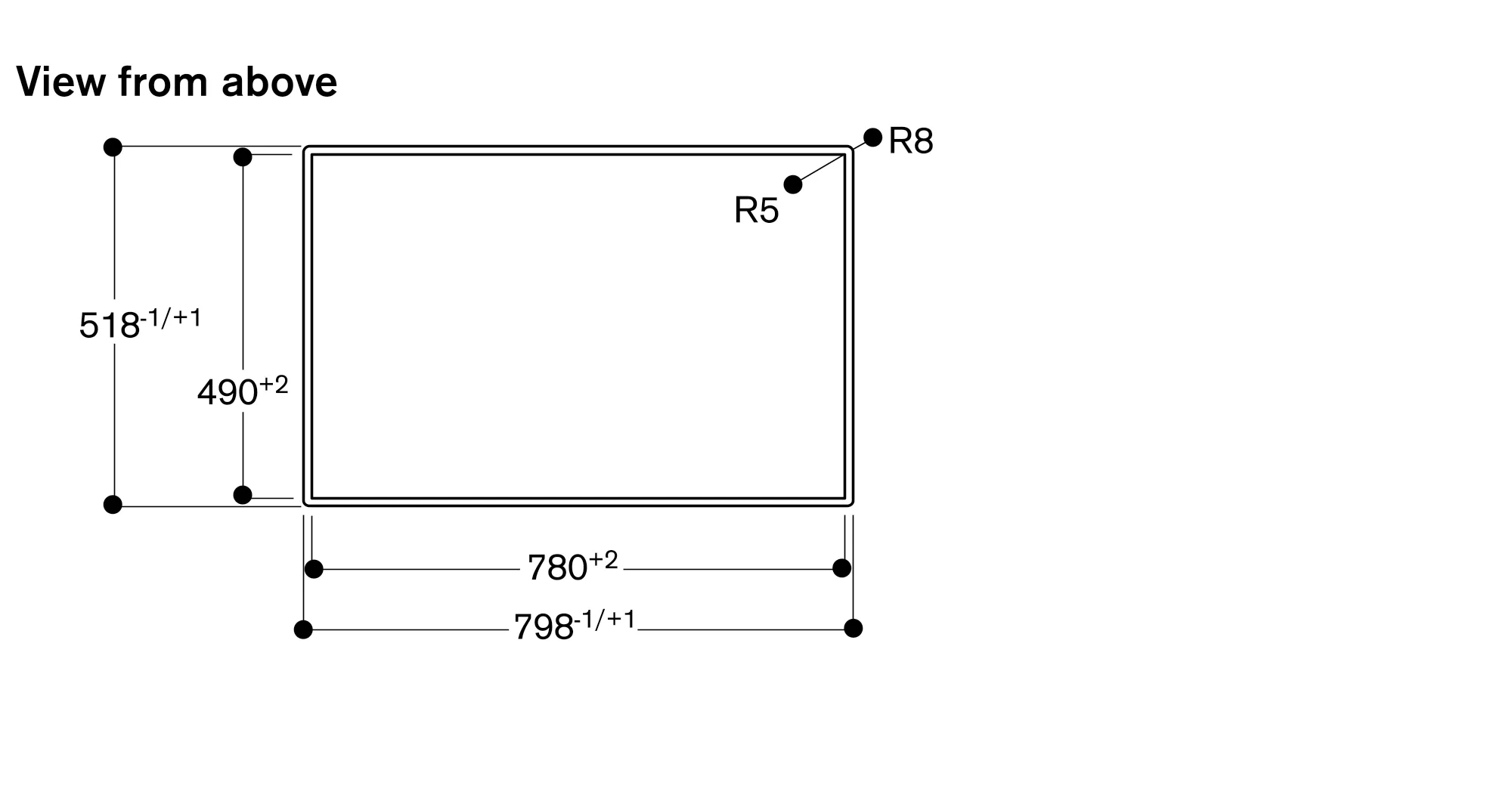

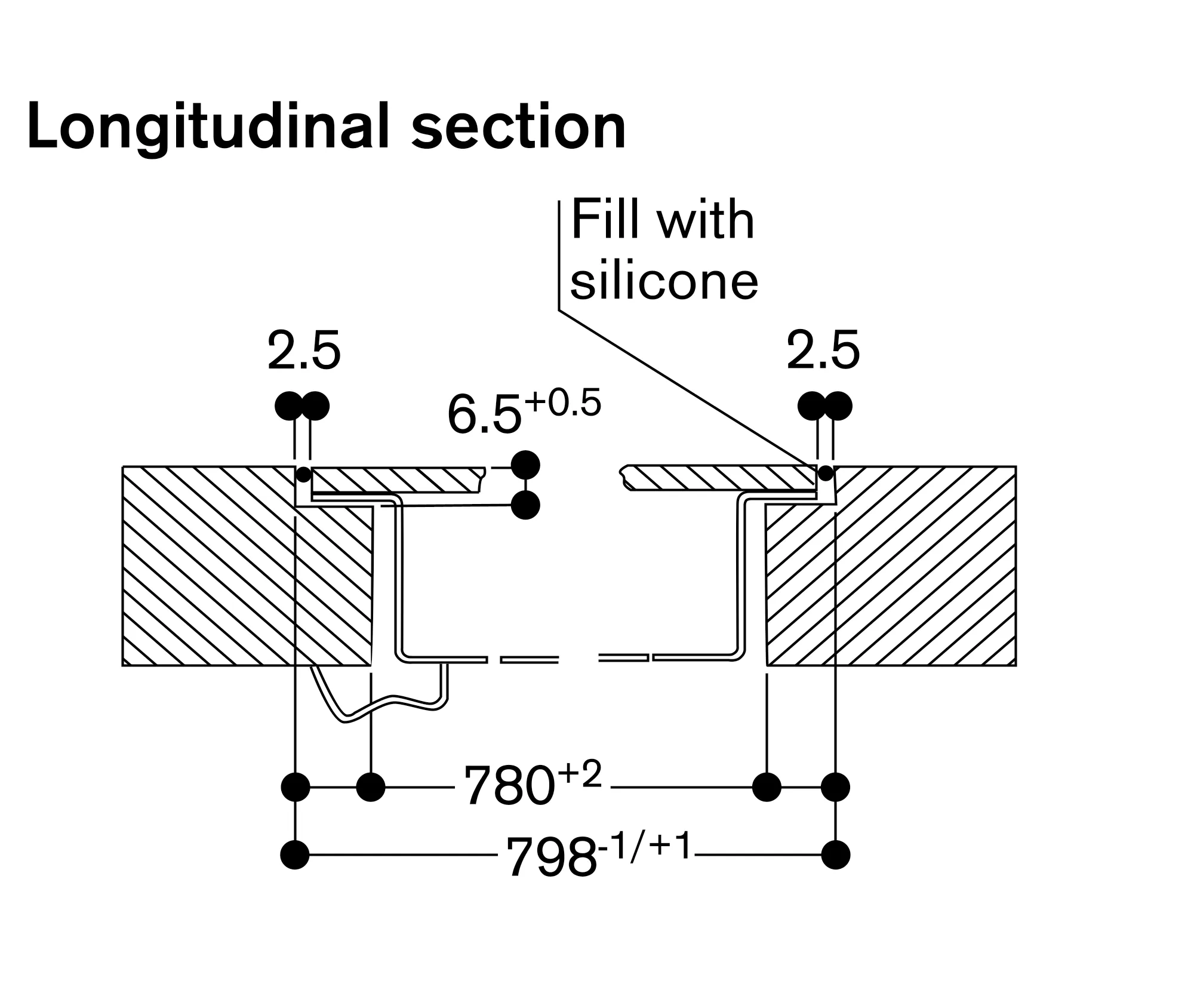

Joint width may vary due to dimensional tolerances of the glass ceramic cooktop and the worktop cut-out.
Total connected load 7.2 KW.
Connecting cable 1.5 m without plug.
