For flush or conventional installation

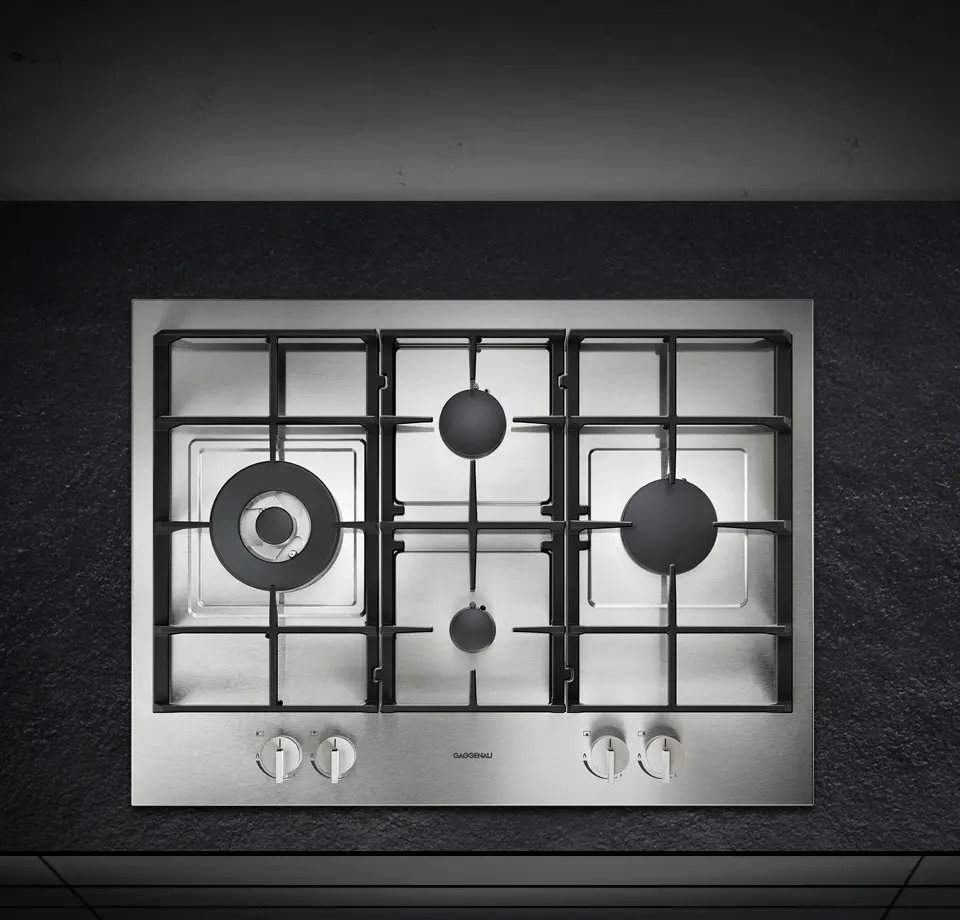

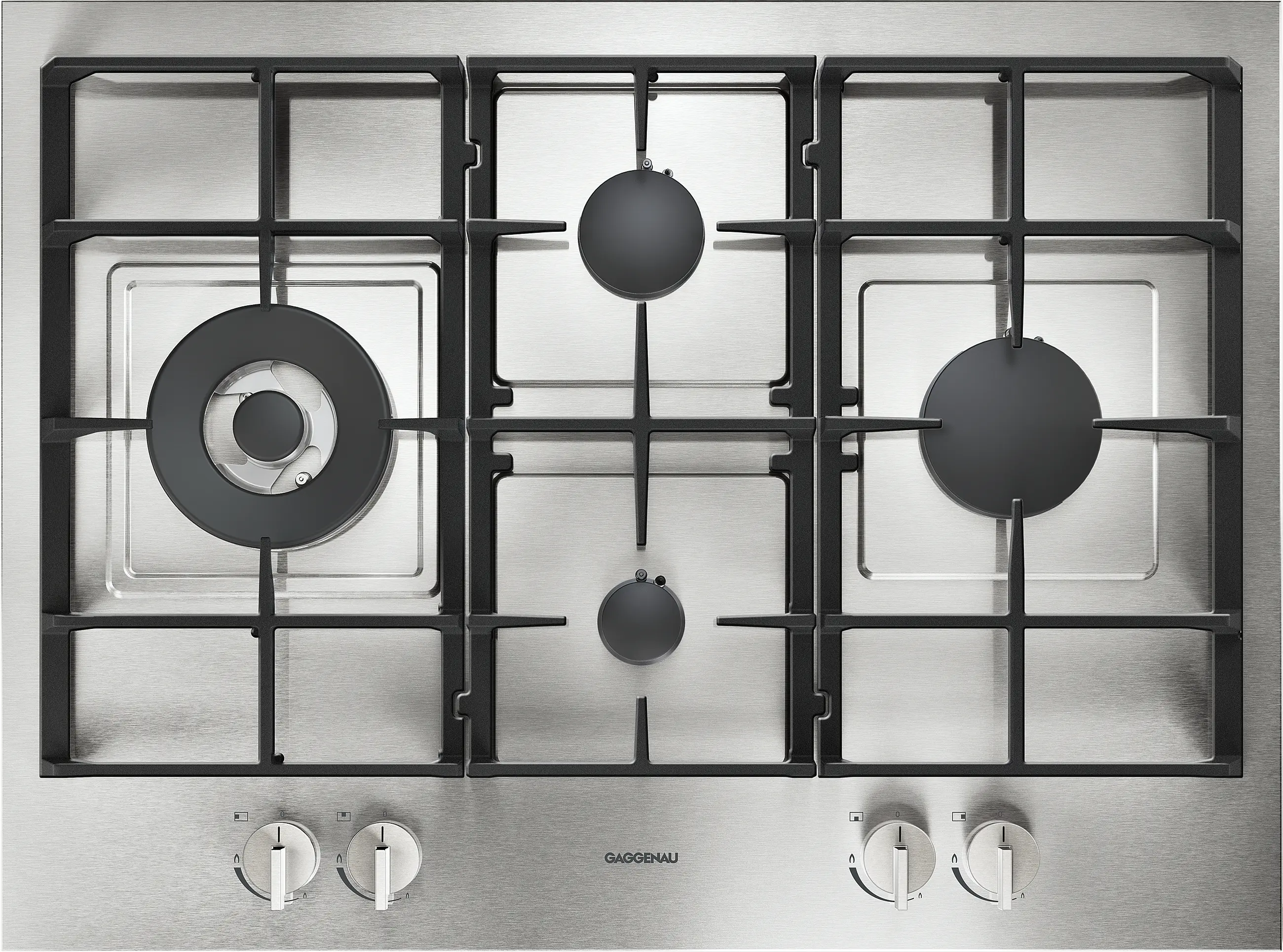

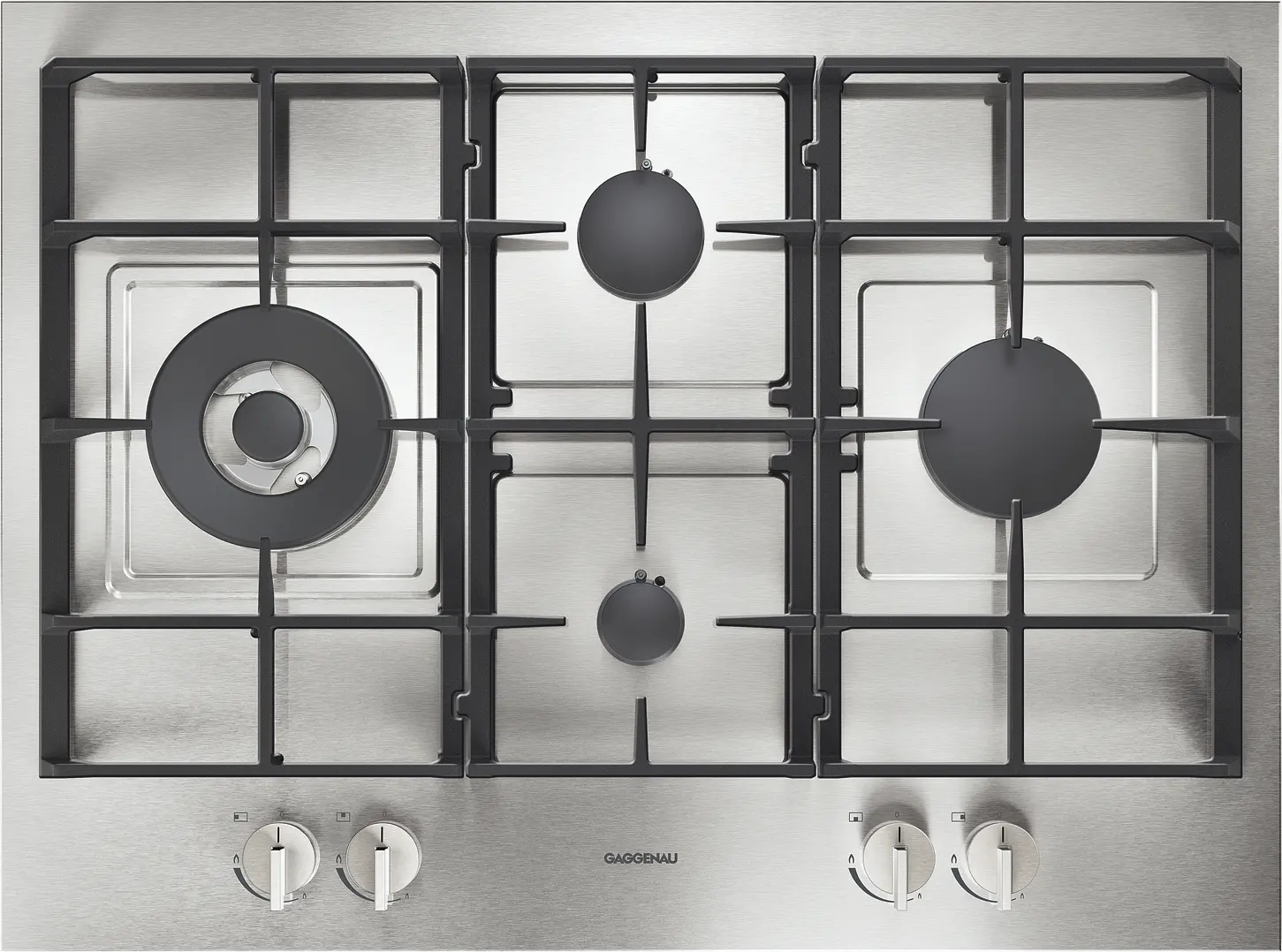

9.75 KW with burners in a diamond-shaped arrangement

1 three-ring wok burner (1550 W – 4000 W), suitable for pots up to max. ø 30 cm.

1 high output burner (500 W - 3000 W), suitable for pots up to max. ø 26 cm.

1 standard burner (320 – 1750 W), suitable for pots up to max. ø 20 cm.

1 economy burner (330 W – 1000 W), suitable for pots up to max. ø 16 cm.

Control knobs with cooking zone and output level markings.

One-handed operation.

Electric ignition.

Three-part cast pan support with continuous pot surface.

Enamelled burner cover.

Thermoelectric safety pilot.

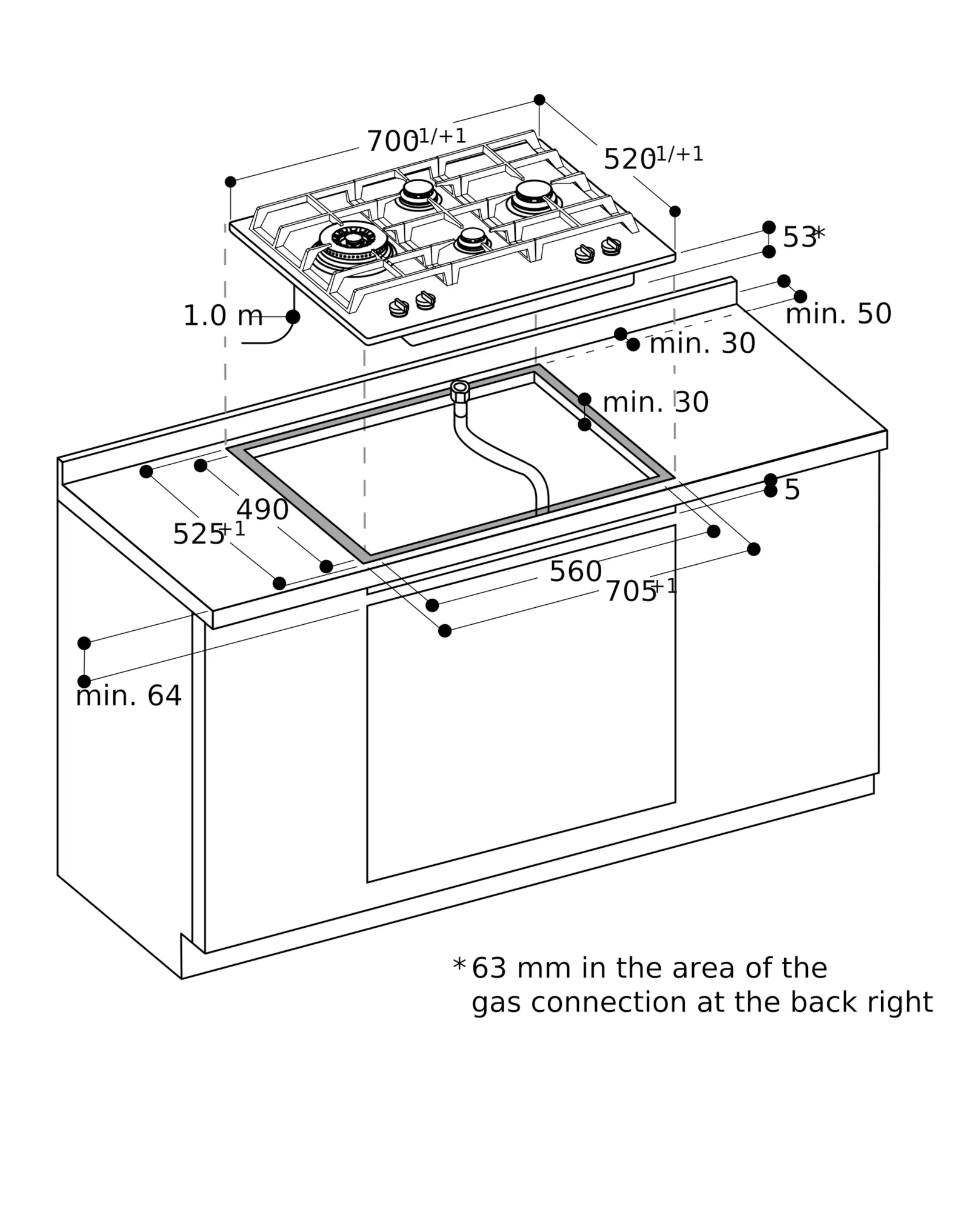

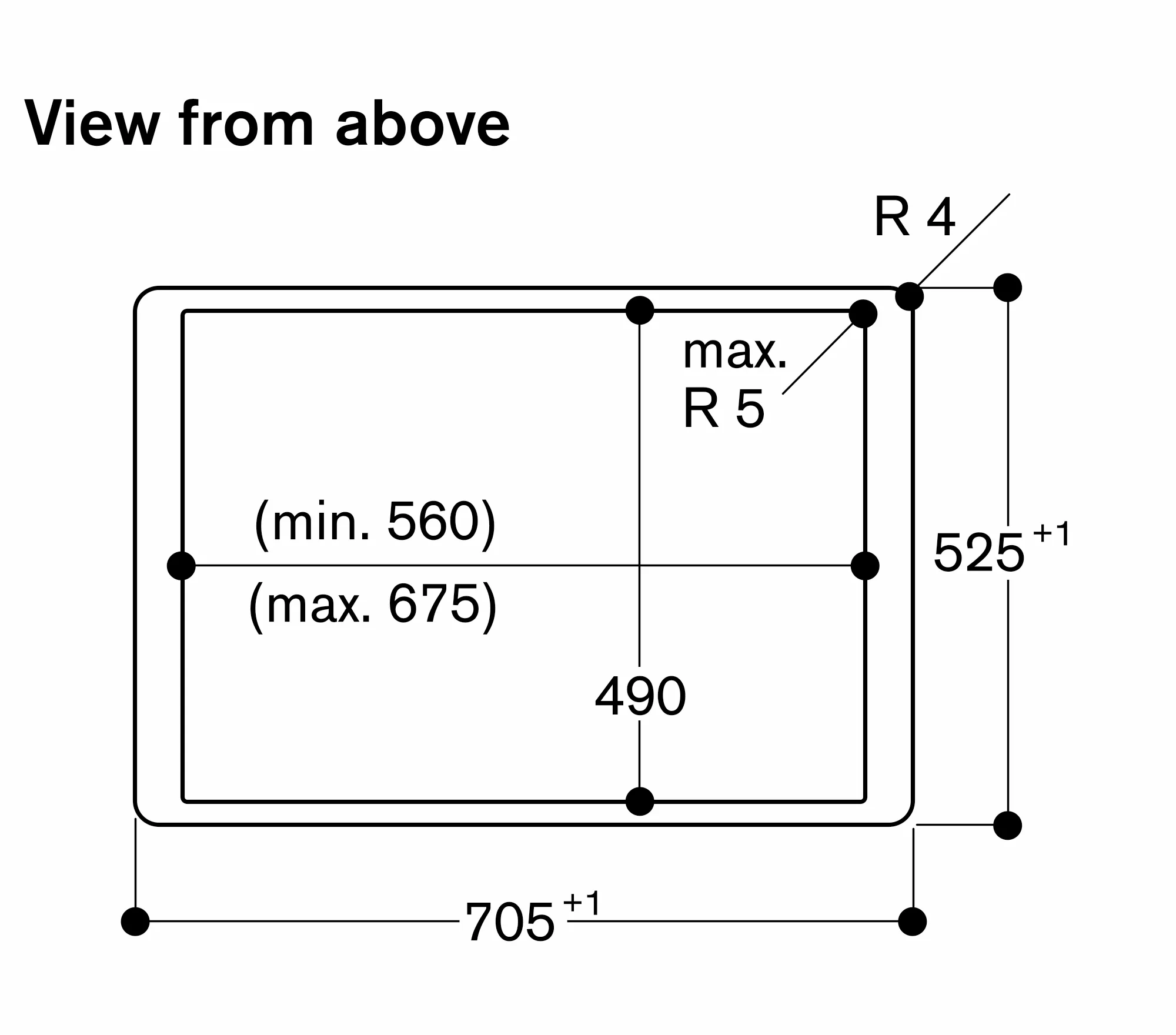

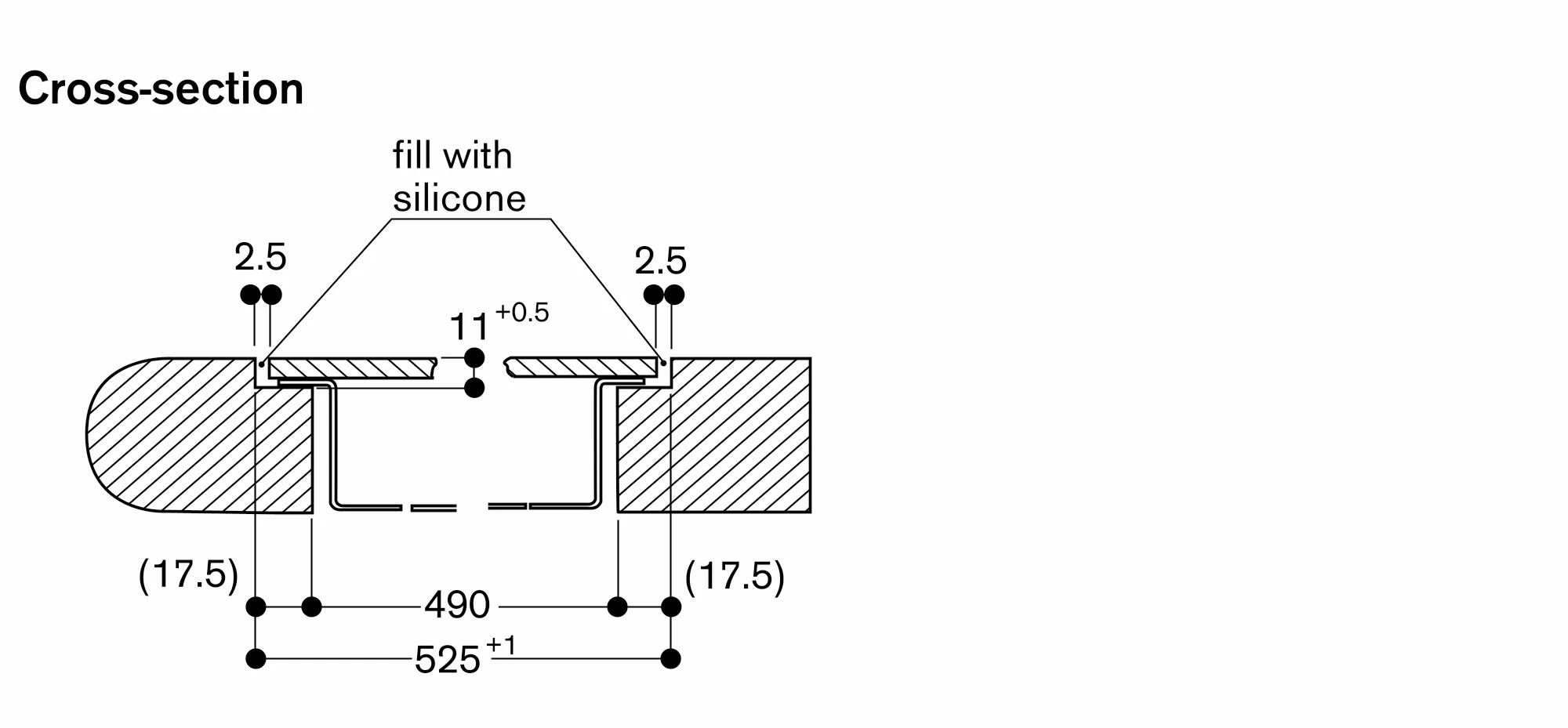

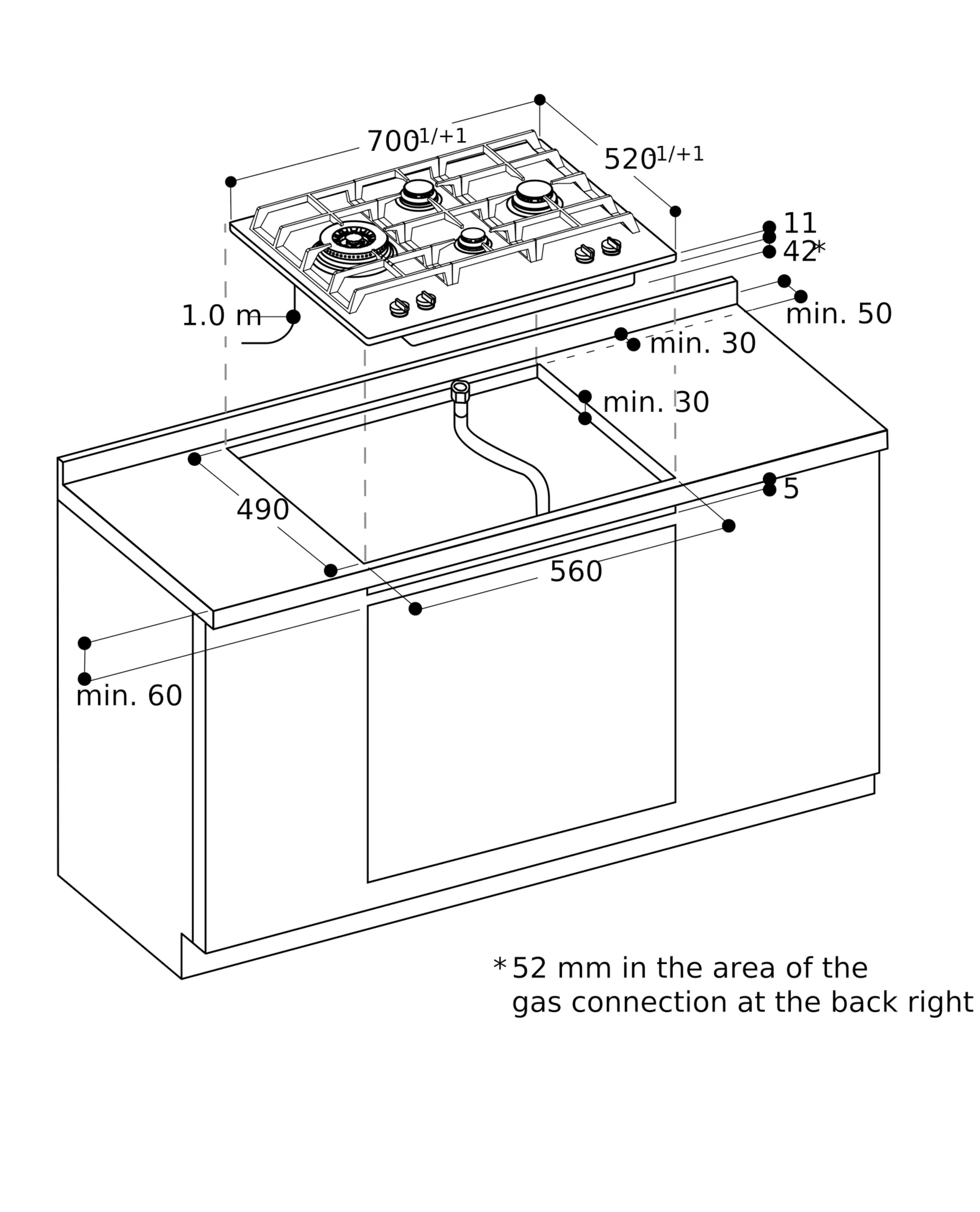

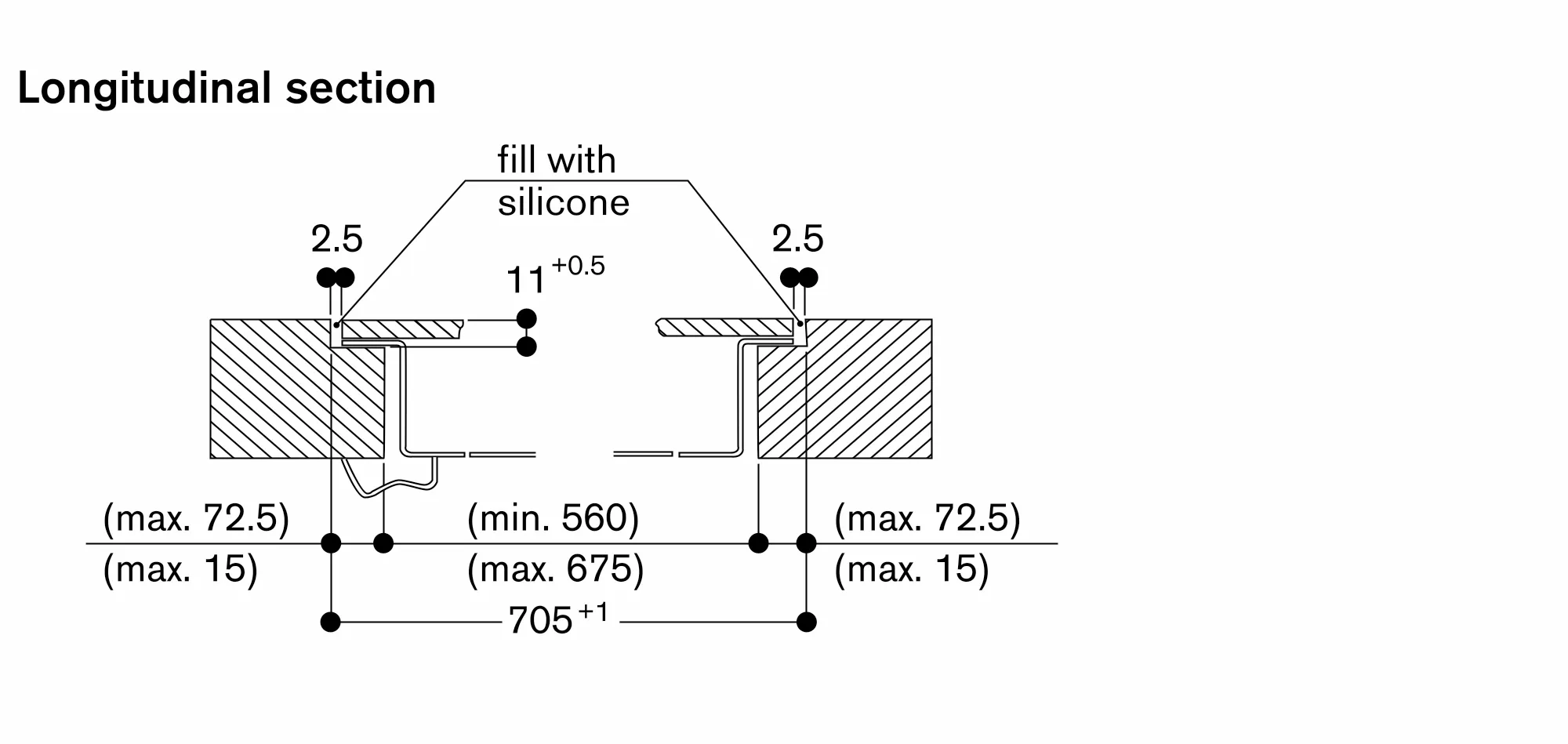

The cooktop can be conventionally built into worktops or flush integrated into stone worktops.

Special nozzles can be ordered as spare parts.

Installation in a 56 cm standard niche.

Air intake from above.

Intermediate shelf is recommended.

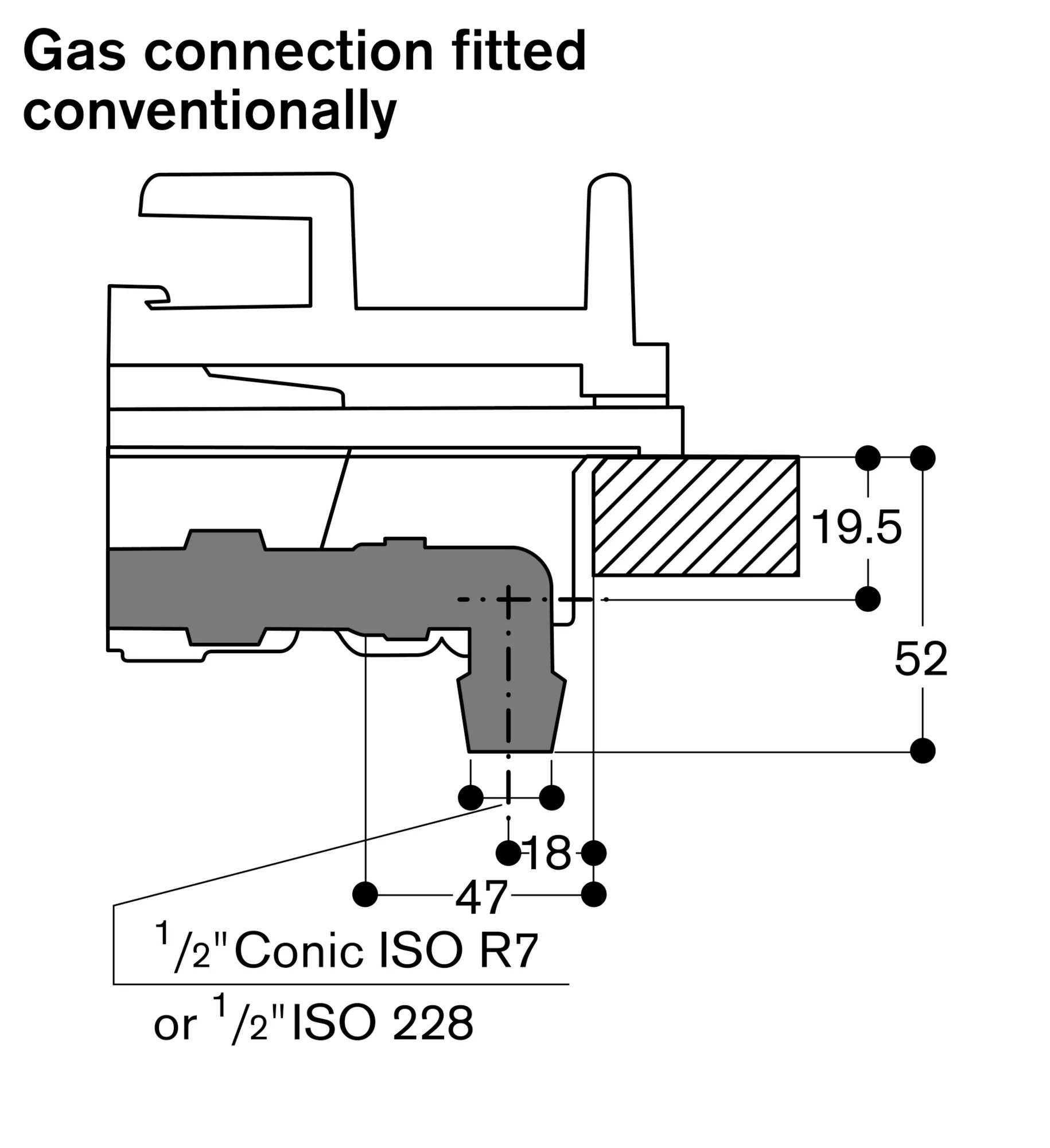

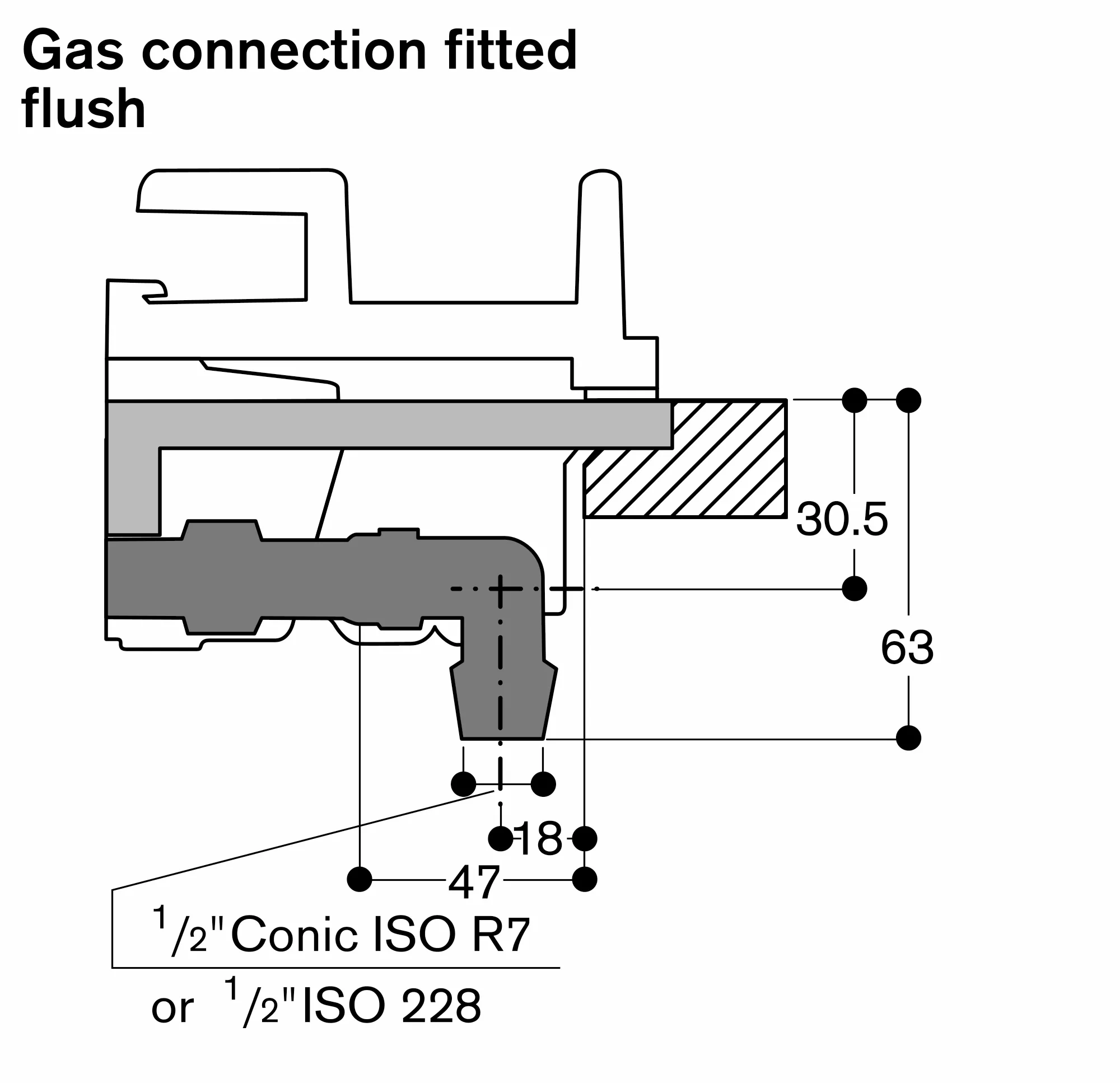

Allow for a gas connection when planning drawer depth.

Appliance must be fixed from underneath.

A minimum lateral clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.

Cooktop clamping range: 30 - 50 mm.

Appliance weight: approx. 18.
