Classic Gaggenau design

Highly efficient extraction of cooking vapours

Energy-saving, low-noise fan

Patented filter technology with high level of grease absorption

Rim extraction filter with flat and easy-to-clean stainless steel underside

Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours

Air extraction or recirculation system

Recirculation module with activated charcoal filter: Silent and highly efficient air recirculation solution with odour reduction compareable to air extraction and long replacement intervals

Performance and noise level, output level 3/Intensive: Air output according to DIN EN 61591. Sound power level according to EN 60704-3. Sound pressure level according to EN 60704-13.

Air extraction: 580 / 740 m³/h. 65 / 71 dB (A) re 1 pW. 51 / 57 dB (A) re 20 μPa.

Air recirculation: 430 / 490 m³/h. 70 / 73 dB (A) re 1 pW. 56 / 59 dB (A) re 20 μPa.

95% odour reduction.

Three electronically controlled power levels and an intensive mode.

Automatic function with sensor-controlled run-on function.

Grease filter saturation indicator.

Patented rim extraction filter, dishwasher-safe.

Fan technology with highly efficient, brushless DC motor.

Airflow-optimised interior for efficient air circulation.

Easy mounting system for simple installation and alignment.

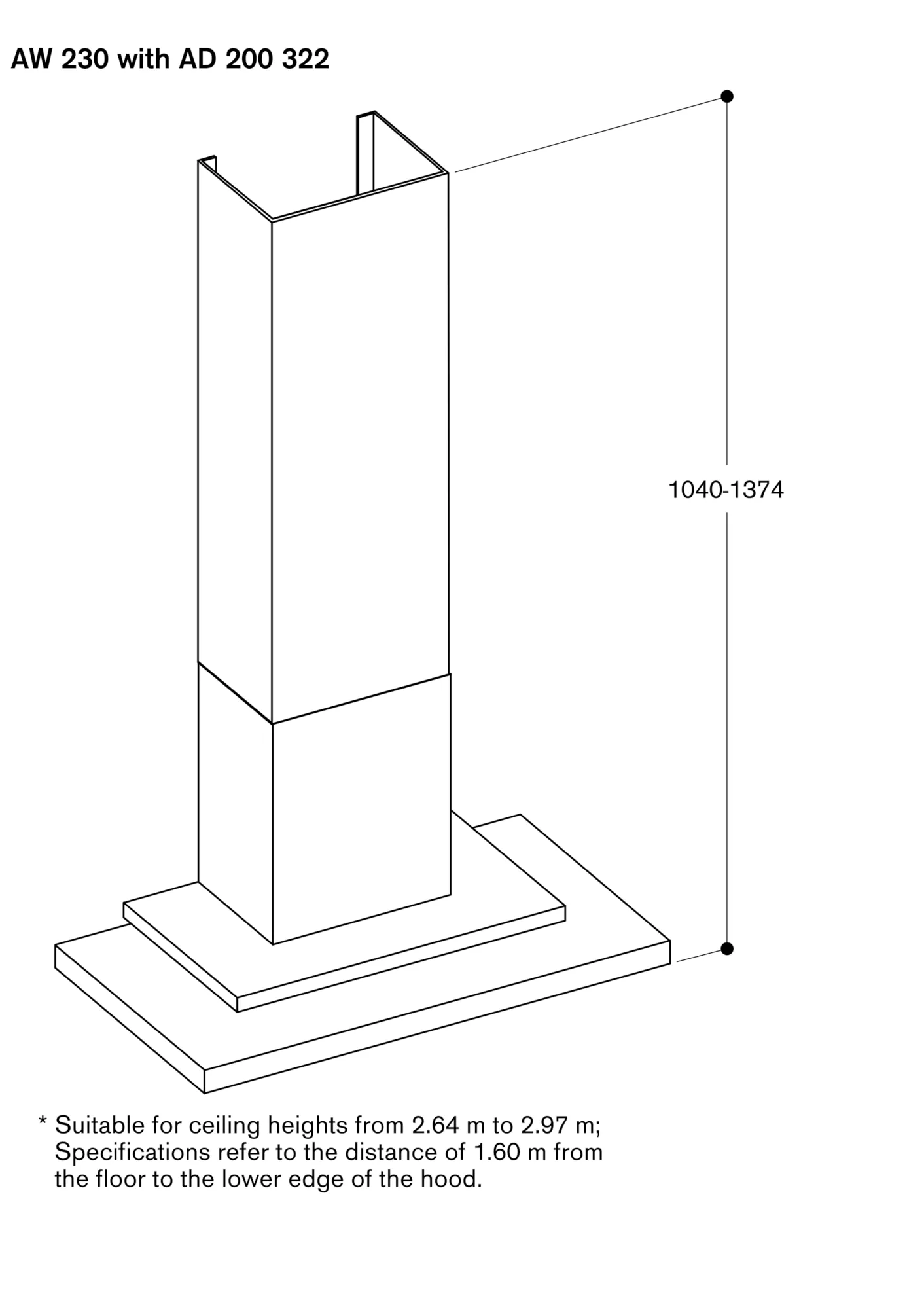

The package includes the two-part chimney with the dimensions from 582 mm to 864 mm. Individual planning solutions can be implemented using the special accessory chimney extension AD200322 or by shortening the lower edge of the telescopic chimney. Special chimney types are available upon request.

Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 55 cm.

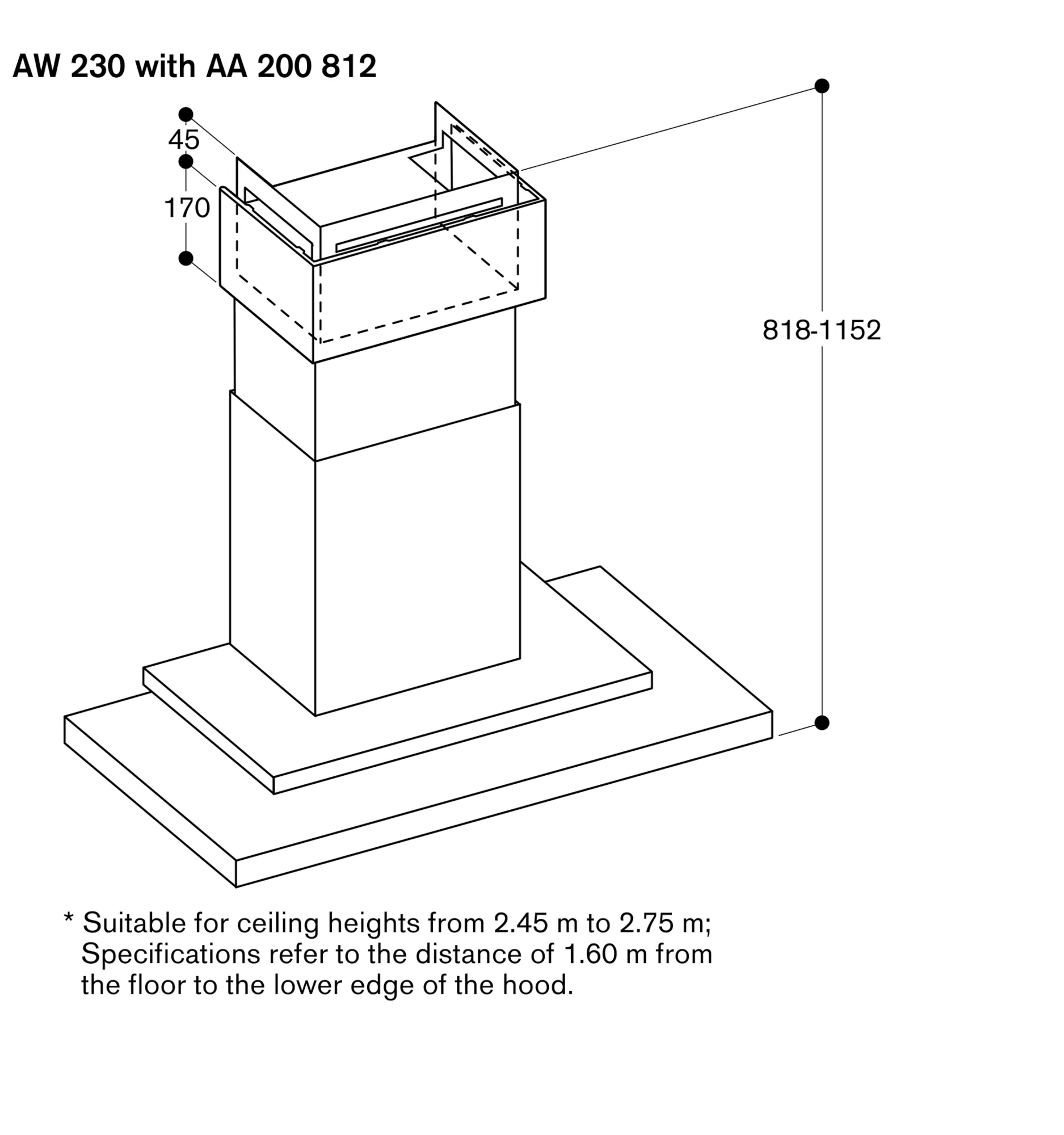

The recirculation module with activated charcoal filter can be installed on the external chimney or telescopic chimney.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.
