Telescopic table ventilation for combination with all Gaggenau cooktops, completely retractable when not in use

Dimmable LED light for illumination of the whole cooktop

Precision crafting of 3 mm stainless steel

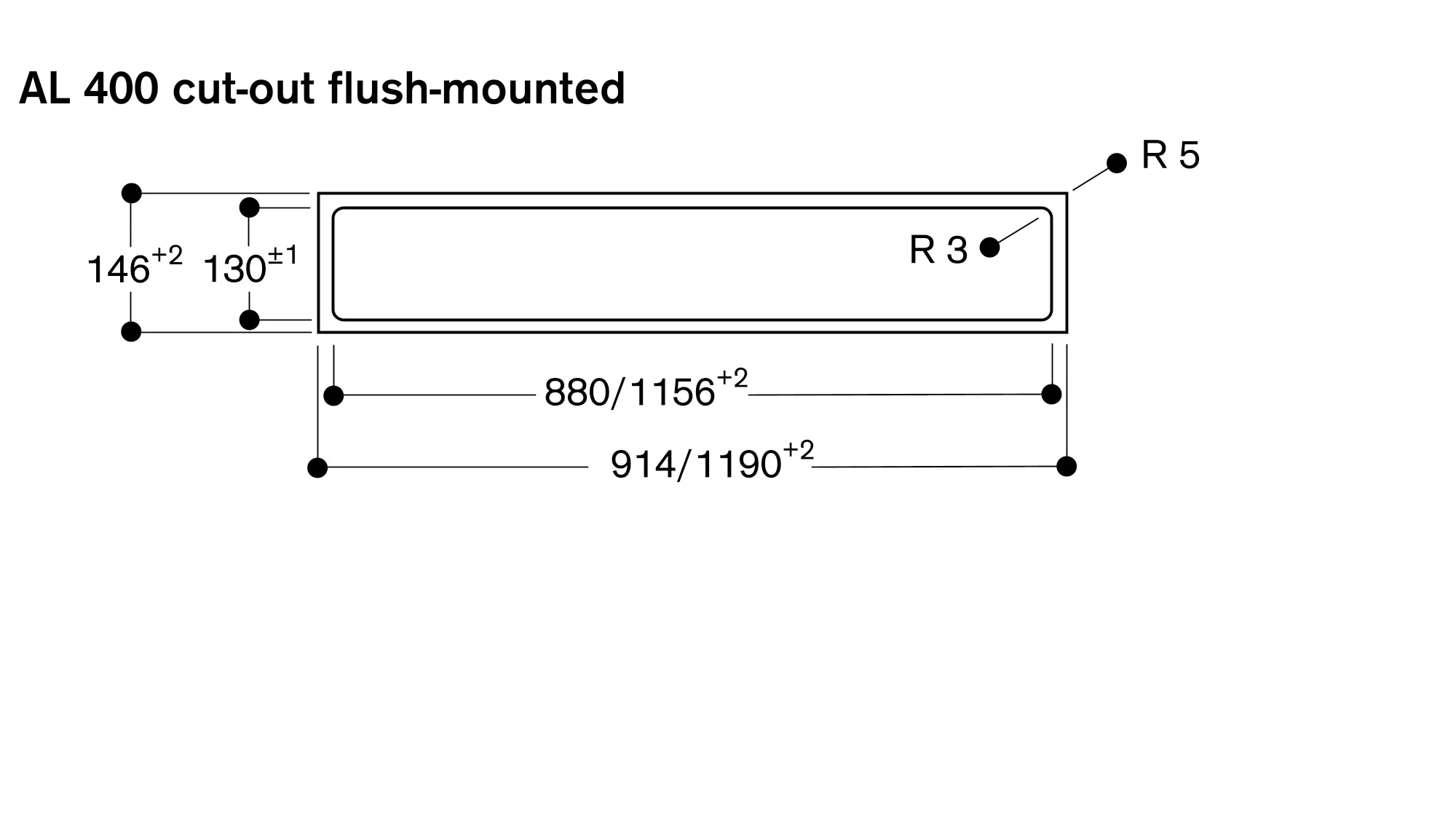

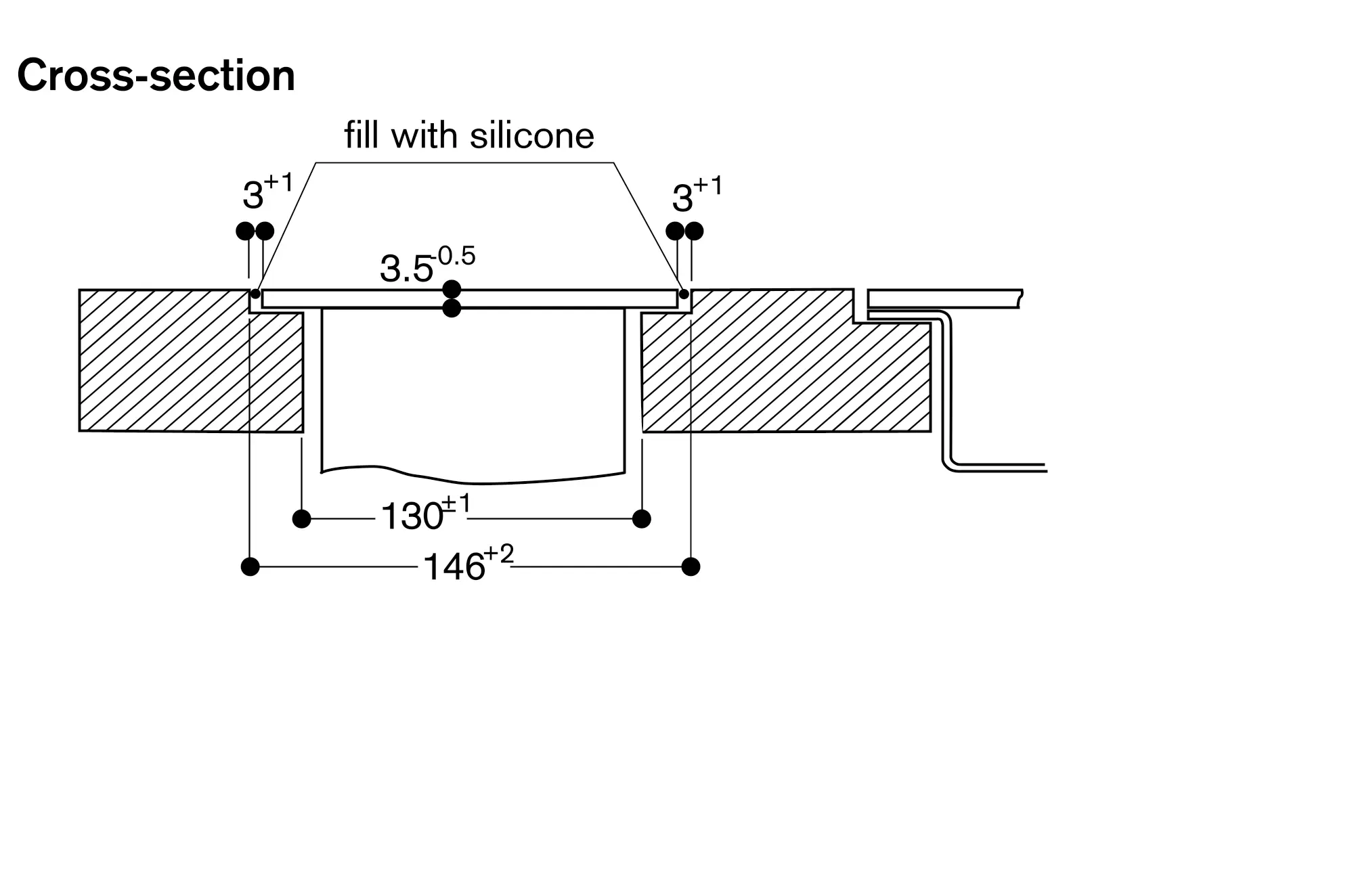

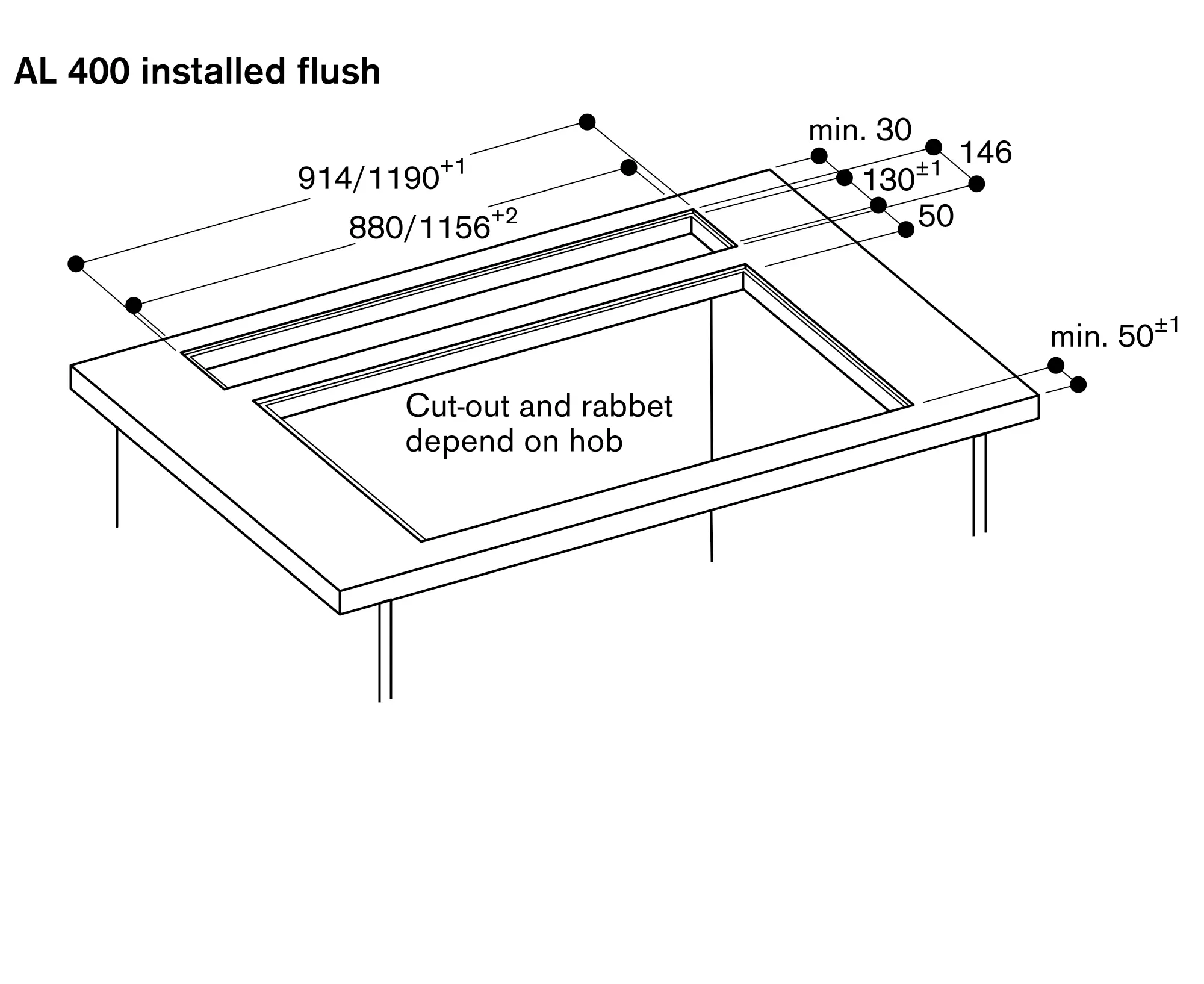

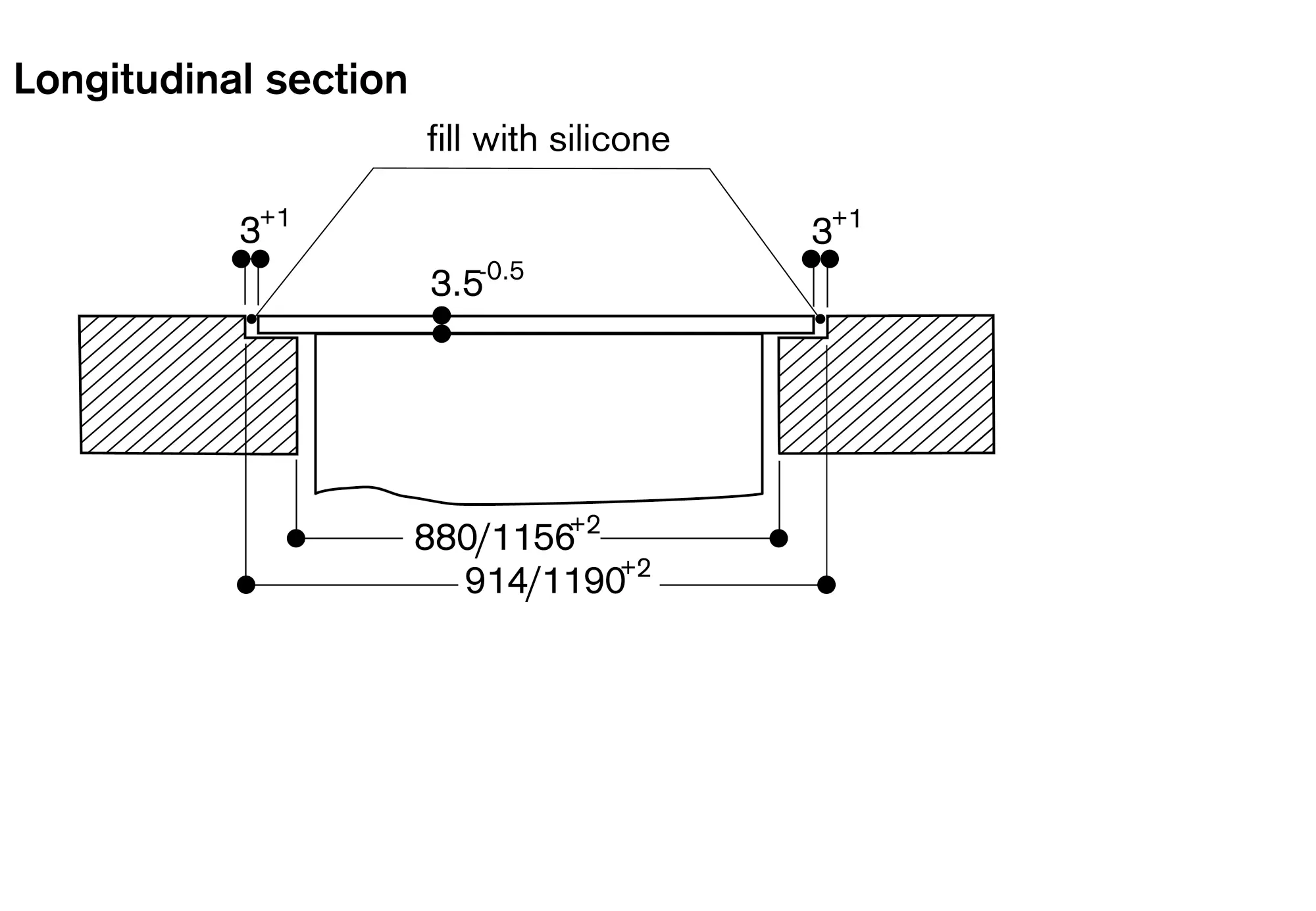

For surface installation with a visible edge or for flush installation

Can be combined perfectly with other Vario appliances of the 400 series

Maximum air output in combination with remote fan units s. table remote fan units on page xxx.

Sound power level depends on the built-in situation.

3 electronically controlled output levels.

Intensive mode.

Interval ventilation.

Run-on function.

Grease filter saturation indicator.

Cartridge-type filter, dishwasher-safe.

LED light.

Spare covers for closing air outlets.

No duct connection piece included.

For operation with 3 Vario 200 series cooktops, 2 Vario 400 Series cooktops or a cooktop configuration of up to 92 cm wide.

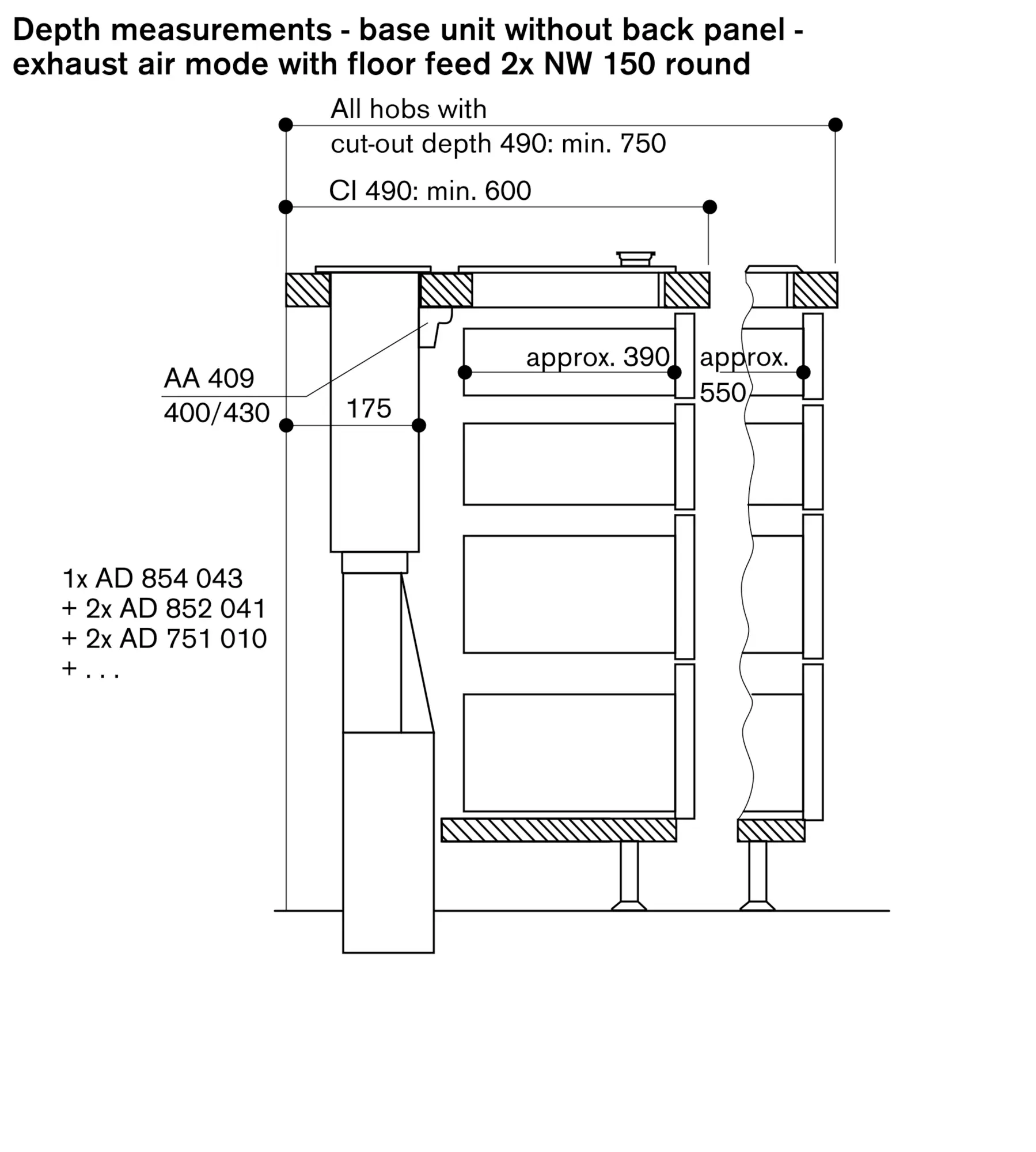

In combination with the cooktop CI 490, installation in 60 cm deep worktops is possible.

Operation of Vario cooking appliances only possible without appliance cover.

Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.

If the remote fan unit is installed within the bottom cabinet and if combined with VK or VF ensure accessibility to the outlets.

The remaining surface of the worktop (min. 50 mm) between the cut-outs must be reinforced with a support. It is recommended to use furniture support AA 409 400/430.

Ovens that do not exceed the maximum allowed cabinet temperature can be combined with the table ventilation if built-in situation permits.

Recommendation for stainless steel parts to match hood that have to be welded and polished: brushed grain 280.

Surfaces: Stainless steel 1.4301, ground and brushed IIIC.

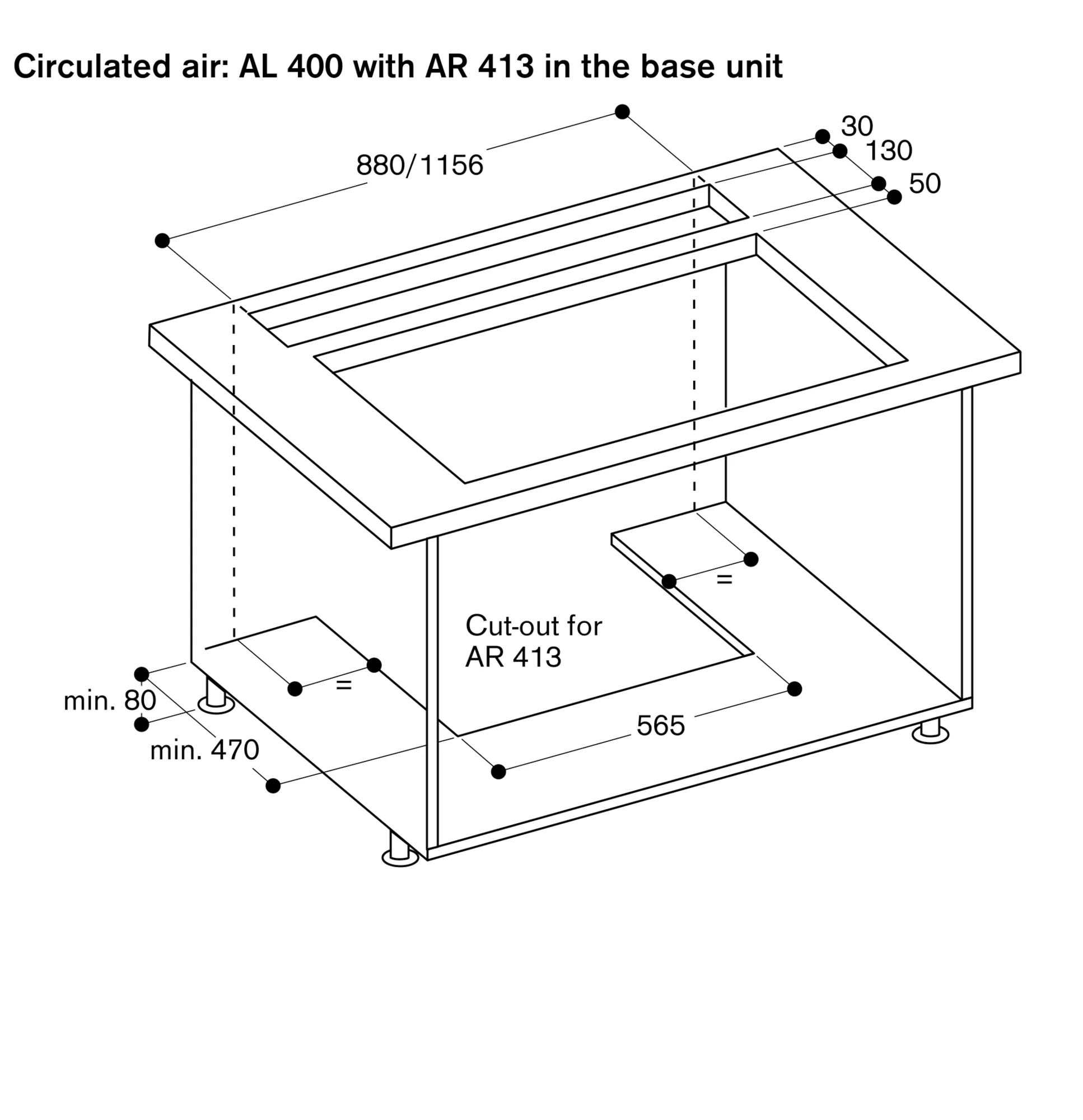

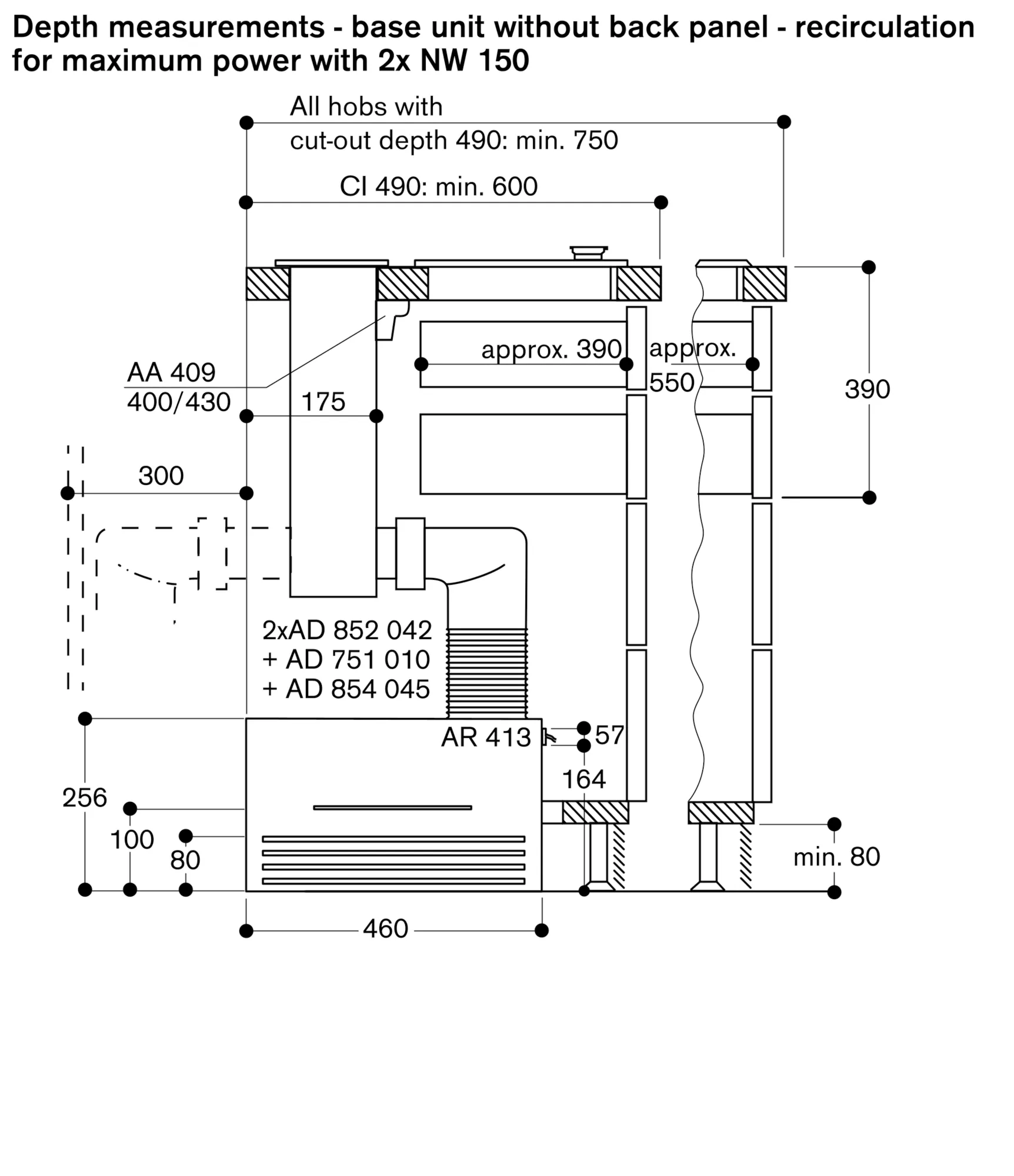

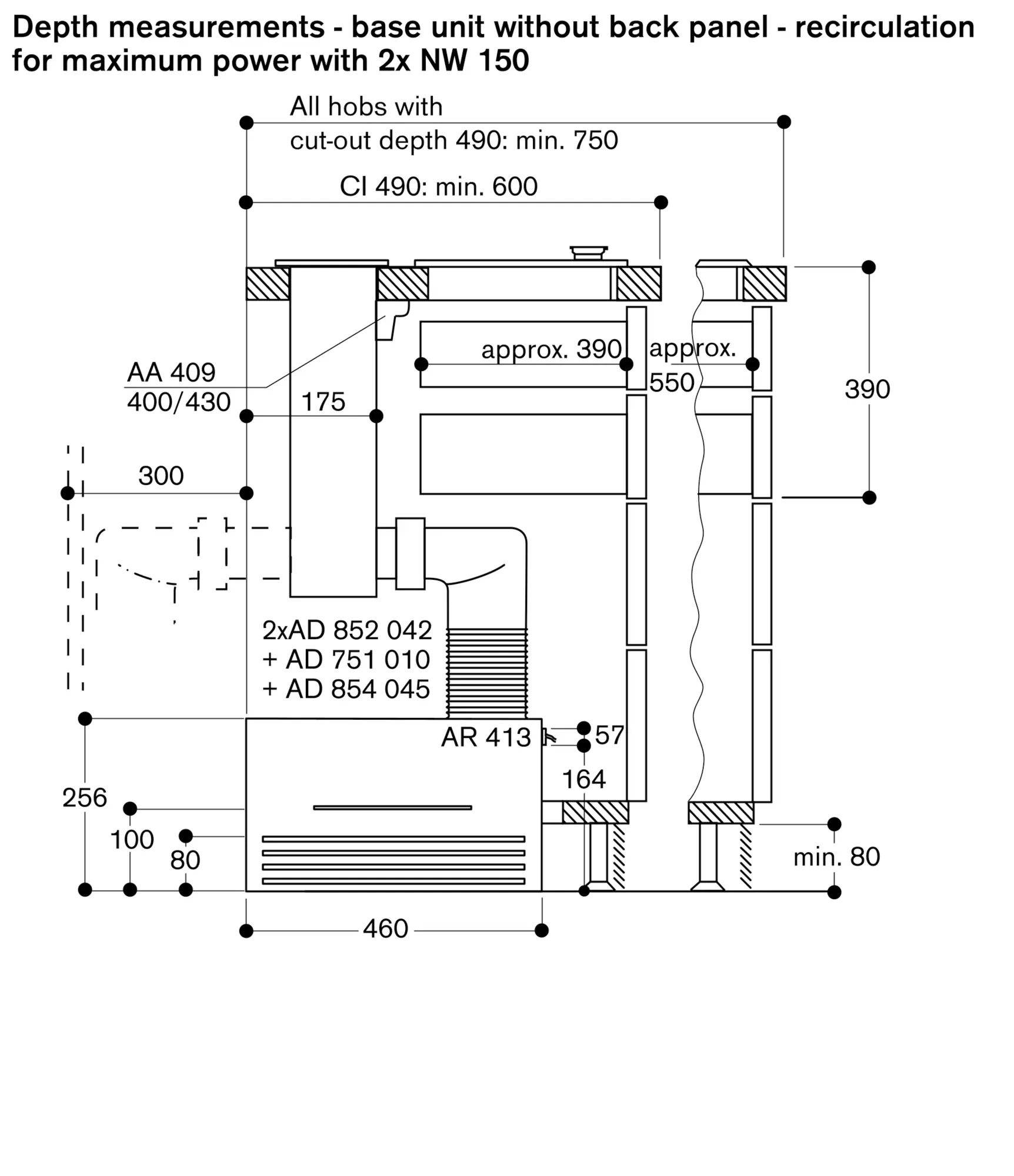

For air recirculation:

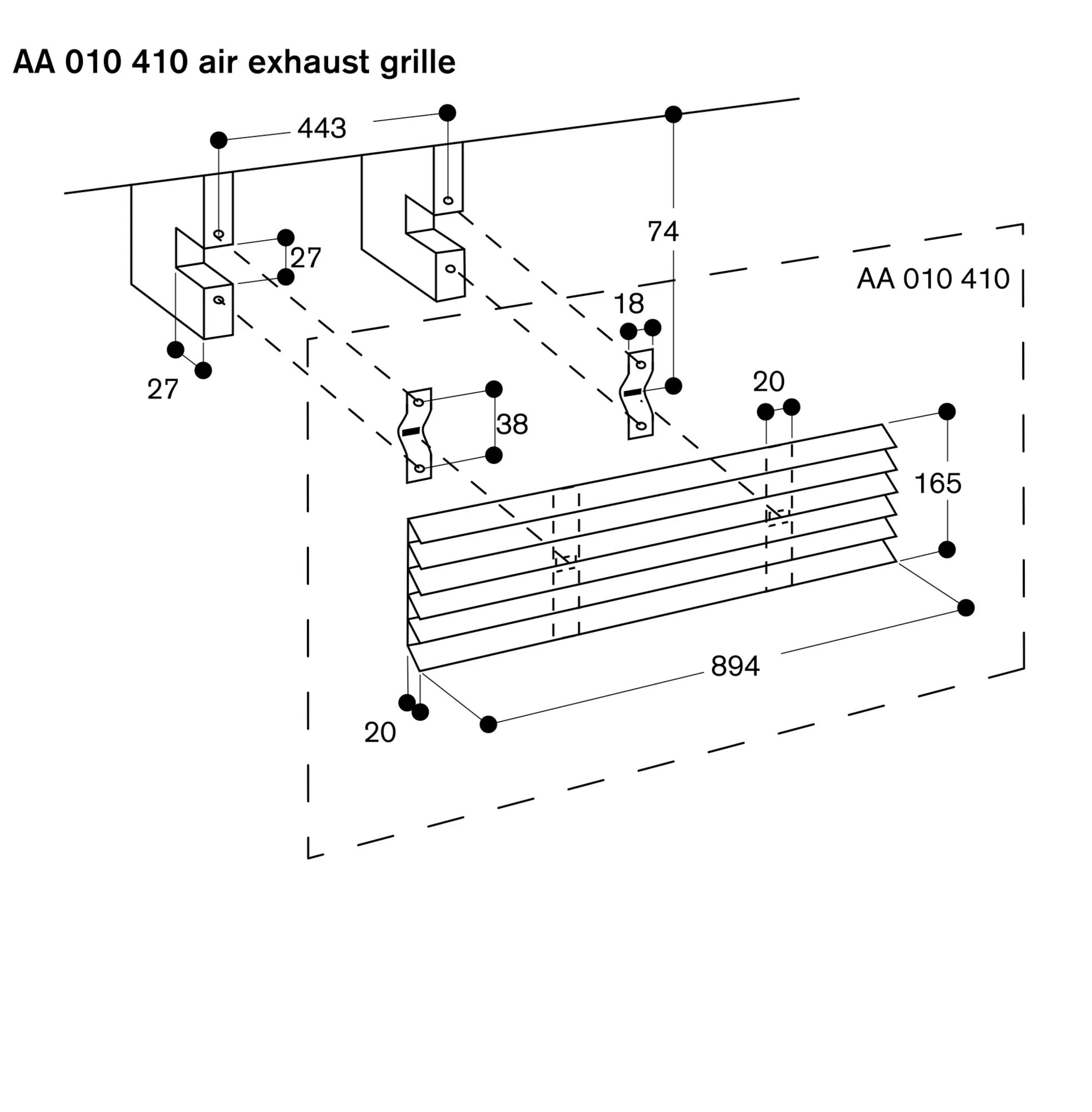

The exhaust outlet in the plinth should be as large as possible to minimise draughts.

The location of the exhaust outlet in the plinth is consumer-defined. Minimum cross-section 720 cm2.

To avoid smoke when frying/grilling refer to the manuals of VR/VP.

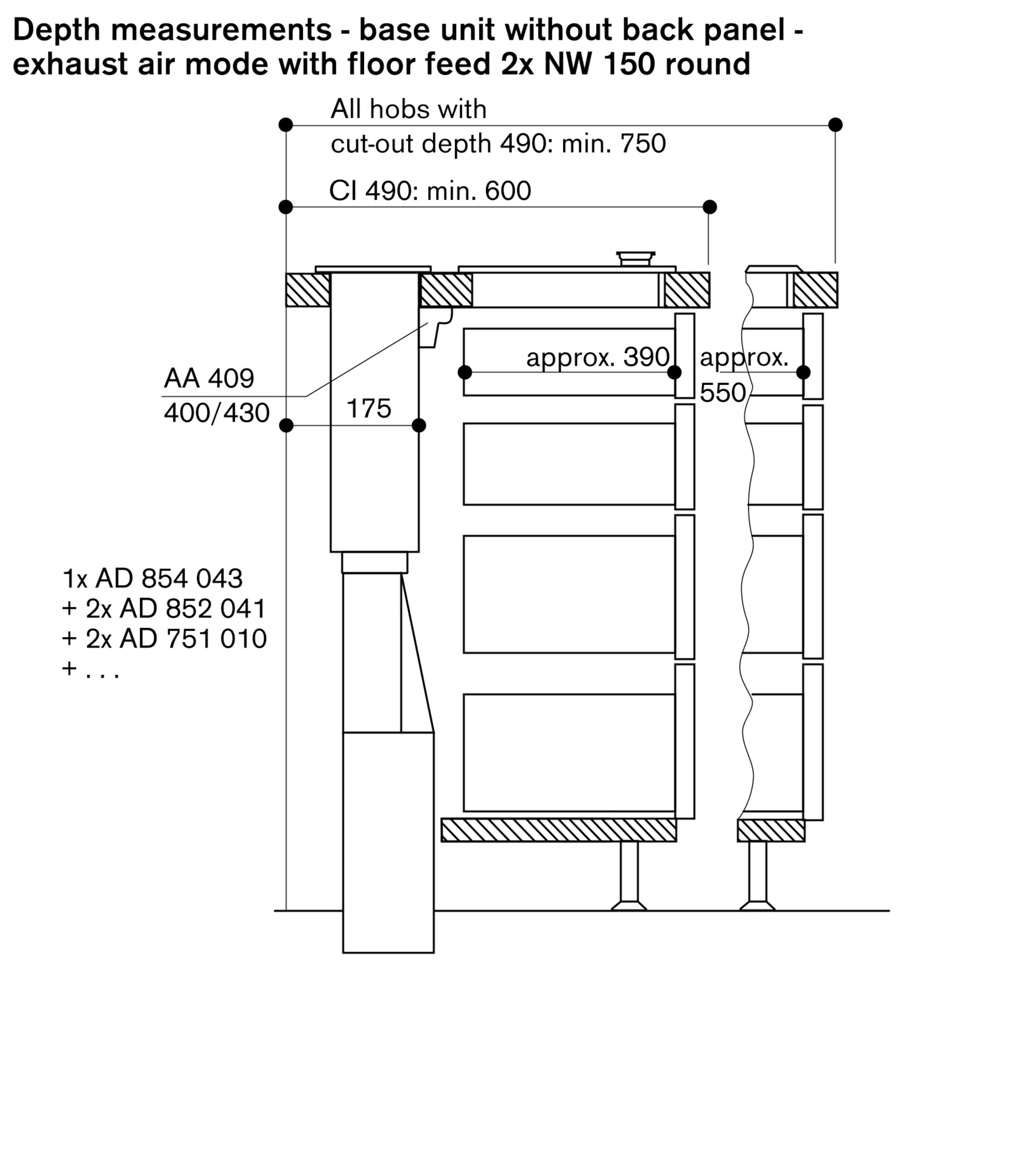

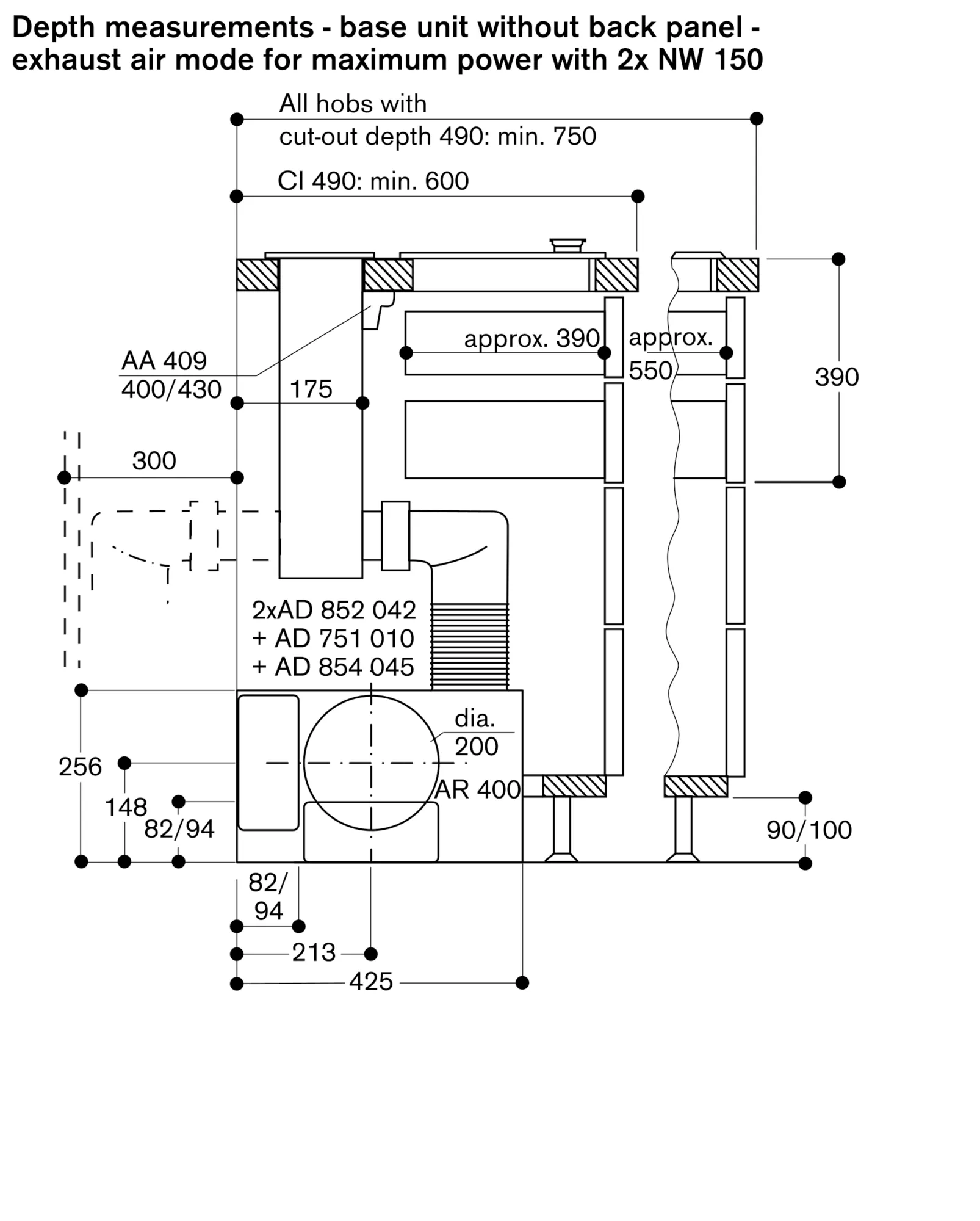

For air extraction:

For maximum duct lengths use Gaggenau flat rectangular ducts AD 8… or Naber-System Compair flow. Other flat ducts are not permitted!

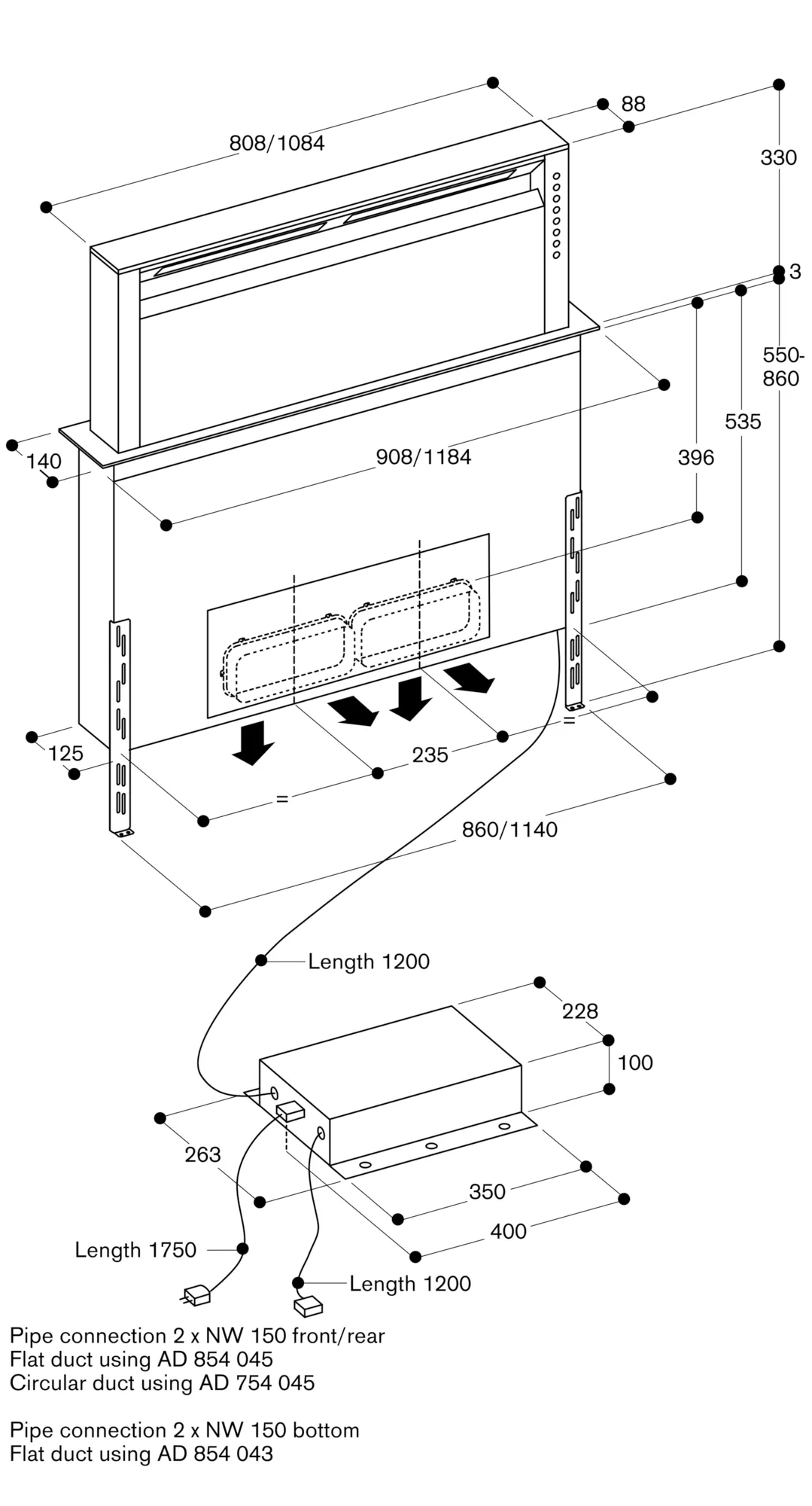

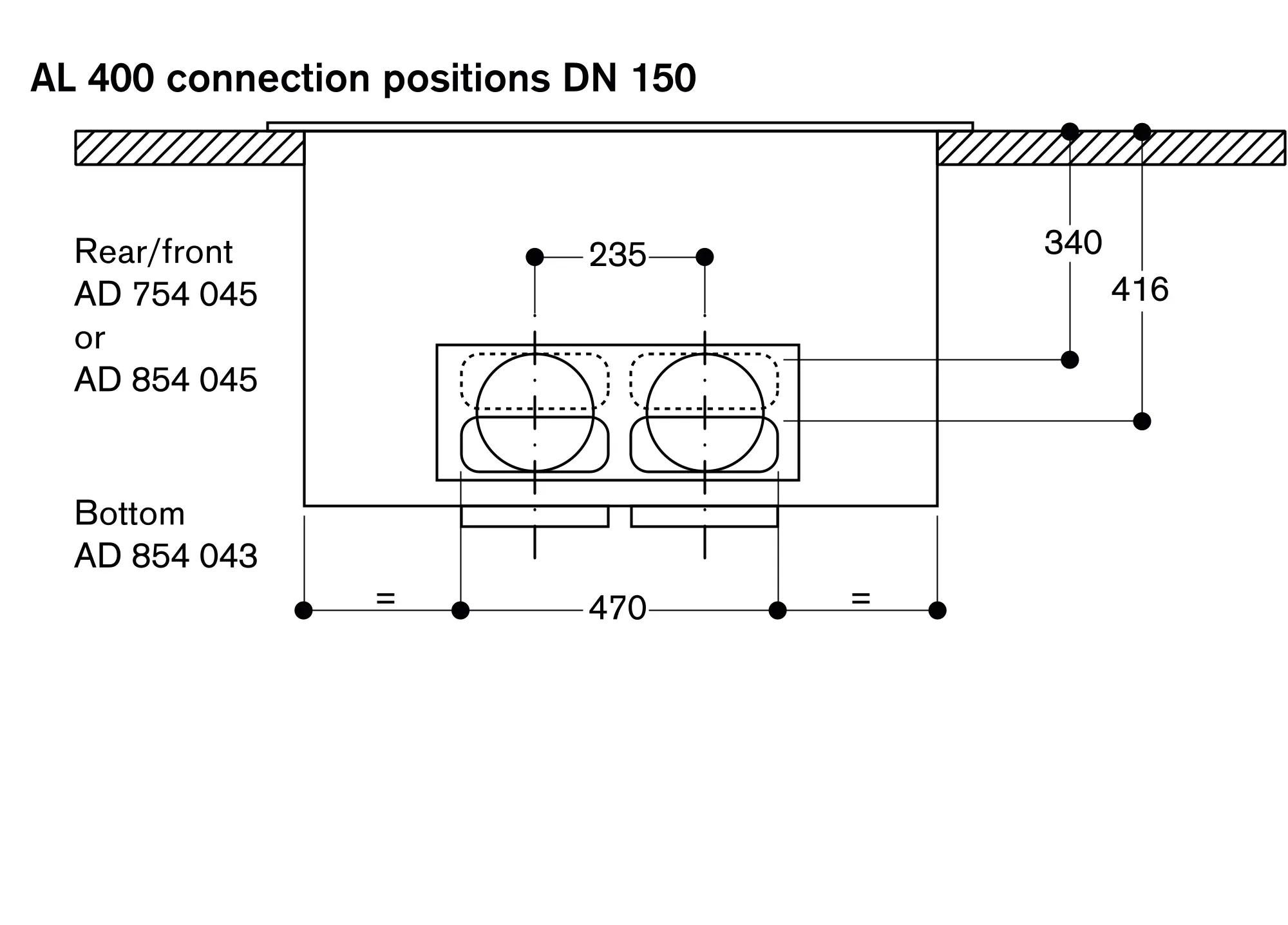

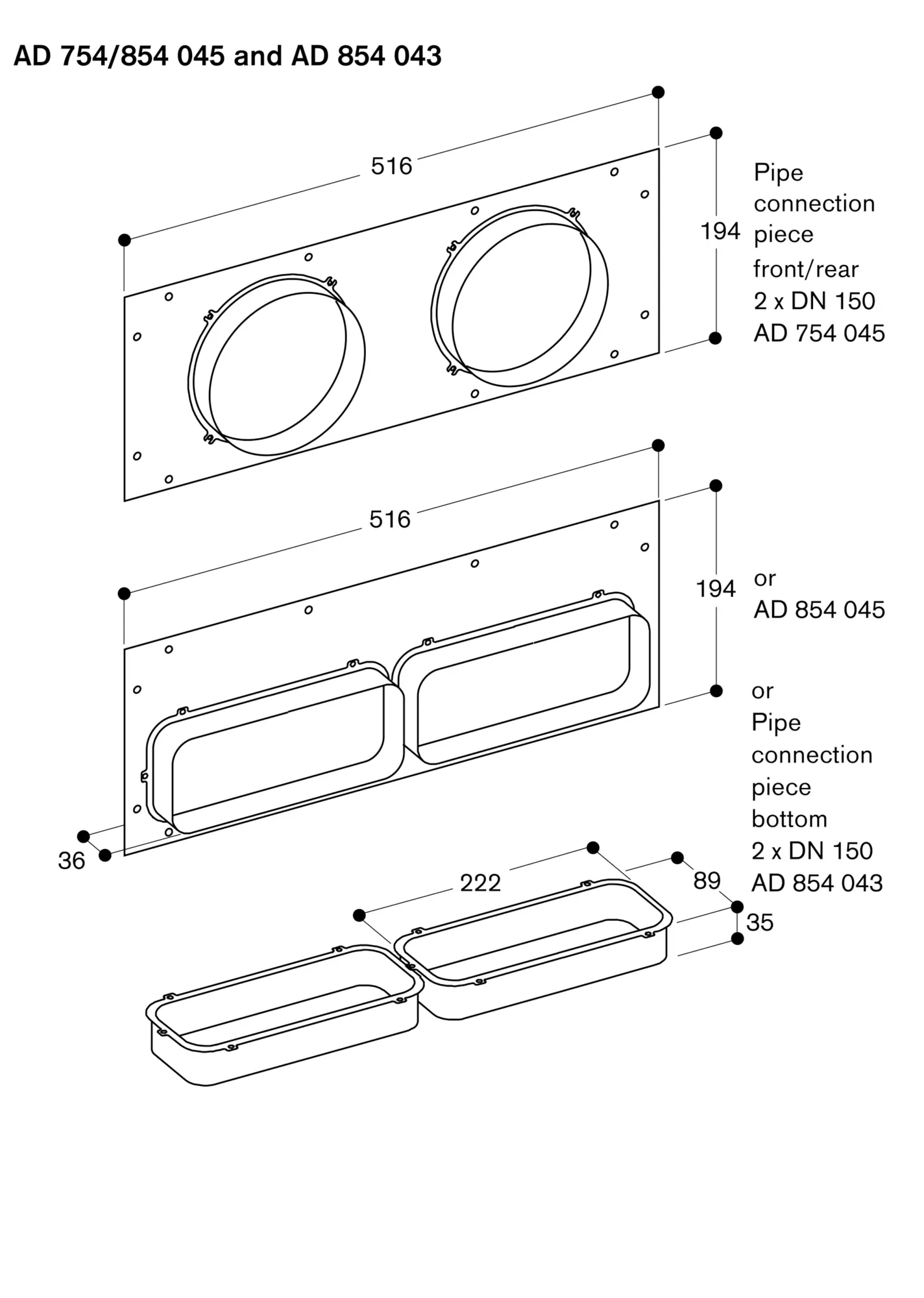

Duct connection front or backwards: 2 ducts DN 150 cylindrical or flat rectangular duct. Downwards 2 ducts DN 150 flat rectangular duct (installation accessory).
