Technical Overview
Installation typology
Built-in
Width
80 cm
Control your hood with your Home Connect hob
No
PerfectAir
No
Additional information

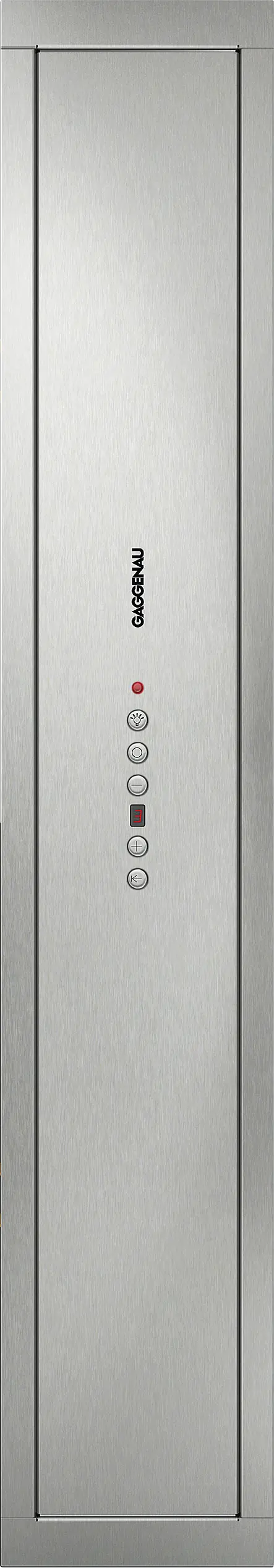

Control module of ceiling ventilation without light
Individual configuration of unobstructed airflow of remote fan unit from 950 - 2800 m³/h
For configurations without integrated light
Maximum air output in combination with remote fan units s. table remote fan units on page xxx.
7-key infrared remote control, backup keys for operation also on the control module.
3 electronically controlled output levels.
Intensive mode.
Run-on function.
Acoustic grease filter saturation indicator.
The ceiling ventilation has to be handled as a room ventilation when distance to cooktop is larger than 120 cm since the direct capture of vapours will be limited. The needed airflow is given by an air exchange rate of 10 to 12 times the room volume.

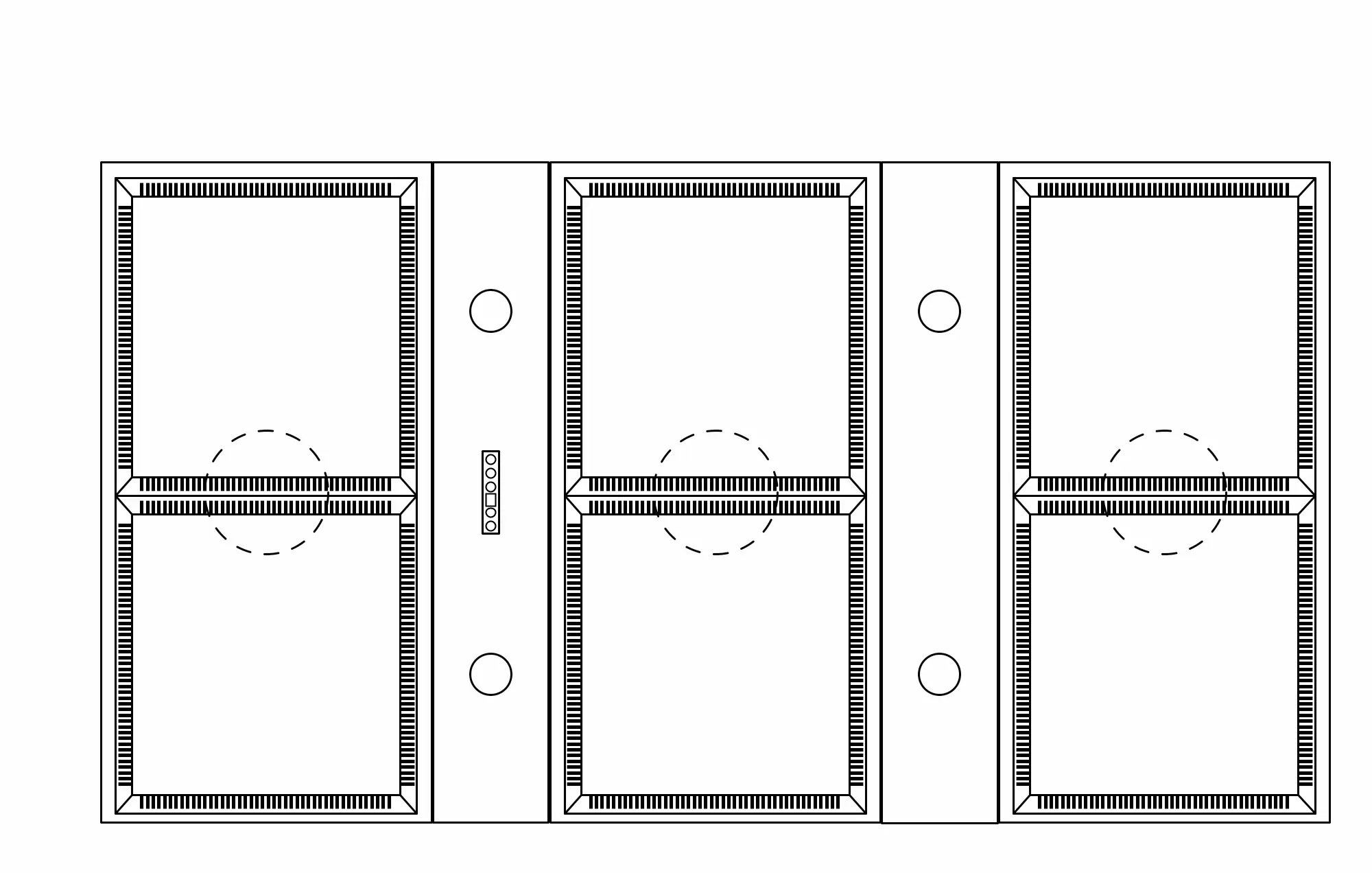

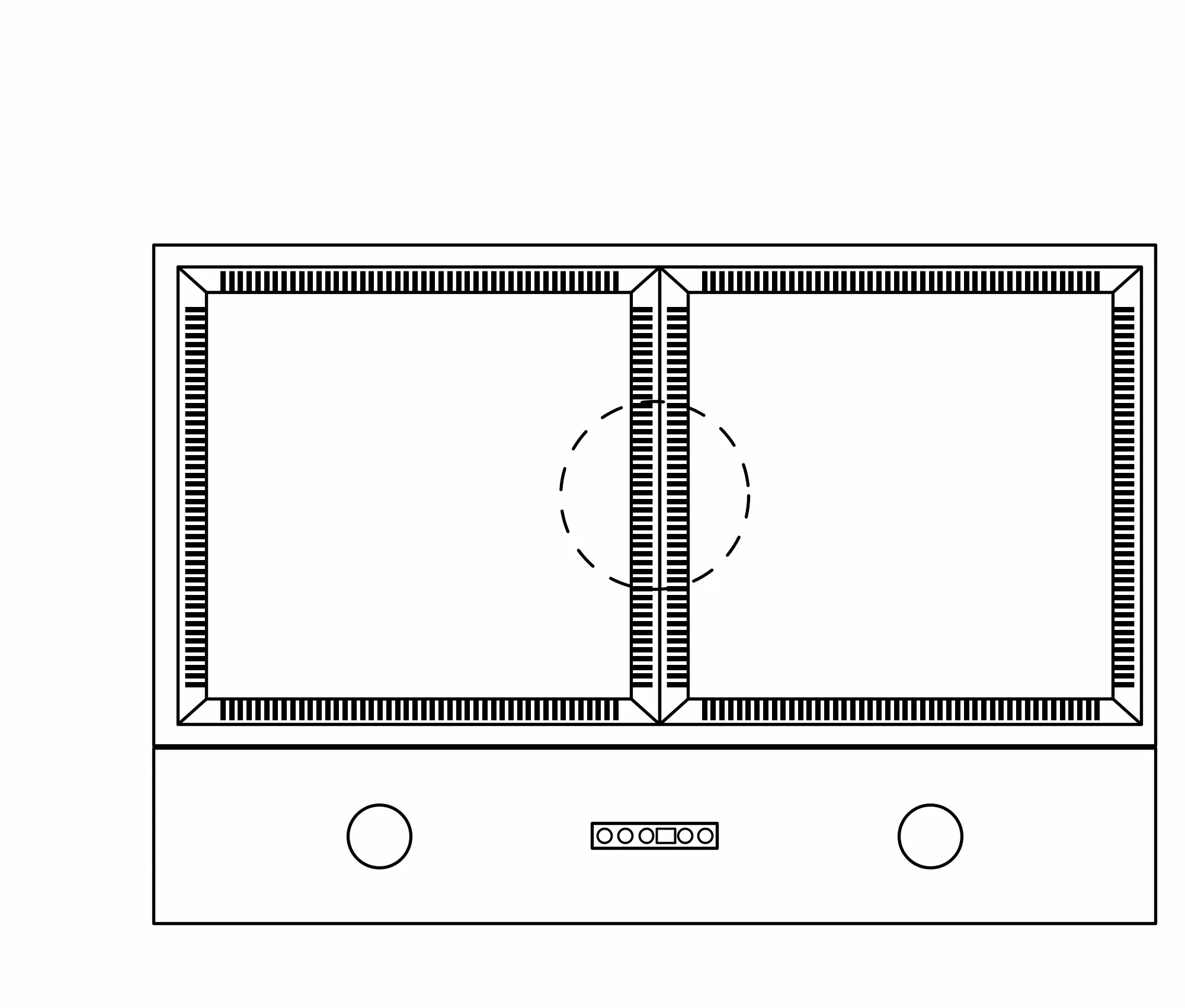

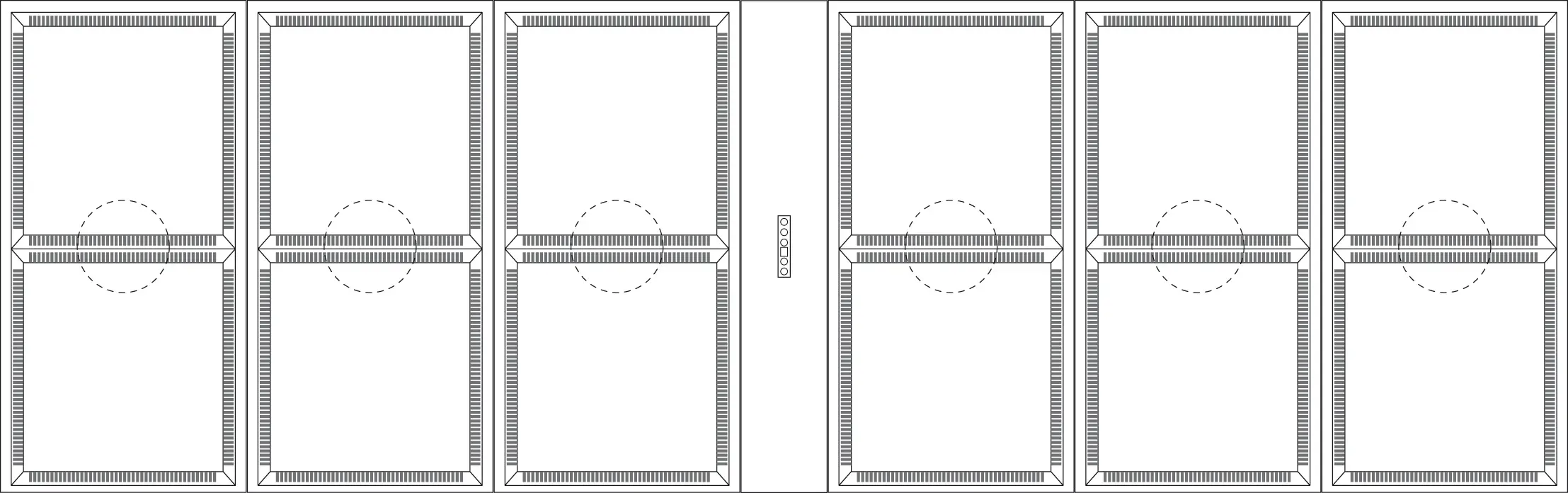

Please refer to page xxx for recommended configurations of ceiling ventilations and remote fan units and the resulting dimensions.

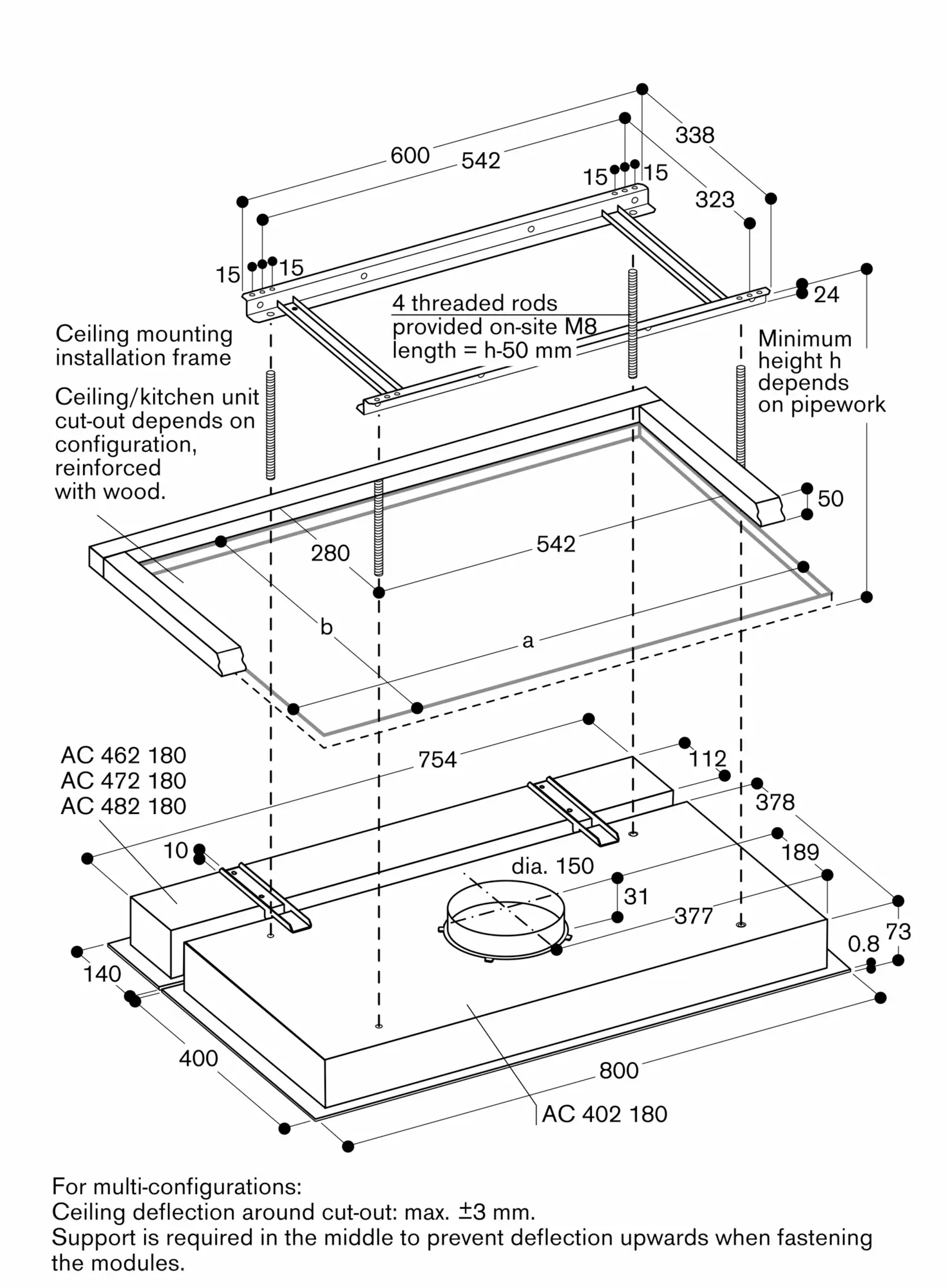

Fixing at the filter module.
Max. 2 AR 400/401 to be controlled with one control module.
One amplifier AA 090 100 is needed for connecting two remote fan units.
When installing a ventilation hood with air extraction mode or recirculation outlet in another area of room air (e.g. cellar) and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.
Connecting cable 1.3 m with plug.
