Easy and time saving installation directly on the ceiling

Rim extraction with flat and easy-to-clean glass cover

Dimmable, indirect LED light

Performance and noise level, output level 3/Intensive: Air output according to DIN EN 61591. Sound power level according to EN 60704-3. Sound pressure level according to EN 60704-13.

Air recirculation: 780 / 850 m³/h. 70 / 72 dB (A) re 1 pW. 56 / 58 dB (A) re 20 μPa.

Three electronically controlled power levels and an intensive mode.

Remote control is included in delivery.

Interval ventilation, 10 min.

Run-on function, 6 min.

Grease filter saturation indicator.

Metal grease filter, dishwasher-safe.

Activated charcoal filter fitted in appliance ex factory.

Activated charcoal filter saturation indicator.

Activated charcoal filter regenerable up to four times.

Stainless steel housing and glass filter cover in Gaggenau Silver.

Indirect LED light (4000 K), dimmable.

Lamp output 2 x 6W LED.

Illuminance: 14 lx

2 high-performance fans.

Sound level min. 57 dB / max. 70 dB normal mode.

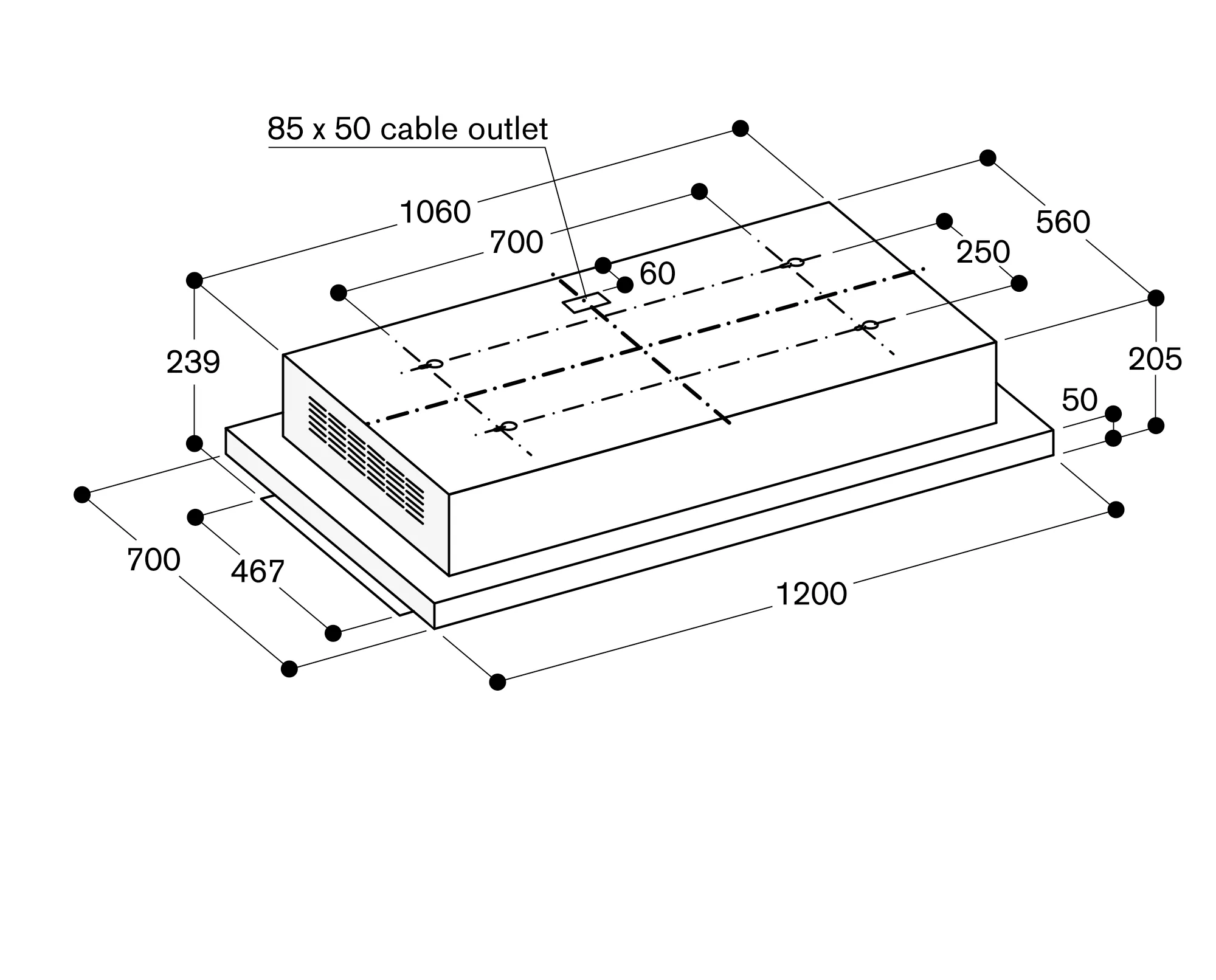

Installation directly on the ceiling.

A suitable load-bearing substructure is required for securing the extractor hood. Never fit the appliance directly onto plasterboard or similar lightweight construction materials.

Note the position of the electrical outlet.

Recommended minimum gap between filter openings and wall: 50 cm.

Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 55 cm.

Maximum clearance above cooktops 150 cm.

Appliance weight: approx. 41.
