Control panel for comfortable and secure operation

Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size

Multi-ring burner of solid, heat-resistant brass as used in professional kitchen

Solid smooth-surface cast iron pan supports

Up to 17.5kW on 5 burners

1 multi-ring wok burner (300 W – 5500 W), suitable for pots up to max. ø 32 cm.

2 two-ring high output burners (170 W – 4000 W), suitable for pots up to max. ø 28 cm.

2 two-ring standard burners (170 W – 2000 W), suitable for pots up to max. ø 28 cm.

Control knobs with illuminated ring.

Integrated control panel.

One-handed operation.

Electric ignition.

Three-part cast iron pan support with flat, continuous pot surface.

Brass burner rings.

Thermoelectric safety pilot.

Residual heat indicator.

Operation indicator.

No intermediate shelf required.

Appliance can be snapped into the worktop from above.

The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.

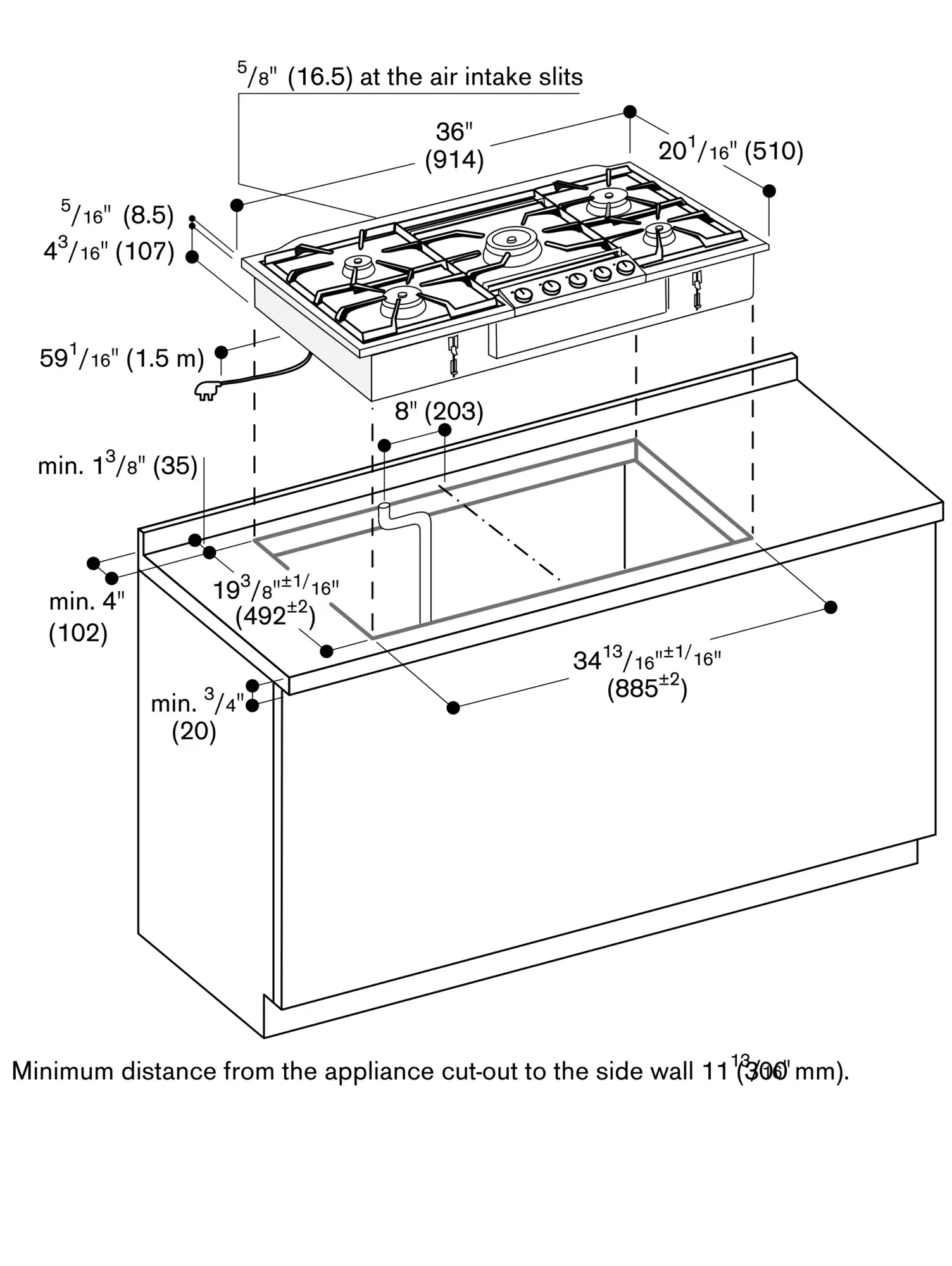

Installation in a 90 cm wide lower cabinet is required.

Above countertop minimum clearance of at least 11 13/16'' from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.

Minimum distance between gas cooktop(s) with more than 37,533 BTU(11kW) and ventilation hood must be 30'' (76cm).

Appliance weight: approx. 29 kg.

Total connected load gas 17.5 KW.

Total Amps: 1 A. 120 V/60 Hz
