Solid smooth-surface cast iron pan supports

Automatic fast ignition, electronic flame monitoring

Integrated control panel with cooking zone and output level markings.

One-handed operation.

Gas valve with fine control.

Three-part cast iron pan support with flat, continuous pot surface.

Brass burner rings.

Electronic flame monitoring with automatic re-ignition.

Automatic quick ignition.

Special nozzles can be ordered as spare parts.

Plan for an electrical connection (the appliance is not operable without power supply).

Panel thickness 16 - 26 mm.

Air intake from above.

No intermediate shelf required.

The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.

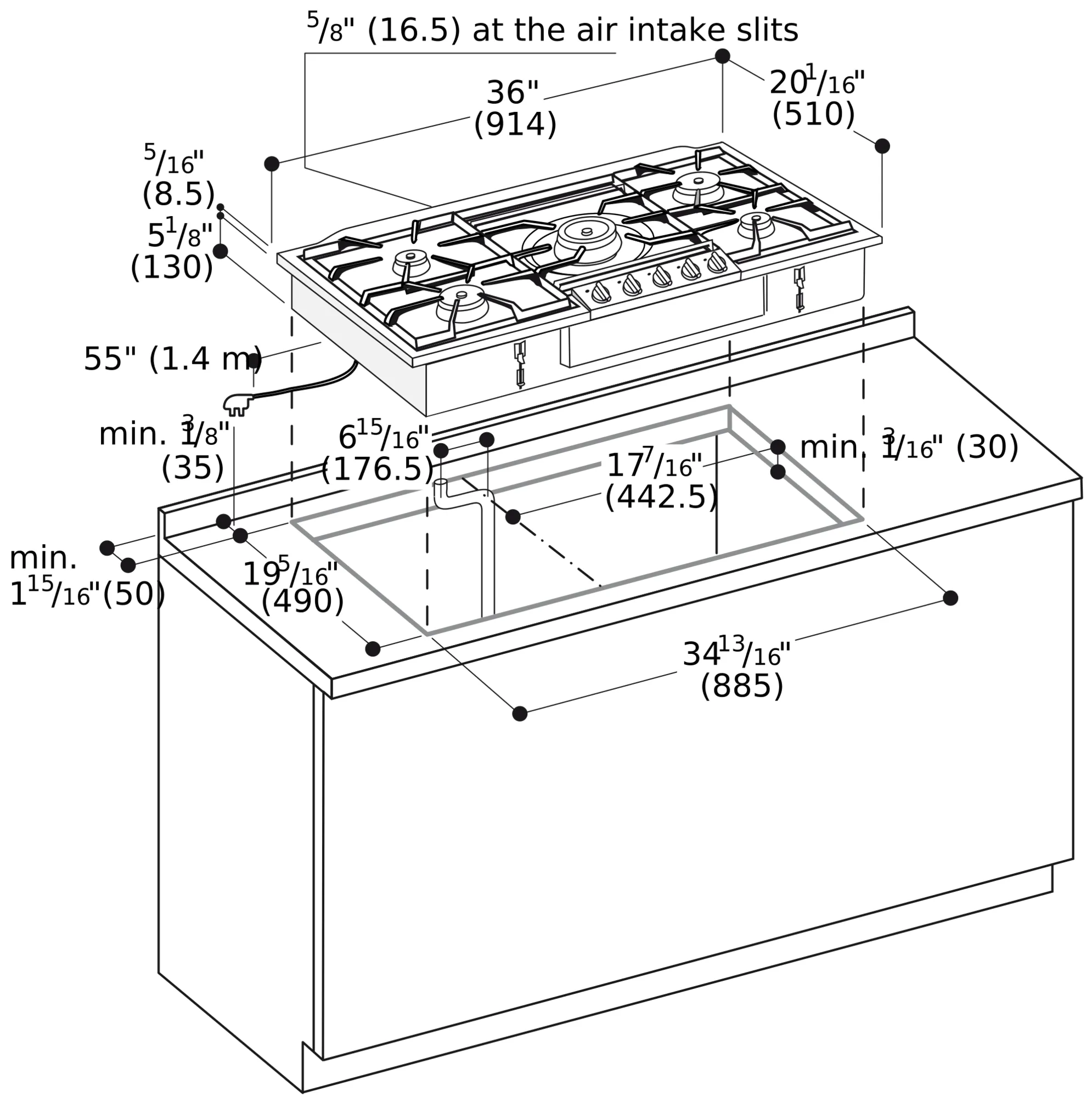

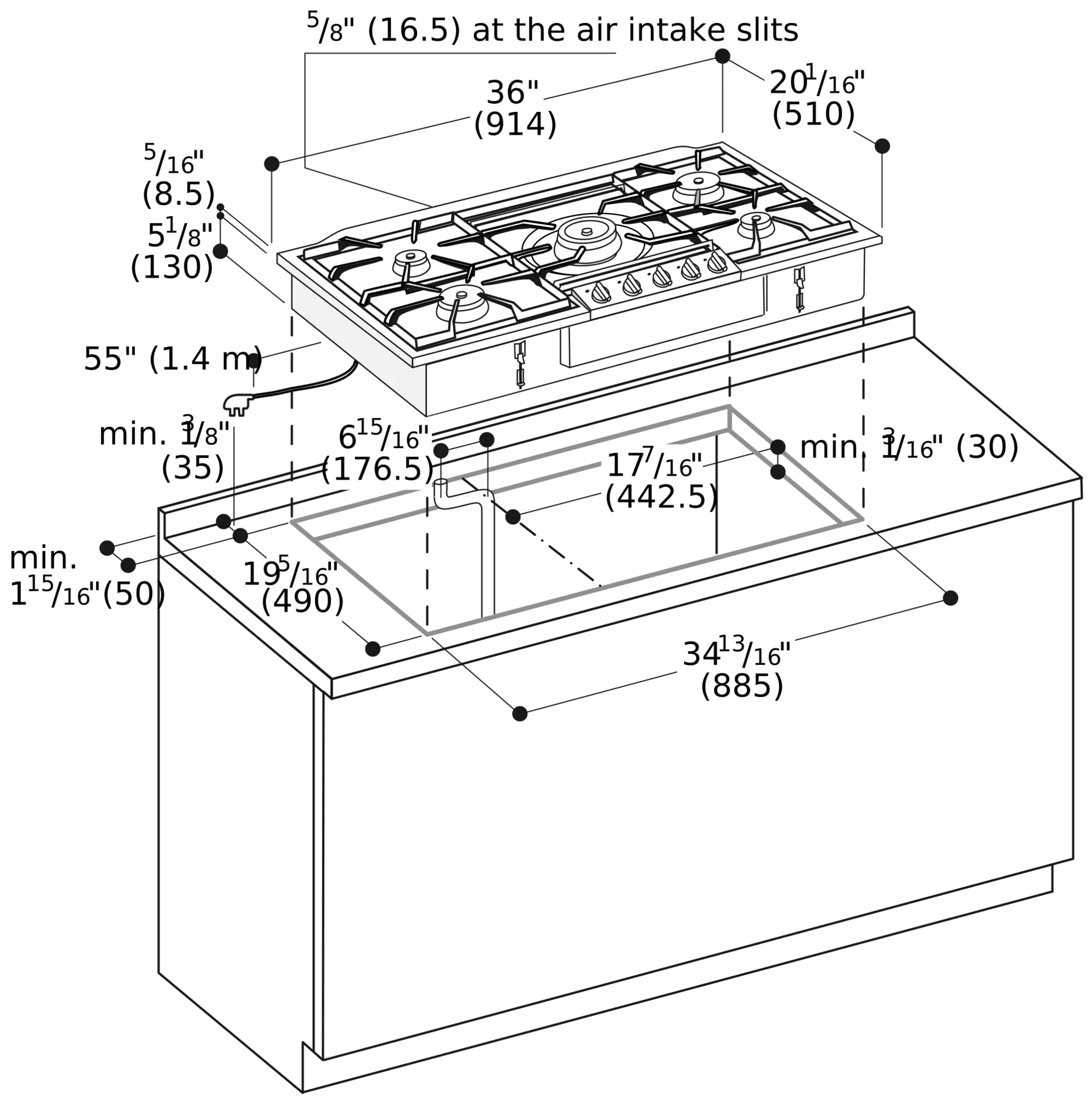

Installation in a 90 cm wide lower cabinet is required.

An oven can be installed under the cooktop.

Appliance must be fixed from underneath.

A minimum lateral clearance of at least 300 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.

Cooktop clamping range: 30 - 50 mm.

Minimum distance between gas cooktop(s) with more than 37,533 BTU(11kW) and ventilation hood must be 30'' (76cm).

Appliance weight: approx. 29 kg.
