RC472701

Product is no longer available

More information and services related to this product

1 / 6

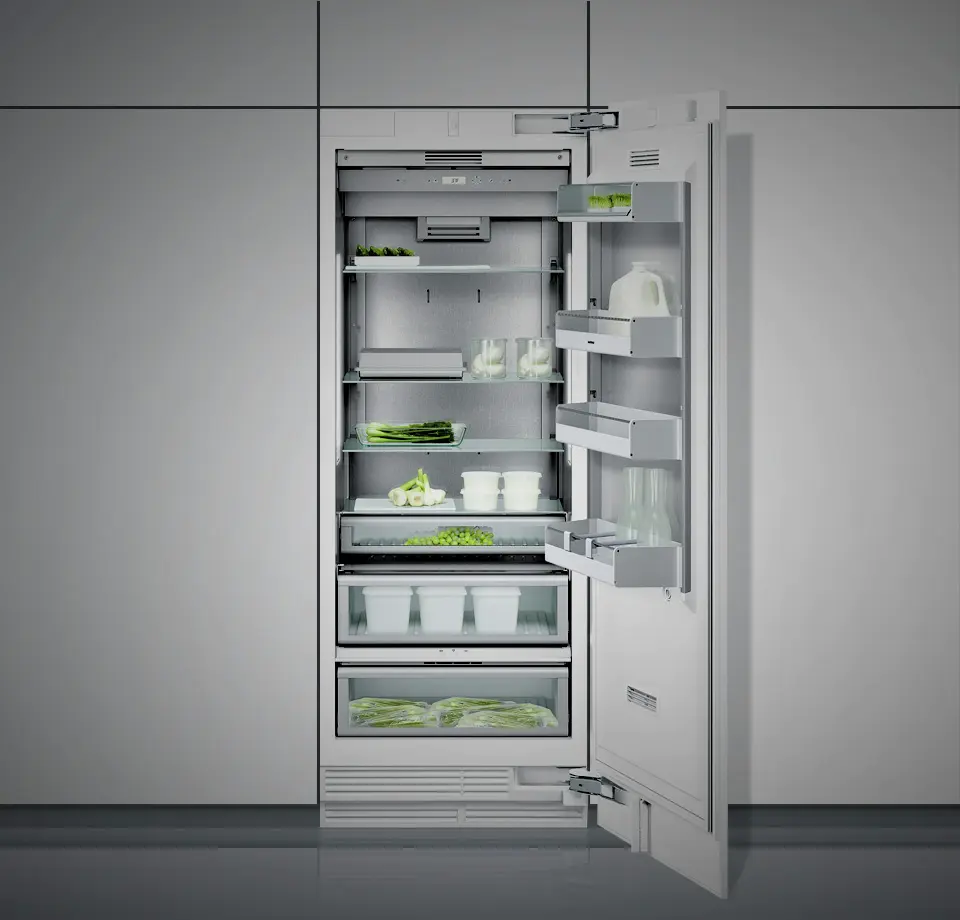

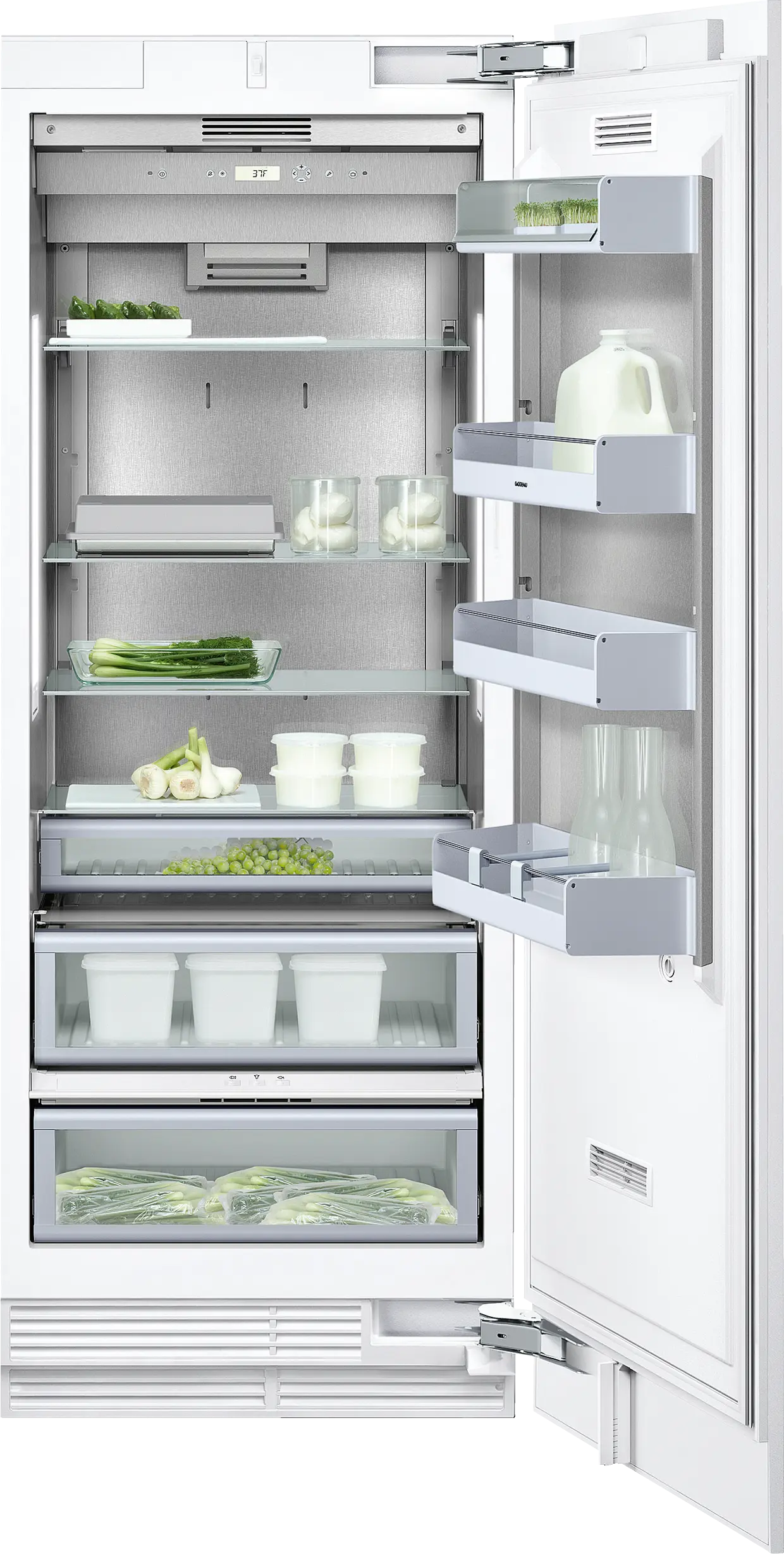

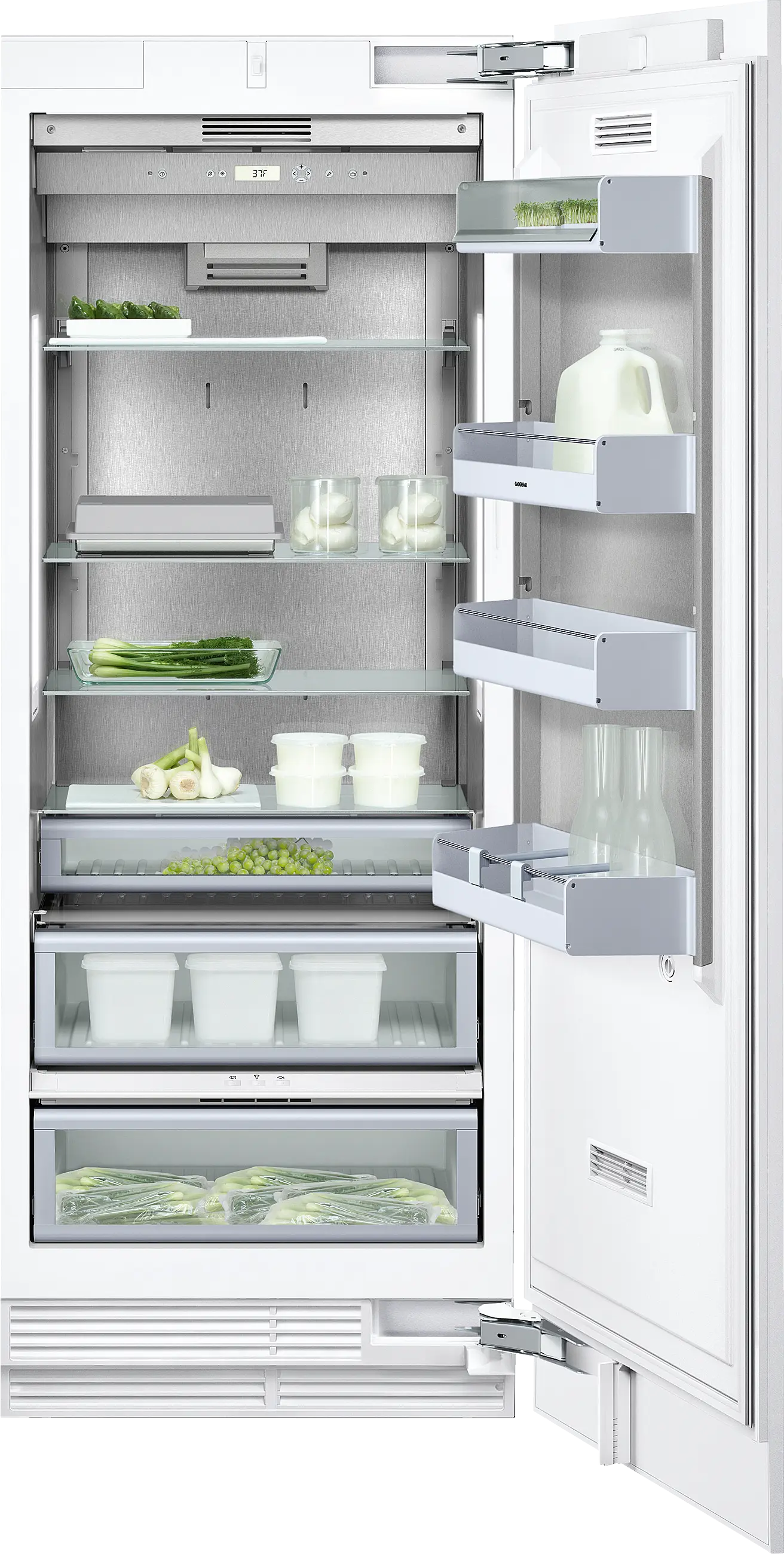

Photo Nr. 1 of the product RC472701
Photo Nr. 2 of the product RC472701
Photo Nr. 3 of the product RC472701
Photo Nr. 4 of the product RC472701
Photo Nr. 5 of the product RC472701
Photo Nr. 6 of the product RC472701
Photo thumb Nr. 1 of the product RC472701
Photo thumb Nr. 2 of the product RC472701
Photo thumb Nr. 3 of the product RC472701
Photo thumb Nr. 4 of the product RC472701
Photo thumb Nr. 5 of the product RC472701
Photo thumb Nr. 6 of the product RC472701
Photo thumb Nr. 1 of the product RC472701
Photo thumb Nr. 2 of the product RC472701
Photo thumb Nr. 3 of the product RC472701
Photo thumb Nr. 4 of the product RC472701
Photo thumb Nr. 5 of the product RC472701
Photo thumb Nr. 6 of the product RC472701

Technical Overview

Overall Appliance Dimensions (HxWxD) (in)
83 3/4 " x 29 3/4" x 24"
Dimensions (HxWxD)
2125x756x608 mm

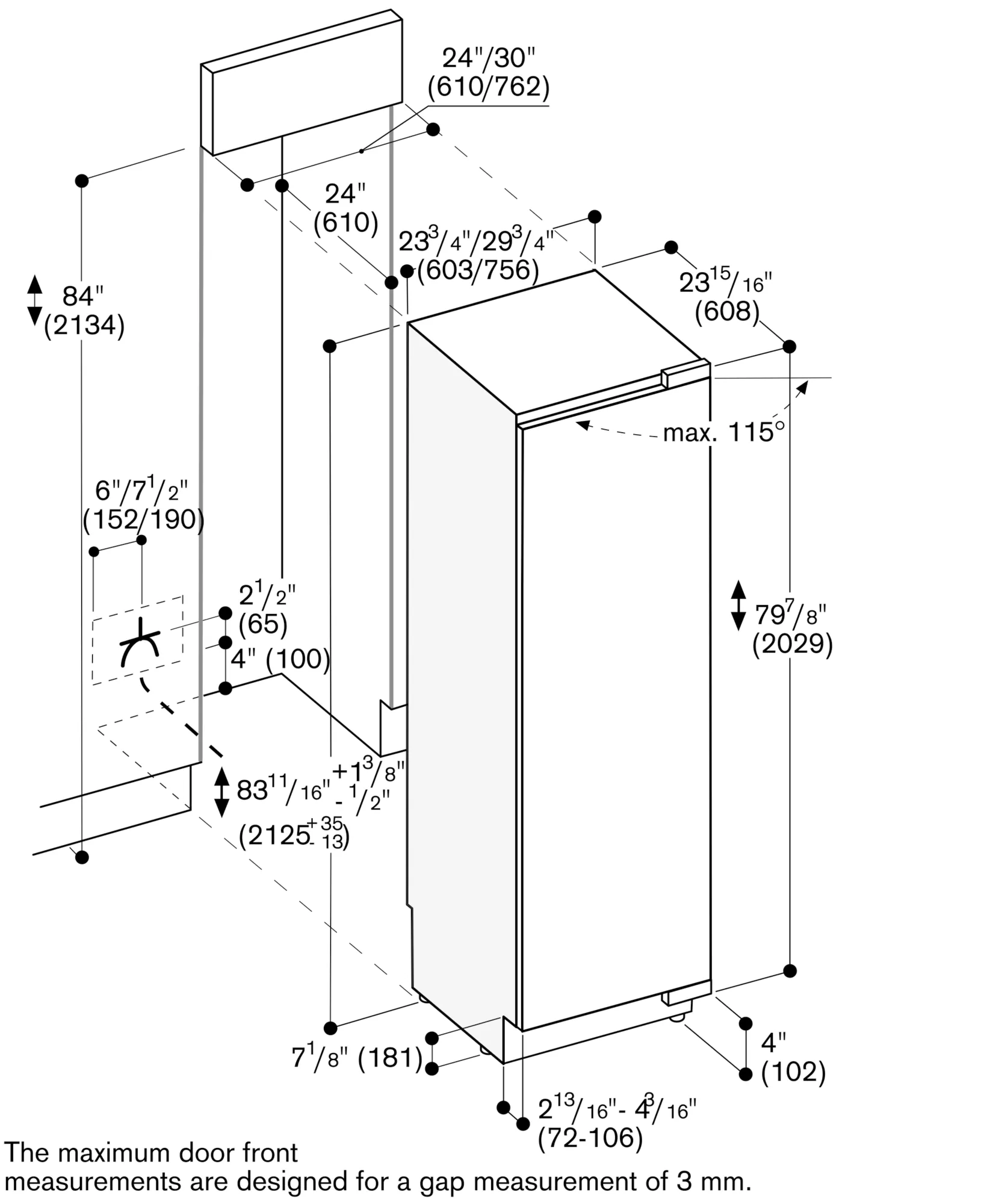

Required Cutout Size (HxWxD) (in)
84" x 30" x 24 3/4"
Required cutout size (HxWxD)
2134 x 762 x 610 mm

Specifications

Stainless steel interior
Generous lighting concept
Solid aluminium door racks
Net volume 486 litres
Fresh cooling drawer, temperature control from 0 °C to 3 °C
One motorised glass shelf, adjustable when fully loaded
Electronic precision temperature control with digital display.
Dynamic cold air distribution with Multi-Air-Flow.
Automatic defrosting with defrost water evaporation.
Sabbath mode certified by Star-K.
Open-door and malfunction warning system.
Net volume 418 litres.
No-Frost technology with fast cooling.
Temperature adjustable from +2 °C to +8 °C.
4 safety glass shelves, 1 of which is motorised, 2 manually adjustable.
2 fully extendable drawers with transparent front, 1 of which deep and 1 shallow.
Bright interior lighting with light pillars.
3 height adjustable door racks, 1 of which is extra deep.
1 door rack with transparent front flap.
Net volume 68 litres.
Separate automatic temperature control, with settings for fish, meat or vegetables.
1 large, fully extendable drawer with transparent front and integrated lighting.
Energy consumption 0.849 kWh/24 h.
Energy consumption 310 kWh/year.
Noise level 39 dB (re 1 pW).
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 21 kg.
Total rating 1.079 kWh/24h.
Connecting cable 118,1" (3.0 m) with plug.
