400 series fully-integrated dishwasher 24''DF480761
DF480761
Find a local Dealer
Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
32 3/16'' x 23 9/16'' x 21 5/8''
Overall appliance dimensions (HxWxD)
817 x 598 x 550 mm
Silence Level
41 dB(A) re 1pW
Specifications
8 programmes with aqua sensor and 4 options, such as Power and Intensive
Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower basket
TFT display for intuitive handling of all functions
Remaining time projection onto the kitchen floor
Perfectly illuminated interior
Push-to-open function for perfect integration into handleless furniture fronts
Very quiet: 41 dB
Energy star qualified
TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Touch key operation.
Information key with use indications.
Sanitized indicator in the control panel.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Remaining time projection.
Perfectly illuminated interior.
Glass protection.
Aqua sensor.
Load sensor.
Automatic detergent function.
Yes
Flow-Through Water Heaterâ„¢
Triple filter system.
Soft lock.
4 options: Intensive. Power. Half Load. Extra Dry.
Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower basket.
Cutlery drawer.
Upper basket: Over extension. Rackmatic with 3 levels, adjustable in height up to 5 cm. 6 folding spines. 4 folding racks. 2 glass support bars.
Lower basket: 8 folding spines. 2 folding racks. Dividable glass support.
Cutlery basket.
Holder for long-stemmed glasses.
Maximum dish sizes (upper/lower basket) 21/25, 18.5/27.5 or 16/31 cm respectively.
13 place setting capacity.
Maximum glass loading capacity 23 wine glasses.
Total annual energy consumption 259 kWh.
From 2.9 gallons water.
Noise level 41 dB (re 1 pW).
Height-adjustable feet.

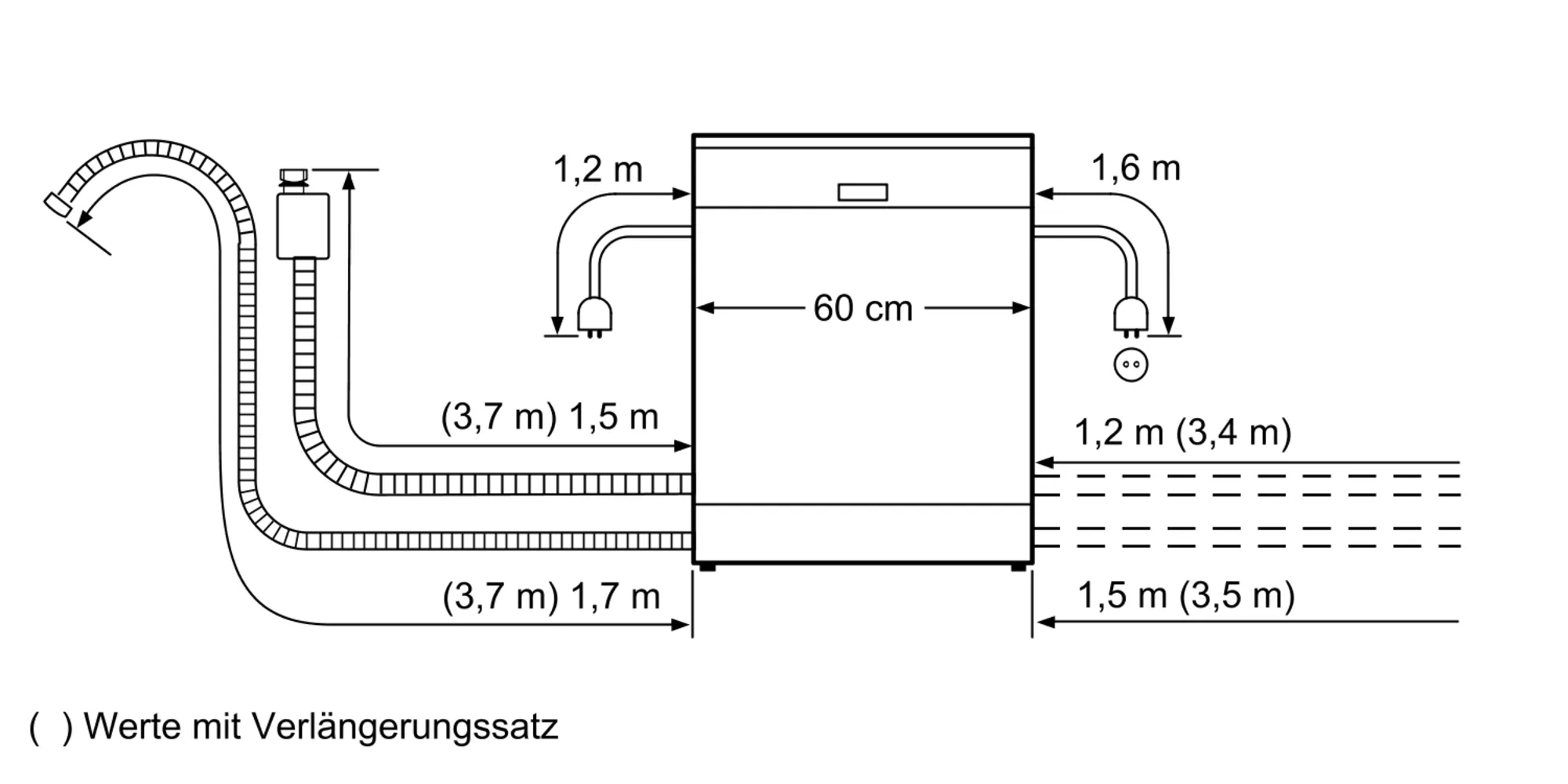

Appliance plinth recess 100 mm (see drawing).
To display the remaining time projection, a minimum plinth protrusion is required (40 mm + thickness of the furniture front).
The maximum plinth height must be reduced by 30 mm to provide an optimal display of the remaining time projection.
Rear feet adjustable at front.
Door weight up to 8.5 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Installation and usage also with furniture handle possible. The push-to-open function remains active.
Total connected load <201300convert(kW)>.
Connecting cable pluggable.
Water connection with 3/4" screw joint.
Connection to hot or cold water possible.
