CE490612

400 series Electric Cooktop 36''
CE490612

1 / 0

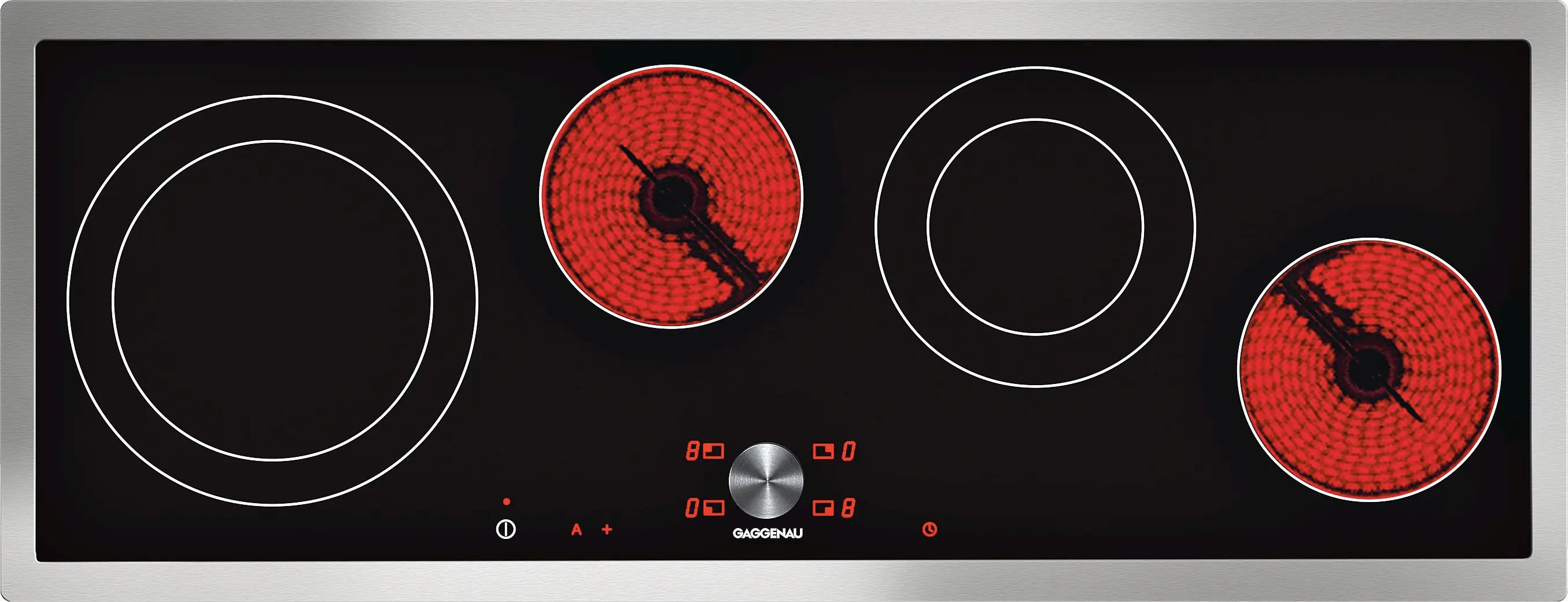

Photo Nr. 1 of the product CE490612

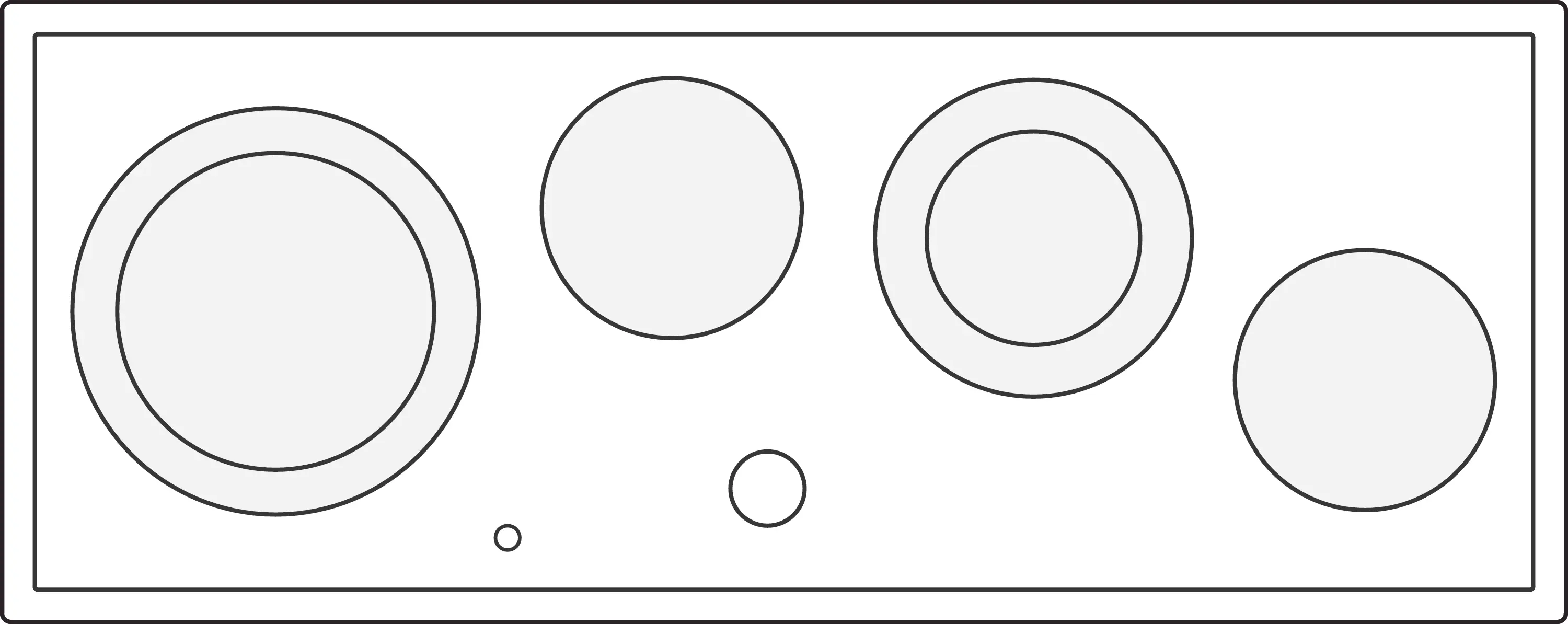

Photo Nr. 2 of the product CE490612

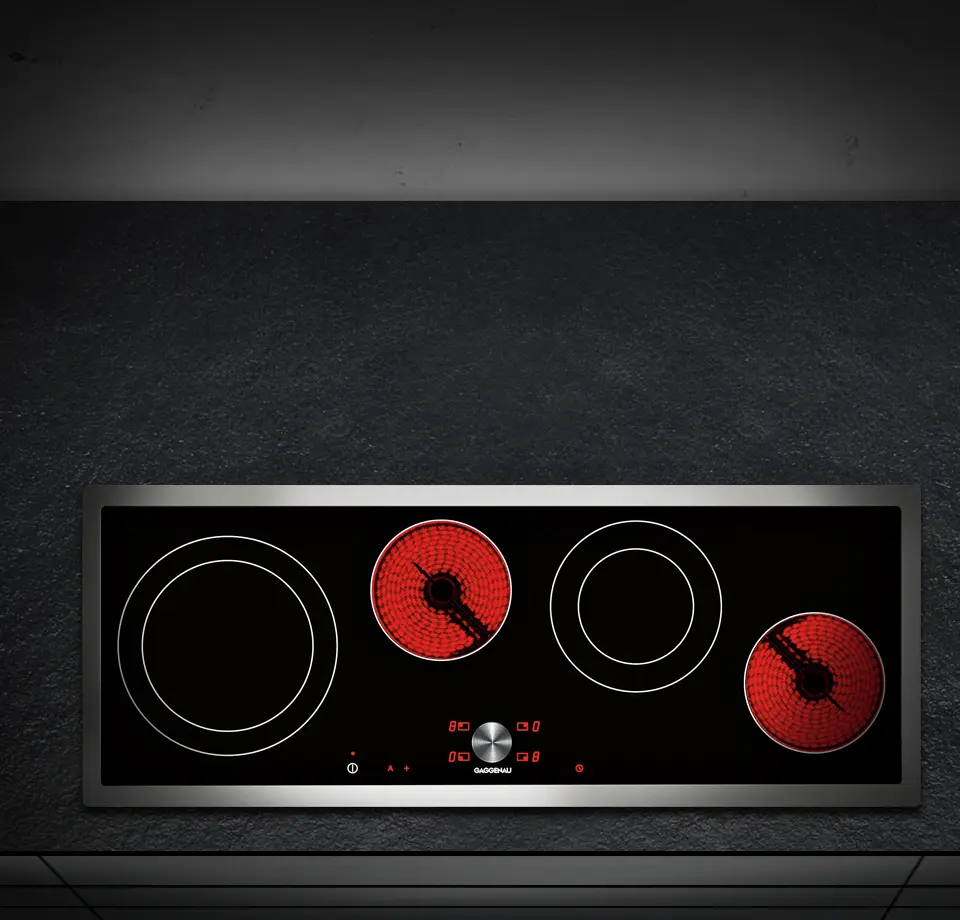

Photo Nr. 3 of the product CE490612

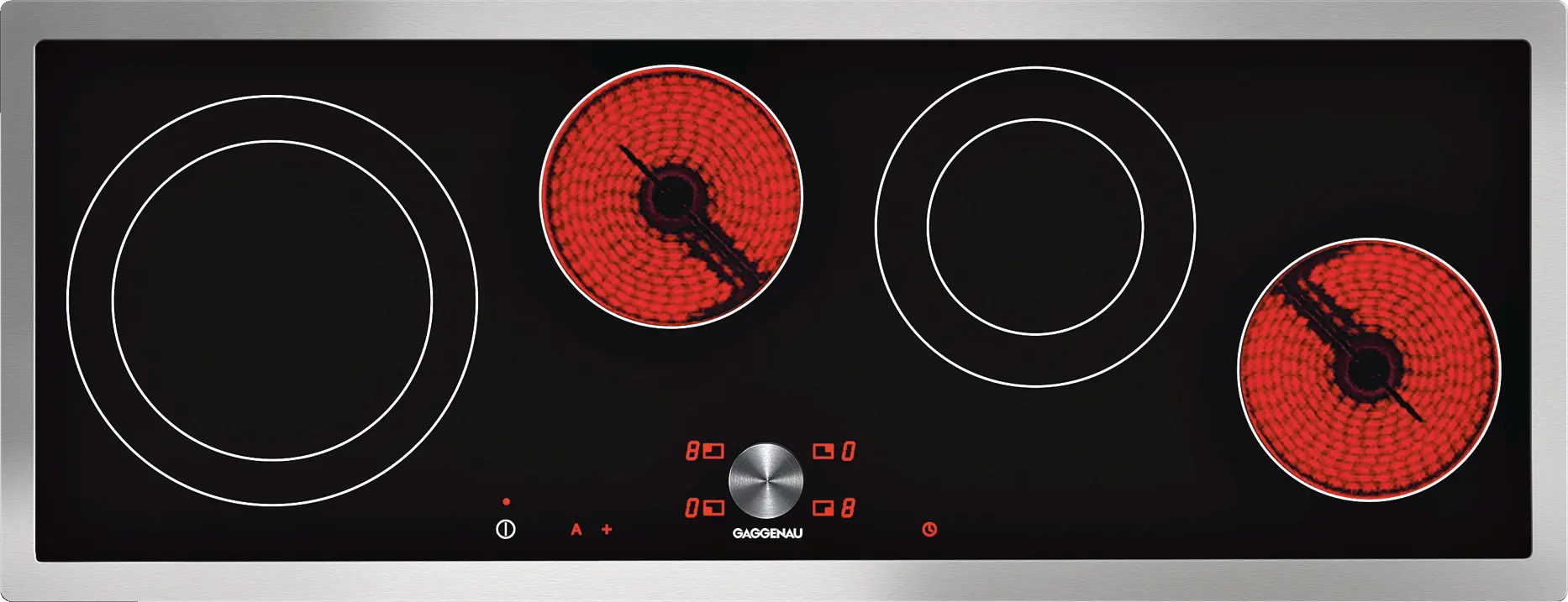

Photo Nr. 4 of the product CE490612
Photo Nr. 5 of the product CE490612

400 series Electric Cooktop 36''
CE490612

Find a local Dealer

400 series Electric Cooktop 36''
CE490612

Find a local Dealer

Specifications

Sturdy stainless steel frame
Twist-Pad control with removable magnetic knob
1 Super-Quick cooking zone ø 18 cm (1500 W), converts to ø 23 cm (2400 W) cooking zone.
1 Super-Quick cooking zone ø 12 cm (800 W), converts to ø 18 cm (2000 W) cooking zone.
2 Super-Quick cooking zones ø 14.5 cm (1200 W).
Twist-Pad control with removable magnetic knob.
Cooking zone marking.
Electronic power control in 17 output levels.
Quick boil timer, with individually adjustable boiling time.
Cooking timer for up to 90 minutes.
Short-term timer.
Memory function.
Options menu.
Main switch.
Operation indicator.
Individual residual heat indicators.
Child lock.
Safety shut-off.
Appliance depth 43 mm, depth at plug socket 60 mm.
Under the plug socket, a 10 mm clearance must be observed from side panels or from intermediate shelf.
The cooktop must be freely accessible from underneath to be able to detach the cooktop´s base in a downward direction.
Installation possible in a 60 cm wide lower cabinet.
Appliance must be fixed from underneath.
Cooktop clamping range: 20 - 50 mm.
Total rating: Connected load: 9360 W
Plan a connection cable.
