Handleless door / automatic door opening

Pyrolytic system

17 heating methods, with core temperature probe, rotisserie spit and baking stone function

TFT touch display

Panel-free appliance with surface control module

Electronic temperature control from 85 °F to 550 °F

4.5cu. ft. net volume

Hot air.

Eco hot air.

Top + bottom heat.

Top + 1/3 bottom heat.

Top heat.

1/3 top + bottom heat.

Bottom heat.

Hot air + bottom heat.

Hot air + 1/3 bottom heat.

Full surface grill + circulated air.

Full surface grill.

Compact grill.

Baking stone function.

Roaster function.

Dough proofing.

Defrosting.

Keeping warm.

Automatic door opening.

Rotary knob and TFT touch display operation.

Option to save individual recipes (incl. core temperature probe).

Information key with use indicators.

Side-opening door opens up to 180° angle.

Core temperature probe with automatic shut-off.

Rotisserie spit.

Baking stone socket.

Actual temperature display.

Rapid heating.

Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer.

60 W halogen light on the top.

2 x 10 W halogen light on the side.

Enamelled side shelf supports with 5 tray levels, pyrolysis-safe.

Thermally insulated door with quadruple glazing.

Child lock.

Safety shut-off.

Cooled housing with temperature protection.

Pyrolytic system.

Gaggenau enamel.

Heated catalyser to clean the oven air.

Door hinge not reversible.

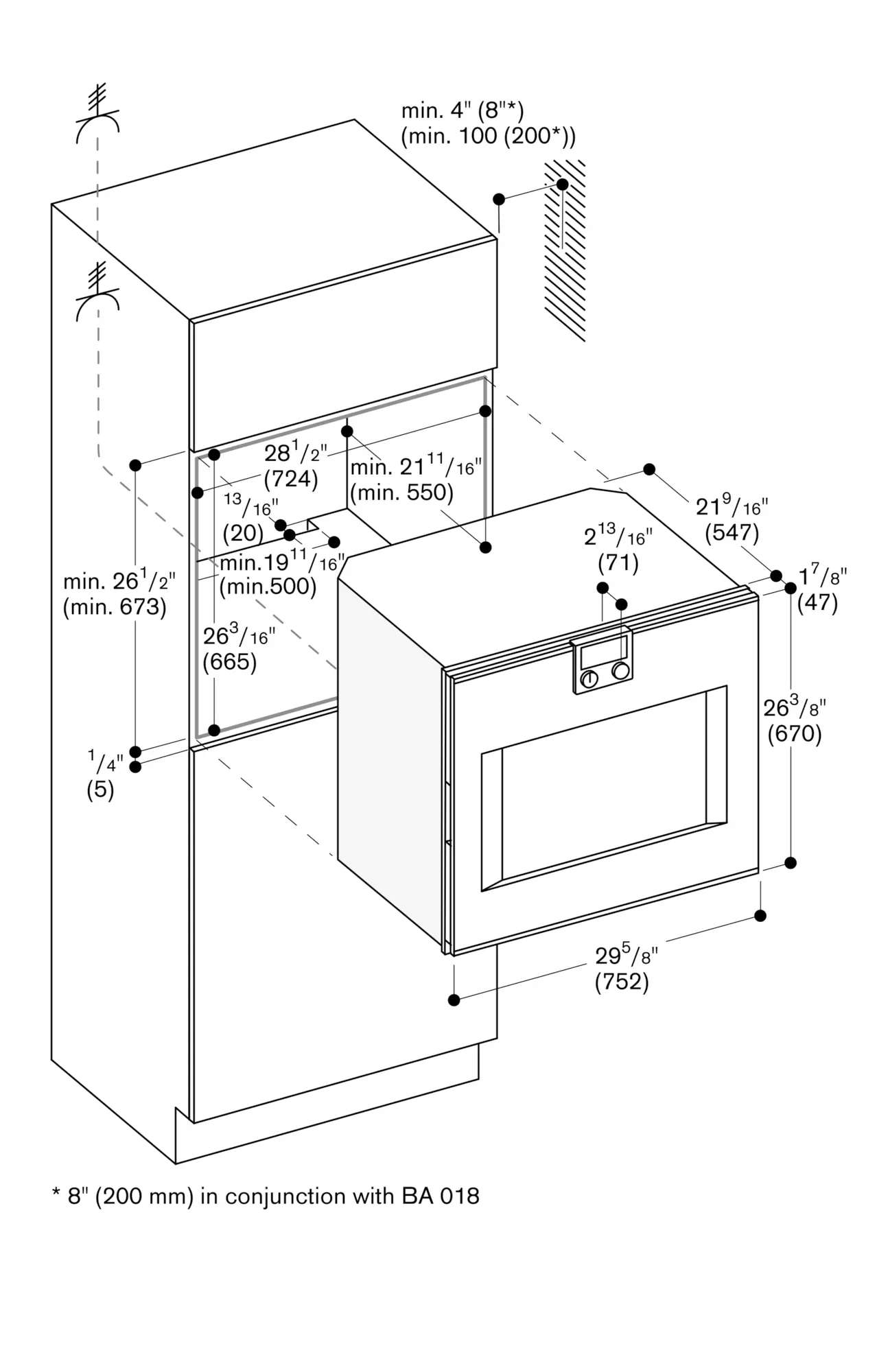

The façade of the appliance extends 1 7/8 " (47 mm) from the furniture cavity.

If the handle (optional accessory) is retrofitted, the outer edge of the door handle extends 3 11/16" (94 mm) from the furniture cavity.

Consider the overhang, incl. the door handle where applicable, when planning to open drawers next to the appliance.

When planning a corner solution, pay attention to the 90° door opening angle.

To achieve the 21 5/8" installation depth, the connecting cable needs to follow the slanted edge on the lower right hand corner of the housing.

The mains socket needs to be planned outside of the built-in niche.

Energy efficiency classA.

Total connected load5.5 KW.

Total Amps:25 A.

208 / 220 - 240 V/60 Hz.
