Technical Overview

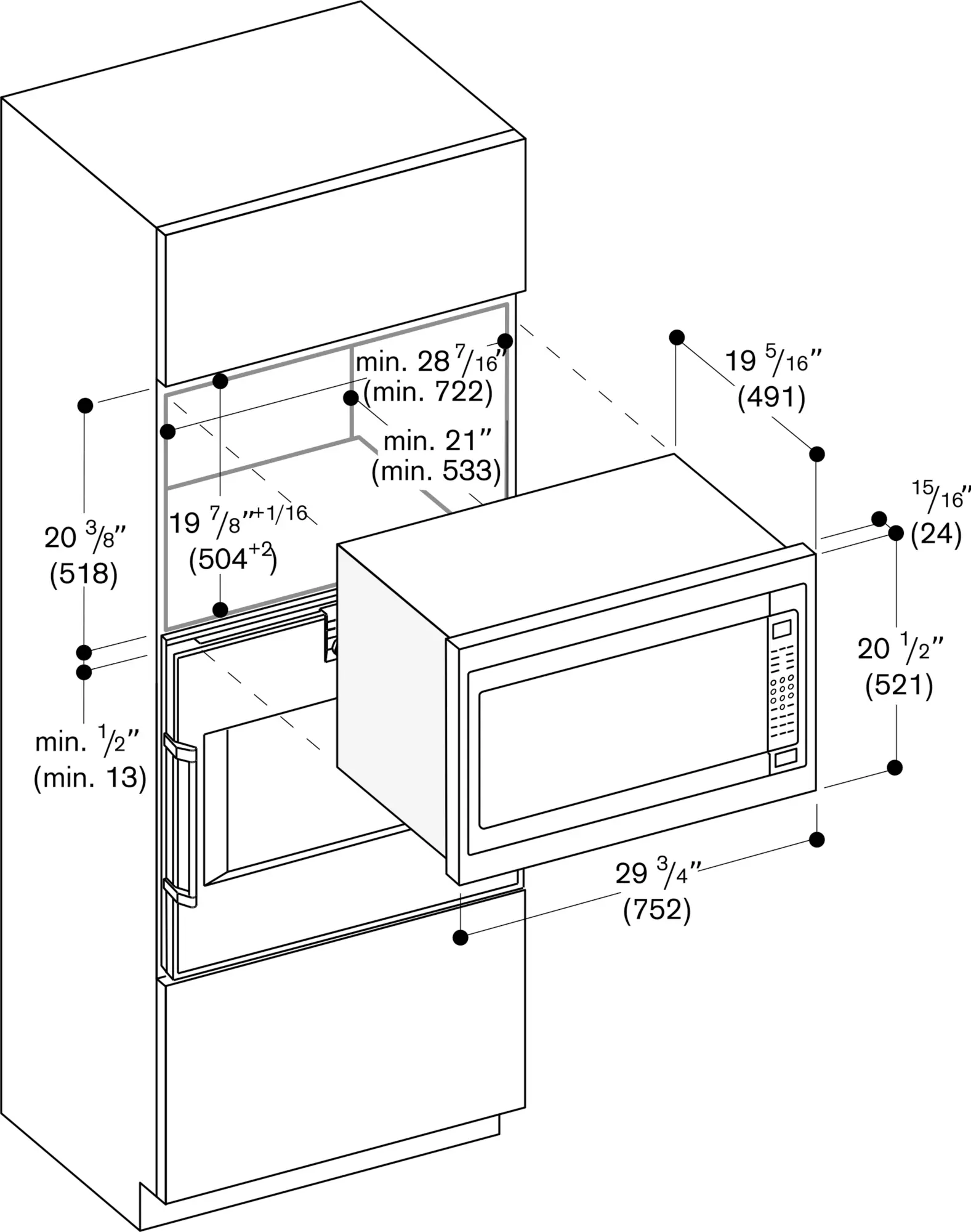

Overall Appliance Dimensions (HxWxD) (in)
14 13/16 '' x 23 7/8 '' x 19 5/16 ''
Dimensions (HxWxD)
376x606x491 mm
Required Cutout Size (HxWxD) (in)
19 7/8 '' x 28 7/16 '' x 21 ''
Niche dimensions (HxWxD)
504-504 x 722-722 x 533 mm
Specifications
Max. convection cooking power up to 1,400 Watts, max. microwave output power 1,000 Watts.
10 power levels.
15 automatic programs by weight:
9 auto cooking programs
2 auto convection cooking programs
1 auto reheat program
1 keep warm program
1 popcorn sensor cooking program
1 quick defrost program
Digital function display.
Touch keys.
Adjustable cooking time up to 90 minutes.
Time delay.
Kitchen timer.
Innowave.
White laquered stainless steel interior.
Interior volume 1.5 cu.ft.
(42 liters).
Interior dimensions:
W 16 1/4 '' H 9 1/2 '' x D 16 13/16 '' (W 412 x H 242 x D 426 mm).
15 '' (38 cm) ceramic turntable.
20 W interior light.
Side-opening door with panoramic window.
Child lock.
Triple door lock.
Door hinge not reversible.
The front of the appliance extends 15/16" from the cabinet front.
Minimum installation height 36 1/16".
Plan an intermediate shelf of at least 3/4".
Total connected load 1.50 KW.
Total Amps: 18 A.
120 V / 60 Hz.
Connecting cable 41" (1.05 m) with plug.
