DF261165

Product is no longer available

More information and services related to this product

1 / 0
Photo Nr. 1 of the product DF261165
Photo Nr. 2 of the product DF261165
Photo Nr. 3 of the product DF261165
Photo Nr. 4 of the product DF261165
Photo Nr. 5 of the product DF261165
Photo Nr. 6 of the product DF261165

Technical Overview

Main colour of product
Not applicable
Number of programs
6
Drying system
Drying assistent, Heat exchanger
Additional operational options
Remote Start, Intensive Zone, Turbo, Holiday option
aqua stop
Yes
Gaggenau Home Connect
Yes
More Information

Specifications

Optional door opening at the end of the programme to support the hygienic drying process
6 programmes with aqua sensor and 3 options, such as Power and Intensive: Clean and dry dishes in 59 minutes Intensive cleaning in the lower basket while protecting glassware in the upper basket
Flexible basket system with smooth running rails on all levels
TFT display for intuitive handling of all functions
Remaining time projection onto the kitchen floor
Bright interior lighting
Very quiet: 42 dB
TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Touch key operation.
Information key with use indications.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Remaining time projection.
Bright interior lighting.
Glass protection.
Aqua sensor.
Load sensor.
Automatic detergent function.
Heat exchanger.
Continuous flow heater.
Triple filter system.
Soft lock.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
6 programmes: Auto 35 °C - 45 °C. Auto 45 °C - 65 °C. Auto 65 °C - 75 °C. Standard Eco 50 °C. Quick wash 45 °C (29 min.). Pre-rinse.
3 options: Intensive. Power. Holiday.
Flexible basket system with smooth running rails on all levels.
Upper basket: Over extension. Rackmatic with 3 levels, adjustable in height up to 5 cm. 6 folding spines. 4 folding racks. 2 glass support bars.
Cutlery basket.
Maximum dish sizes (upper/lower basket) 29/28, 26.5/30.5 or 24/34 cm respectively.
12 place setting capacity.
Maximum glass loading capacity 23 wine glasses.
Energy efficiency class A++ at a range of energy efficiency classes from A+++ to D.
From 9.5 l water.
From 0.9 kWh.
Noise level 42 dB (re 1 pW).
Height-adjustable feet.

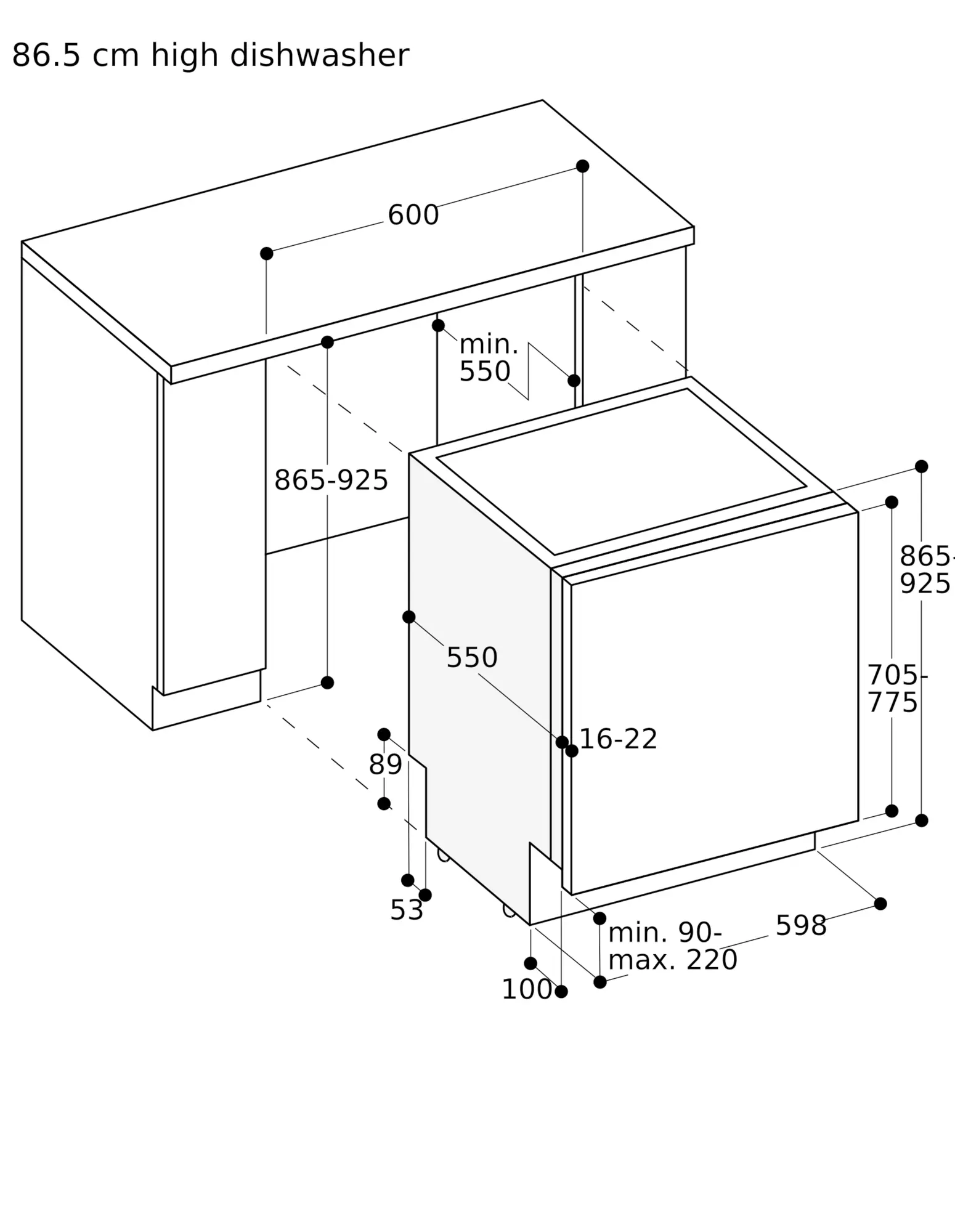

Appliance plinth recess 100 mm (see drawing).
To display the remaining time projection, a minimum plinth protrusion is required (40 mm + thickness of the furniture front).
The maximum plinth height must be reduced by 30 mm to provide an optimal display of the remaining time projection.
Rear feet adjustable at front.
Door weight up to 10 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Total connected load <201300convert(kW)>.
Connecting cable pluggable.

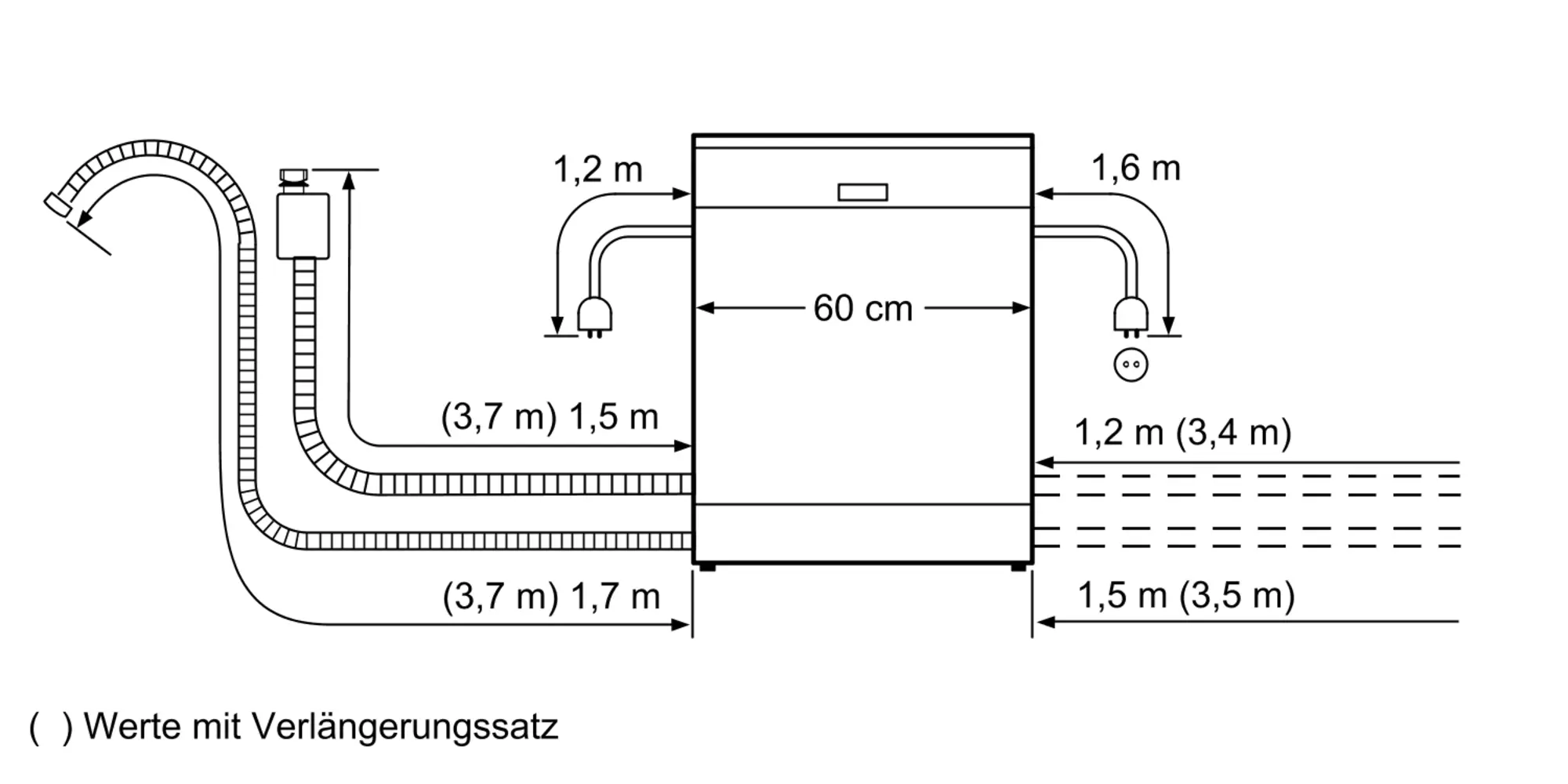

Water connection with 3/4" screw joint.
Connection to hot or cold water possible.
Power consumption standby/network 2.0 W.
Power consumption left-on-mode 0.5 W.
Power consumption off-mode 0.5 W.
Time auto-standby/network 2 min.
Left-on-mode duration 0 min.
Please check the user manual for how to switch off the WiFi module.
