For flush installation

80 cm wide appliance suitable for 60 cm deep worktops

1 two-ring wok burner (230 - 4600 W), suitable for pots up to max. ø 28 cm.

1 high output burner (600 - 3000 W), suitable for pots up to max. ø 24 cm.

1 standard output burner (410 - 1750 W), suitable for pots up to max. ø 22 cm.

1 standard output burner (410 - 1750 W), suitable for pots up to ø 18 cm.

1 economy burner (330 - 1000 W), suitable for pots up to max. ø 18 cm.

Control knobs with cooking zone and output level markings.

One-handed operation.

Three-part cast pan support with continuous pot surface.

Enamelled burner cover.

Thermoelectric safety pilot.

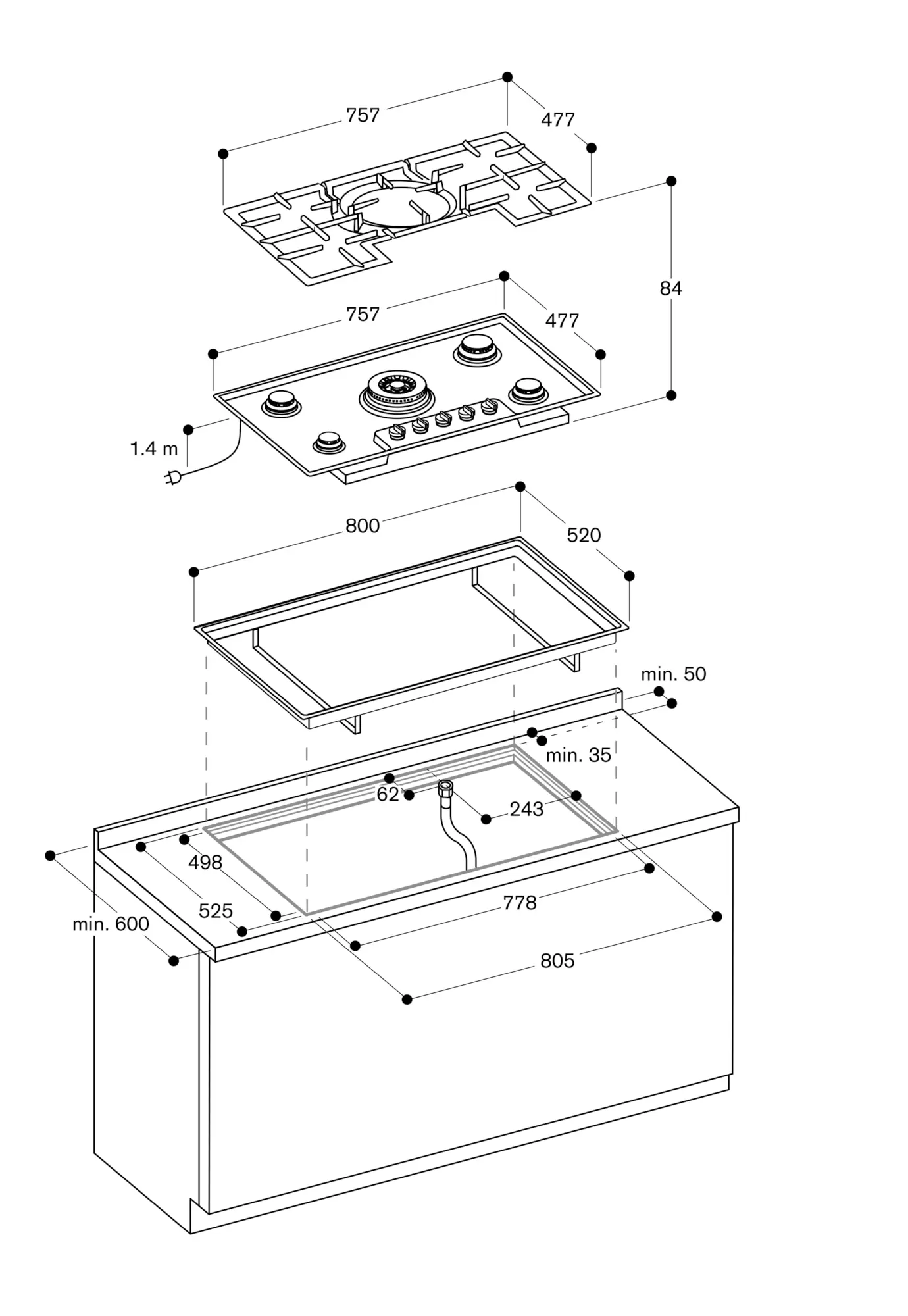

Built-in frame CA 280 410 as required accessory.

Can be welded into stainless steel worktop.

Special nozzles can be ordered as spare parts.

Plan for an electrical connection (the appliance is not operable without power supply).

Air intake from above.

No intermediate shelf required.

Appliance must be fixed from underneath.

Access from above.

Rear panel and wall trims must be heat-resistant and consist of a non-flammable material.

A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.

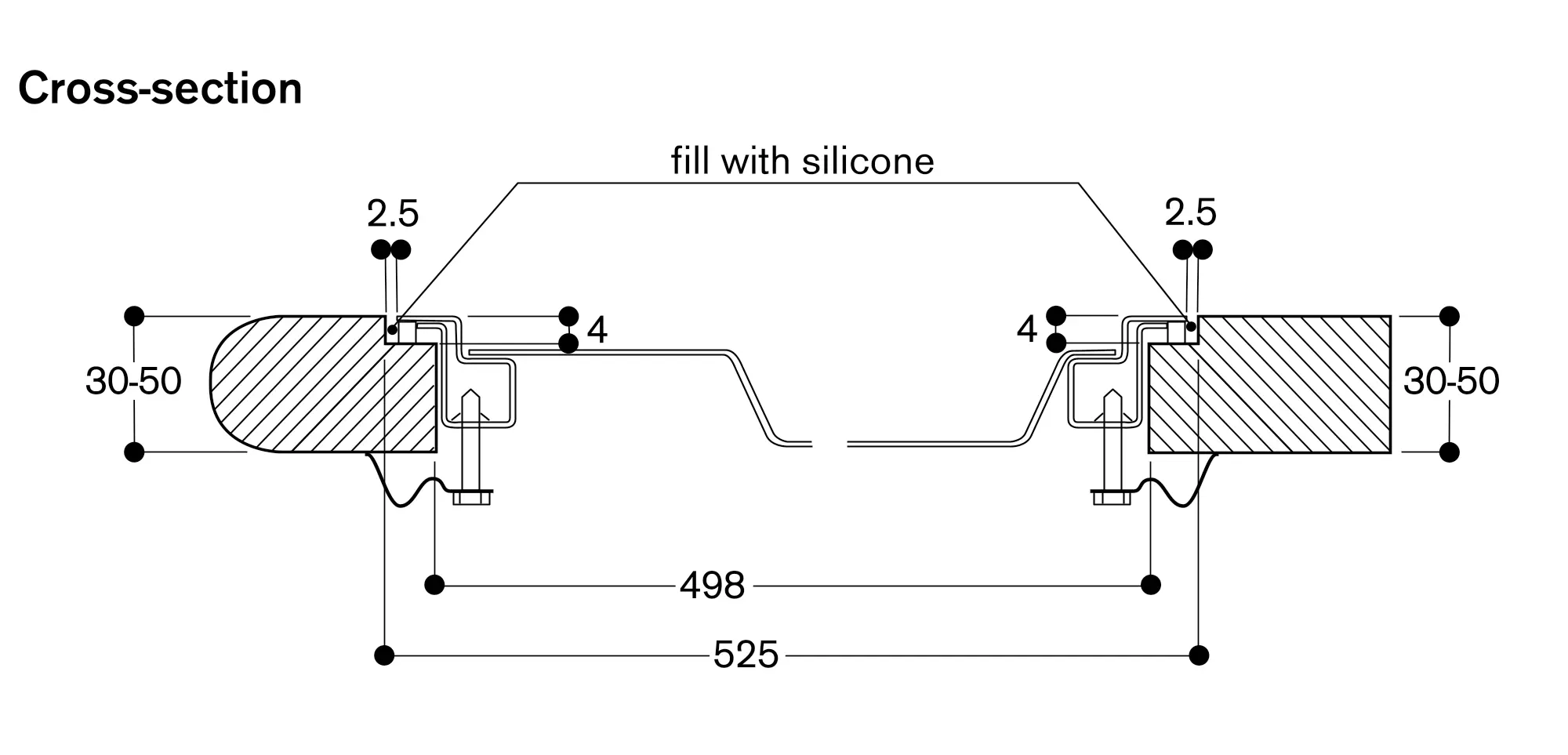

Cooktop clamping range: 30 - 50 mm.

Special accessories (order as spare parts): Part No. 648786 Simmer plate Part No. 088903 Espresso cross
