Technical Overview

Color body
Stainless steel
Material body
Stainless steel
Built-in / Free-standing
Built-in
Fan levels
3 power levels and 1 intensive mode
Air output extraction (intensive)
750 m³/h
Width of appliance
105 cm

Specifications

An eye-catcher on the worktop, for an island solution or with CE/CI 490 for the 60 cm deep worktop
Highly effective air recirculation technology, 750 m3/h air output directly at the cooktop
Additional workspace
Minimal planning and easy installation for air recirculation
Performance output level 3/Intensive: Air output according to DIN EN 61591. Sound power and sound pressure depending on built-in situation.
Air extraction: 660 / 750 m³/h.
Air recirculation: 680 / 750 m³/h.
3 electronically controlled power levels.
Intensive mode.
Interval ventilation.
Run-on function.
Grease filter saturation indicator.
Centrifugal grease filter and grease collecting inserts, dishwasher-safe.
Fluorescent tube 30 W.
Order activated charcoal filter mat separately.
AT 400 100 for operation with 2 Vario 400 series cooktops or cooktops up to 92 cm wide.
Max. output of glass ceramic cooktops 12 kW.
In combination with the cooktops CE/CI 490, installation in 60 cm deep worktops is possible.
Operation in combination with gas cooktops is not permitted.

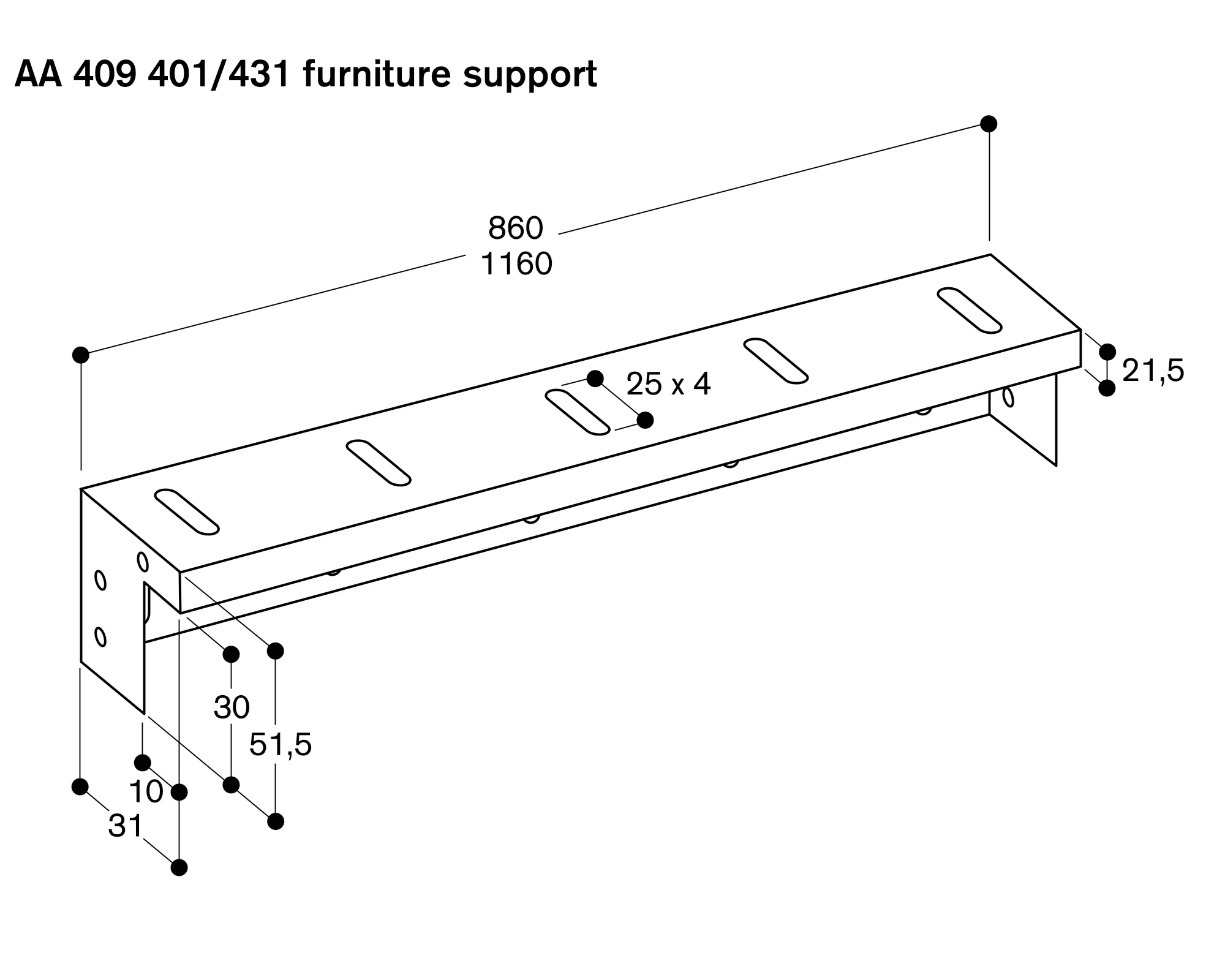

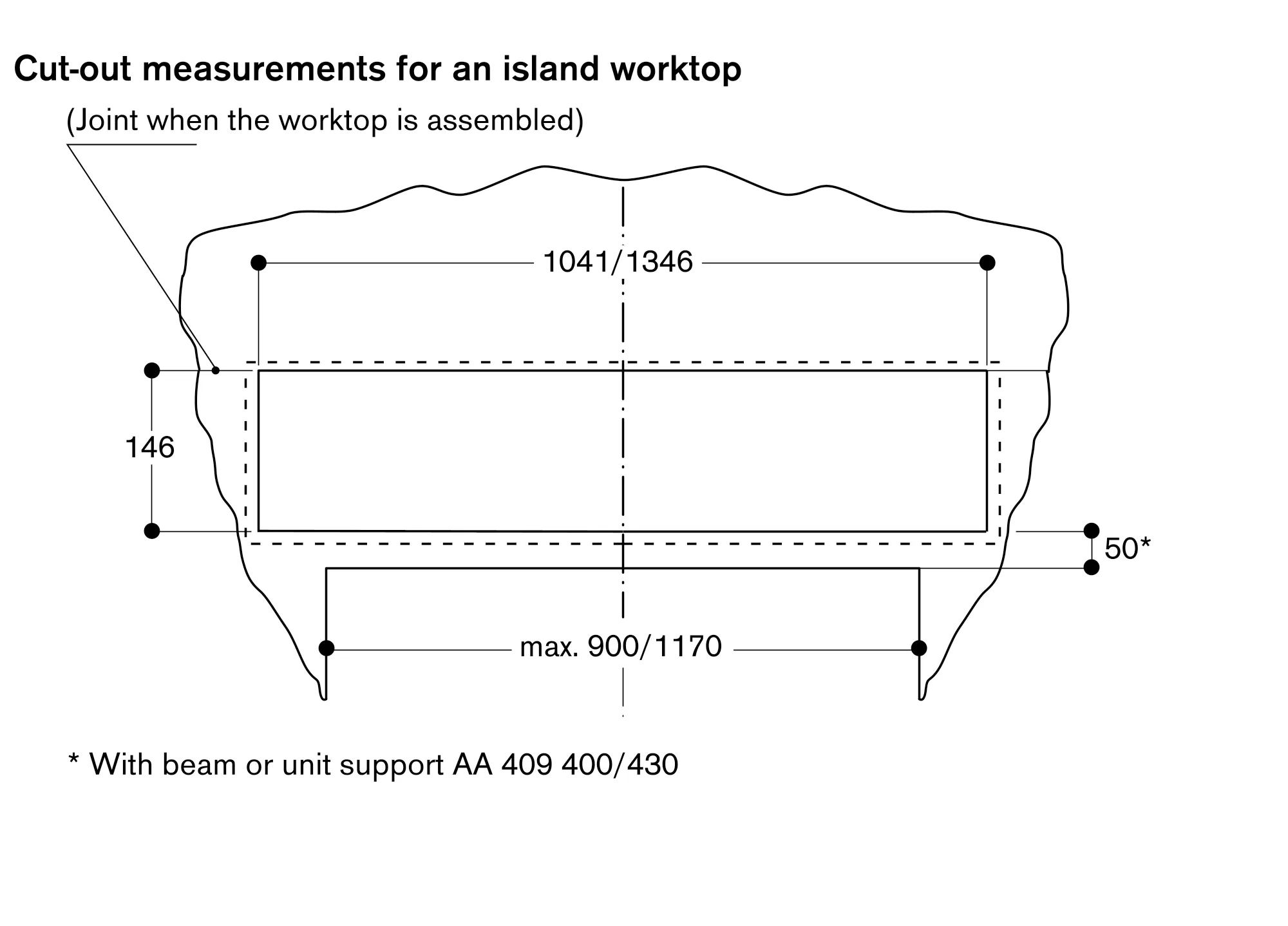

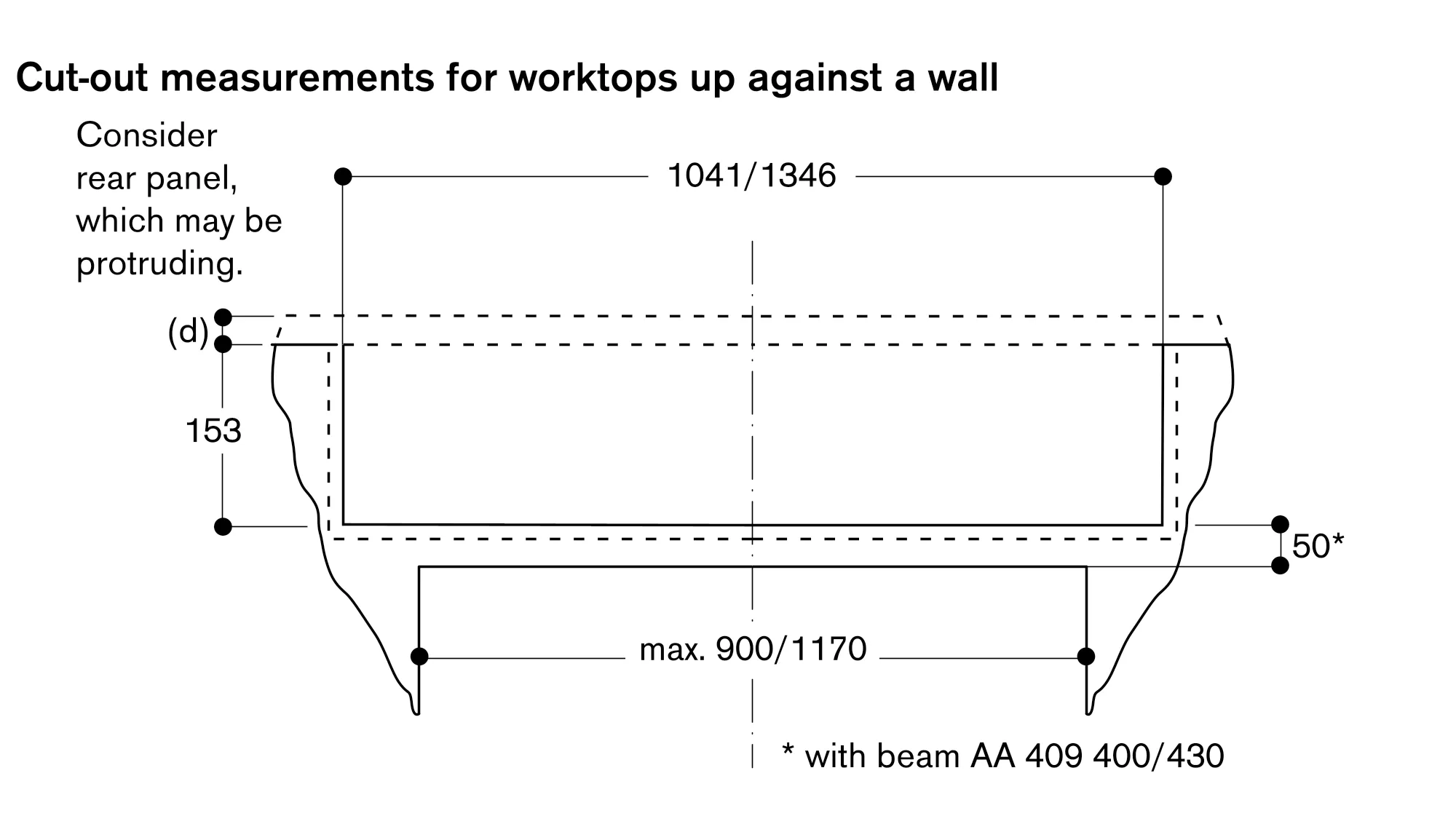

The remaining surface of the worktop (min. 50 mm) between the cut-outs must be reinforced with a support. It is recommended to use furniture support AA 409 400/430.
Intermediate shelves in the lower cabinet need to remain removable.
Hinges on swing doors may have to be repositioned.
The connecting cables of the cooking appliances are laid through the middle of the air duct to the rear.
Water inlet and outlet pipes must not be laid through the air duct.
When operating Vario cooktops, the appliance cover needs to be removed.
Ovens that do not exceed the maximum allowed cabinet temperature can be combined with the table ventilation if built-in situation permits.

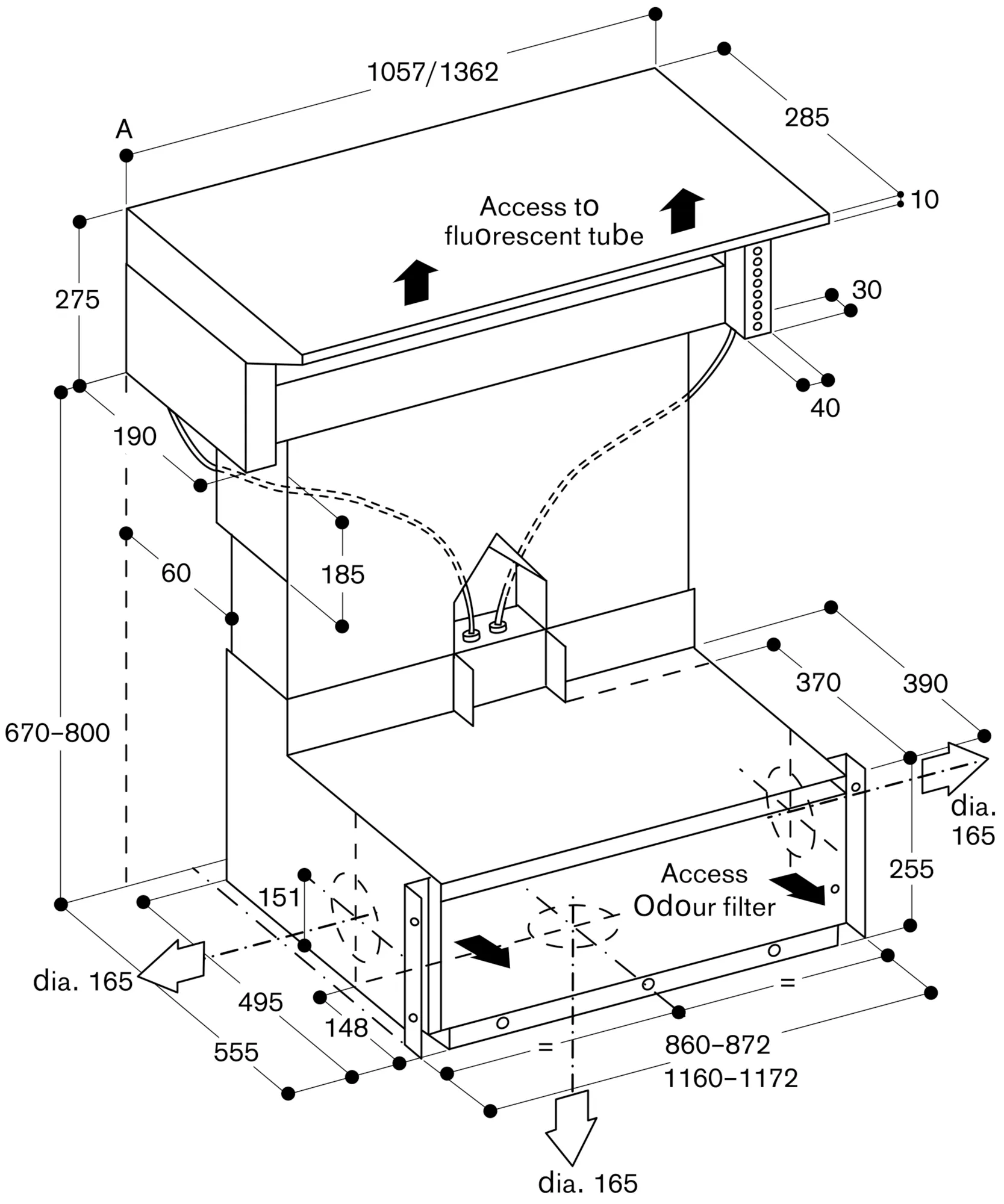

The table ventilation cover must remain removable to permit changing of the lamp.
Recommendation for stainless steel parts positioned nearby that have to be welded and polished: brushed grain 280.
Surfaces: Stainless steel 1.4301, ground and brushed IIIC.
For air recirculation:
Order activated charcoal filter mat separately.

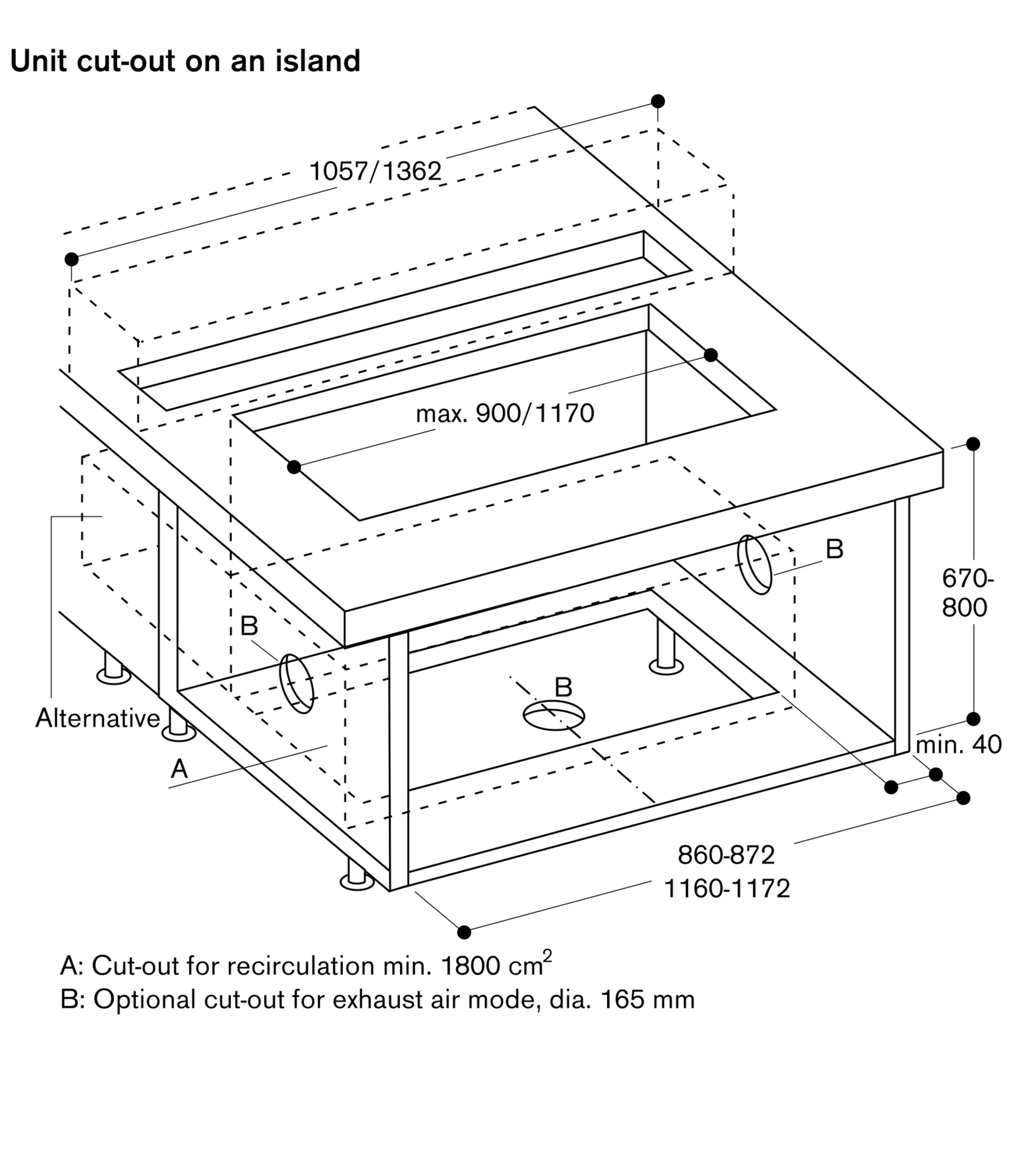

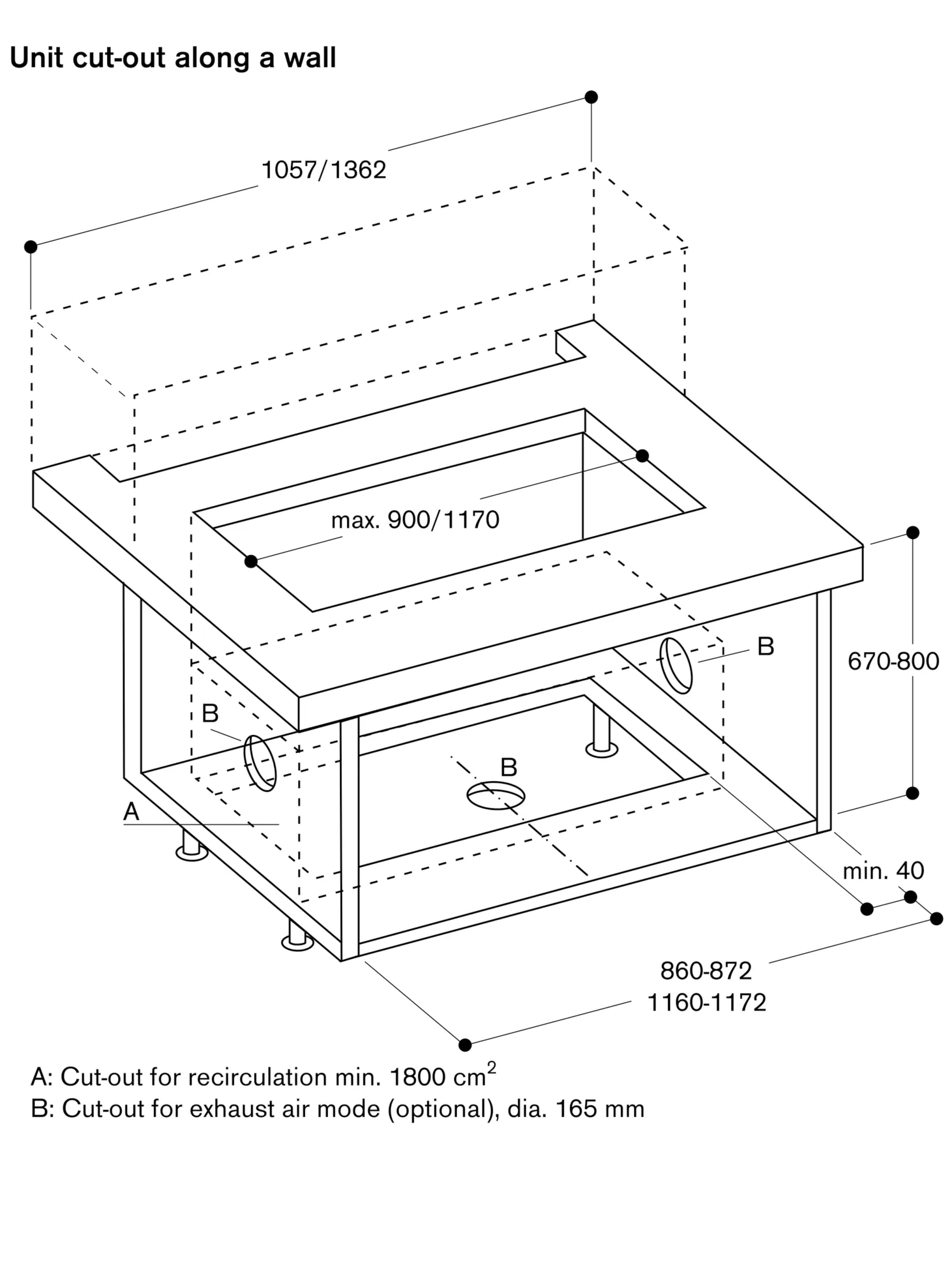

The opening in the lower cabinet shelf may be increased as long as a minimum cross-section of 1800 cm2 is maintained.
The exhaust outlet in the plinth should be as large as possible to minimise draughts.
The location of the exhaust outlet in the plinth is consumer-defined. Minimum cross-section 720 cm2.
To avoid smoke when frying/grilling refer to the manuals of VR/VP.
For air extraction:

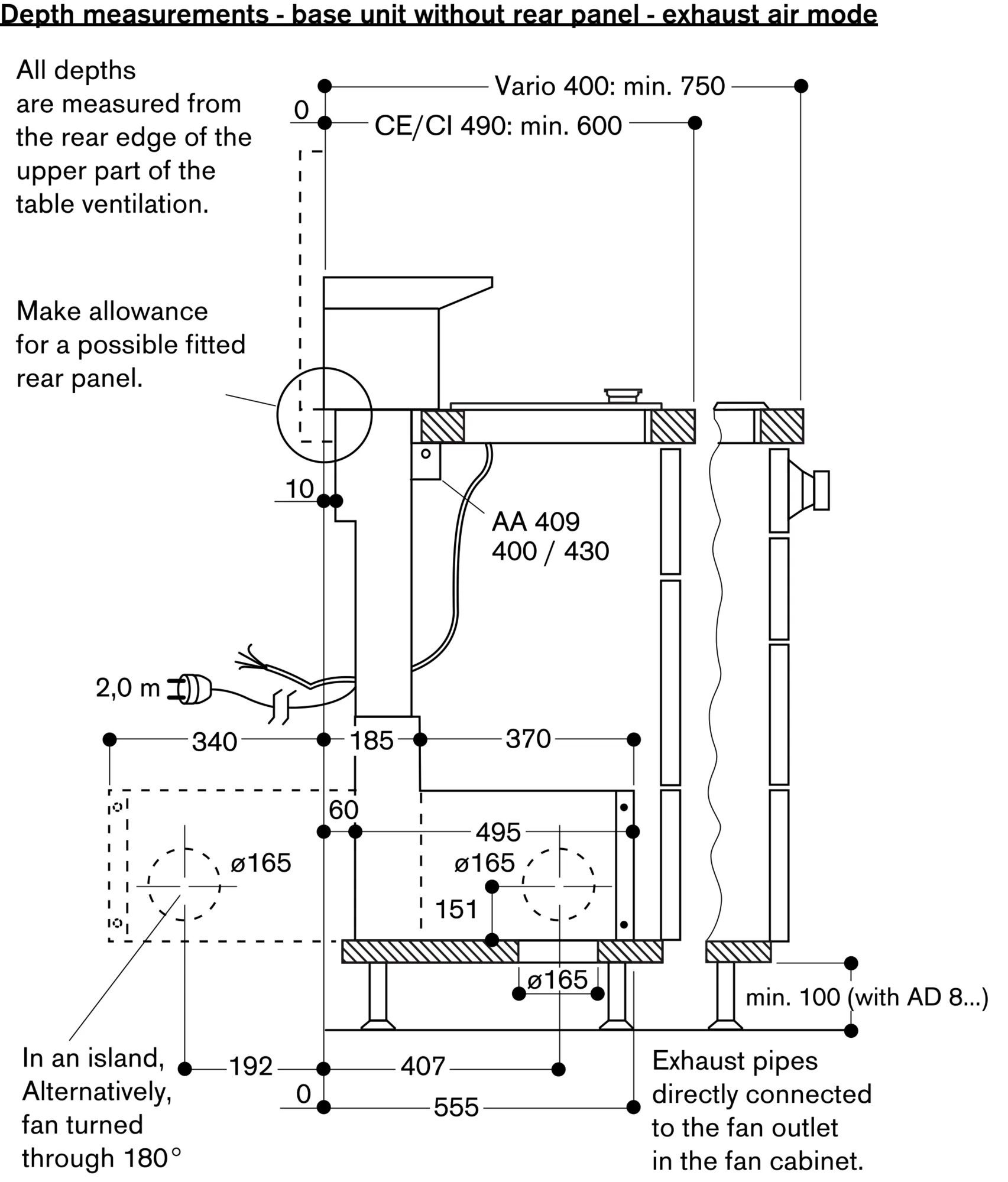

Attachment of exhaust pipe directly in the blower housing using flexible duct DN 150 or 90° elbow pipe AD 752 030. Break-out openings for cylindrical pipe AD 752 010 in the blower housing.
For maximum exhaust air line use Gaggenau flat duct system AD 8… or Naber-System Compair flow. Other flat ducts are not permitted!
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Total connected load 310 W.
Connecting cable 2.0 m with plug (from middle of appliance).
