Installation in a separate room allows lower noise level in the kitchen

To be combined with motorless hoods, downdrafts or ceiling ventilation

Air extraction: 700 / 950 m³/h.

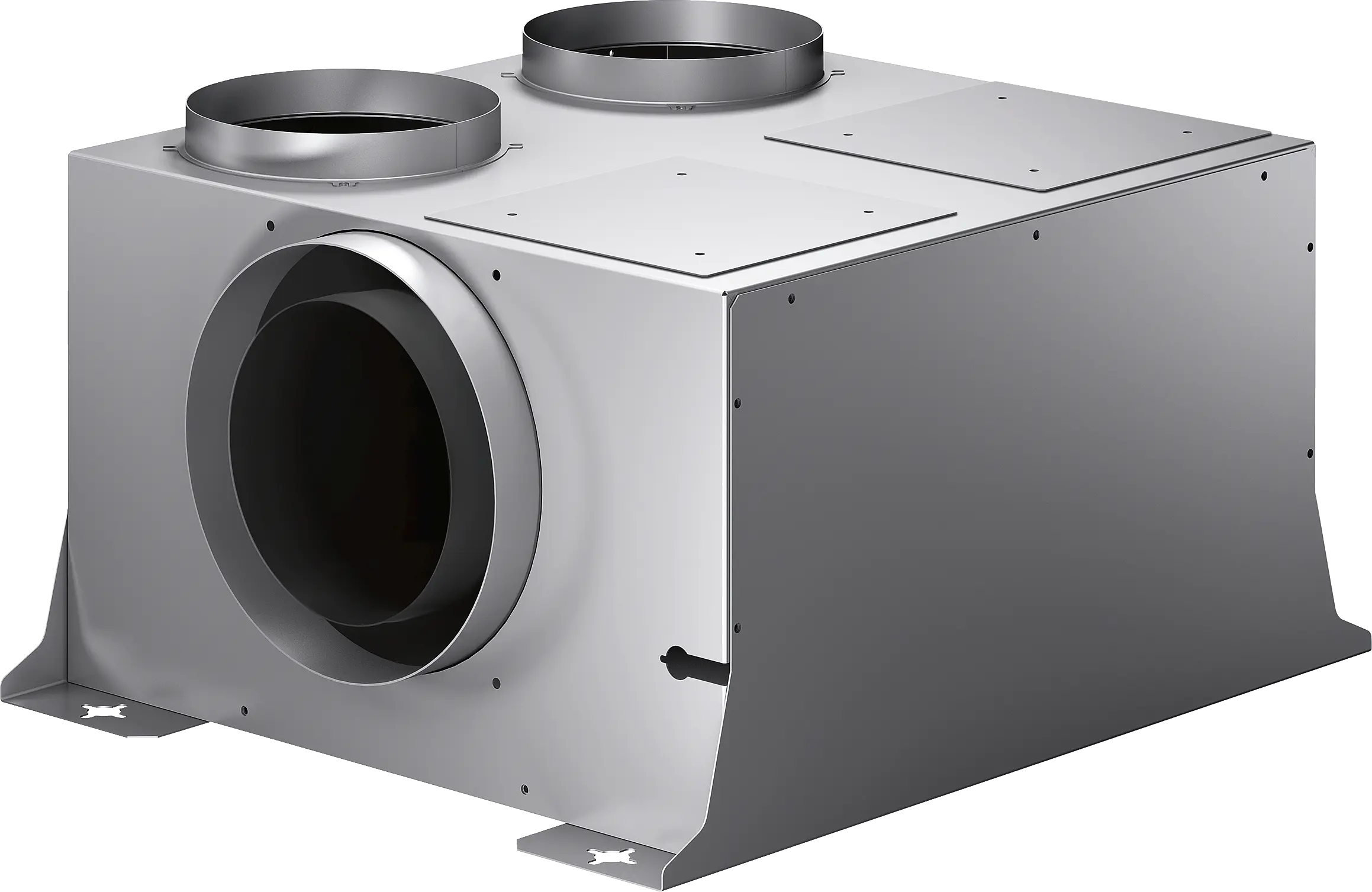

Steel housing, zinc-plated.

Spare cover for closing air intake.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

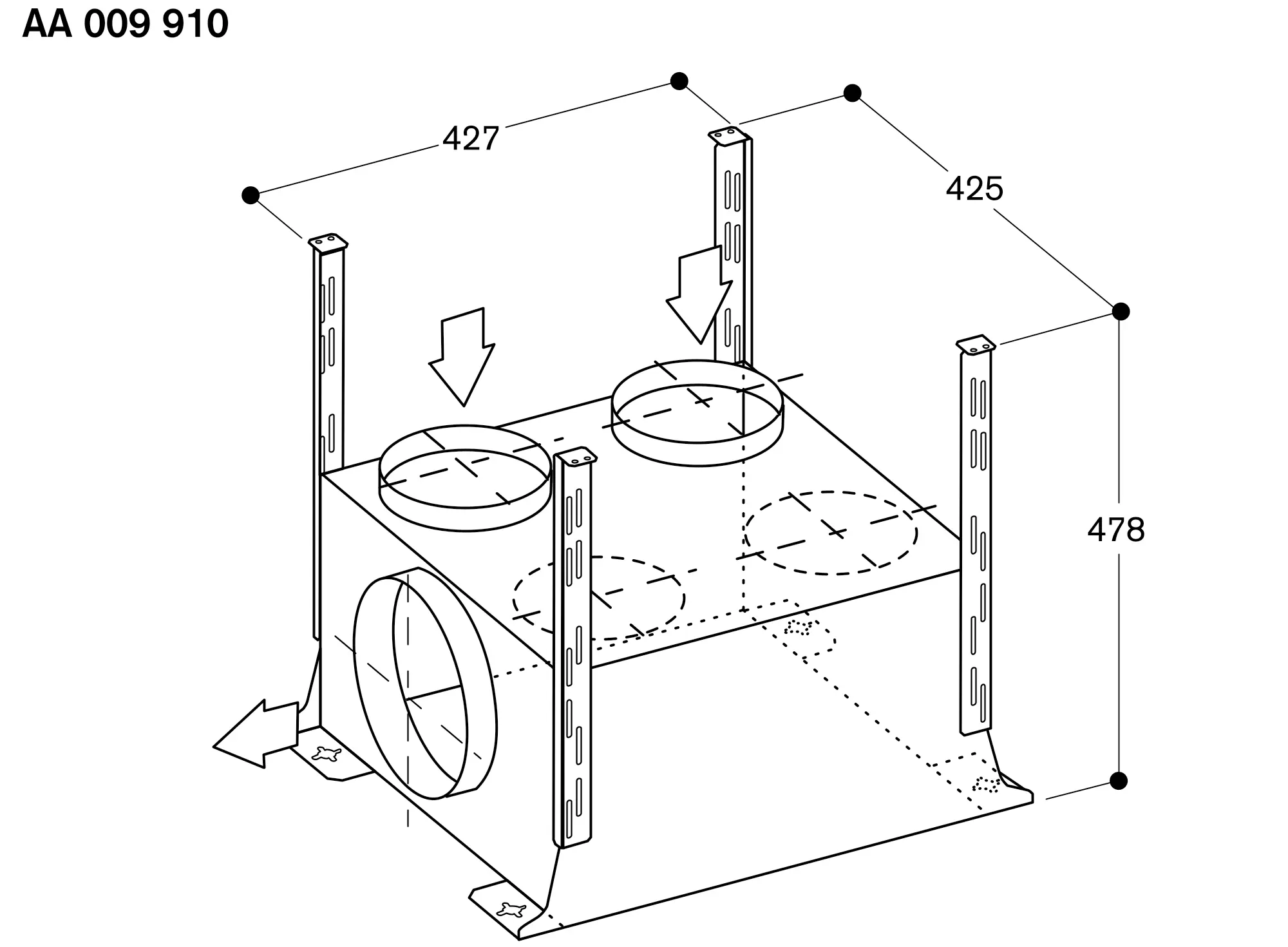

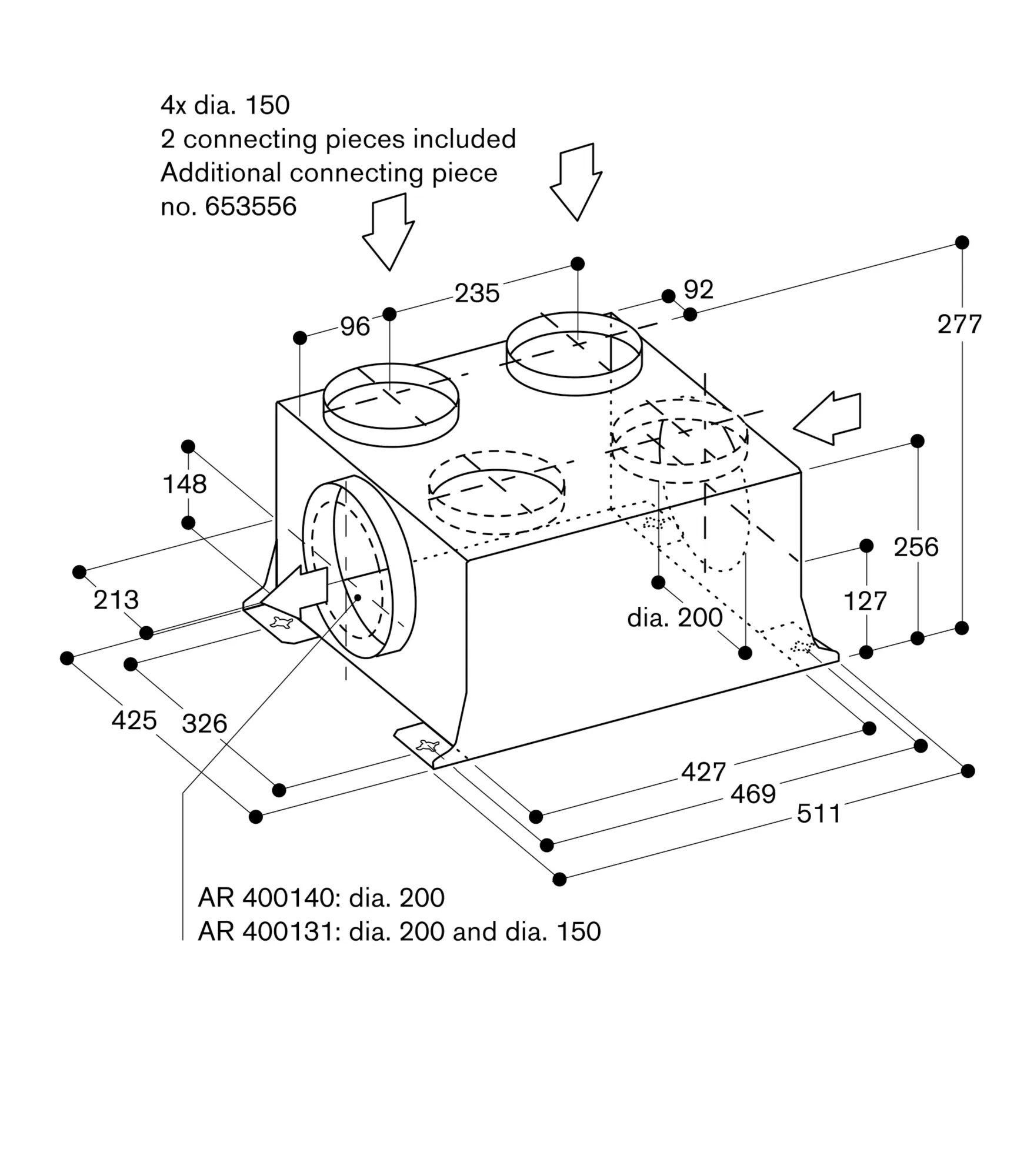

Installation in the drawer area with double height or on the floor with cut-out in the furniture base. Air intake with flat duct max. 2x DN 150 behind the drawers requires worktop depth of min. 700 mm. Cabinets without plinth possible.

Please refer to page XX for recommended configurations of downdraft ventilations and remote fan units and the needed ducting elements.

For maximum exhaust air line use Gaggenau flat duct system AD 8… or Naber-System Compair flow. Other flat ducts are not permitted!

For noise optimisation, use the silencer SD 011 050.
