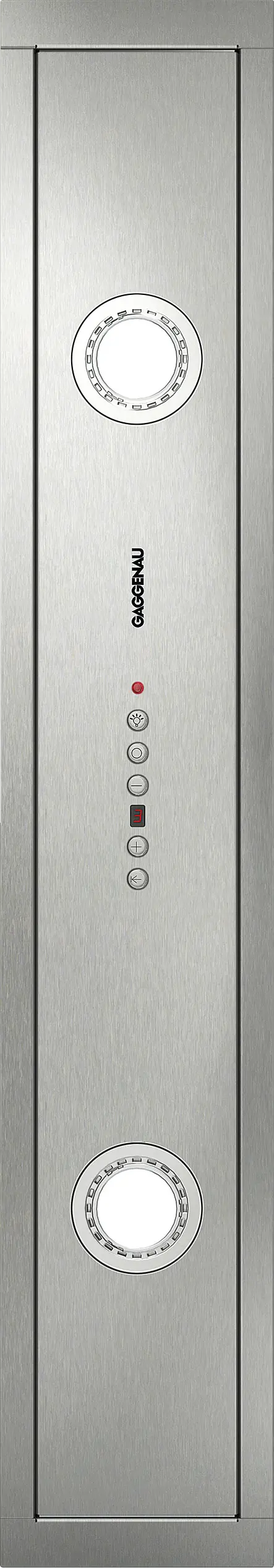

Control module of ceiling ventilation with light

Individual configuration of unobstructed airflow of remote fan unit from 950 - 2800 m³/h

Individual integration of light elements into the configuration of the ceiling ventilation

Maximum air output in combination with remote fan units s. table remote fan units on page xxx.

7-key infrared remote control, backup keys for operation also on the control module.

3 electronically controlled power levels.

Intensive mode.

Run-on function.

Acoustic grease filter saturation indicator.

Dimmable halogen light 2 x 20 W.

The ceiling ventilation has to be handled as a room ventilation when distance to cooktop is larger than 120 cm since the direct capture of vapours will be limited. The needed airflow is given by an air exchange rate of 10 to 12 times the room volume.

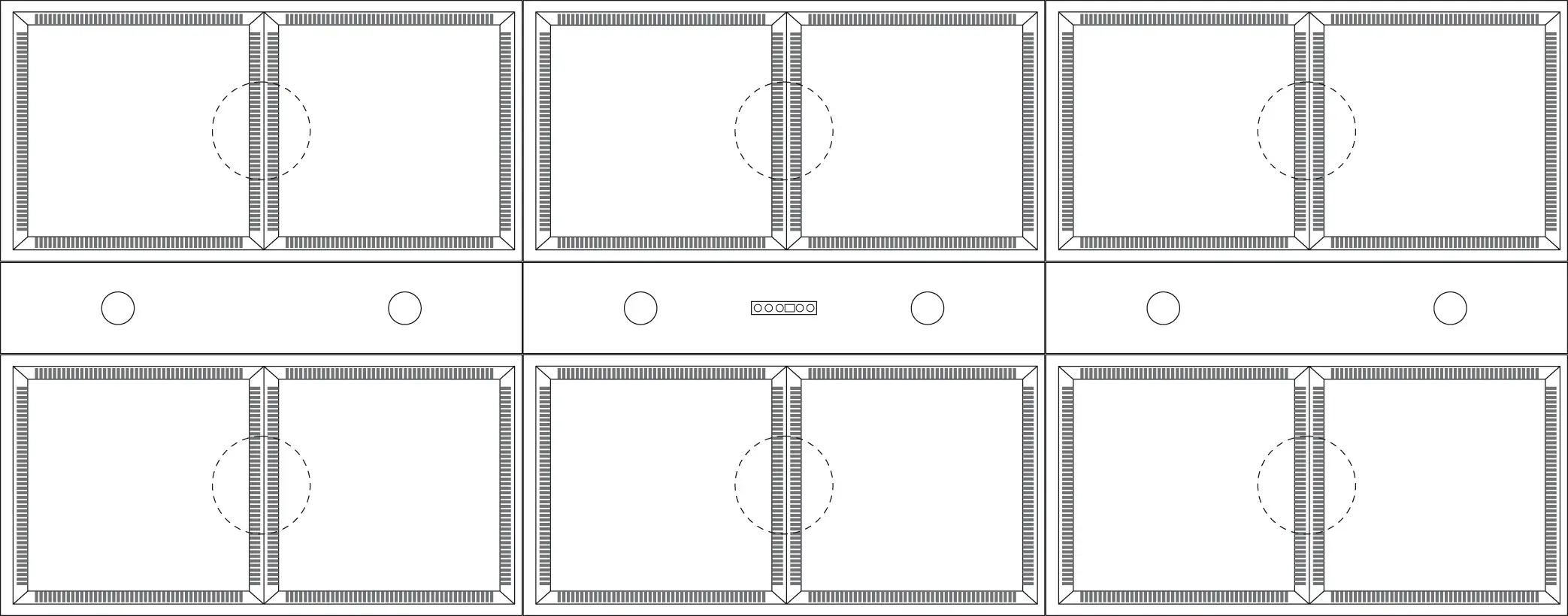

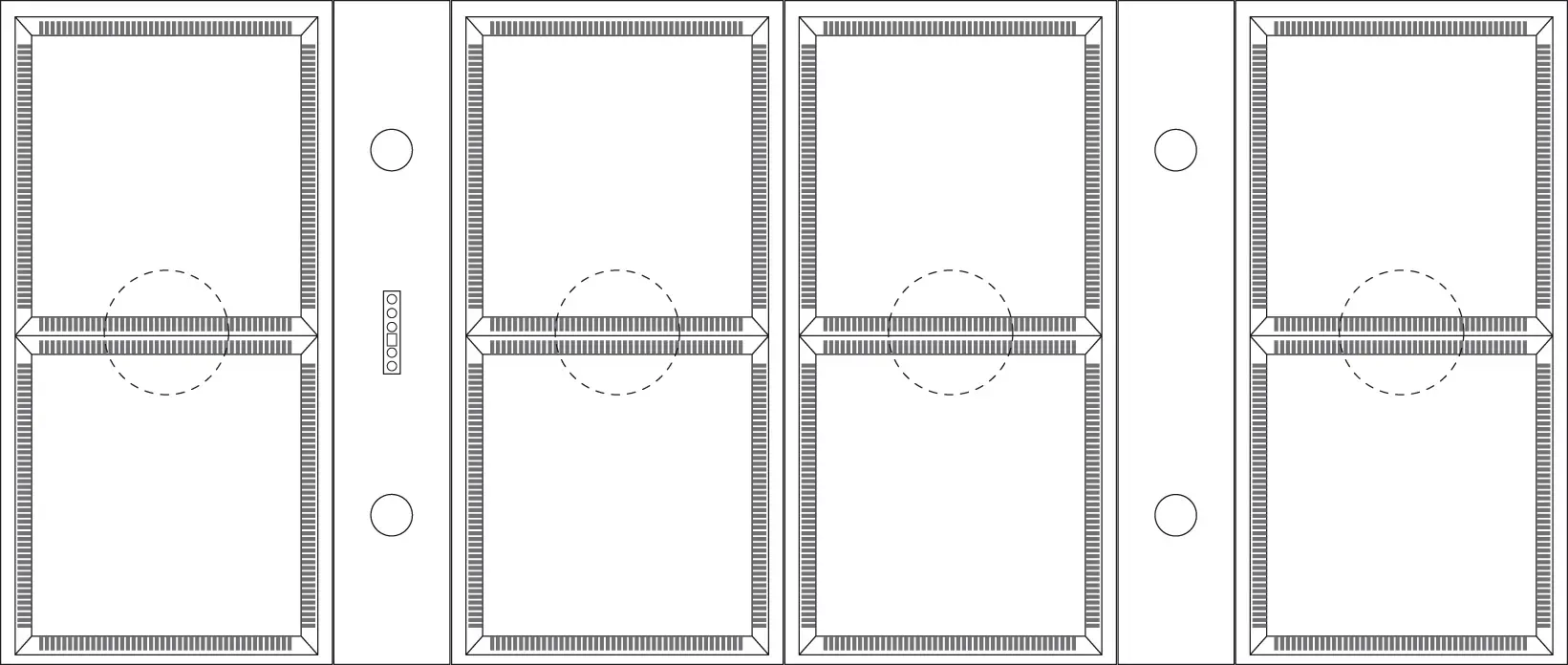

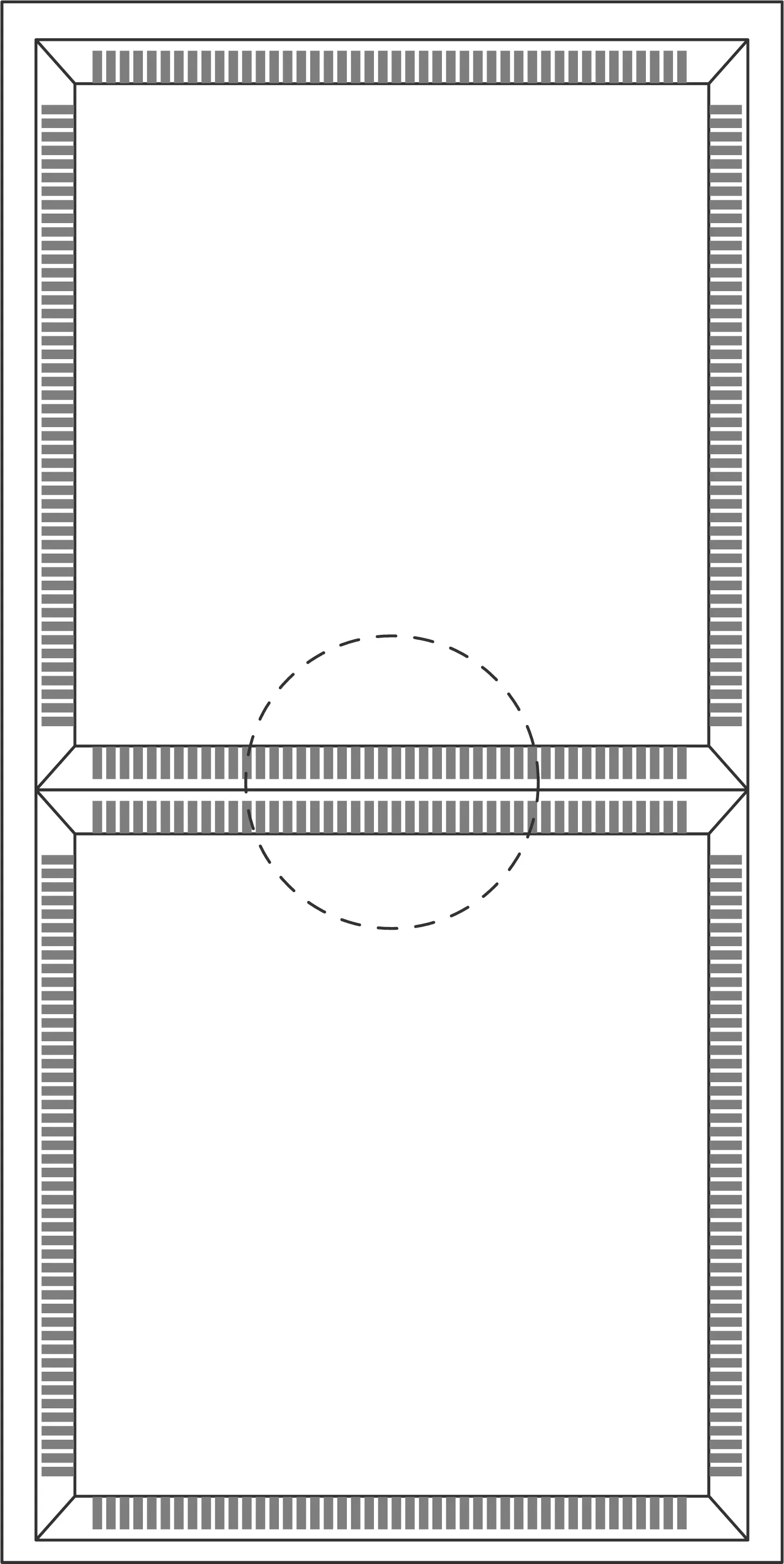

Please refer to page xxx for recommended configurations of ceiling ventilations and remote fan units and the resulting dimensions.

Fixing at the filter module.

Max. 2 AR 400/401 to be controlled with one control module.

One amplifier AA 090 100 is needed for connecting two remote fan units.

Max. 2 additional light modules connected to one control module with light.

Fit one socket within the area of control module, two sockets when using amplifier AA 090 100.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
