Discreet integration into the architecture of the kitchen

Flexible by dimension, performance and ventilation mode

Room ventilation

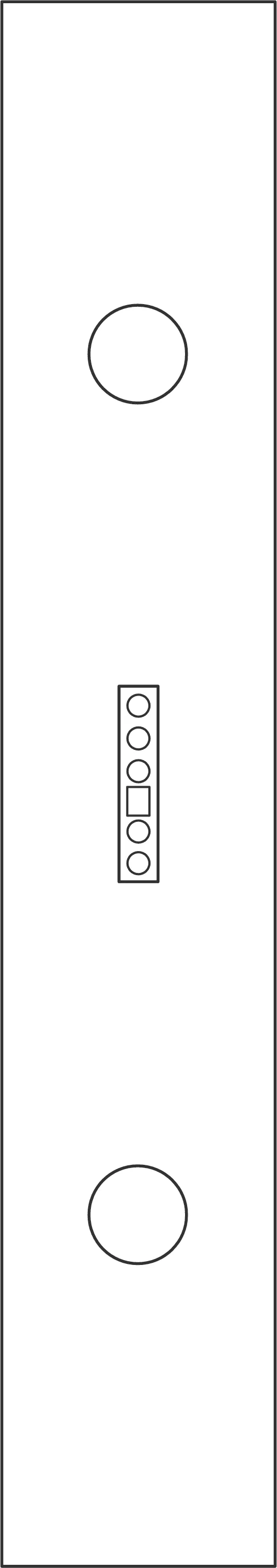

Modular ceiling ventilation which can be configurated individually by separate components such as filter module, control modules and light module

Individual configuration of unobstructed airflow of remote fan unit from 950 - 2800 m³/h

Highly efficient patented rim extraction

Planed and easy to clean underside with covered filters

Maximum air output in combination with remote fan units s. table remote fan units on page xxx.

Sound power level depends on the built-in situation.

Rim extraction filter, dishwasher-safe.

Connecting pipe DW 150 round.

The ceiling ventilation has to be handled as a room ventilation when distance to cooktop is larger than 120 cm since the direct capture of vapours will be limited. The needed airflow is given by an air exchange rate of 10 to 12 times the room volume.

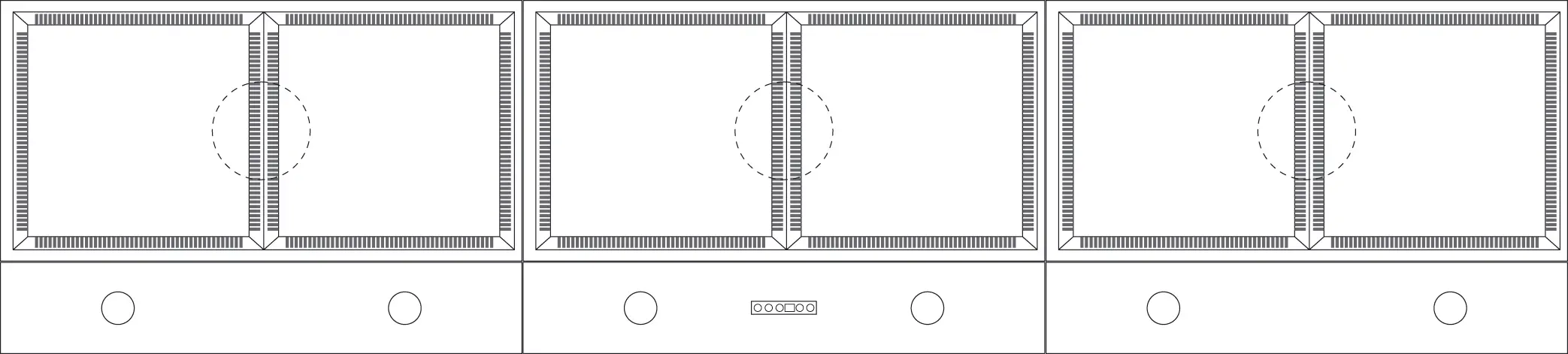

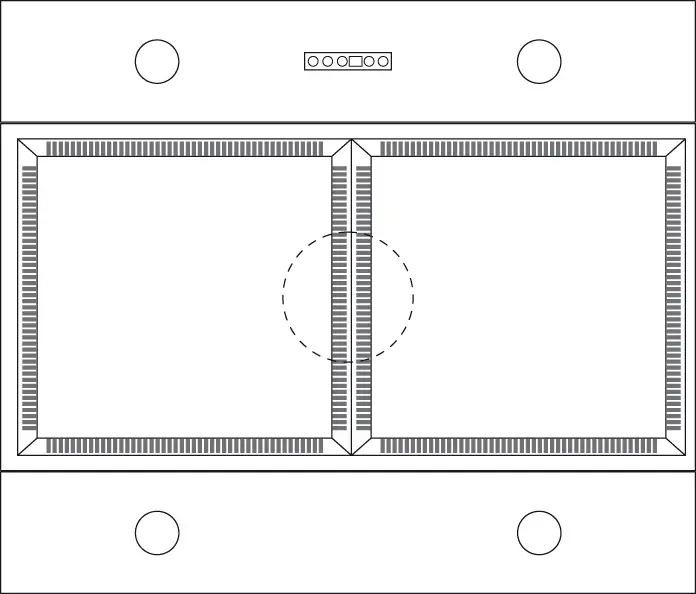

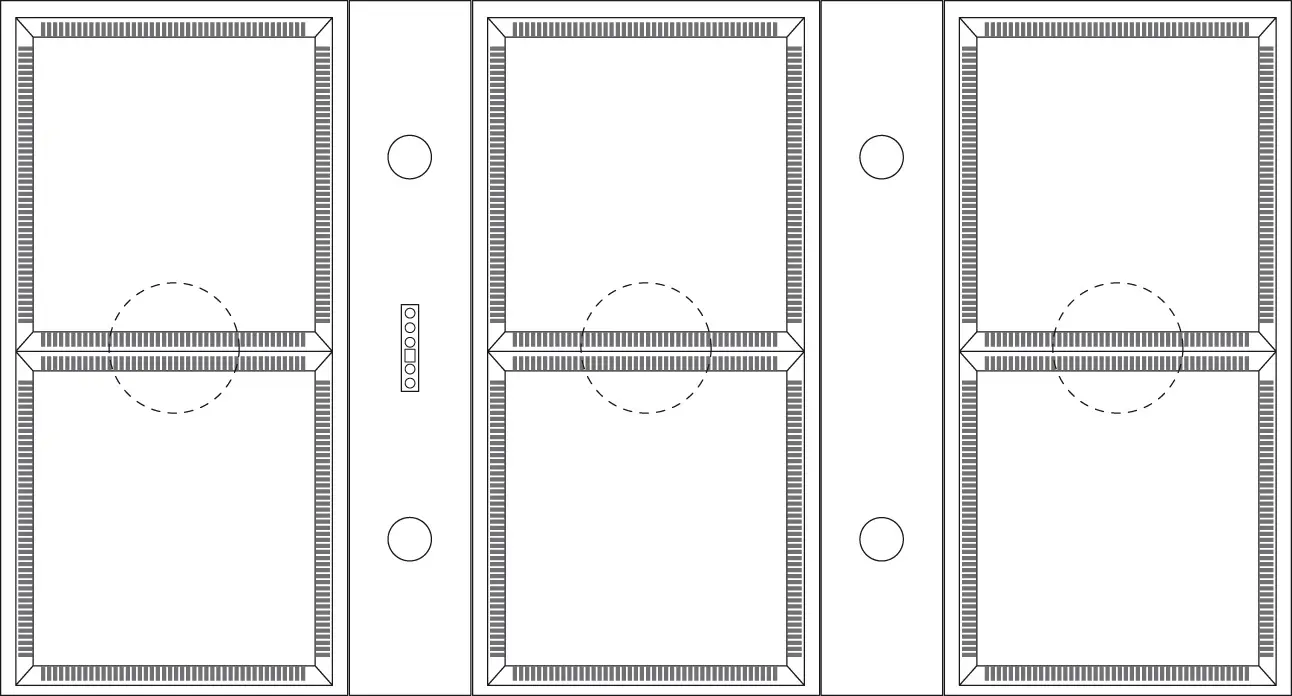

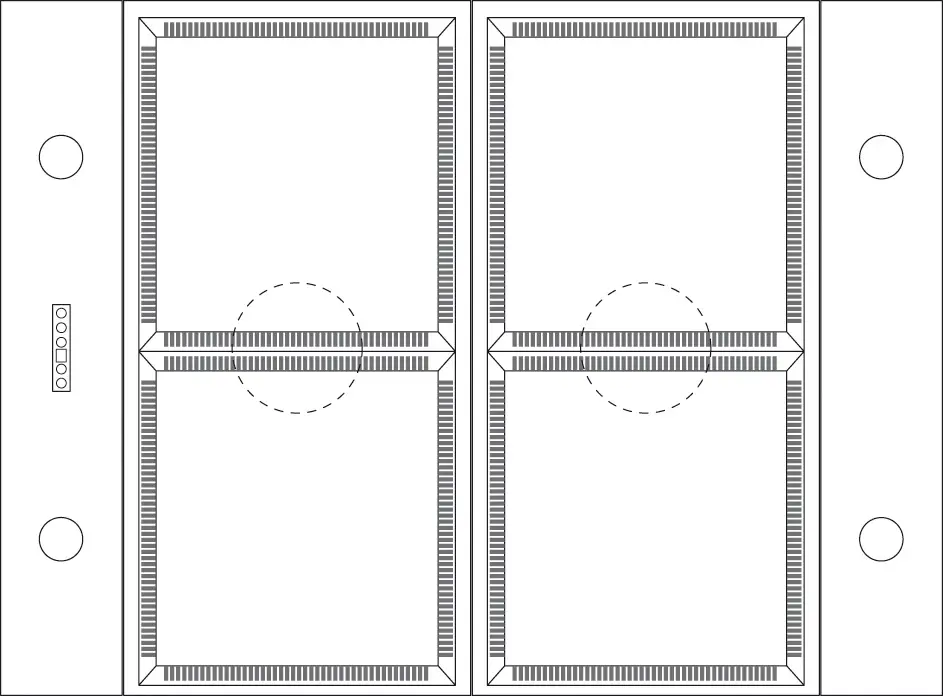

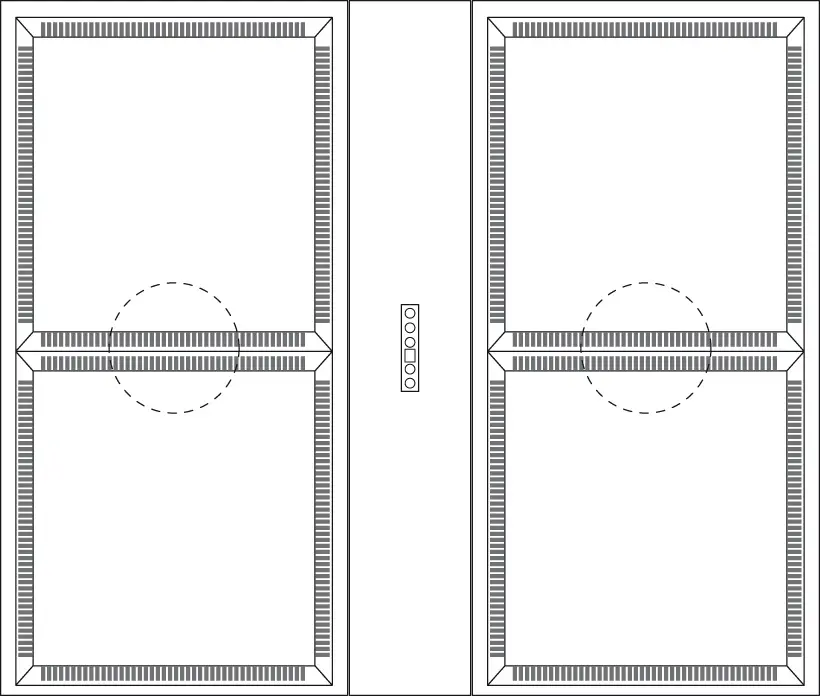

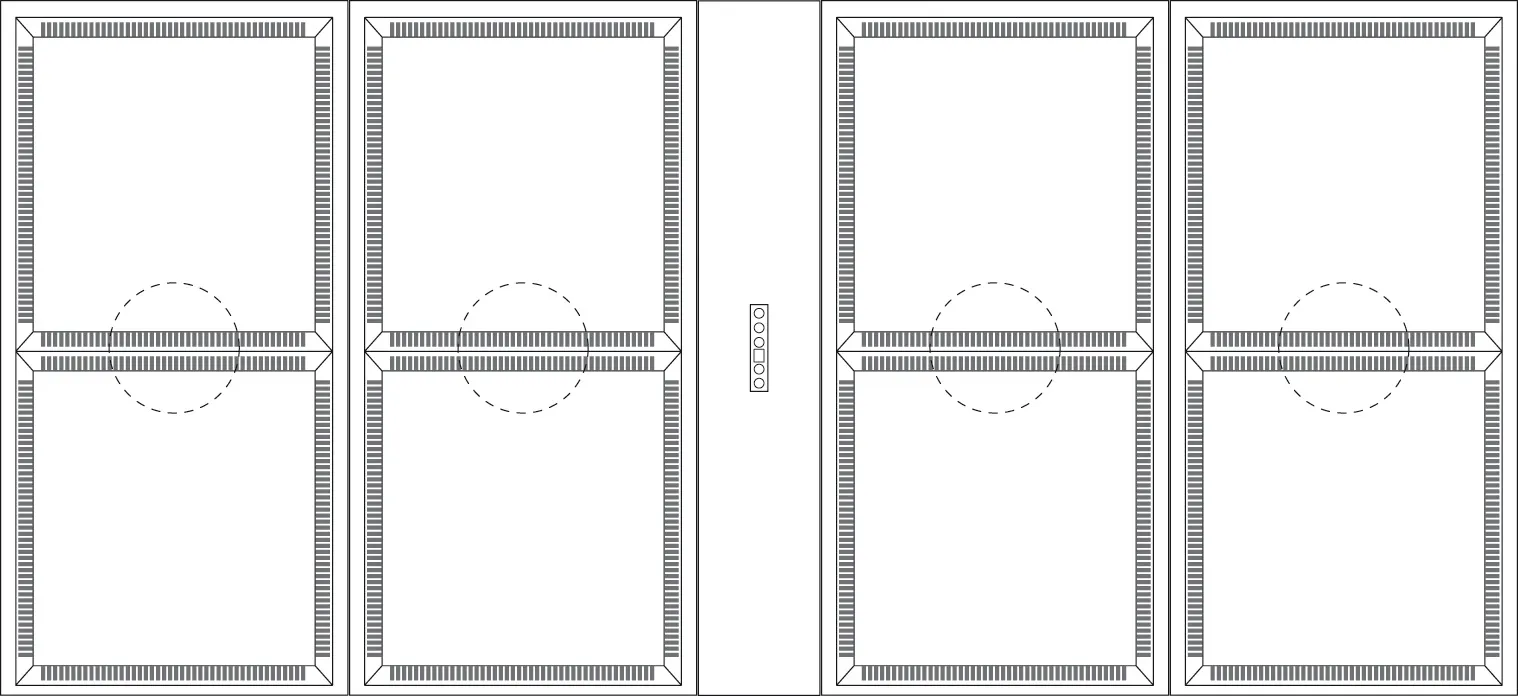

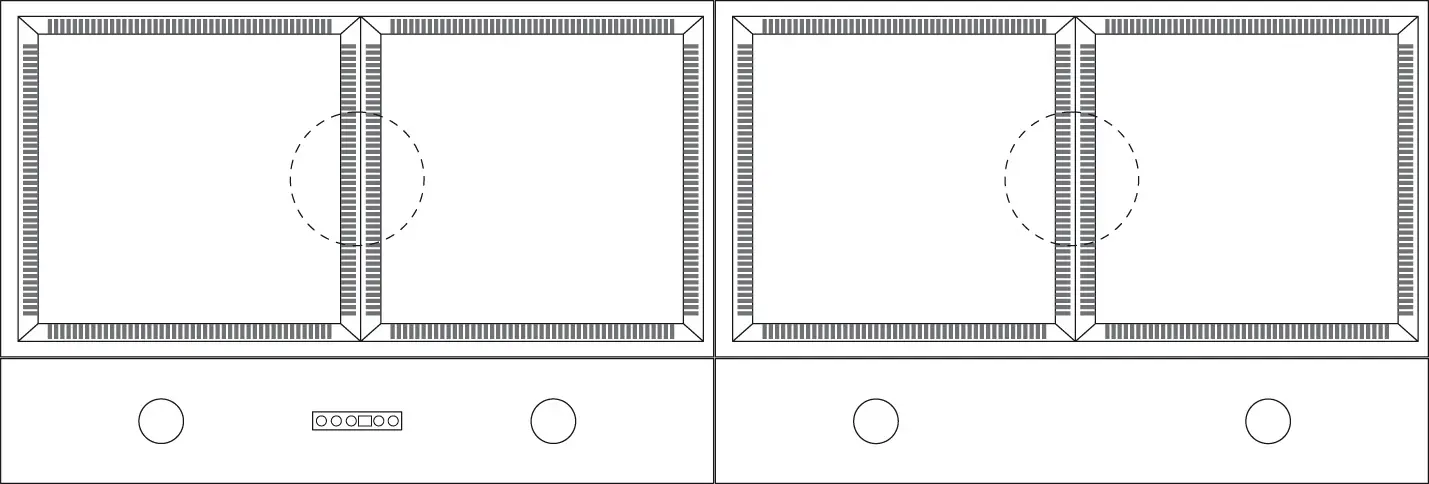

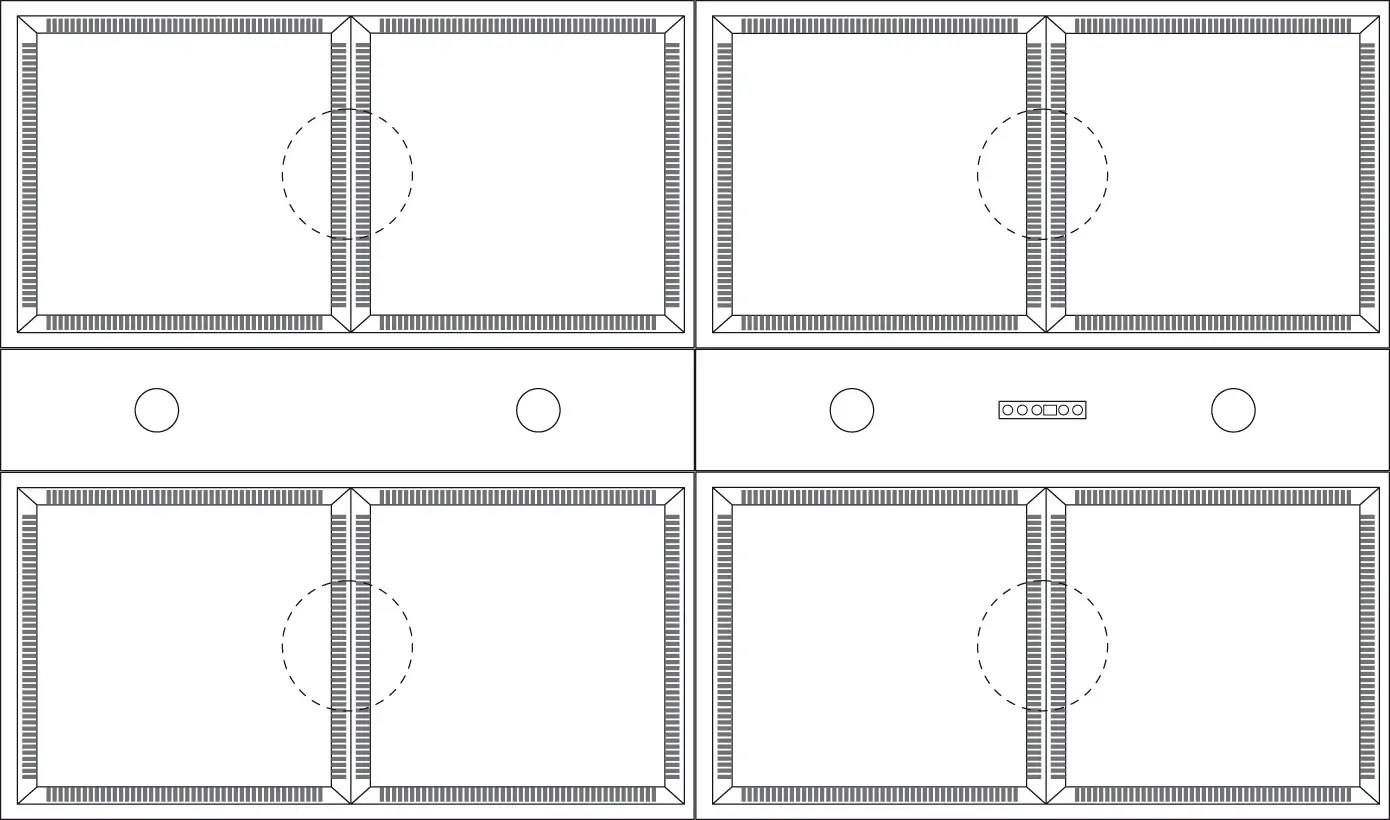

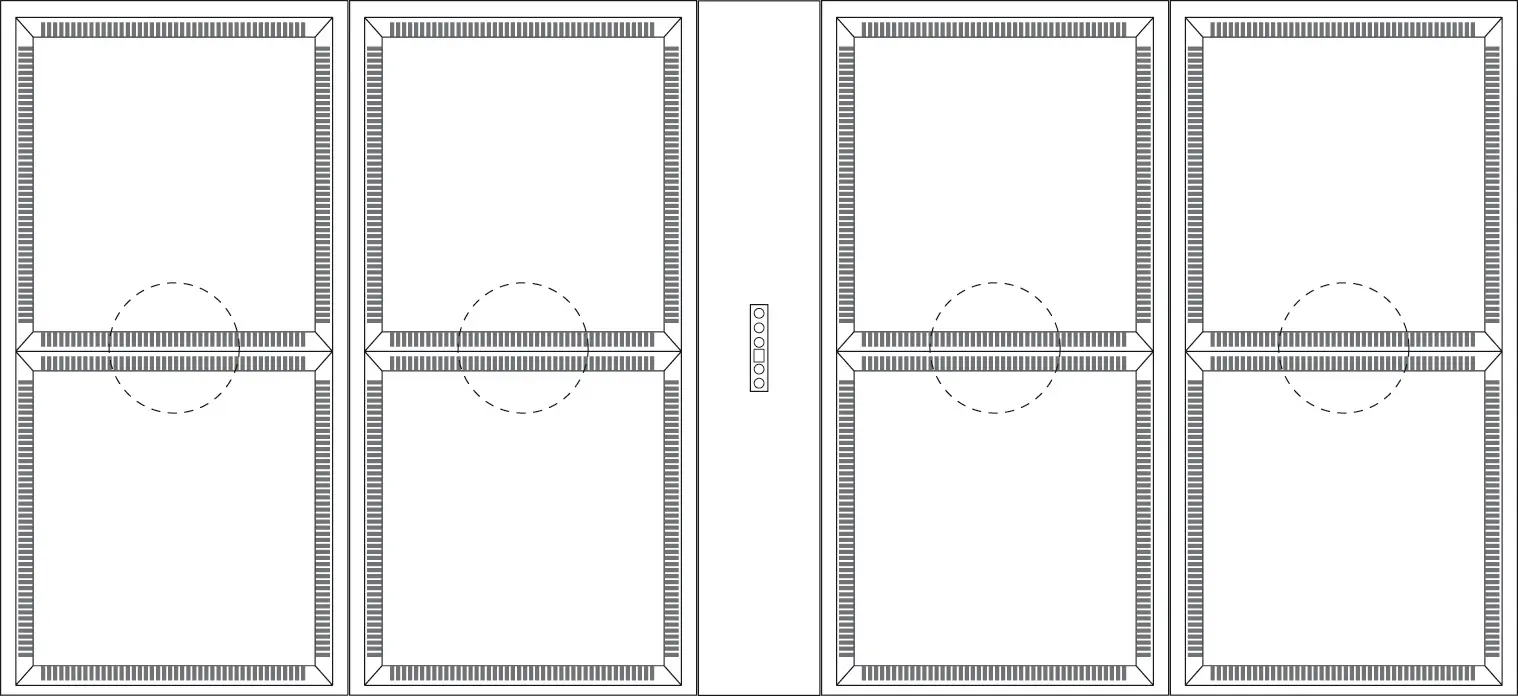

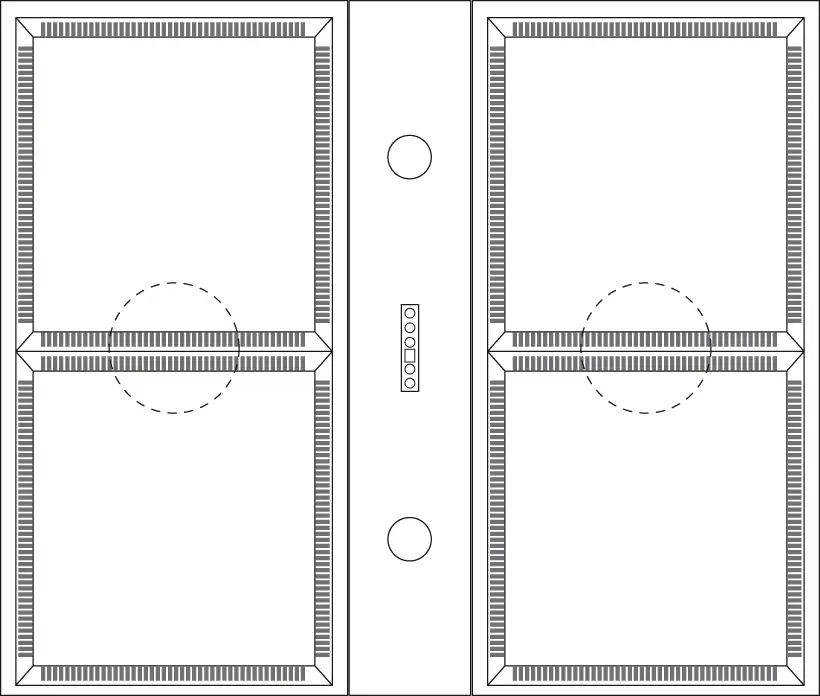

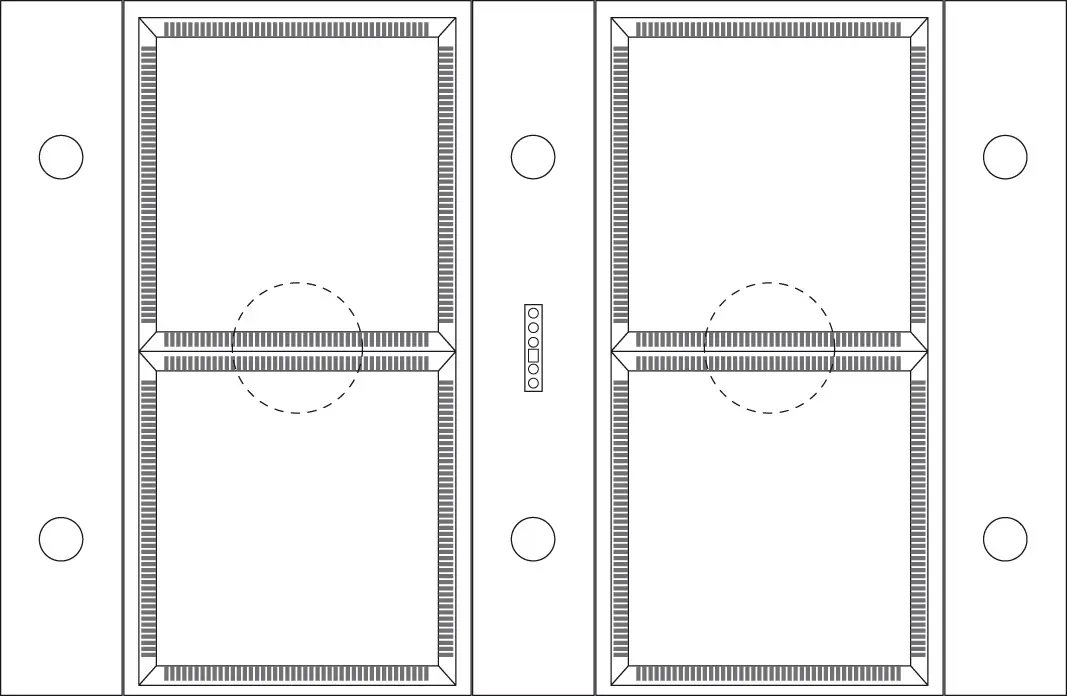

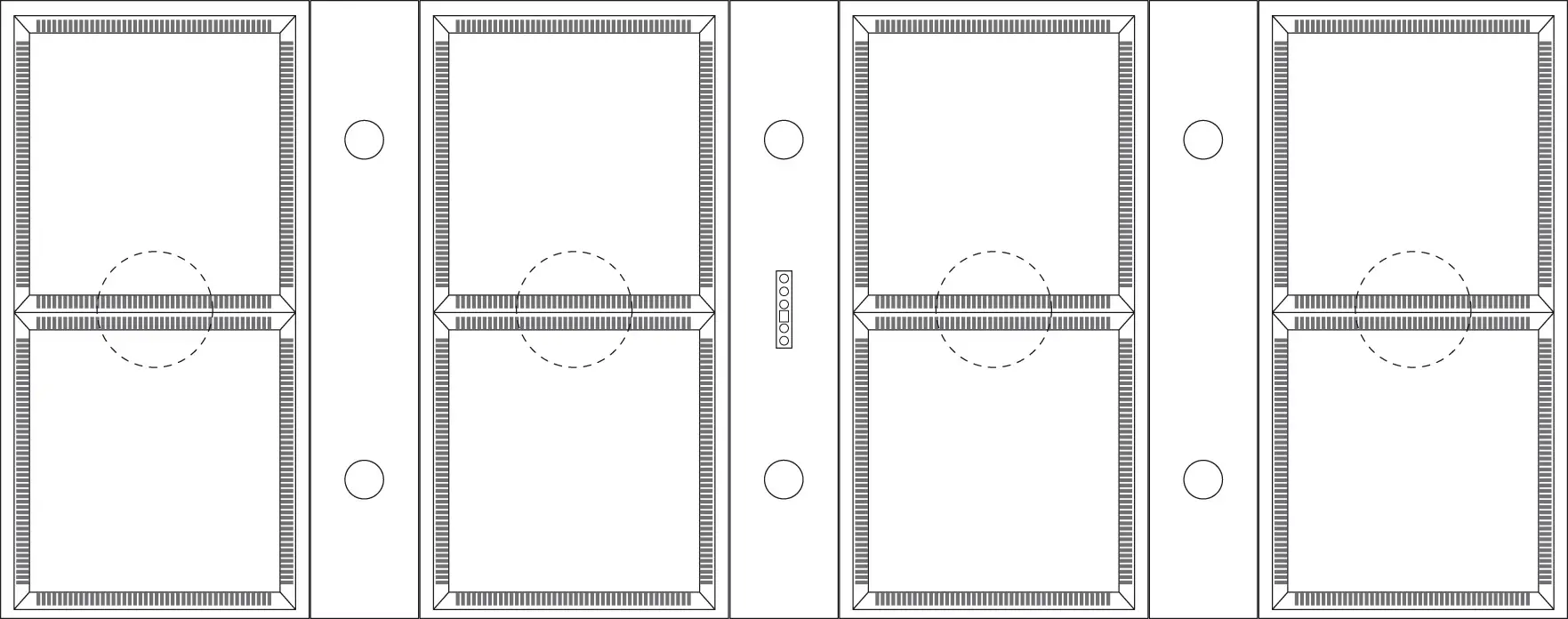

Please refer to page xxx for recommended configurations of ceiling ventilations and remote fan units and the resulting dimensions.

Air extraction in combination with remote fan unit AR 400/401. For recirculation mode 1 activated carbon filter KF 273 198 per filter module is needed.

Max. 2 filter modules to be connected to 1 AR 400 131 or AR 401 131/140. Max. 4 filter modules to be connected to 1 AR 400 140.

When installing remote fan unit within the ceiling or furniture block it must remain accessible through the ceiling cutout or another maintenance access.

To be installed in standard ceiling or furniture cutout which will be covered by module frames with 0.8 mm thickness.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs a suitable safety switch.

For maximum exhaust air line use Gaggenau flat duct system AD 8… or Naber-System Compair flow. Other flat ducts are not permitted!

Please ensure when installing the exhaust air ducting that no sharp bends are caused and that the cross-section of the ducting is not constricted in any way.
