Vario cooling Expressive series Built-in Fridge-freezer with Freezer at Bottom 213.4 x 90 cm
RVY497190

Find a local Dealer

Vario cooling Expressive series Built-in Fridge-freezer with Freezer at Bottom 213.4 x 90 cm
RVY497190

Find a local Dealer

Technical Overview

Main colour of product
Not applicable
Gaggenau Home Connect
Yes
Freshness system
VitaFresh Pro, Freshness Standard

Highlights

Special Features

Dark brushed stainless steel interior, refined with solid anthracite aluminium elements
Warm white and glare-free LED light concept for optimal food presentation
Spacious freezing compartment with integrated ice maker
Professional freshness system with five different climate zones
Guided interaction via intuitive touch display

Specifications

Dark brushed stainless steel interior, refined with solid anthracite aluminium elements
Warm white and glare-free LED light concept for optimal food presentation in all compartments
Opening assist for door enabling seamless integration without handles
Flat dark brushed stainless steel inner door
Flexible positioning of shelves and door racks through hidden rail system
Solid anthracite aluminium door racks
Professional freshness system with 2 fresh climate drawers and 1 chilled drawer
Integrated ice maker with fixed water connection.
Spacious, fully extendable freezer compartment including 2 additional interior drawers
Full touch TFT display
Total volume: 576 litres
Opening assist for door and drawer.
Cushioned door closing system.
Light and display response to drawer interaction.
Automatic brightness adjustment based on ambient illumination.
Easy accessible full touch TFT display with clear text.
Animated quick guides to assist appliance maintenance.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Constant air purification by 2 activated charcoal air filters.
Rest mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction alarm.
Remote control and monitoring.
Storage management with cameras.
Automatic programme selection of fresh climate drawers (via object recognition).
Personalisation function for saving custom programmes.
Professional freshness system.
No-Frost technology with fast cooling.
Temperature adjustable from +2 °C to +8 °C.
3 aluminium-framed safety glass shelves, individually adjustable in height.
1 integrated safety glass shelf.
Optimal food presentation with warm white and glare-free, hidden LED light bars (3000 K).
Flexible positioning of door racks through hidden rail system.
6 door racks, thereof 4 height adjustable.
Total volume of all refrigerator compartments: 379 litres.
2 fresh climate drawers with humidity control.
Temperature adjustable from -1 °C to +2 °C.
Ideal storage conditions for different foods through dedicated programmes (e.g. Fruit, Vegetables, Meat).
Individual adjustment of temperature and humidity.
Extended food preservation with ethylene absorber.
Indirect illumination, transparent front.
Fully extendable, with cushioned closing system.
Temperature dependent on cooling compartment (always 2K to 3K lower).
Indirect illumination, transparent front.
Fully extendable, with cushioned closing system.
No-frost technology with fast freezing at -30 °C.
4-star freezer compartment.
Temperature adjustable from -24 °C to -16 °C.
Freezer burn protection.
Oxidation protection.
Freezing capacity 14 kg /24 h.
Storage time after a malfunction 19 h.
Spacious, fully extendable freezer compartment with synchronously running pull-out rails.
2 extendable interior drawers.
Warm-white, glare-free LED lighting (3000 K).
Total volume of freezer compartment: 197 litres.
Integrated in the freezer compartment, with fixed water connection (inlet).
Can be switched off.
Particle filter for water inlet, integrated in ventilation grille area.
Saturation indicator for filter via full touch TFT display
Ice cube production: approx. 3 kg /24 h.
Removable ice storage container with approx. 3 kg capacity.
Integrated, easy accessible ice cube scoop.
Energy efficiency class D at a range of energy efficiency classes from A to G.
Energy consumption 285 kWh/year.
Noise level 39 dB (A) re 1 pW.
Flat hinge.

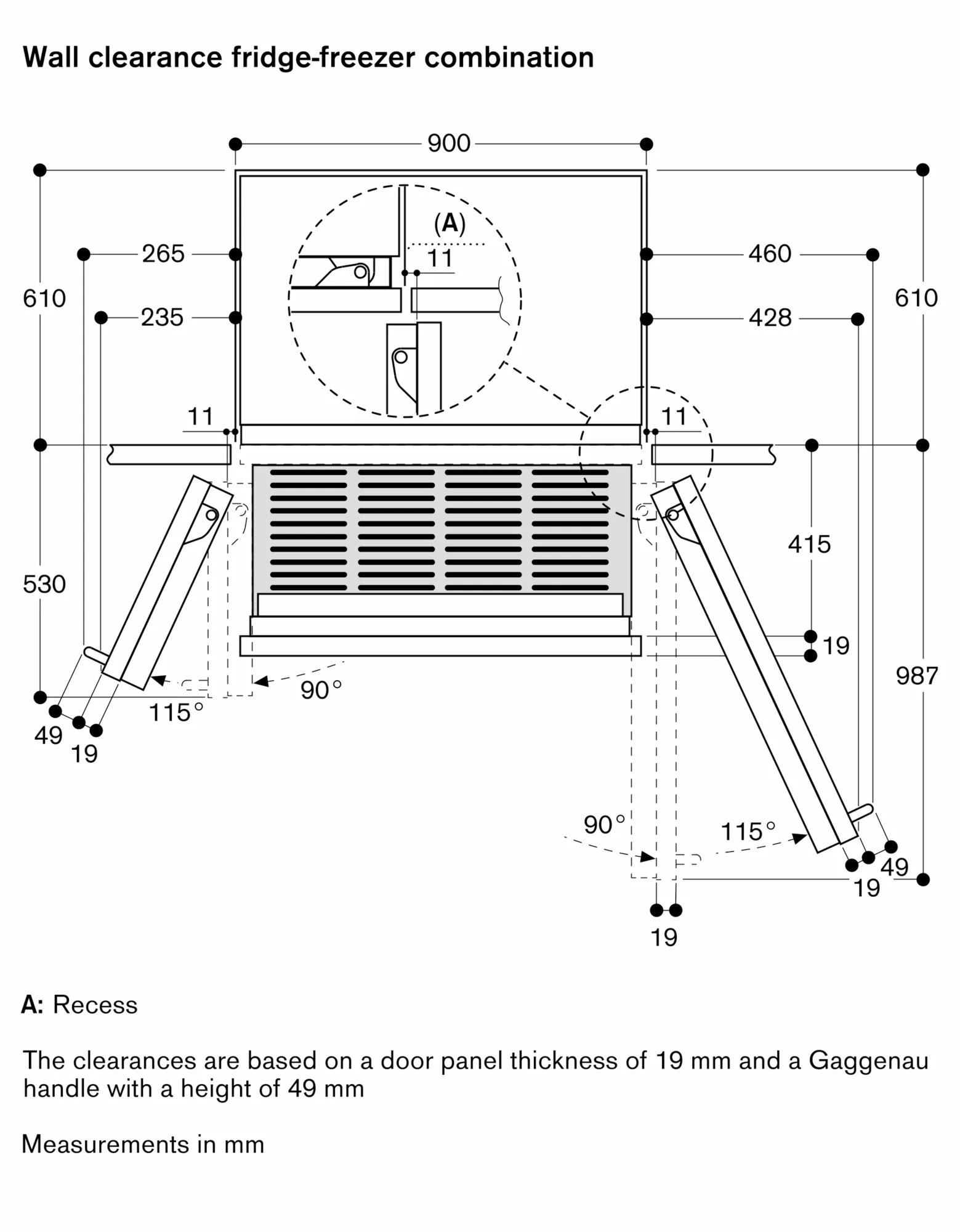

Door opening angle of 115°, fixable at 90°.

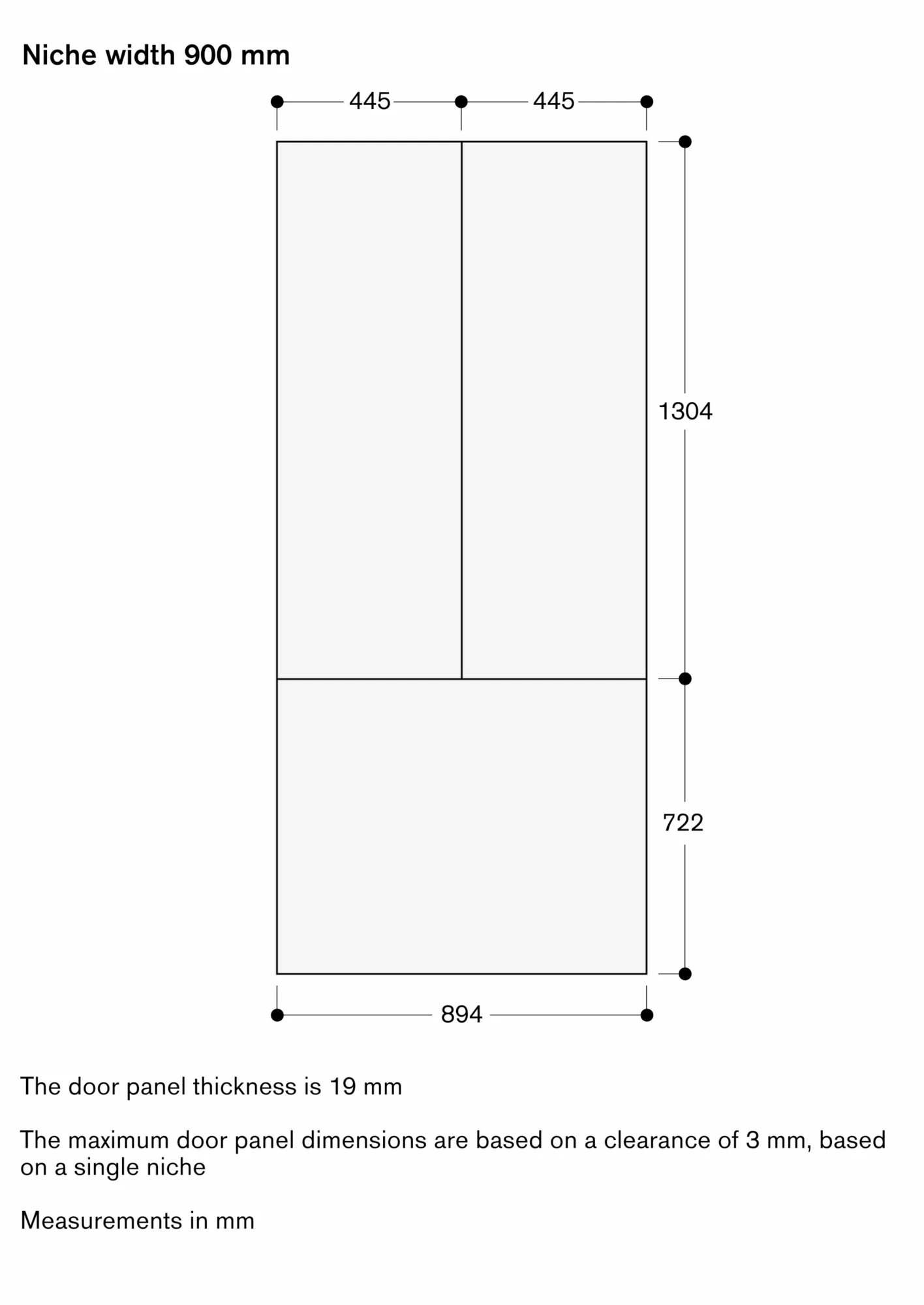

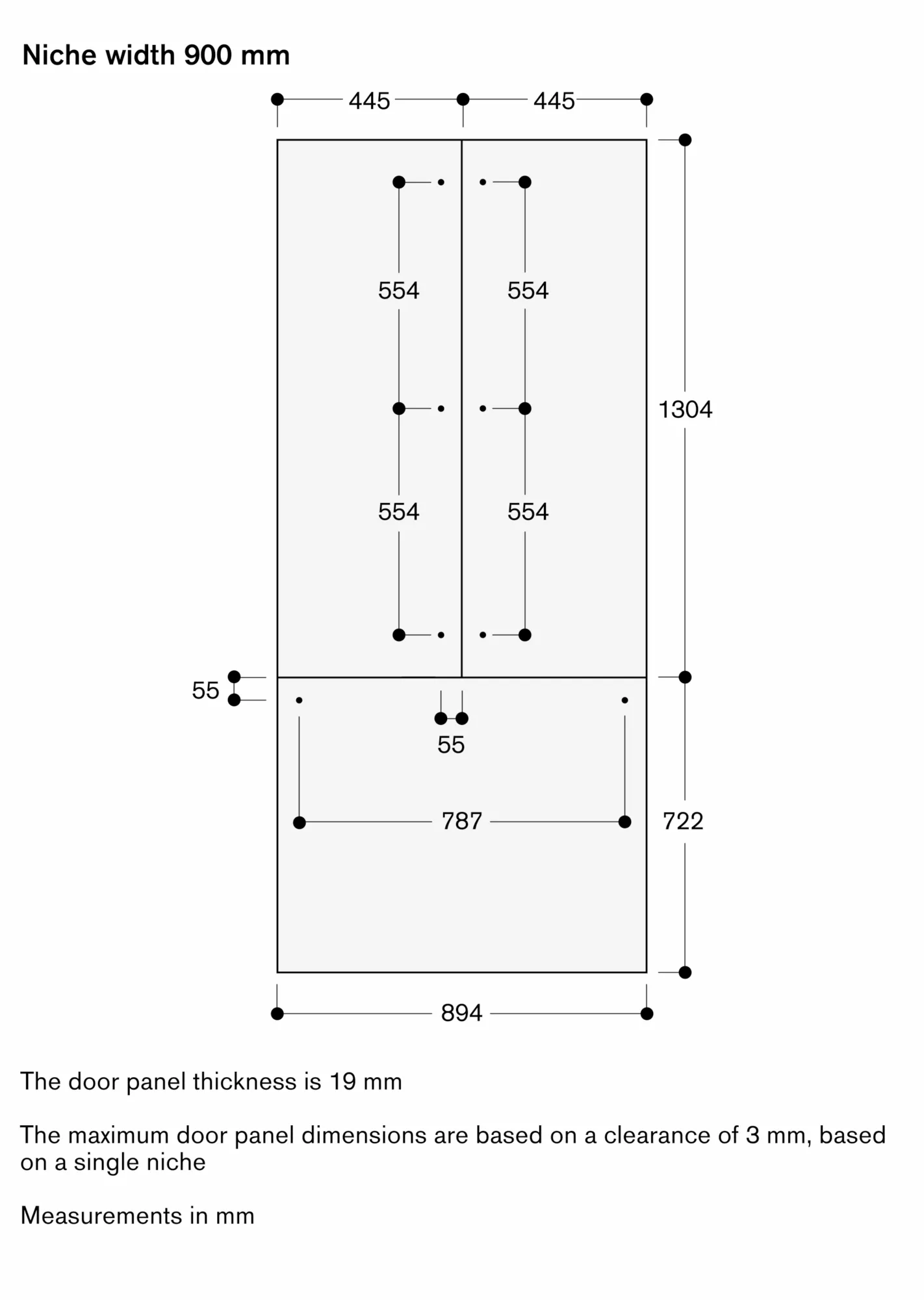

Max. door panel weight:
Each door 64 kg.
Drawer 14 kg.

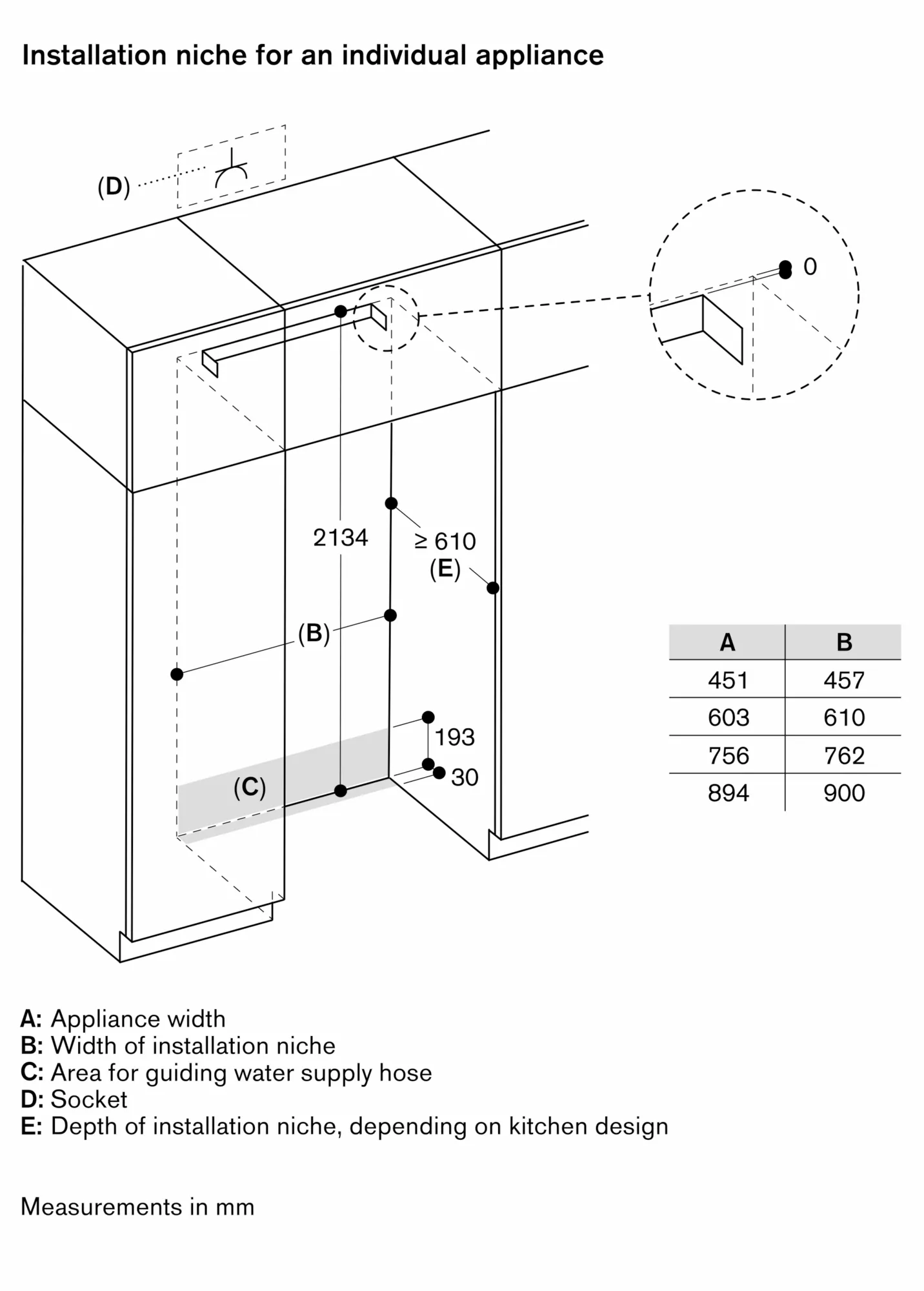

Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total connected load: 0.200 KW.
Connecting cable 3.0 m, detachable.
Water inlet.
Supply hose 1.8 m with 3/4" connection.
Water pressure 2 bar to 8 bar.
