Air duct part ⌀ 150 mmAD750054 • 17005193Replacement for
AD750053
AD750054 • 17005193
Replacement for
AD750053
1 / 3
Air duct part ⌀ 150 mmAD750054 • 17005193Replacement for
AD750053
AD750054 • 17005193
Replacement for
AD750053
Find a local Dealer
Air duct part ⌀ 150 mmAD750054 • 17005193Replacement for
AD750053
AD750054 • 17005193
Replacement for
AD750053
Find a local Dealer
Check appliance compatibility
How to find your E-Number
The model number (E-number) is located on the type plate of your device.
Technical Overview
Product group for which the accessory is available
Hood
Specifications
Optimal temperature insulation
Hermetically sealed by an optimized built-in heat retention system.
Flat stainless steel cover with minimal effect to the aesthetics of the building exterior facade.
Weatherproof stainless steel louvers.
3-times insulating Backflow system.
Magnetic opening and closing.
Defined opening pressure (65 Pa) prevents rattling.
Full opening even at low flow rates.

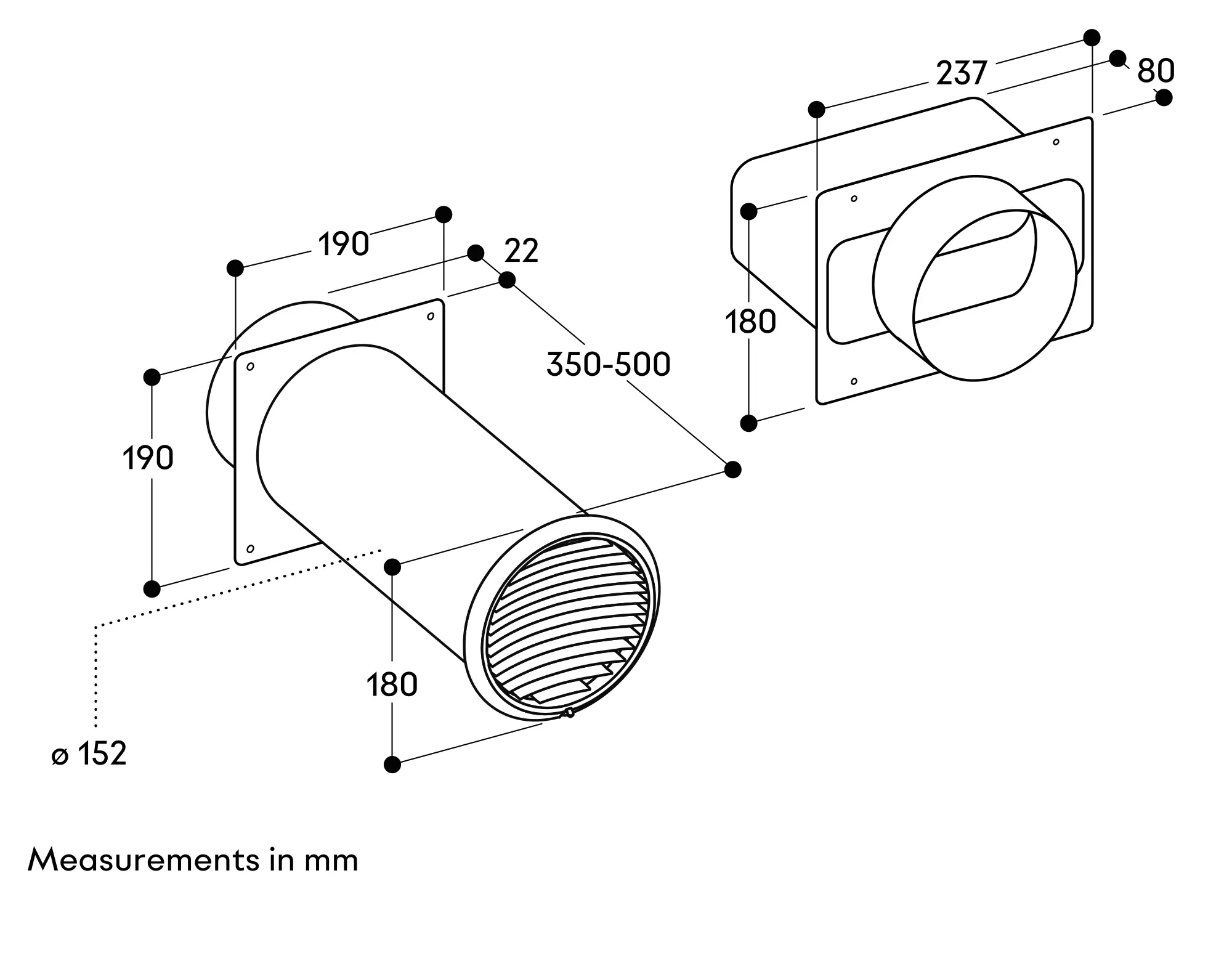

Telescopic wall duct 350 - 500 mm for round pipe connection piece DN 150.
Conform to blower-door test.
For connection of round pipe DN 150 or flat pipe DN 150.
